Model:
EC9P042BB-S
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC9P042BB-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea EC9P042BB-S

Summary of Contents for Midea EC9P042BB-S

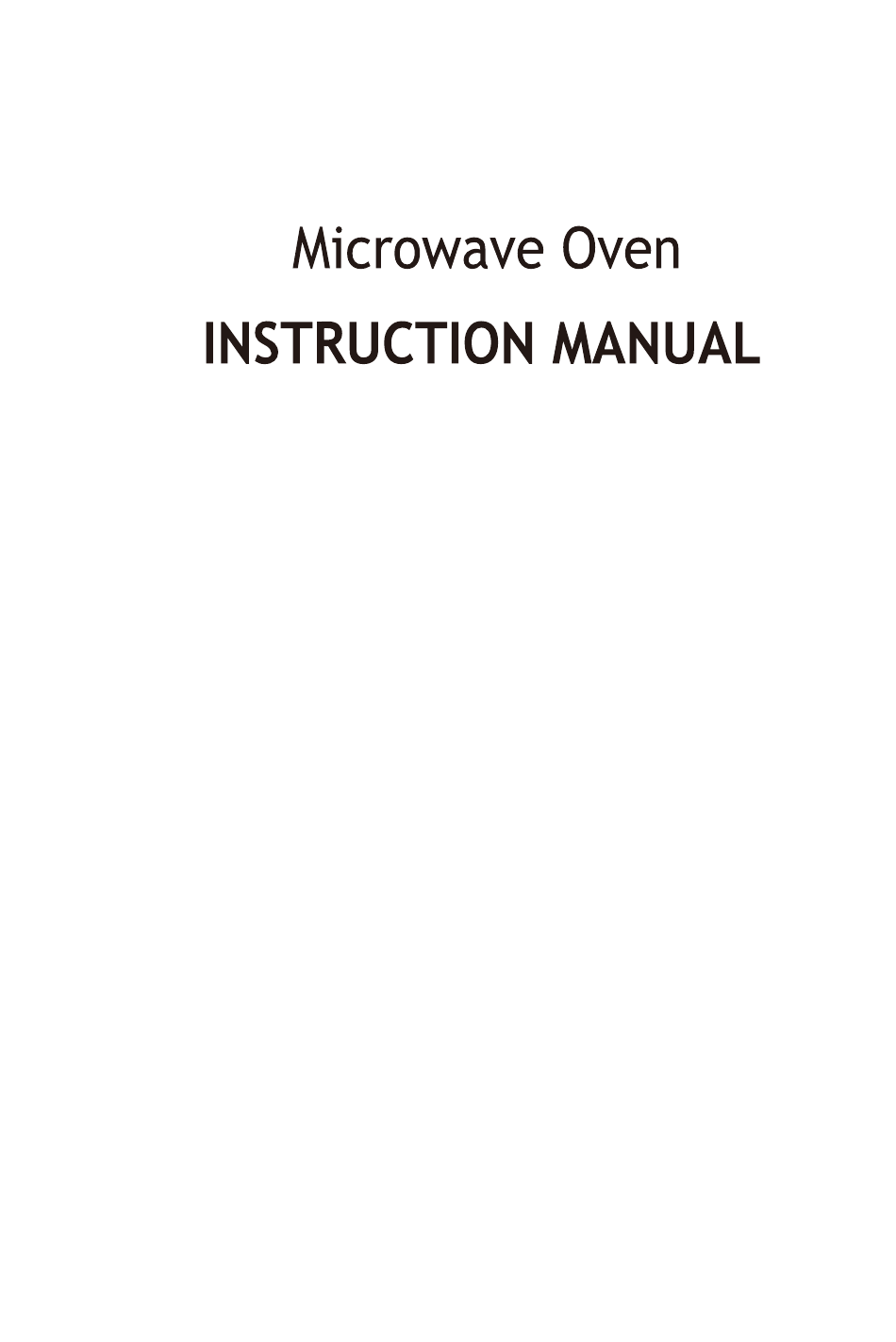

  • Page 1 Model: EC9P042BB-S Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...

  • Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    (3) DOOR SEALS AND SEALING SURFACES (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Sp ec i f i c at i o n s Model: EC9P042BB-S Rated Voltage: 120V-60Hz Rated Input Power (Microwave): 1500W...
  • Page 3 When using electrical appliances basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2.
  • Page 4 17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

  • Page 5: Grounding Instructions

    GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

  • Page 6: Radio Interference

    RADIO INTERFERENCE 1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment. 2. When there is interference, it may be reduced or eliminated by taking the following measures: 1) Clean door and sealing surface of the oven 2) Reorient the receiving antenna of radio or television.

  • Page 7: Materials You Can Use In Microwave Oven

    Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer* instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

  • Page 8: Setting Up Your Oven

    SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window...

  • Page 9: Countertop Installation

    Countertop Installation Remove all packing material and accessories. Cabinet: Remove any protective film found Examine the oven for any damage such as on the microwave oven cabinet surface. dents or broken door. Do not install if oven is Do not remove the light brown Mica cover damaged.

  • Page 10: Operation

    OPERATION 1. Power Level 11 power levels are available. Level Power 100% Display PL10 2. Setting the Clock After connecting the oven to the power, “00:00” shows on the display. Buzzer sounds. (1) Press “TIMER/CLOCK” twice and then “00:00” will display. (2) Press number keys to enter the time.

  • Page 11: Microwave Cooking

    4. Microwave Cooking (1) Press “MICRO” and then “PL10” will display. (2) Press “MICRO”or “-” ,“+” to set the power level.The 11 power levels are available. (3) Press “10min”, “1min”, “1sec” to set the cooking time, The maximum time value is “99:50”...
  • Page 12 5. Air fry (1) Press “ AIRFRY” and then “A-1” will display. (2) Press “MICRO”or“-” ,“+” to select menu from A-1 to A-10 . (3) Press “START/+30SEC.” to start cooking. Air fry menu Menu Display Weight Cooking time Frozen French fries 11Oz 23:00 10Oz...
  • Page 13 Notes: (1) The default power level is convection. (2) Use the accessory pan and rack. Put the food into the pan and place the pan on the rack. The height of rack is 40mm. (3) Buzzer will sound during cooking to remind you to turn over the food. 6.

  • Page 14: Combination Cooking

    9. Combination Cooking (1) Press “Combo” once or twice and then “C-1”, “C-2” will display. (2) Press “10min”, “1min”, “1sec” to enter cooking time. The maximum time value is “99:50” . (3) Press “START/+30SEC.” to start cooking. Microwave Function Display Grill Power Power Combi.

  • Page 15: Multi-Stage Cooking

    11. Multi-Stage Cooking Notes: (1) Two cooking stages can be set in multi-stage cooking. (2) If you set defrost function, it will work automatically in the first stage. (3) Kitchen Timer, Auto menu cannot be set as one of the multi-stage. Example: defrost food for 1 minutes and then cook with 80% microwave power for 1 minutes (1) Press “...

  • Page 16: Eco Function

    13. ECO Function To enter ECO mode: In waiting state, press “ECO”once within one second. The oven will enter waiting state. To cancel ECO mode: In non-ECO mode, the display always turn on. If the oven door is opened, the furnace lights also turn on. 14.
  • Page 17 15. Potato (a) Press “Potato” repeatedly to select the number of potato. “1”, “2” and “3” will display in order. Example: press “Potato” once and then “1” displays “1”: one potato (approximate 8 Oz ) “2”: two potatoes (approximate 16 Oz ) “3”: three potatoes (approximate 24 Oz ) (b) Press “START/+30SEC.
  • Page 18 17. Reheat (a) In waiting state, press “Reheat” repeatedly to select the weight of reheat you want. “9” ，“12” and “18” Oz will display in order. Example: press “Pizza” once and then “4” displays (b) Press “START/+30SEC.” to start cooking. 18.

  • Page 19: Auto Menu Chart

    19. Auto menu (1) Press“ Menu” and then “C-1” will flash. (2) Press “Menu”or“-” ,“+” to select the menu you need. 6 auto menus are available. (3) Press “START/+30SEC.” to confirm. (4) Press “Menu”to set the weight of food. (5) Press “START/+30SEC.” to start cooking. Auto Menu Chart Menu Display...

  • Page 20: Inquiring Function

    20. Inquiring Function (1) If the clock has been set, the current time will display for three seconds by pressing “TIMER/CLOCK” in the cooking state. (2) In the microwave cooking state, press “MICRO” to inquire the power level. It will display for three seconds. In multi-stage cooking state, the inquiring way can be done by the same way as above.

  • Page 21: Maintenance

    MAINTENANCE Troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a. Electrical cord for oven is a.
