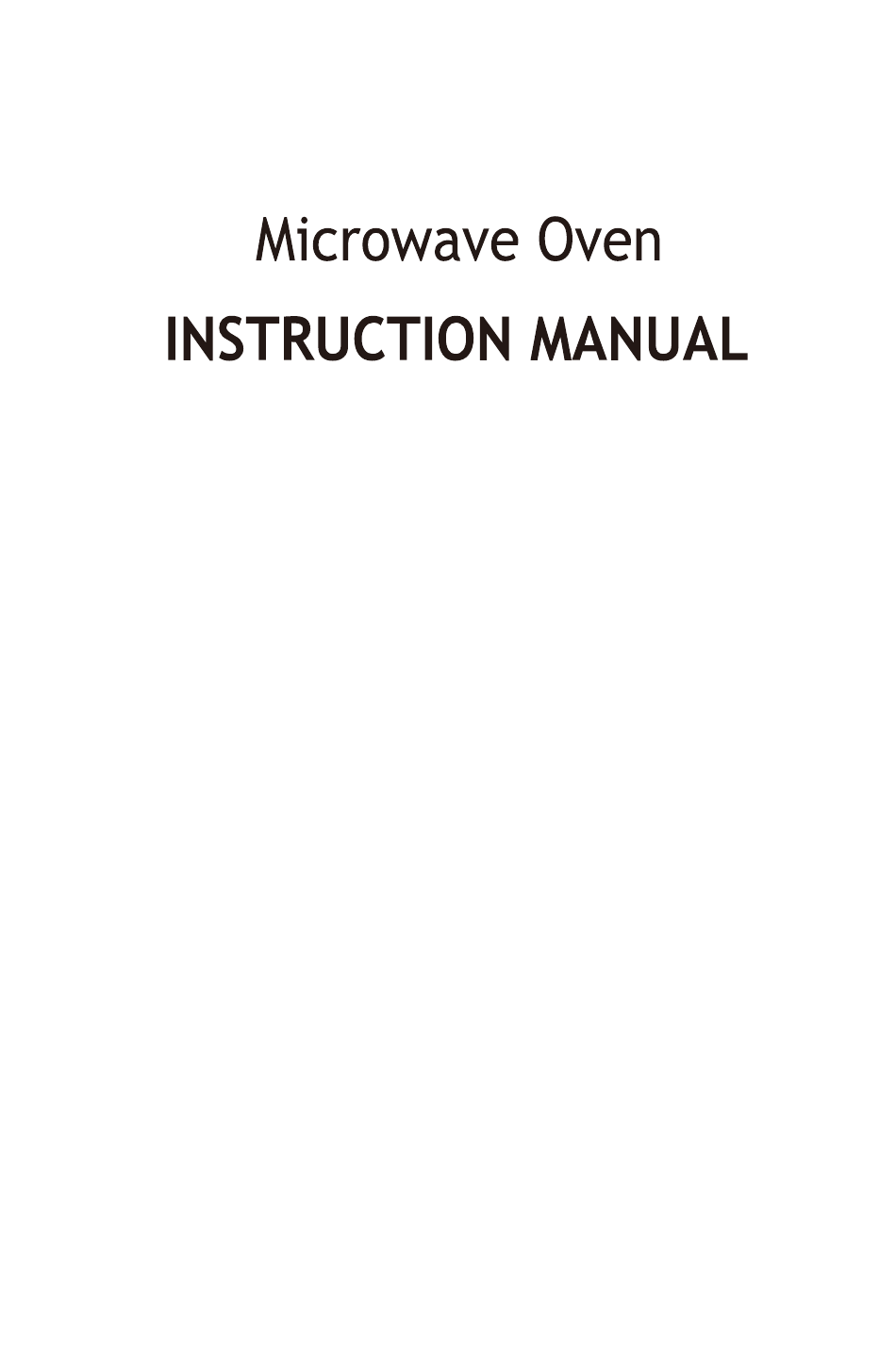

- Page 1 Model:EC028AD7-S1R Kit No.:KITB2801S Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...
-
Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
(2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACES (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Specifications EC028KD7-AF, EC028BMR-AF Model: Rated Voltage: 120V~ 60Hz Rated Input Power(Microwave):... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. - Page 4 17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
-
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. -
Page 6: Radio Interference
RADIO INTERFERENCE 1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment. 2. When there is interference, it may be reduced or eliminated by taking the following measures: 1) Clean door and sealing surface of the oven 2) Reorient the receiving antenna of radio or television. - Page 7 Materials you can use in microwave oven Utensils Remarks Follow manufacturer’s instructions.The bottom of browning dish Browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer’s instructions. Dinnerware Do not use cracked or chipped dishes.
- Page 8 NAMES OF OVEN PARTS AND ACCESSORIES (In case of any differences between the appliance and the pictures in this manual, the product shall prevail.) Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass Tray Turntable Ring Assembly Instruction Manual...
- Page 9 TURNTABLE INSTALLATION Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly.
-
Page 10: Installation
Installation Instructions IMPORTA NT SA FETY INSTRUCTION The appliance must be disconnected from the source of supply before attempting the installation of the accessory. Accessories DUCT BOTTOM DUCT UPPER DUCT BACK SCREW A SCREW B TRIM SASH PART NANE Q'TY DUCT BOTTOM •... - Page 11 Step 1.CHECK THE TRIM SASH Take out the trim sash from the packing box, and make sure the trim sash is the same showing as the FIG. 2. FIG.2 Step 2.CHECK THE AIR DUCTS Take out the microwave oven from packing box, please check the duct upper, duct bottom, duct back if assembled as the showing of FIG3, and fasten the screws.
-
Page 12: Control Panel And Features
OPERATION Control Panel and Features (10) (11) (12) (14) (13) (1) Micro. (2) AIRFRY (3) Conv. (4) Broil (5) Grill (6) Combo (7) Auto menu 1: Potato,Pizza, Reheat,Popcorn (8) Defrost (9) Auto menu 2: Menu (10) Timer/Clock (11) 10min/1min/10sec (12) Stop/Cancel: clears all previous setting pressed before cooking starts. During cooking: press once to stop oven;... - Page 13 OPERATION INSTRUCTION 1. Power Level 11 power levels are available. Level 10% 0% Power 100% Display PL10 2. Setting the Clock After connecting the oven to the power, “0:00” shows on the display. Buzzer sounds. (1) Press “TIMER/CLOCK” twice and then “00:00” will display. (2) Press “10min”, “1min”, “10sec”...
-
Page 14: Microwave Cooking
4. Microwave Cooking (1) Press “MICRO.” and then “PL10” will display. (2) Press “MICRO.” repeatedly or “-” ,“+” to set the power level.The 11 power levels are available. (3) Press “10min”, “1min”, “10sec” to set the cooking time, The maximum time value is “99:50”... - Page 15 6. Air fry (1) Press “AIRFRY” and then “H-1” will display. (2) Press “AIRFRY" repeatedly or press “-” ,“+” to select menu from H-1 to H-9 . (3) Press “START/+30SEC.” will display cooking weight (4) Press “START/+30SEC.” to start cooking. Air fry menu Menu Display...
-
Page 16: Combination Cooking
When the preheating temperature arrives, the Buzzer will beep five times and return to standby if the time is not input in 5 minutes, 8. Conv. without Preheating (1) In standby mode press “ , Conv.” or once, the oven will display "100 ℉ ". (2) Press "Conv."... -
Page 17: Defrost By Time
11 Defrost 11.1 Defrost by weight (1) Press “Defrost” once and then the screen will display “dEF1”. (2) Press “10min”, “1min”, “10sec” set the desired defrost weight. The range of weight is 4~100Oz. (3) Press “START/+30SEC.” to start defrosting. (4) Once defrosting has finished, the buzzer will sound five times and return to standby. Note: Buzzer will sound twice to remind you to turn over the food when 40 percent of time has arrived. - Page 18 Pizza (1) In waiting state, Press “Pizza” once,“10” will display,press “Pizza” repeatedly or press “-” ,“+” to select the weight of pizza. “10” and “14” Oz will display in order. (2) Press “START/+30SEC.” to start cooking. Reheat (1) In waiting state, press “Reheat” once,then press “Reheat” repeatedly or press “- ”...
- Page 19 Auto Menu 2 Chart Menu Weight Display Cooking time 4 Oz 4 Oz 2′50″ 8 Oz 8 Oz 4′30″ MEAT 16 Oz 16 Oz 6′10″ 22 Oz 22 Oz 7′50″ 2′10″ 4 Oz 4 Oz 4′00″ Fresh 8 Oz 8 Oz VEGETABLE 5′30″...
- Page 20 15. Broil/Crispy Grill (1) In standby mode, press "Broil" once, the oven will display "C-1". (2) Press “broil” repeatedly or “-” ,“+” to select the menu you need."C-1"~"C-4" are available. (3) Press “START/+30SEC.” to confirm. (4) Press “-” ,“+” repeatedly to set the desired weight of food. (5) Press "...
- Page 21 16. ECO Function In standby state, press “ECO” once and the LED display will become darker. Press twice, it will become more lighter, and press three times, the LED display will be off. When the LED display stays off, press any function button once or open the door it can return to normal status.
-
Page 22: Troubleshooting
M ai n te n a nc e Troubleshooting Check your problem by referencing the chart below and trying the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a.
