DISASSEMBLY PROCEDURE

13. DISASSEMBLY PROCEDURE

1. Control box

1. Removing the control box cover
(1) Remove the three fixing screws on the cover
(A) to remove it.
• Tighten screws to a torque of 2.0±0.2 N·m.

2. Thermistor (Intake air)

1. Remove the control box cover according to the
procedure in section 1.
(1) Pull out the thermistor holder (B) and
thermistor (C) on the control box.
HWE24030
Exercise caution when removing heavy parts.

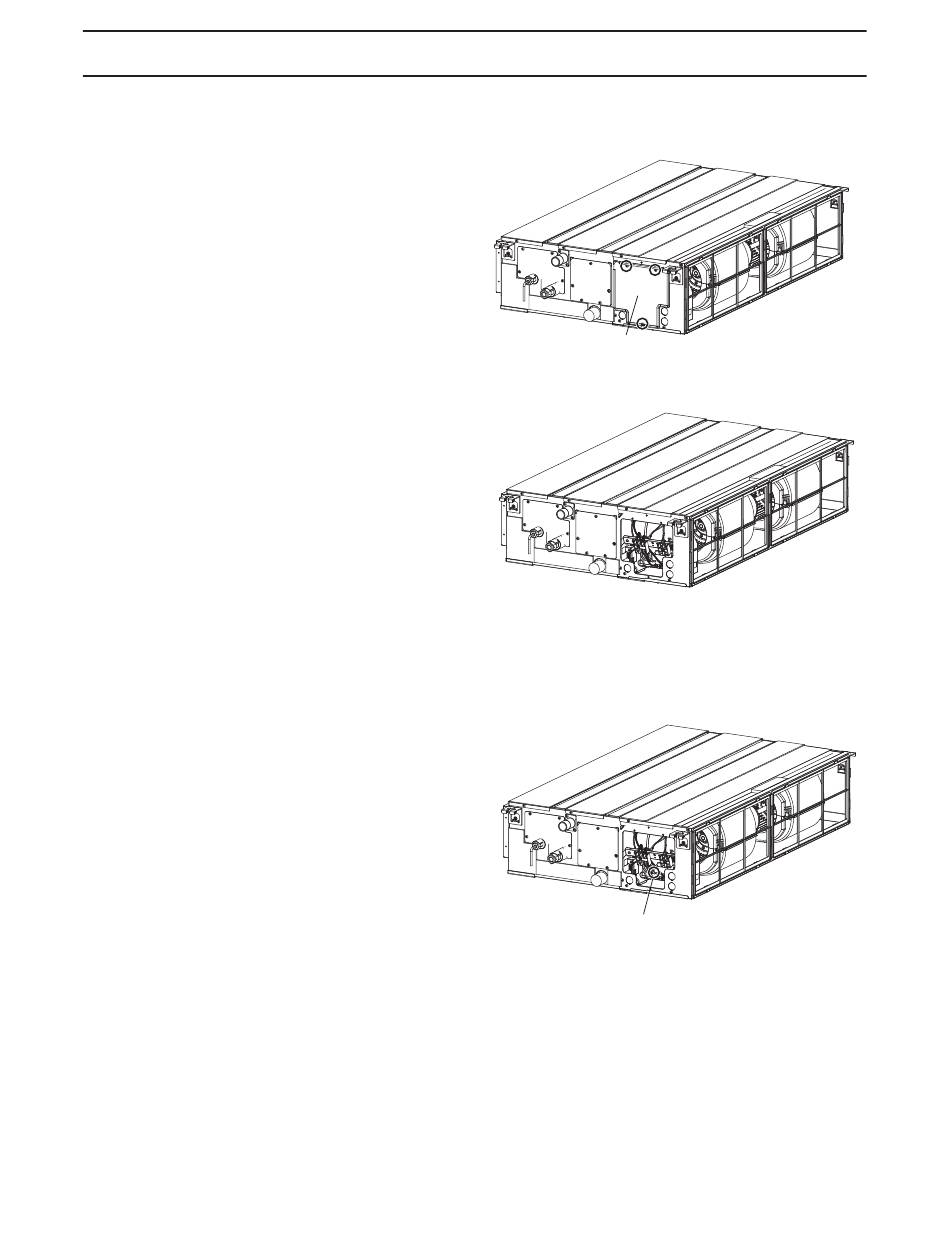

(A)
Fig. 1
Fig. 2
(B),(C)
Fig. 3
