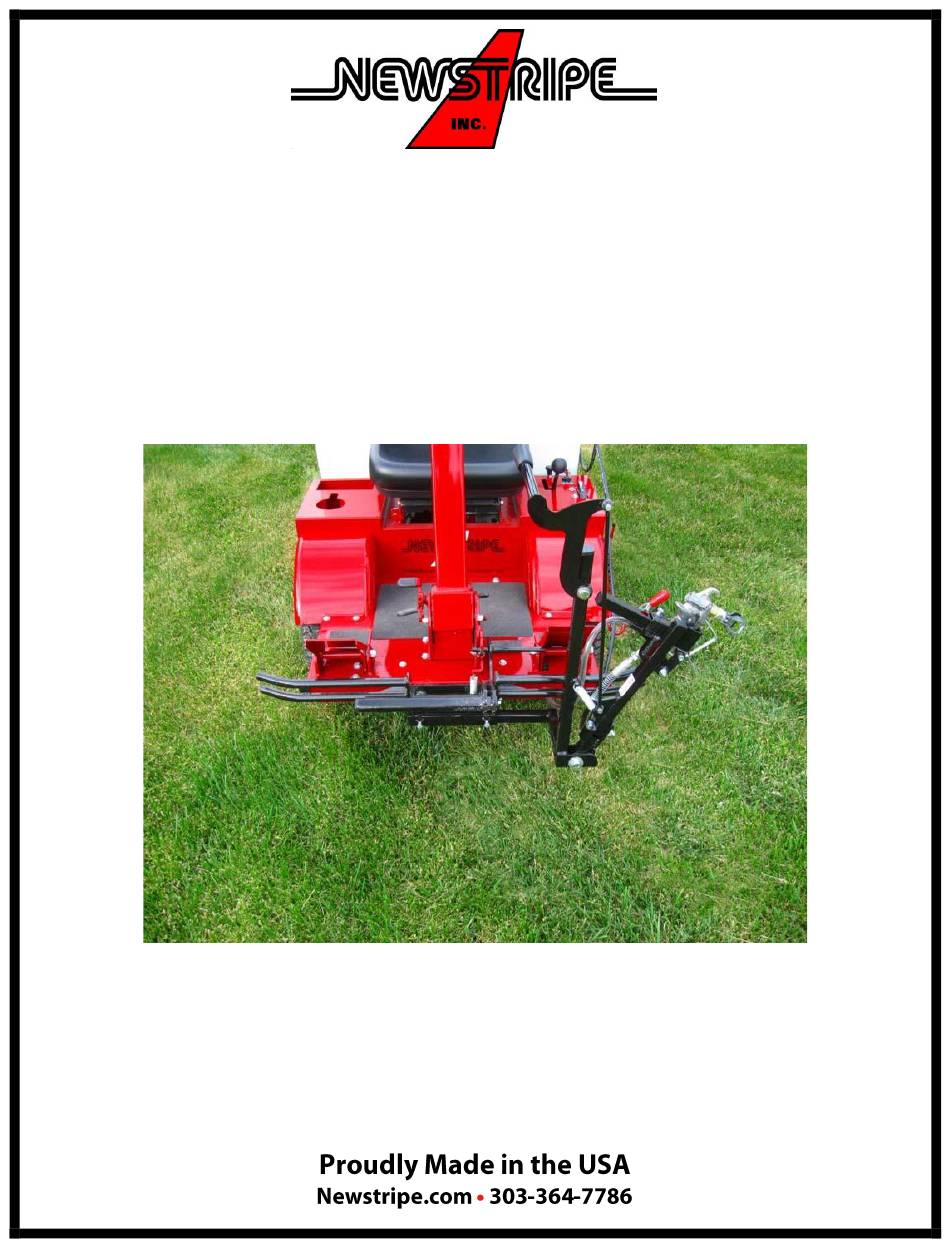

- Page 1 Product Manual GoalEze Side Spray Head Accessory 10004147 4147.0124...
- Page 3 GoalEze Side Spray Head Accessory PRECAUTIONARY WARNINGS • Please read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or serious injury to personnel up to and including death! •...
- Page 4 Support arm upright #3 Lifting Your GoalEze package should include: Rod #2 • Mounting Bracket (#1) • Lifting Rod (#2) • Support arm upright (#3) • Spring (#4) • Spring #4 Gun mount tube (#5) • Mounting Hardware Mounting Gun Mount Bracket #1 Tube #5 ASSEMBLY...
- Page 5 OPERATING 1. Release spray gun with quick release clamp and set gun on foot area of machine. 2. Loosen bolt on gun mount and slide gun mount off of center spray head. Route operating cable behind upright and slide onto gun mount support tube. (Gun mount will face backward.) Route spray gun hose under bumper and install gun.
- Page 6 Damage incurred in shipment from Newstripe to the purchaser is the total responsibility of the shipping carrier. The purchaser is responsible for noting any damages on the Bill of Lading of the shipping carrier and Newstripe will work with the shipping carrier to resolve any damages incurred.
