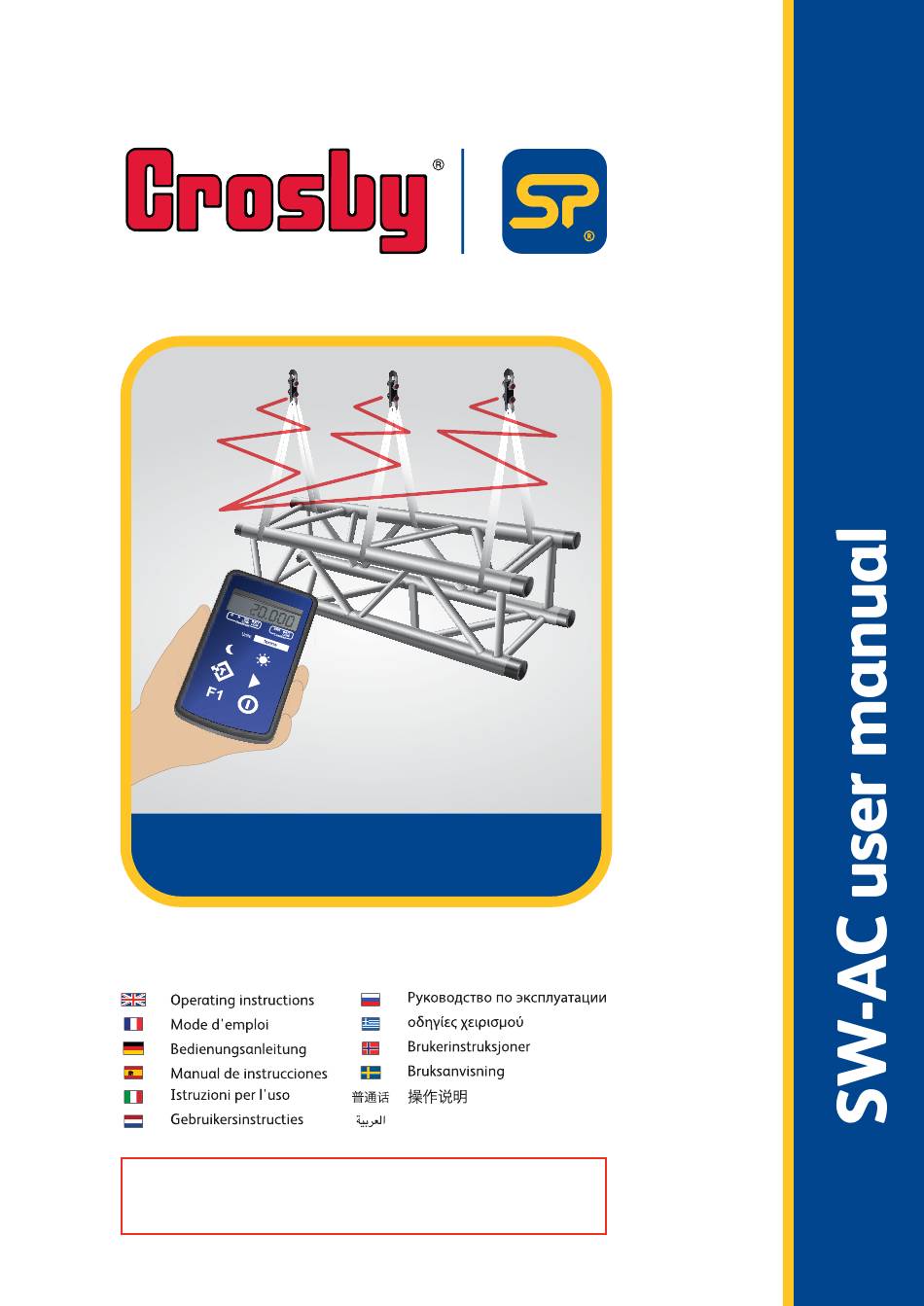

SW-AC Advanced Handheld
‫ﺗﻌﻠﻳﻣﺎﺕ ﺍﻟﺗﺷﻐﻳﻝ‬
v1.00
Part No:
THIS MANUAL WAS WRITTEN IN THE ENGLISH LANGUAGE AND PROFESSIONALLY
SU3350
TRANSLATED TO ALL OTHER LANGUAGES CONTAINED WITHIN THIS DOCUMENT.
PLEASE NOTE THAT STRAIGHTPOINT ACCEPT NO RESPONSIBILITY FOR ANY ERRORS OR
OMISSIONS.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP SW-AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crosby SP SW-AC

Summary of Contents for Crosby SP SW-AC

  • Page 1 SW-AC Advanced Handheld ‫ﺗﻌﻠﻳﻣﺎﺕ ﺍﻟﺗﺷﻐﻳﻝ‬ v1.00 Part No: THIS MANUAL WAS WRITTEN IN THE ENGLISH LANGUAGE AND PROFESSIONALLY SU3350 TRANSLATED TO ALL OTHER LANGUAGES CONTAINED WITHIN THIS DOCUMENT. PLEASE NOTE THAT STRAIGHTPOINT ACCEPT NO RESPONSIBILITY FOR ANY ERRORS OR OMISSIONS.
  • Page 2 General description and warnings 01-04 Load cell emissions SW-AC keypad SW-AC total mode SW-AC individual mode 08-09 SW-AC keypad and annunciators SW-AC battery care SW-AC battery care (Handheld) Product aftercare 13-14 Service and calibration Warranty Notes v1.00 Part No: SU3350...
  • Page 3 All products manufactured and sold by Straightpoint Ltd, are sold with the express understanding that the purchaser and user are thoroughly familiar with the safe use, proper care and application of the product. Responsibility for the safe use, proper care and application of the product rests with the user. Failure of the product can occur due to misapplication, abuse, overloading, or improper care and maintenance.
  • Page 4 Todos los productos que fabrica y vende Straightpoint Ltd se venden sabiendo explícitamente que el comprador y el usuario son plenamente conocedores de utilizar el producto de forma segura, cuidarlo y emplearlo. El usuario es responsable de utilizarlo de forma segura, cuidarlo y emplearlo. El mal funcionamiento del producto puede deberse a un uso indebido, abuso, sobrecarga, o cuidado y mantenimiento inadecuados.
  • Page 5 Straightpoint Ltd Straightpoint Ltd : ASME B30.26-2010 « ». Straightpoint Ltd, Straightpoint Ltd Straightpoint Ltd. Straightpoint Ltd Straightpoint Ltd Όλα τα προϊόντα που κατασκευάζονται και πωλούνται από τι Straightpoint Ltd, πωλούνται ε τη ρητή επιφύλαξη ότι ο αγοραστή και ο χρήστη είναι πλήρω εξοικειω ένοι ε την ασφαλή χρήση, την κατάλληλη φροντίδα και την εφαρ ογή του προϊόντο . Η...
  • Page 6 Alla produkter som tillverkas och säljs av Straightpoint Ltd säljs med uttryckliga hänvisningar om att köparen och användaren har god kännedom om säker användning, skötsel och tillämpningen av produkten. För säker användning, skötsel och tillämpningen av produkten ansvarar användaren. Felaktig användning, missbruk, överbelastning eller felaktig skötsel och underhåll kan leda till att produkten fördärvas. Det finns många statliga standarder och branschstandarder som omfattar produkterna som tillverkas och säljs av Straightpoint Ltd .
  • Page 7 Please ensure that the load cell is positioned correctly in relationship to where the operator is standing. Consult the relevant load cell manual for full instructions. Se il vous plaît se assurer que la load cell est correctement positionné par rapport à l'endroit où l'opérateur est debout. Consultez le manuel du capteur de force pertinente pour des instructions complètes.
  • Page 8 Not used. Tare. Print. Not used. RH select. On/off. Non utilisé. Tare. Imprimer. Non utilisé. RH sélectionner. On/off. Nicht verwendet. Tara. Drucken. Nicht verwendet. RH auswählen. Ein/aus. No se utiliza. Tare. Imprimir. No se utiliza. RH seleccionar. On/off. Non utilizzato. Tare.
  • Page 9 By default the SW-AC handheld will display the total load on the load cells. To obtain a total load: Switch on by pressing . The display will now show the gross load on all load cells programmed into system. To tare the display to zero press . If a wireless printer is supplied pressing will print the total and individual loads.
  • Page 10 To view individual load cell loads: While in ‘total mode’ press and hold for three seconds.  The display will show ‘input 1' and will then display the load on load cell 1 (each load cell is stamped with a number). To view each load cell load press to cycle through each programmed input.
  • Page 11 Om individuele load cell belastingen te bekijken: Terwijl in 'totaal-modus' indrukken en vasthouden drie seconden.  Op het display verschijnt 'ingang 1' laten zien en zal dan de belasting op load cell 1 (elke krachtopnemer wordt gestempeld met een nummer) weer te geven. Om elke load cell belasting druk op om te fietsen bekijken via elke geprogrammeerde ingang.
  • Page 12 Handheld is Handheld is Radio signal low. Handheld battery Load Cell error. Load Cell battery displaying displaying net low. Contact dealer. low. gross value. value. Le lecteur affiche Le lecteur affiche Faible signal radio. Niveau des piles Erreur. Contactez Load Cell batterie une valeur brute.
  • Page 13 When the load cell batteries are getting low (1-2 hours remaining) the “BATT LO” annunciator will display. When the batteries are low they should be replaced. Please follow the instructions in the relevant load cell user manual. Lorsque les piles de load cell sont faibles (1-2 heures restantes) l'indicateur "BATT LO" se affiche. Lorsque les piles sont faibles, ils doivent être remplacés.
  • Page 14 When the handheld batteries are getting low (1-2 hours remaining) the “BATLO” annunciator will display. When the batteries are low they should be replaced with two AA alkaline cells. To change the batteries remove the two screws holding the battery cover on the rear of the device. Remove and replace the batteries.
  • Page 15 While these devices are sealed to IP65/NEMA4X standards, they should not be immersed in water. The effects of solvent on the device can not be guaranteed, and should therefore be avoided. Avoid use within 20-30 minutes of rapid changes in temperature, for example moving the device from a cold vehicle into a warm room. The change in temperature can affect the accuracy of the device.
  • Page 16 IP65/NEMA4X, 20-30 +50°C ( 14 122°F). «OVERLOAD» Αν και αυτέ οι συσκευέ φέρουν στεγανοποίηση σύ φωνα ε τα πρότυπα IP65/NEMA4X, δεν θα πρέπει να βυθίζονται σε νερό. Η επίδραση διαλύτη στη συσκευή δεν είναι εγγυη ένη και θα πρέπει επο ένω να αποφεύγεται. Αποφύγετε...
  • Page 17 These products are supplied with a certificate of calibration which is valid for one year. After this date, it is recommended the device is recalibrated by Straightpoint or an approved calibration laboratory. Contact the Straightpoint service department or your supplier for more information. In the unlikely event of this device failing, fit new batteries and re-test.
  • Page 18 Straightpoint (UK) Ltd warranty this product against malfunction for a period of two years from manufacture. Conditions of warranty: 1) The equipment is used as described exactly in the operators manual supplied. 2) Whilst we make every effort to ensure each device is calibrated before despatch, Straightpoint (UK) Ltd do not accept responsibility for inaccurate readings indicated by this equipment. 3) In the event of malfunction, the device is returned to the manufacturer: Straightpoint (UK) Ltd, Unit 9 Dakota Park, Havant, Hampshire, UK, PO9 2NJ.
  • Page 19 v1.00 Part No: SU3350...
  • Page 20 Crosby | Straightpoint Unit 9, Dakota Park, Downley Road, Havant, Hampshire, PO9 2NJ UK · Tel: +44 (0)2392 484491 2801 Dawson Road, Tulsa, OK 74110 · USA · Tel: +1 (918) 834-4611...
