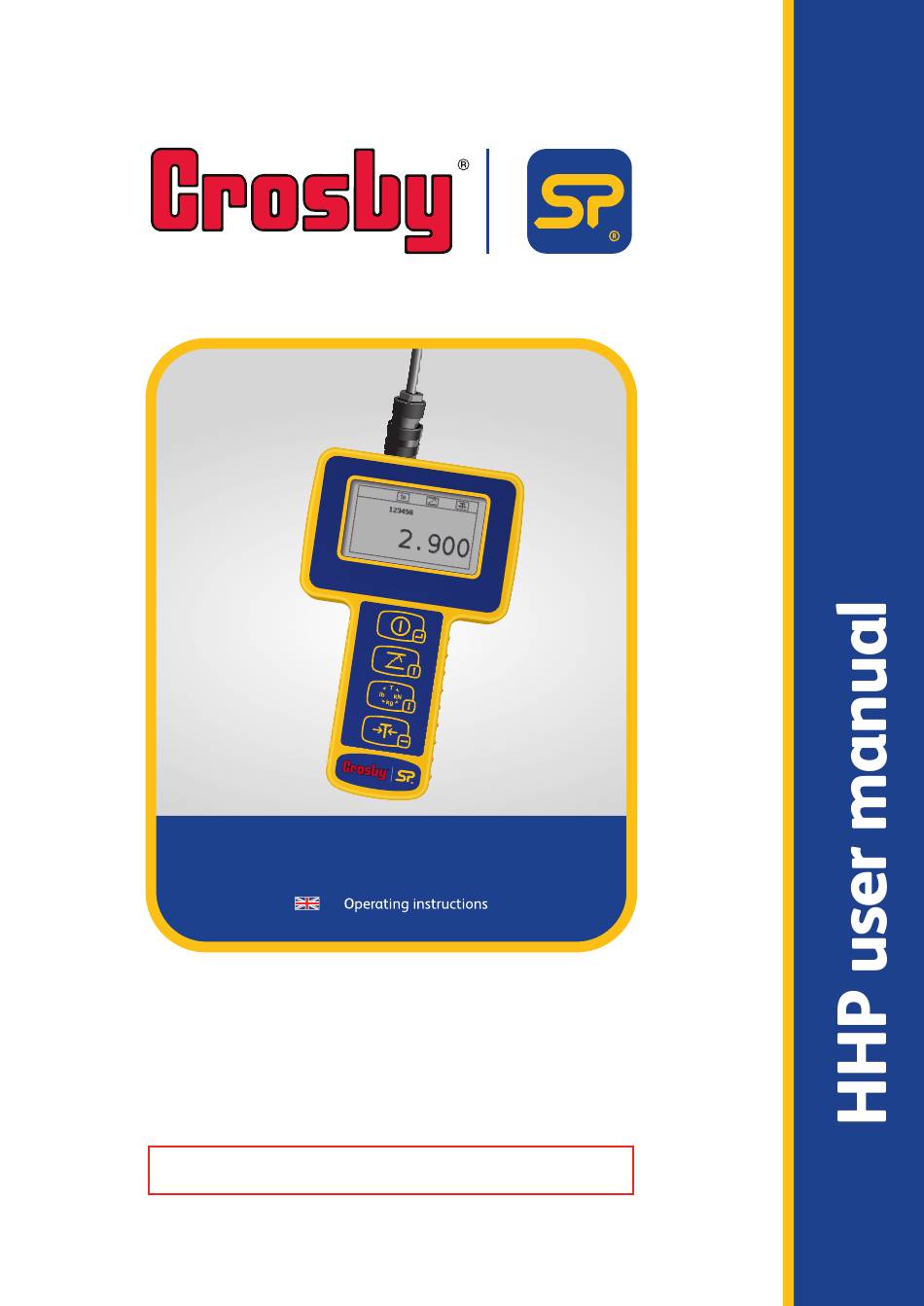

- Page 1 HHP - Handheld Plus™ v2.00 PLEASE NOTE THAT STRAIGHTPOINT ACCEPT NO RESPONSIBILITY FOR ANY ERRORS OR Part No: OMISSIONS WITHIN THIS MANUAL. SU3343...
- Page 2 General description and warnings HHP fitting batteries / Load cell connection HHP keypad and annunciators HHP pairing to a cabled load cell Menu navigation Alert icons and messages HHP measuring a load / Terms v2.00 Part No: SU3343...
- Page 3 Shock loading and extraordinary conditions must be taken into account when selecting products and product capacity. Some of the products in the Crosby | Straightpoint Ltd catalogues are designed for use with rigging hardware and components which could be supplied from several different manufacturers. It is crucial that you read and understand the literature from these manufacturers, as well as governmental standards and industry technical manuals.
- Page 4 Before use fit the 2 x alkaline AA batteries (1.5V) supplied by removing the two cross head screws which retain the battery cover. Once fitted, refit the battery cover. When the battery is getting low, the Low Battery icon will be displayed on the left corner of the screen.
- Page 5 Power Peak Hold Weight Units Tare Long Press Option Power (Return/Enter Key) Press this button for three seconds to turn the device on and off. The device will switch itself off after 20 minutes. In Menu – Use this key to enter in to a selected item. After finishing editing, use to save and return to the menu.
- Page 6 Power Peak Hold Tare fig.1 fig.2 Pairing to a cabled load cell (if sold separately). Press Power + Peak Hold ‘Pairing: Clear Current Paired LoadCells’ screen will appear (fig.1). Press Power to confirm (Yes), or press Tare to abort (No). ...
- Page 7 To return to menu To adjust To confirm and return to menu To adjust down To adjust To confirm and return to menu To adjust down To adjust To confirm and return to menu To adjust down To adjust To confirm and return to menu To adjust...
-
Page 8: Overload Error
ALERT – Overload warning If load > 110% WLL. Latching and permanent. Return load cell and handheld to service centre for recalibration. ALERT – Low Battery Warning Battery life near to being exceeded on either the load cell or handheld. Time to replace batteries. -
Page 9: Service And Calibration
After use, switch off and, if removing the device from the test site, clean and store, ideally in a Crosby | Straightpoint carry case. If the device is to be stored for long periods of time, please remove the battery. - Page 10 Crosby | Straightpoint Unit 9, Dakota Park, Downley Road, Havant, Hampshire, PO9 2NJ UK · Tel: +44 (0)2392 484491 2801 Dawson Road, Tulsa, OK 74110 · USA · Tel: +1 (918) 834-4611...
