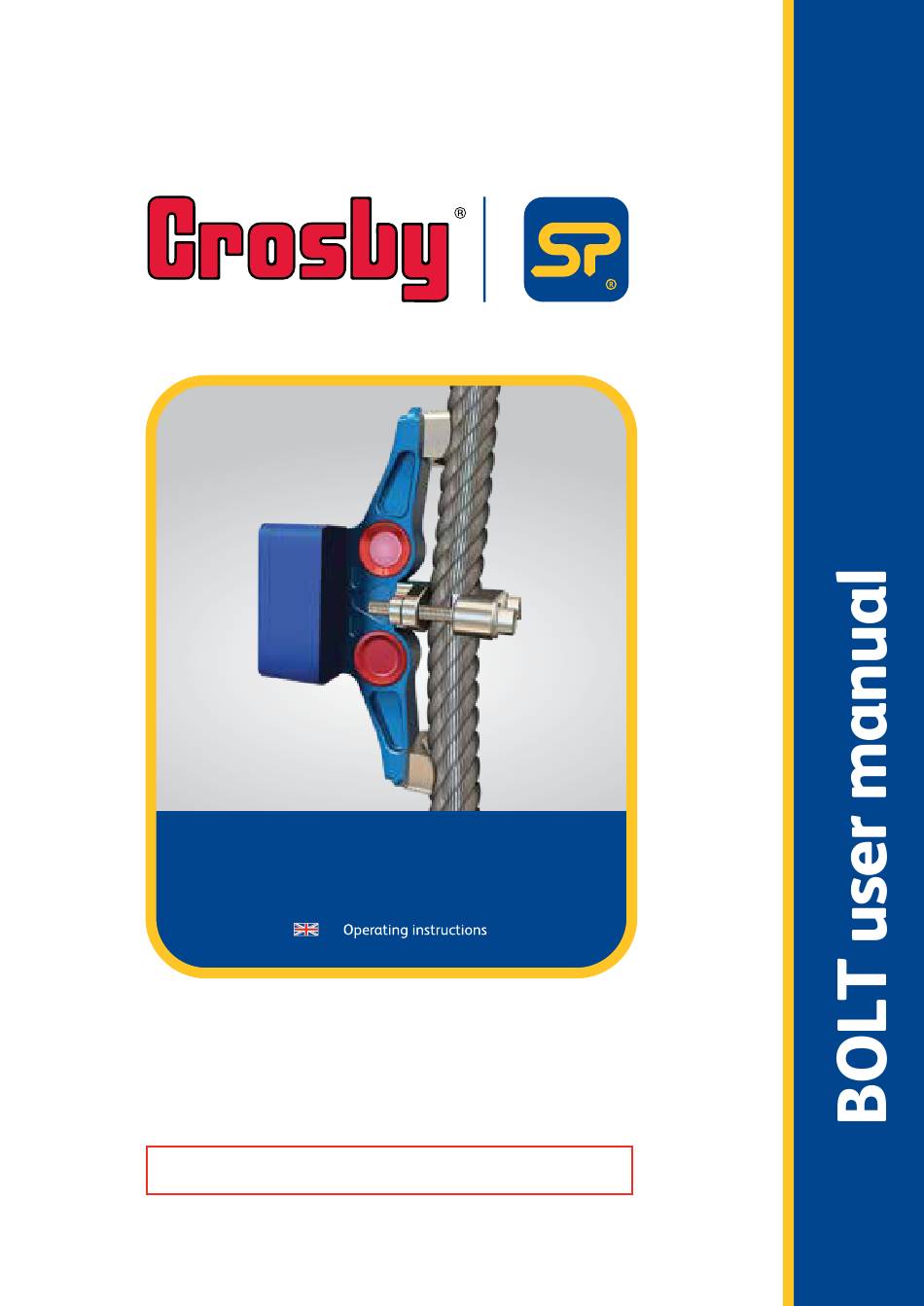

- Page 1 BOLT Bolt On Line Tensiometer v1.00 PLEASE NOTE THAT CROSBY|STRAIGHTPOINT ACCEPT NO RESPONSIBILITY FOR ANY Part No: ERRORS OR OMISSIONS WITHIN THIS MANUAL. SU6674...
- Page 2 Index Introduction Fitting the batteries To Clamp a BOLT Wire Rope Diameters Notes v1.00 Part No: SU6674...

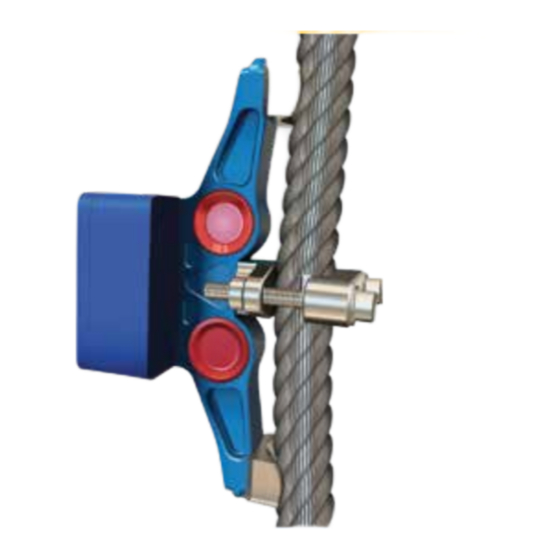

- Page 3 Introduction ‘BOLT’ is used to measure the tension on a wire rope by clamping the device on to a wire rope using the two bolts. Unless specified while ordering, the BOLTs are calibrated as a standard with 32mm wire rope to 10te WLL. BOLT can only be used on specific wire rope diameter with which it is calibrated for;...
-
Page 4: Fitting The Batteries
Fitting the batteries IN A SAFE AREA ONLY, remove the side cover of the BOLT using a flat blade screwdriver. Fit batteries and refit cover. v1.00 The BOLT may be connected to the Straightpoint SW-HHP ATEX handheld, in hazardous areas, or to our Part No: range of load monitoring software that is not covered in this manual. - Page 5 To Clamp a BOLT BOLT can be used on a range of wire rope of diameters from 16-32mm. Remove the two M10 bolts of the device place the device under the rope being measured attach the top clamp and tighten the bolts. v1.00 Part No: SU6674...
- Page 6 To Clamp a BOLT (contd.) Make sure the bolts are torqued up equally, the torque rating is provided on the calibration certificate. v1.00 Part No: SU6674...
- Page 7 To Clamp a BOLT (contd.) Note: It is important that the two bolts are tightened equally, if not it could show incorrect readings v1.00 Part No: SU6674...
- Page 8 Wire Rope Diameters Wire rope diameter (mm) Torque setting (Nm) In case using a wire rope diameter different to the calibrated one, torque it until the rope is in contact with BOLT body and use a torque wrench to measure the torque value. After calibration make sure the BOLT is tightened to the same torque value.
- Page 9 v1.00 Part No: SU6674...
- Page 10 Crosby | Straightpoint Unit 9, Dakota Park, Downley Road, Havant, Hampshire, PO9 2NJ UK · Tel: +44 (0)2392 484491 2801 Dawson Road, Tulsa, OK 74110 · USA · Tel: +1 (918) 834-4611...
