Wireless Handheld Plus™
ﺗﻌﻠﻳﻣﺎﺕ ﺍﻟﺗﺷﻐﻳﻝ
Part No:
SU3558
THIS MANUAL WAS WRITTEN IN THE ENGLISH LANGUAGE AND PROFESSIONALLY
Issue 2
TRANSLATED TO ALL OTHER LANGUAGES CONTAINED WITHIN THIS DOCUMENT.
PLEASE NOTE THAT STRAIGHTPOINT ACCEPT NO RESPONSIBILITY FOR ANY ERRORS OR
OMISSIONS.
Advertisement
Related Manuals for Crosby SW-HHP Atex
Summary of Contents for Crosby SW-HHP Atex

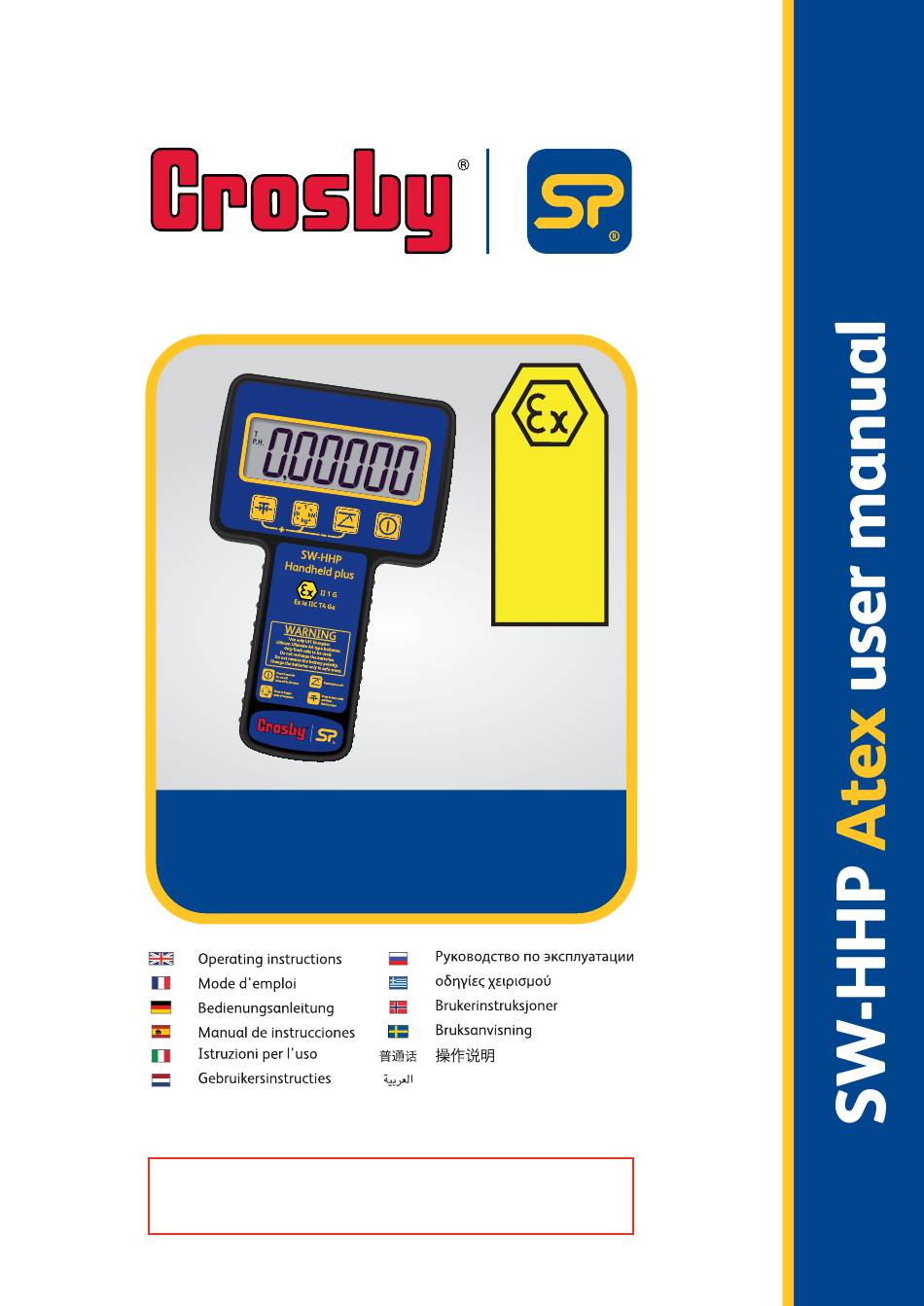

- Page 1 ATEX IECEx Ex ia II C T4 Ga Certification numbers: SW-HHP ATEX IECEx SIR 15.0072X Sira 15ATEX2196X SW-HHP - Atex Wireless Handheld Plus™ ﺗﻌﻠﻳﻣﺎﺕ ﺍﻟﺗﺷﻐﻳﻝ Part No: SU3558 THIS MANUAL WAS WRITTEN IN THE ENGLISH LANGUAGE AND PROFESSIONALLY Issue 2 TRANSLATED TO ALL OTHER LANGUAGES CONTAINED WITHIN THIS DOCUMENT.

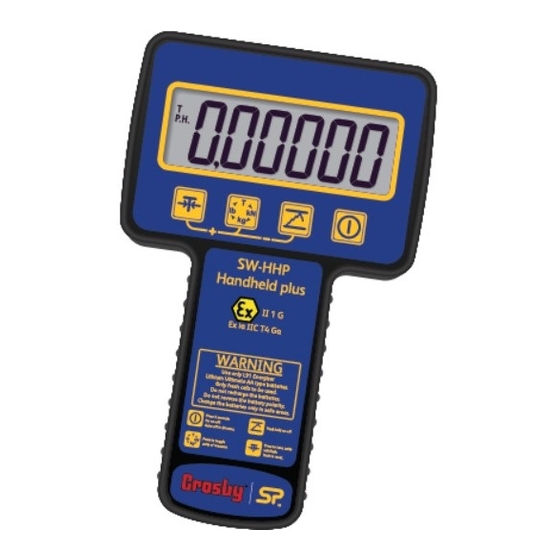

- Page 3 Manufacturer: Straightpoint Ltd, Unit 9, Dakota Park, Downley Road, Havant, Hampshire, PO9 2NJ, Product: Handheld plus SW-HHP-ATEX Product Description: Intrinsically safe hand held display unit for reading measurements in hazardous environments; such as on and offshore oil, gas and chemical industries in zones classified 2,1 and 0. Marking: II 1 G &...
-
Page 4: Warranty
01-04 General description and warnings 05-08 Atex/IECEx certification markings 09-10 SW-HHP Atex fitting batteries 11-14 SW-HHP Atex keypad and annunciators 15-18 SW-HHP Atex keypad and annunciators SW-HHP Atex measuring a load 20-21 SW-HHP Atex user configurable settings 22-23 Product aftercare... - Page 5 All products manufactured and sold by Straightpoint Ltd, are sold with the express understanding that the purchaser and user are thoroughly familiar with the safe use, proper care and application of the product. Responsibility for the safe use, proper care and application of the product rests with the user. Failure of the product can occur due to misapplication, abuse, overloading, or improper care and maintenance.
- Page 6 Todos los productos que fabrica y vende Straightpoint Ltd se venden sabiendo explícitamente que el comprador y el usuario son plenamente conocedores de utilizar el producto de forma segura, cuidarlo y emplearlo. El usuario es responsable de utilizarlo de forma segura, cuidarlo y emplearlo. El mal funcionamiento del producto puede deberse a un uso indebido, abuso, sobrecarga, o cuidado y mantenimiento inadecuados.
- Page 7 Straightpoint Ltd Straightpoint Ltd : ASME B30.26-2010 « ». Straightpoint Ltd, Straightpoint Ltd Straightpoint Ltd. Straightpoint Ltd Straightpoint Ltd Όλα τα προϊόντα που κατασκευάζονται και πωλούνται από τι Straightpoint Ltd, πωλούνται ε τη ρητή επιφύλαξη ότι ο αγοραστή και ο χρήστη είναι πλήρω εξοικειω ένοι ε την ασφαλή χρήση, την κατάλληλη φροντίδα και την εφαρ ογή του προϊόντο . Η...
- Page 8 Alla produkter som tillverkas och säljs av Straightpoint Ltd säljs med uttryckliga hänvisningar om att köparen och användaren har god kännedom om säker användning, skötsel och tillämpningen av produkten. För säker användning, skötsel och tillämpningen av produkten ansvarar användaren. Felaktig användning, missbruk, överbelastning eller felaktig skötsel och underhåll kan leda till att produkten fördärvas. Det finns många statliga standarder och branschstandarder som omfattar produkterna som tillverkas och säljs av Straightpoint Ltd .
- Page 9 MANUFACTURED BY STRAIGHTPOINT Unit 9, Dakota Park, Downley Rd, Havant, Hampshire PO9 2NJ II 1 G www.straightpoint.com xxxxx Serial No:- +50° 0518 Ex ia IIC T4 Ga Part No:- SW-HHP-ATEX °C SIRA 15ATEX2196X IP 65 IECEx SIR 15.0072X -10° Frequency: 2.4GHz Contains RAD24 Radio Module FCC ID: VHARAD24 IC: 7224A-RAD24 Instructions specific to hazardous area installations (in accordance with IEC 60079-0:2011 clause 30).
- Page 10 Besondere Anleitungen für Montage in Gefahrenzonen (gemäß IEC 60079-0:2011 Satz 30). Die folgenden Anleitungen für den sicheren Gebrauch in Gefahrenzonen beziehen sich auf Geräte mit der Zertifikatnummer IECEx SIR.15.0072X und SIRA 15ATEX2196X. 1. Die Zertifizierungsbezeichnung ist wie oben 2. Das Gerät kann in Bereichen 0, 1 und 2 mit entzündlichen Gasen und Dämpfen, Gerätegruppen IIA, IIB und IIC sowie bei Temperaturklasse T4 verwendet werden.
- Page 11 Besondere Anleitungen für Montage in Gefahrenzonen (gemäß IEC 60079-0:2011 Satz 30). Die folgenden Anleitungen für den sicheren Gebrauch in Gefahrenzonen beziehen sich auf Geräte mit der Zertifikatnummer IECEx SIR.15.0072X und SIRA 15ATEX2196X. 1. Die Zertifizierungsbezeichnung ist wie oben. 2. Das Gerät kann in Bereichen 0, 1 und 2 mit entzündlichen Gasen und Dämpfen, Gerätegruppen IIA, IIB und IIC sowie bei Temperaturklasse T4 verwendet werden.
- Page 12 Instruksjonene som gjelder for installasjoner i eksplosjonsfarlige områder (i henhold til IEC 60079-0: 2011 klausul 30). Følgende instruksjoner er relevante for sikker bruk i eksplosjonsfarlige områder gjelder utstyr som dekkes av sertifikatnummer IECEx SIR.15.0072X og SIRA 15ATEX2196X. 1. Sertifiserings-merking er som ovenfor. 2.
- Page 13 Before use, IN A SAFE AREA ONLY, fit the two L91 Energizer® Lithium Ultimate AA batteries supplied, by removing the two cross head screws which retain the battery cover. Avant toute utilisation, et UNIQUEMENT DANS UN ENVIRONNEMENT SÛR, mettre en place les deux piles L91 Energizer® Lithium Ultimate AA fournies, en dévissant les deux vis cruciformes situées sur le couvercle des piles.
- Page 14 Fit the batteries and refit the battery cover. When the battery is getting low (22% remaining), “LOBAT” will appear in the top left of the display, when this happens, it should be replaced with two L91 Energizer® Lithium Ultimate AA batteries. Insérer les piles et revisser le couvercle.
- Page 15 Press this button for three seconds to turn the device on and off. The device is factory set to enter sleep mode after 20 minutes, to change the sleep timer refer to page 21. Appuyer sur le bouton pendant trois secondes pour allumer et éteindre l'appareil. Cet appareil est paramétré...
- Page 16 Press this button to initialise the peak hold facility. Once pressed, the display with show ‘PH’. This will make the display ‘freeze’ at the highest load recorded. Press the key again to switch off this function. Presser sur ce bouton pour initialiser la fonction de maintien de crête. Une fois pressé, l'affichage indique «...
- Page 17 Press this button to toggle through the various units of measurement. Select from T- tonnes, kN - kiloNewtons, kg - kilograms or lb - pounds. The selected unit is shown on the display. Presser ce bouton pour alterner entre les différentes unités de mesure. Sélectionner une unité...
- Page 18 Pressing this button will tare the display. When in net mode, the unit’s annunciator will flash. Please see page 21 for details on setting a preset tare. En appuyant sur ce bouton, l'affichage est mis à zéro. En mode net, l'indicateur de l'unité clignote. Voir la page 21 pour plus de détails sur le réglage d'une tare prédéfinie.
- Page 19 Part No: SU3558 Issue 2...
- Page 20 Displays when the internal AA batteries have 22% capacity remaining in Handheld. Displays when the device is in peak hold mode or when the device is reading tonnes, kilograms, kilonewtons or pounds. ‘LoBat’ flashing indicates the load cell batteries are low. ...
- Page 21 Mostra quando le batterie AA interne hanno una capacità rimanente del 22% nel dispositivo. Mostra quando il dispositivo è in modalità ‘peak hold’ o quando sta leggendo tonnellate, chilogrammi, chilo newton o pound. La scritta ‘LoBat’ lampeggiante indica che il livello delle batterie della cella di carico è basso. ...
- Page 22 Vises når de interne AA batteriene, i den håndholdte enheten har 22 % av kapasiteten igjen. Vises når enheten er i "peak hold mode" eller når enheten viser Tonn, kilogram, kilonewton, eller pund. "LoBat" blinker når batteriet i veiecellen har lavt nivå. ...
- Page 23 Ensure that the device is switched on 10 minutes before loading, this will allow the temperature stability circuitry to acclimatise. Apply the load SLOWLY and watch the display on the device to ensure that the load applied is not greater than you had estimated. Avoid shock loads. Do not apply large twisting forces to these devices as it may damage them beyond repair.
- Page 24 This device is programmed with three user configurable settings: ALSET - The percentage of full load that the audible alarm will sound. AOSET - The amount of minutes before the device will automatically switch off. This feature is disabled if set to zero. OLOAD - The amount of times the device has been overloaded since last calibrated (read only).
- Page 25 To adjust exit To adjust DOWN To adjust exit To adjust DOWN To adjust exit To adjust DOWN Part No: Exit menu SU3558 without Issue 2 changes...
- Page 26 While these devices are sealed to IP65/NEMA4X standards, they should not be immersed in water. The effects of solvent on the device can not be guaranteed, and should therefore be avoided. Avoid use within 20-30 minutes of rapid changes in temperature, for example moving the device from a cold vehicle into a warm room. The change in temperature can affect the accuracy of the device.
- Page 27 IP65/NEMA4X, 20-30 +50°C ( 14 122°F). «OLOAd» Αν και αυτέ οι συσκευέ φέρουν στεγανοποίηση σύ φωνα ε τα πρότυπα IP65/NEMA4X, δεν θα πρέπει να βυθίζονται σε νερό. Η επίδραση διαλύτη στη συσκευή δεν είναι εγγυη ένη και θα πρέπει επο ένω να αποφεύγεται. Αποφύγετε...
- Page 28 These products are supplied with a certificate of calibration which is valid for one year. After this date, it is recommended the device is recalibrated by Straightpoint or an approved calibration laboratory. Contact the Straightpoint service department or your supplier for more information. In the unlikely event of this device failing, fit new batteries and re-test.
- Page 29 Straightpoint (UK) Ltd warranty this product against malfunction for a period of one year from manufacture. Conditions of warranty: 1) The equipment is used as described exactly in the operators manual supplied. 2) Whilst we make every effort to ensure each device is calibrated before despatch, Straightpoint (UK) Ltd do not accept responsibility for inaccurate readings indicated by this equipment. 3) In the event of malfunction, the device is returned to the manufacturer: Straightpoint (UK) Ltd, Unit 9 Dakota Park, Havant, Hampshire, UK, PO9 2NJ.
