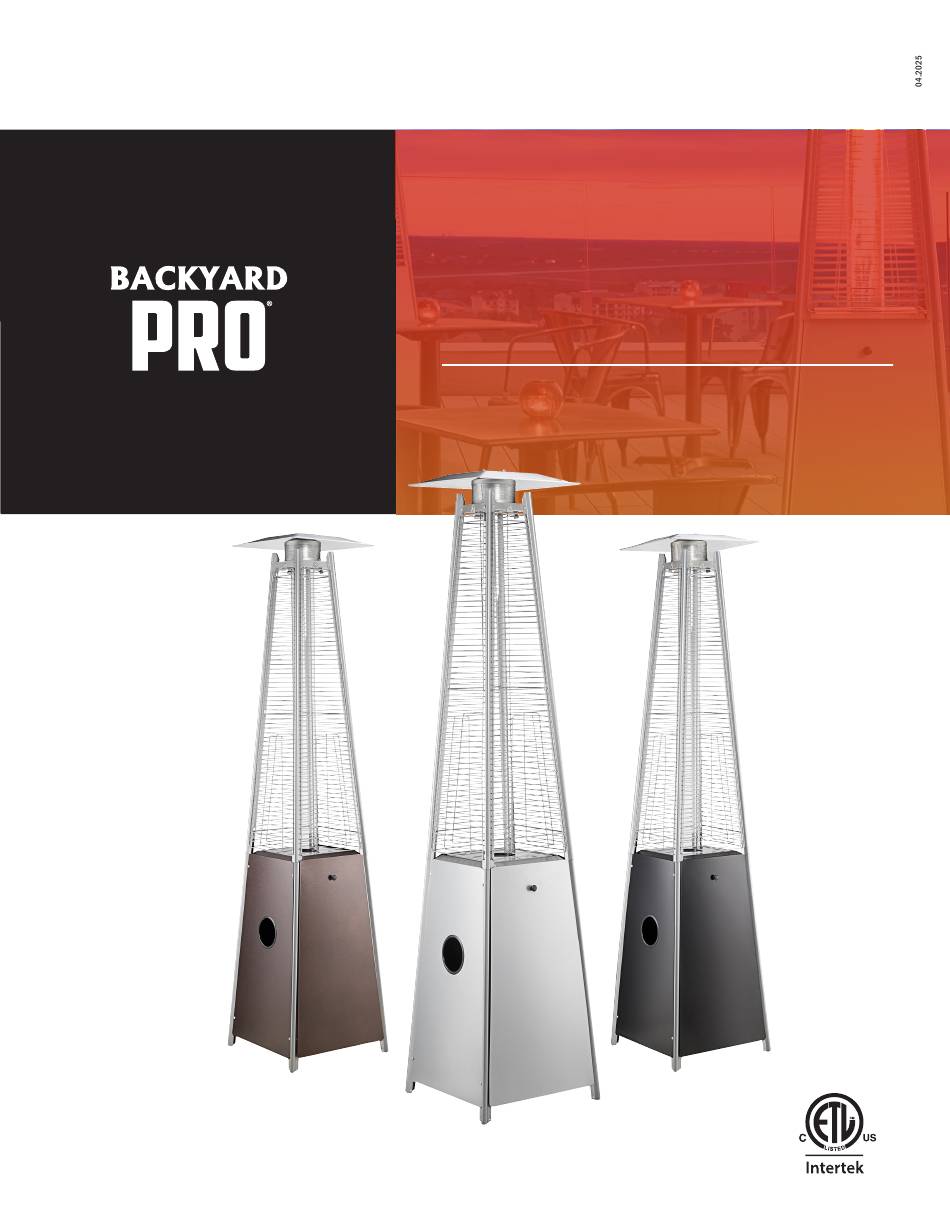

- Page 1 Item No. 554HPSQRSTL, 554HPSQRBZ, 554HPSQRBLK, 554HPSQRSS SQUARE PATIO HEATER User Manual Retain this manual for future reference. Unit must be kept clear of combustibles at all times. 3177588...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Critical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Owner’s Information . -
Page 3: Hazard Statements
HAZARD STATEMENTS Read the Manual: Thoroughly read and understand the manual before setting up, operating, or cleaning the Commercial Electric Heater. DANGER – Gas Leak Hazard Hazard: A gas leak can lead to fire, explosion, or poisoning if ignited. • •... - Page 4 WARNING – Flammable Vapor Hazard Hazard: Gasoline and other flammable vapors or liquids near the heater can ignite easily. • • Do not store or use gasoline or flammable vapors/liquids near this or any other appliance, and do not store an LP-cylinder not in use near the heater. Avoid placing these substances where accidental contact with ignition sources might occur.
-
Page 5: Initial Setup
WARNING – Propane Gas Hazard Hazard: Propane gas is invisible, odorless (after the odorant fades), and highly flammable. • • Use only propane gas systems designed for vapor withdrawal and in accordance with local ordinances, codes, and ANSI/NFPA 58. • Turn off propane when not in use, and do not rely solely on smell for leak detection. •... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS PARTS LIST Components: Reflector Damper Upper Support Wire Guard Glass Tube Middle Plate Side Panel Control Box Lower Support Base Front Panel Stability Ring M Casters HARDWARE M3 x 16 Screws | QTY: 1 PACK Fixing Brackets | QTY: 4 Control Knob | QTY: 1 Battery (AA) | QTY: 1 *NOT INCLUDED... - Page 7 ASSEMBLY INSTRUCTIONS Step 1 Attach Wheels to Base 1. Secure the casters (M) to the base (J) by using two of the included M3x16 screws (AA). Step 2 Attach Stability Ring 1. Fasten the stability ring (L) to the base (J) by using the M3x16 screws (AA).
- Page 8 ASSEMBLY INSTRUCTIONS Step 4 Assemble Upper Supports and Damper 1. Unscrew any pre-installed M3x16 screws (AA). 2. Attach the four upper supports (C) to the lower supports (I) using the M3x16 screws (AA). 3. Fasten the damper (B) to the upper supports (C) using the M3x16 screws (AA).
- Page 9 ASSEMBLY INSTRUCTIONS Step 6 Assemble Reflector 1. Using the provided double- sided screws (HH), flat washers (GG), and wing nuts (FF), attach the reflector (A) into the damper (B). Step 7 Install Glass Tube 1. Carefully lift and insert the glass tube (E) through the center hole of the damper (B).
- Page 10 ASSEMBLY INSTRUCTIONS Step 8 Attach Wire Guards 1. Insert the hooks of the wire guards (D) into the corresponding holes on the frame, ensuring all hooks engage. 2. Unscrew the four screws from the damper (B). 3. Using the M3x16 screws (AA), fasten the fixing brackets (BB) over the top of the guards as shown.
- Page 11 ASSEMBLY INSTRUCTIONS Step 10 Attach Front Panel and Knob 1. Screw the control knob (CC) onto the front panel (K). 2. Attach the front panel (K) to the heater by inserting its two tabs into the slots on the base (J). 3.
-
Page 12: Operation
OPERATION Installation of Tank Step 1: Gas Cylinder Requirement: • Provide Propane Gas and Cylinder: Use a standard 20 lb. propane cylinder only. Ensure the Heater is used only with a propane vapor withdrawal supply system. • Standards Compliance: Refer to the Standard for Storage and Handling of Liquefied Petroleum Gas, ANSI/NFPA 58 for detailed information. - Page 13 Step 2: Install Cylinder on the Base (Fig . 1) FIG. 1 • Place the Gas Cylinder: Position the gas cylinder inside the base of the Heater. • Secure Cylinder Location Brackets: Attach the cylinder location brackets to the base to secure the gas cylinder. •...
-
Page 14: Lighting Instructions
Lighting Instructions FIG. 4 (FIG . 4) WARNING: If lighting steps are not followed exactly, a fire or explosion may result, causing property damage, personal injury, or loss of life. 1. Battery Check: Ensure a AA battery (not included) is inside the ignition chamber and has power. -
Page 15: Cleaning And Maintenance
CLEANING AND MAINTENANCE • Regular Maintenance: Keep exterior surfaces clean. Use warm, soapy water for cleaning. Never use flammable, corrosive, or abrasive cleaners. • Burner and Pilot Assembly: Ensure the area around the burner and pilot assembly remains dry. If the gas control is exposed to water, do not use it;... -
Page 16: Storage
STORAGE • Between Uses: 1. Turn Off the Heater: Turn the control knob to the OFF position. 2. Turn Off the LPG Cylinder: Turn the LPG cylinder valve to the OFF position. 3. Store the Heater Upright: Store the Heater upright in an area sheltered away from weather conditions such as rain, sleet, hail, snow, and wind. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM ISSUE REMEDY Cylinder valve is closed. Open valve. Clean or replace orifice or Blockage in orifice or pilot tube. pilot tube. Open gas line and bleed it (pressing Air in gas line. control knob in) for not more than 1-2 Pilot will not light.
