Human Touch AcuTouch 6.0 Replacing Instructions

AcuTouch
It is imperative that Human Touch products are repaired in a manner that ensures product safety and regulatory compliance and that is fully consistent with the practices used
®
during the manufacturing process. Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair
instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
Tools Required: Phillips-head screwdriver, paper clip, wire cutters or other tool suitable for cutting zip
ties, two new zip-ties..
NOTE: SAVE ALL REMOVED PARTS FOR USE DURING REASSEMBLY

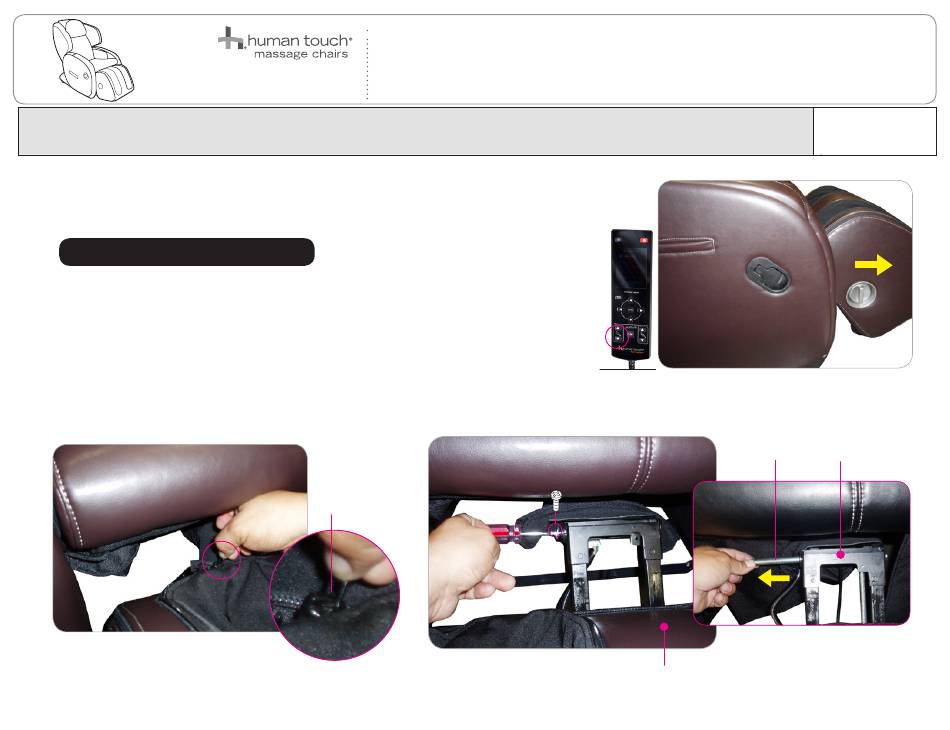

REMOVING THE CALF MASSAGER
1. Use the controller to fully deploy the calf massager (Fig.1).
2. Power off the chair, then unplug it.
3. Using a paper clip, open the zipper on the fabric that connects the calf massager to the
chair (Fig.2).
4. Using a Phillips-head screwdriver, remove the screw that secures the calf massager mounting
pin, then remove the pin from the bracket (Fig.3).
(Fig.2)
6.0
®
Zipper
REPLACING THE CALF MASSAGER
Controller
(Fig.3)
Calf Massager
June 06, 2012
SERVICE LEVEL: 3
(Fig.1)
Mounting pin Bracket
