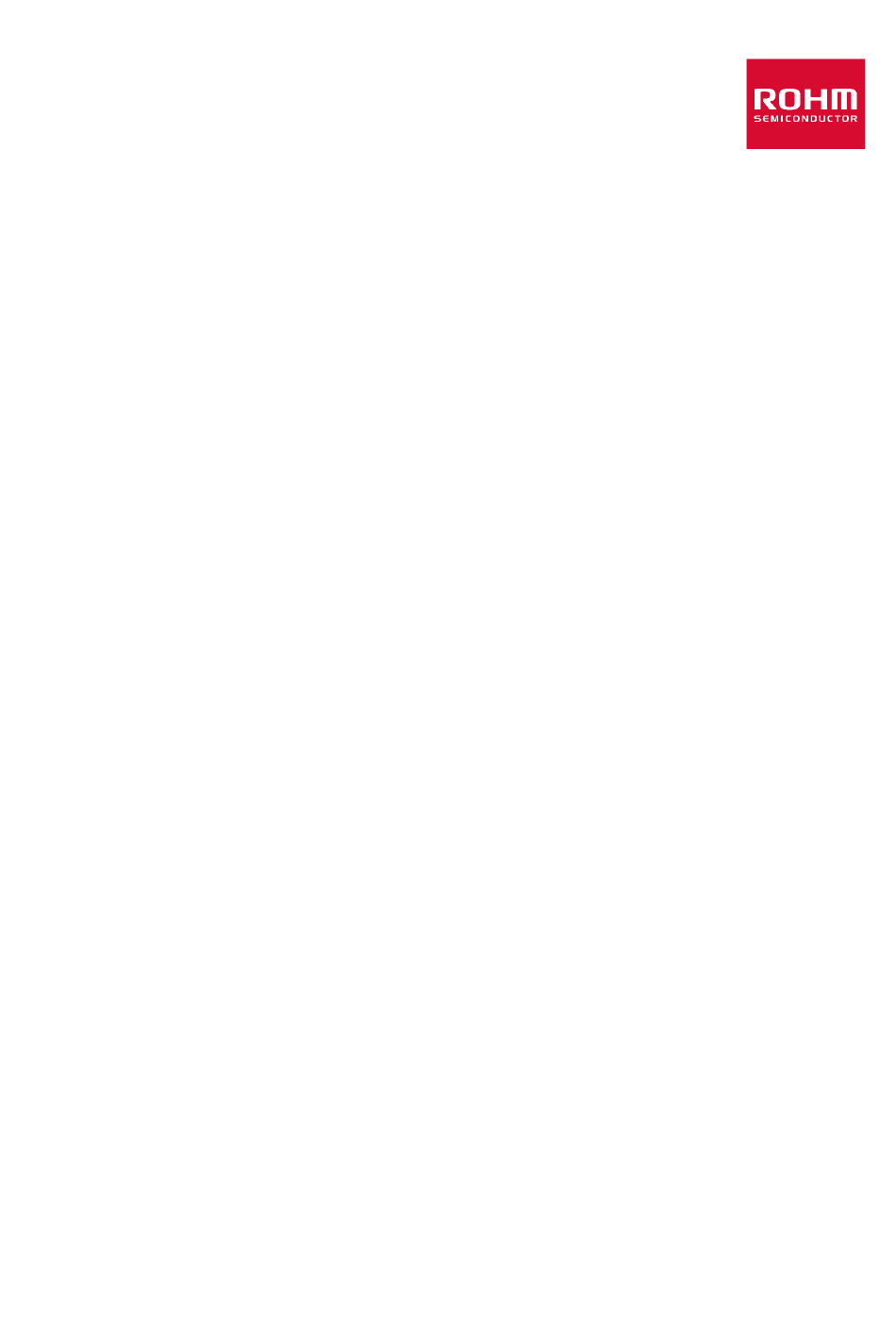

Dear customer
ROHM Co., Ltd. ("ROHM"), on the 1st day of April, 2024,
has absorbed into merger with 100%-owned subsidiary of LAPIS Technology Co., Ltd.
Therefore, all references to "LAPIS Technology Co., Ltd.", "LAPIS Technology"
and/or "LAPIS" in this document shall be replaced with "ROHM Co., Ltd."
Furthermore, there are no changes to the documents relating to our products other than
the company name, the company trademark, logo, etc.
Thank you for your understanding.
ROHM Co., Ltd.
April 1, 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAPIS RB-D62Q2504TB32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rohm LAPIS RB-D62Q2504TB32

  • Page 1 100%-owned subsidiary of LAPIS Technology Co., Ltd. Therefore, all references to "LAPIS Technology Co., Ltd.", "LAPIS Technology" and/or "LAPIS" in this document shall be replaced with "ROHM Co., Ltd." Furthermore, there are no changes to the documents relating to our products other than the company name, the company trademark, logo, etc.
  • Page 2 FEBL62Q2504RB-01 RB-D62Q2504TB32 User's Manual Issue Date: March 8, 2022...
  • Page 3 US Export Administration Regulations and the Foreign Exchange and Foreign Trade Act.. 10) Please contact a ROHM sales office if you have any questions regarding the information contained in this document or LAPIS Technology's Products.
  • Page 4 RB-D62Q2504TB32 User’s Manual This manual describes about the ML62Q2504 Reference Board : RB-D62Q2504TB32. Refer to following documents when necessary. – ML62Q2500 Group User's Manual Provides the detailed information about the microcontroller ML62Q2500 Group. – EASE1000 V2 User’s Manual Provides the information on how to use the On-chip emulator EASE1000 V2. FEBL62Q2504RB...
  • Page 5: Table Of Contents

    RB-D62Q2504TB32 User’s Manual Table of Contents Overview ................................1 1.1. Features ..............................1 1.2. Outline Diagram ............................2 Function ................................3 2.1. Power Circuit ..............................3 2.2. Connection for EASE1000 V2 (CNE) ......................4 2.3. LED (P20, P21, P22) ..........................5 2.4. XT0/PIO0,XT1/PIO1 ..........................5 2.5. P30, P31, P32, P33 .............................6 User Interface ..............................7 3.1.
  • Page 6: Overview

    RB-D62Q2504TB32 User’s Manual 1. Overview 1.1. Features The RB-D62Q2504TB32 can be used for learning ‘how to use’ the ML62Q2504, on which the user needs to provide additional external components if necessary. By using the RB-D62Q2504TB32 together with the LAPIS Technology’s on-chip emulator EASE1000 V2 and the provided software development environment, the user can develop software, debug and program the Flash.
  • Page 7: Outline Diagram

    RB-D62Q2504TB32 User’s Manual 1.2. Outline Diagram Fig. 1 shows the RB-D62Q2504TB32. Jumper ・PWR ・J2 ・J1 ・P20 ・P21 ・P22 Fig. 1 Outline Diagram FEBL62Q2504RB...
  • Page 8: Function

    RB-D62Q2504TB32 User’s Manual 2. Function 2.1. Power Circuit The input toV can be selected from 3.3VOUT of EASE1000 V2 or CN1_3pin by PWR jumper. VTref ML62Q2504 3.3VOUT 2,4,6,8,10,12 UVDD Fig. 2 Power Circuit [Note] The power supply ON/OFF procedure in case of setting PWR jumper to the USR-side when using EASE1000 V2. The procedure of power supply ON The USB cable of EASE1000 V2 is connected.
  • Page 9: Connection For Ease1000 V2 (Cne)

    RB-D62Q2504TB32 User’s Manual 2.2. Connection for EASE1000 V2 (CNE) EASE1000 V2 can be used if J1 and J2 jumper are set to “CNE”. ML62Q2504 RST_OUT/SCK TEST1_N SDATA P00/TEST0 P00/TEST0 Fig. 3 EASE1000 V2 Interface [Note] P00/TEST0 pin: P00/TEST0 pin of ML62Q2504 is initially set as a pull-up input mode When using EASE1000 V2, do not set it as an output mode by using an application program, otherwise EASE1000 V2 cannot communicate with the ML62Q2504.
  • Page 10: Led (P20, P21, P22)

    RB-D62Q2504TB32 User’s Manual 2.3. LED (P20, P21, P22) The P20-P22 pins are ports that can directly drive LED. The Ports are connected to the LEDs through jumper-chip. Remove the jumper-chip when not using the LEDs. Remove when not using the LEDs. Fig.
  • Page 11: P30, P31, P32, P33

    RB-D62Q2504TB32 User’s Manual 2.5. P30, P31, P32, P33 When the P30 pin is used as VREF function of the successive approximation type A/D converter, C6, C7 can implement a bypass capacitor. In addition, VDD can be connected by mounting the J8 jumper chip. When P31, P32, P33 pin is used as AIN8, AIN9, AIN10 function of the successive approximation type A/D converter, the C8 and C9, C10 can implement a by-pass capacitor.
  • Page 12: User Interface

    RB-D62Q2504TB32 User’s Manual 3. User Interface 3.1. CN1, CN2 Table 2 shows the pin list of the RB-D62Q2504TB32 user interface connection CN1 and CN2. Table 2 CN1, CN2 Connection destination Connection destination Pin No. Pin No. Device Pin No. Name Device Pin No.
  • Page 13: Cne

    RB-D62Q2504TB32 User’s Manual 3.2. CNE Table 3 shows the pin list of the RB-D62Q2504TB32 user interface connection CNE. Table 3 Connection ML62Q2504 Pin No. Name Parts Pin No. Pin Name VTref N.C. RST_OUT/SCK TEST1_N SDATA CNE- P00/TEST0 VDDL N.C. N.C. N.C.
  • Page 14: Precaution For Usage

    RB-D62Q2504TB32 User’s Manual 4. Precaution for usage (1) The RB-D62Q2504TB32 is an unfinished product and intended for research and development and for expert use in the research and development facility only. The RB-D62Q2504TB32 is not intended to be used for volume production or parts thereof.
  • Page 15: Pcb Specification, Bom List And Schematic

    RB-D62Q2504TB32 User’s Manual 5. PCB specification, BOM list and Schematic 5.1. PCB specification Fig. 7 shows the PCB dimensional outline diagram and layout of components. PCB part number: RB-D62Q2504TB32 Dimension: 55.88mm x 93.98mm Fig. 7 PCB dimensional outline diagram and layout of components (Top view) FEBL62Q2504RB...
  • Page 16: Bom List

    Unmounted 8 A2-3PA-2.54DSA J1, J2, PWR 3pin Header Connector Hirose Electric Co., Ltd. 9 MCR03ERTJ000 J3, J4, J5 Resistor 0Ω Rohm Co., Ltd. 10 - J6, J7, J8 Unmounted 11 SML-H12P8T P20, P21, P22 LED Green Rohm Co., Ltd. 12 MCR03EZPJ271 R1, R2, R3 Resistor 270Ω...
  • Page 17 RB-D62Q2504TB32 User’s Manual FEBL62Q2504RB...
  • Page 18: Revision History

    RB-D62Q2504TB32 User’s Manual 6. Revision History Page Document No. Issue Date Description Previous Edition Edition FEBL62Q2504RB-01 March 8, – – First edition. 2022 FEBL62Q2504RB...
