U.S. Patent No. 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2021
INSTALL GUIDE
2015 CHEVROLET SILVERADO 1500 STD KEY
WITHOUT ONSTAR AUTOMATIC
DOCUMENT NUMBER
A51B118
REVISION DATE
20211218_145800
FIRMWARE
RSA-GM7
HARDWARE

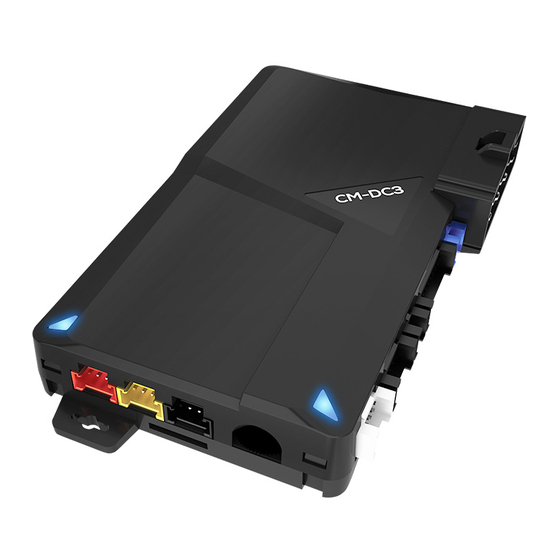

CM-DC3
ACCESSORIES
ATTENTION: TO COMPLETE THIS INSTALLATION SOME ACCESSORIES MAY BE
REQUIRED. VISIT OUR WEBSITE TO SEE ALL THE REQUIRED ACCESSORIES FOR
YOUR VEHICLE.
TERMS OF USE
Automotive Data Solutions Inc. ("ADS") products are strictly intended for installation by Certified Technicians who are employed
by a registered business specialized in the installation of automotive aftermarket electronics products. Prior to beginning
installation of an ADS product in a vehicle, it is the Certified Technician's responsibility to review the most current Product Guide,
Install Guide and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever, including but
not limited to any consequential damages, incidental damages, damages for loss of time, loss of earnings, loss of profit,
commercial loss, loss of economic opportunity and the like that may or may not have resulted from the use, misuse, improper
installation or operation of its products. ADS reserves itself the right to suspend any Weblink® account without notice and
decline to offer technical support to non-Certified Technicians, noncompliant Certified Technicians or end users.
compustar.idatalink.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Firstech RSA-GM7-CM-DC3
Summary of Contents for Firstech RSA-GM7-CM-DC3
- Page 1 INSTALL GUIDE 2015 CHEVROLET SILVERADO 1500 STD KEY WITHOUT ONSTAR AUTOMATIC DOCUMENT NUMBER A51B118 REVISION DATE 20211218_145800 FIRMWARE RSA-GM7 HARDWARE CM-DC3 ACCESSORIES ATTENTION: TO COMPLETE THIS INSTALLATION SOME ACCESSORIES MAY BE REQUIRED. VISIT OUR WEBSITE TO SEE ALL THE REQUIRED ACCESSORIES FOR YOUR VEHICLE.
-
Page 2: Remote Start
PAGE 2 OF 13 FEATURE LIST - 1 OF 1 Doc No.: A51B118 - 20211218_145800 Supported Supported REMOTE START SECURITY SYSTEM ✓ Data Immobilizer Bypass (no key required) Arm OEM Alarm Disarm OEM Alarm Key Required for Immobilizer Bypass ✓ ✓... - Page 3 PAGE 3 OF 13 MODULE LAYOUT - 1 OF 1 Doc No.: A51B118 - 20211218_145800 MODULE CONNECTORS CONNECTOR PINOUT CONNECTOR PINOUT 01 ORANGE - ACCESSORY (+) 01 ORANGE - ACCESSORY (+) 02 RED - POWER (30A) 02 RED - POWER (30A) CM-DC3 03 PURPLE - STARTER (+) 03 PURPLE - STARTER (+)
- Page 4 PAGE 4 OF 13 T-HARNESS / COMPONENT LOCATOR - 1 OF 1 Doc No.: A51B118 - 20211218_145800 T019_H U.S. Patent No. 8,856,780 CA 2759622 2015 Chevrolet Silverado 1500 STD key without OnStar Automatic Automotive Data Solutions Inc. © 2021 RSA-GM7-[CM-DC3]-EN compustar.idatalink.com...
- Page 5 PAGE 5 OF 13 T-HARNESS / WIRING DIAGRAM - 1 OF 1 T-HARNESS / WIRING DIAGRAM - 1 OF 1 Doc No.: A51B118 - 20211218_145800 CUT LOOP FOR AUTOMATIC TRANSMISSION ONLY CUT LOOP FOR AUTOMATIC TRANSMISSION ONLY NOT CONNECTED IGNITION SWITCH (A) WITH ADS-HRN(RS)-GMC07-2 IF EQUIPPED WITH AN OEM ALARM, 1: IGNITION CONNECTOR...
- Page 6 PAGE 6 OF 13 HARDWIRE / COMPONENT LOCATOR - 1 OF 1 Doc No.: A51B118 - 20211218_145800 T019_W U.S. Patent No. 8,856,780 CA 2759622 2015 Chevrolet Silverado 1500 STD key without OnStar Automatic Automotive Data Solutions Inc. © 2021 RSA-GM7-[CM-DC3]-EN compustar.idatalink.com...
- Page 7 PAGE 7 OF 13 HARDWIRE / WIRING DIAGRAM - 1 OF 1 Doc No.: A51B118 - 20211218_145800 CUT LOOP FOR AUTOMATIC TRANSMISSION ONLY CUT LOOP FOR AUTOMATIC TRANSMISSION ONLY BCM, LEFT SIDE OF STEERING COLUMN (A) 1: GREEN IF EQUIPPED WITH AN OEM ALARM, DISARM WITH IGN CYCLE (2-16, OPTION 2) MUST BE ENABLED.
- Page 8 PAGE 8 OF 13 MODULE PROGRAMMING PROCEDURE - 1 OF 2 Doc No.: A51B118 - 20211218_145800 Insert key into ignition. Insert key into ignition. Turn key to ON position. START START START Turn key to ON position. Turn key to ON position. Wait, LED 1 will turn solid GREEN for 2 seconds.
- Page 9 PAGE 9 OF 13 MODULE PROGRAMMING PROCEDURE - 2 OF 2 Doc No.: A51B118 - 20211218_145800 Release the brake pedal. Wait, LED 2 will flash GREEN. Module Programming Procedure completed. U.S. Patent No. 8,856,780 CA 2759622 2015 Chevrolet Silverado 1500 STD key without OnStar Automatic Automotive Data Solutions Inc.
- Page 10 PAGE 10 OF 13 TAKEOVER PROCEDURE - 1 OF 1 Doc No.: A51B118 - 20211218_145800 >> All vehicle doors must be closed and locked prior to remote start sequence. Press unlock on OEM or aftermarket remote or request switch. DO NOT PRESS BRAKE PEDAL. Set ignition to ON position.
- Page 11 PAGE 11 OF 13 REMOTE STARTER ERROR CODES - 1 OF 1 Doc No.: A51B118 - 20211218_145800 REMOTE STARTER ERROR CODES: NOTES PARKING LIGHT FLASHES DIAGNOSTIC I WARNING: The following applies only when the parking lights are 3 + 1 Tach is not programmed OR engine is already running.
- Page 12 PAGE 12 OF 13 MODULE DIAGNOSTICS - 1 OF 2 Doc No.: A51B118 - 20211218_145800 LED 2* LED 1** LED STATUS DIAGNOSTIC Missing/wrong information from firmware or vehicle. • Flashing RED See firmware specific diagnostics, or contact technical support. • Solid RED Module waiting for more vehicle information.
- Page 13 PAGE 13 OF 13 MODULE DIAGNOSTICS - 2 OF 2 Doc No.: A51B118 - 20211218_145800 LED 2* LED 1** LED STATUS DIAGNOSTIC • Flashing rapid RED Remote start shutdown sequence. • Flashing slow RED Remote start shutdown error code. Contact technical support. •...
