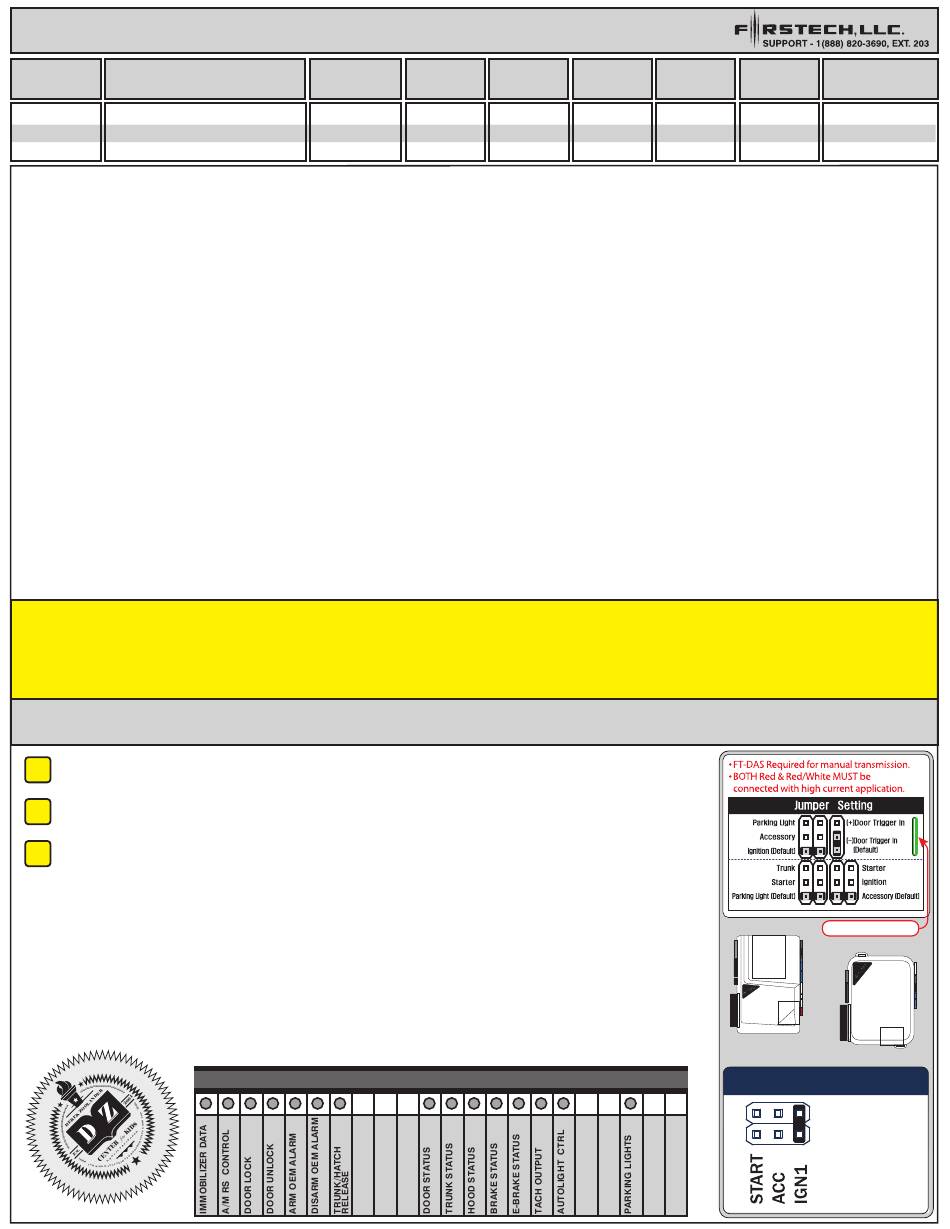

Firstech FTI-HDP7 Quick Start Manual

FTI-HDP7: Vehicle Coverage and Preparation Notes
Make Model
DL-HA6
Acura RLX PTS AT
This installation requires BLADE-AL(DL)-HA6 firmware, flash module and update the controller firmware before installing.
PCU:
Vehicle PCU locations differ by model, please note the specific locations according to the component locator, and also note
that the 36-pin connector at the Smart PCU can be either lt. brown or gray.
Lights:
( - ) Parking lights connections are provided by the included headlight switch adapter, please ensure proper configuration
to avoid damaging the vehicle's headlight switch. See detailed illustration on wiring page for specific configuration required.

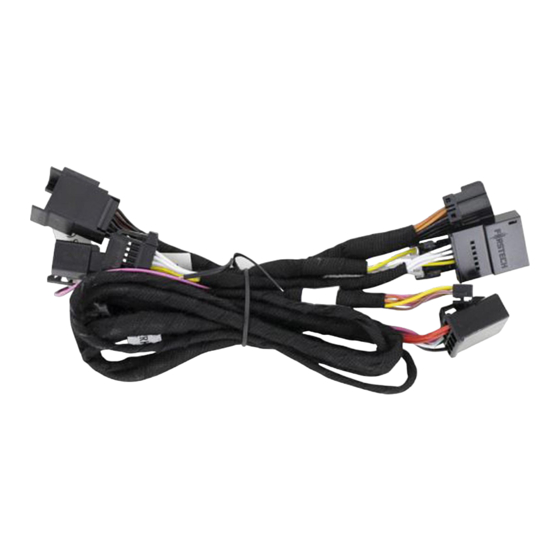

The FTI-HDP7 kit includes a headlight switch adapter equipped with pre-terminated wires that must be inserted into the
gray I/O connector of a compatible Firstech control module. Replace the pk light and status wires from the I/O connector.
To avoid possible damage to the vehicle headlight switch, please confirm proper configuration of the included adapter.
FTI-HDP7: Installation and Configuration Notes
A

REQUIRED CONNECTIONS

B REQUIRED CONNECTIONS - SEE NOTES
C

REQUIRED CONFIGURATION

Year Install
2016-20 Type 1
(COLORS VARY)
FEATURE COVERAGE
CAN Lights PCU
Park / Auto
PCU Type B NFB
Clutch I/O Changes
Green White/Blue
N/A N/A
CM7000/7200 Cut loop for A/T
CM-900S/900AS
CM900AS/900S Jumper
