EVM User's Guide: J7EXPA01EVM

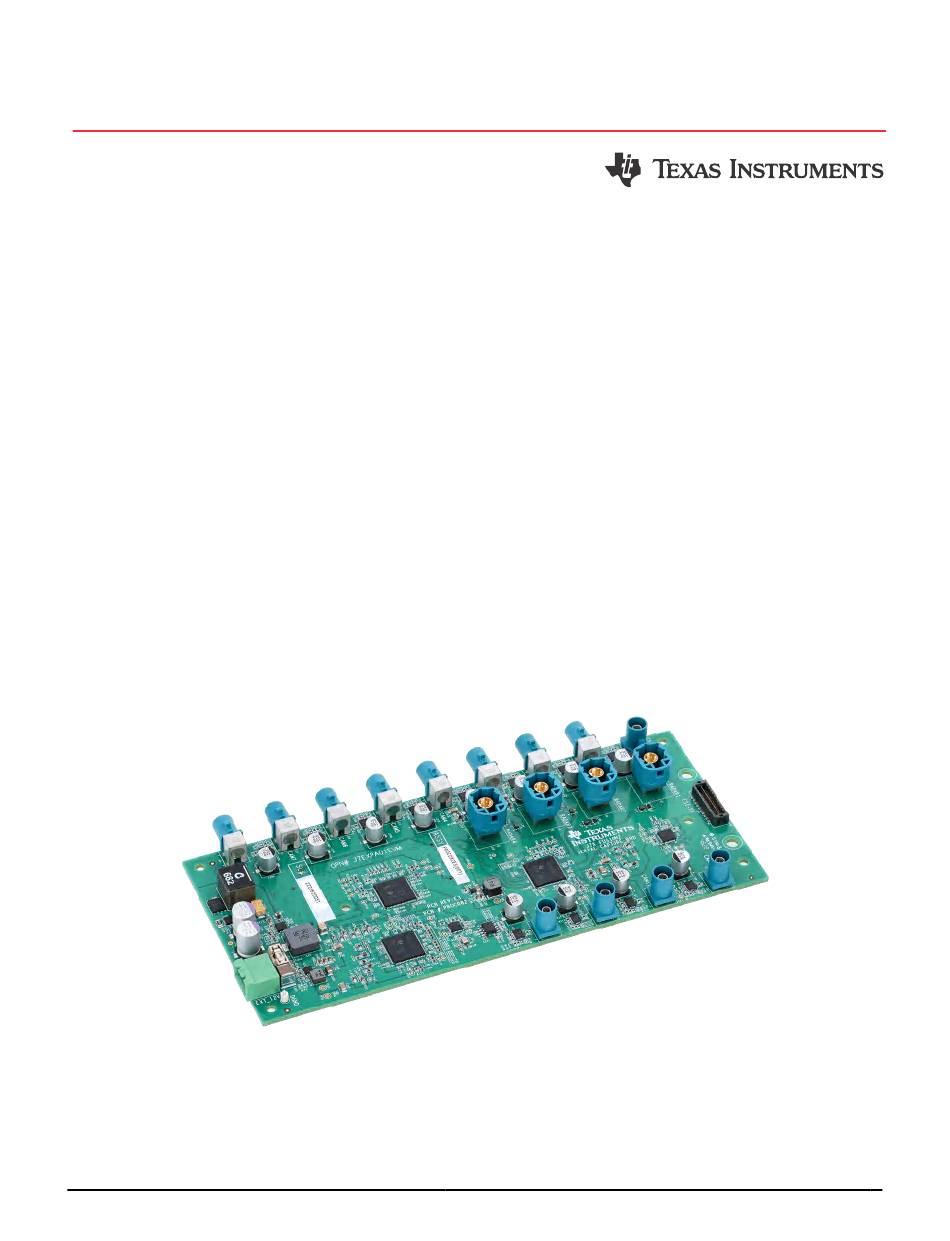

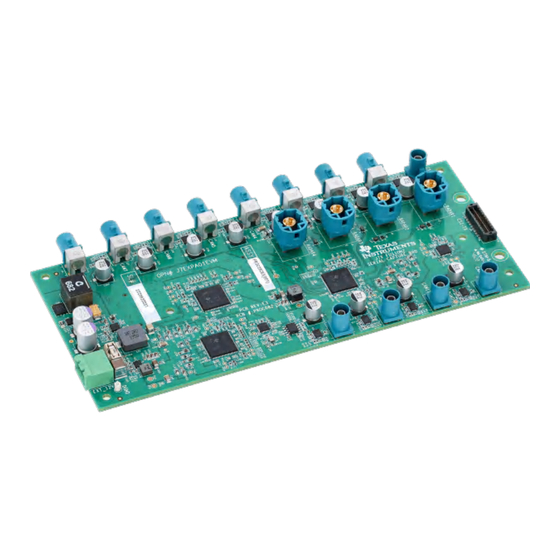

J7EXPA01EVM Evaluation Module
Description
The J7EXPA01EVM add-on board is designed to
expand the capability of Jacinto7 EVMs to include
video capture capabilities. This hardware system can
help kick start the development and evaluation of
the Jacinto7 family of processors in many different
automotive and industrial applications.
The J7EXPA01EVM provides the ability to interface
with external camera sensors, radar sensors,
and other similar capture devices through Texas
Instruments FPD-Link serial links. The EVM
can support up to twelve different inputs, and
communicates with the processor through multiple
MIPI D-PHY CSI2 interfaces.
Get Started
1. Order the EVM at J7EXPA01EVM.
2. Download the EVM design
3. Read this user's guide.
4. Download all related information for the base and
host EVM for which this board is mounted. See
EVM Compatibility for supported EVMs.
SPRUJ97 – JUNE 2024
Submit Document Feedback
files.
J7EXPA01EVM
Copyright © 2024 Texas Instruments Incorporated
Features
• Designed to work with Jacinto7 Processor EVMs
• Multiple capture inputs using Texas Instruments
FPD-Link IV devices
• Supports up to 12 high speed image/data input
ports simultaneously
• Each input can support 8MP+ imagers with
8.4Gbps line rates
• Supports variety of different sensors including
image and radar modules
Applications
• Automotive and Industrial
– Automotive front camera systems
– Automotive surround view
systems
– Industrial HMI
– Robot teach pendant
J7EXPA01EVM Evaluation Module
Description
and park assistance
1
