Summary of Contents for Plustek eScan A450

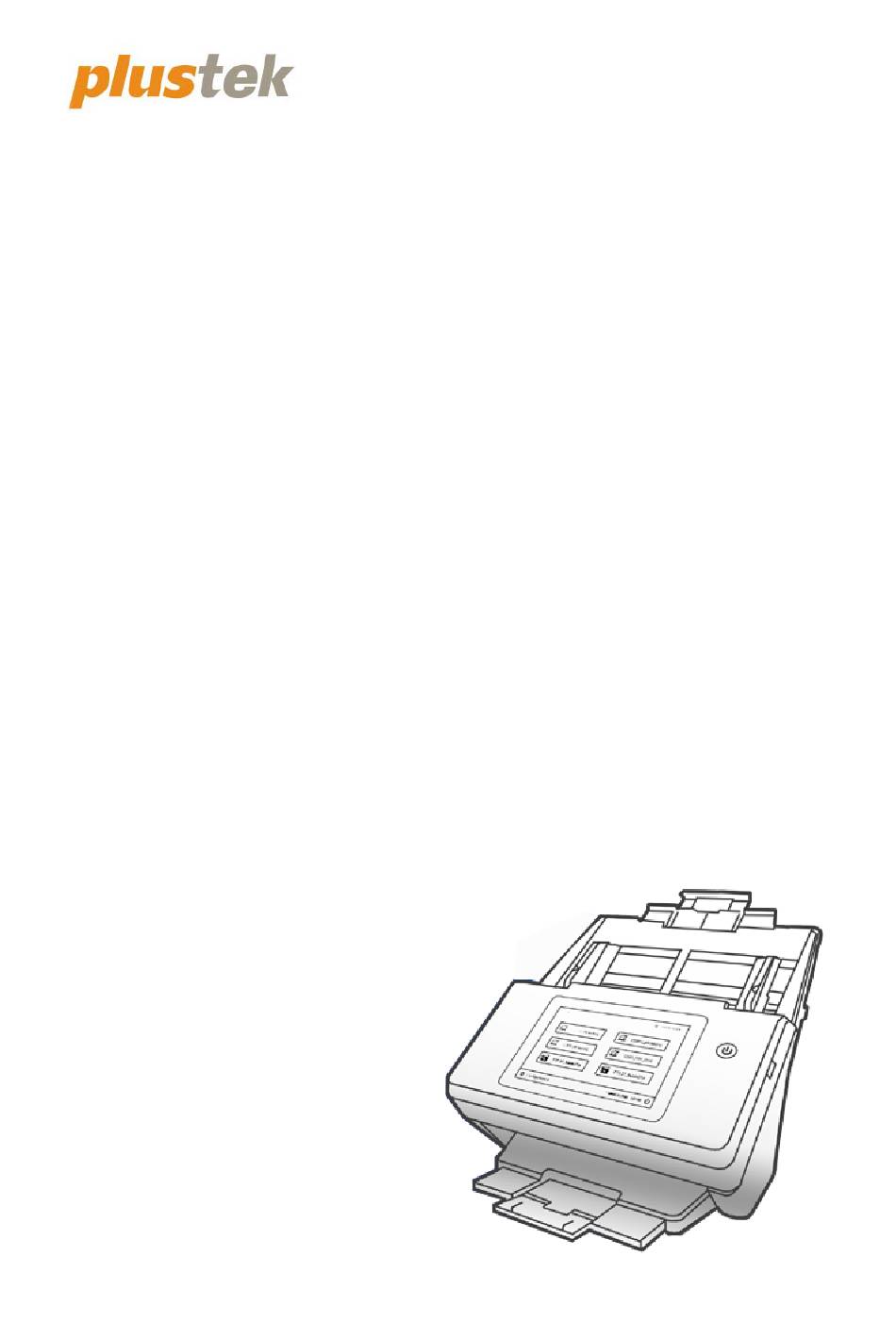

- Page 1 Scanner User’s Guide eScan A450...
- Page 2 Trademarks © 2023 Plustek Inc. All rights are reserved. No portion of this document may be reproduced without permission. All trademarks and brand names mentioned in this publication are property of their respective owners. Liability While all efforts have been made to ensure the accuracy of all contents in this...
- Page 3 Table of Contents ....................1 NTRODUCTION How to Use This Guide....................1 Conventions of This Guide ..................1 A Note about Icons ....................... 1 Safety Precautions...................... 2 Box Contents ......................3 Network Environment ....................4 I. I ..............5 HAPTER NSTALLING THE CANNER Installing and Setting up the Scanner .................
- Page 4 NTRODUCTION Thank you for choosing us as your scanner supplier. Like all of our products, your new scanner is thoroughly tested and backed by our reputation for unsurpassed dependability and customer satisfaction. We hope you will continue to turn to us for additional quality products as your computing needs and interests grow.
- Page 5 Optional tips for your reference. Information AFETY RECAUTIONS Before using this device, please read the following important information to eliminate or reduce any possibility of causing damage and Warning personal injury. 1. Usage, the product is for indoor use in dry locations. Moisture condensation may occur inside this device and cause malfunction at these conditions: when this device is moved directly from a cold to a warm location;...
- Page 6 ONTENTS 1. Scanner 2. AC Adapter 3. Paper Chute 4. Quick Guide, Calibration Sheet, Cleansing Cloth Save the box and packing materials in case you need to transport this scanner in the future.
- Page 7 ETWORK NVIRONMENT Basic knowledge of network setup and configuration will be helpful for you to operate this scanner. When you are using this scanner in a corporate environment, you may need to consult your network administrator or ISP. The scanner requires a DHCP server. A DHCP server automatically provides all devices within a network environment with IP addresses, so there is no need to manually set an IP address for the scanner.
- Page 8 A list of the package contents is provided in the “Box Contents” section of this guide. NSTALLING AND ETTING UP THE CANNER Please follow the step-by-step procedures described below to install the Plustek scanner. Choose a Proper Site First! Always place your scanner on a level, smooth...
- Page 9 1. Open the panel unit by pulling the lever, and get the paper chute ready. 2. Install the paper chute by aligning and inserting the tabs of the paper chute into their slots on the scanner. 3. Close the panel unit by pushing it back down until it snaps back into place.
- Page 10 Please make sure the scanner is turned OFF before you plug or unplug the scanner power Attention adapter. 1. Plug the AC adapter into the scanner’s power receptor 2. Attach the power cable to the AC adapter. 3. Plug the other end of the AC adapter into a standard AC power outlet. 4.
- Page 11 ONFIGURING THE YSTEM After powering on the system, you can tap on Configurations > System Settings from the Main Menu to enter the System Settings interface. UTTON Tap on the desired button to scan document with the preset scan settings then save the scan file to the specific destination.
- Page 12 II. C HAPTER ARE AND AINTENANCE Your scanner is designed to be maintenance-free. However, constant care and maintenance can keep your scanner working smoothly. LEANING THE CANNER Paper powder, dust, ink and toner from paper being scanned may make the inner ADF dirty, which leads to poor image quality or document-feeding errors.
- Page 13 A: S PPENDIX PECIFICATIONS Image Sensor CIS x 2 Light Source Optical Resolution 600 dpi Hardware Resolution 600 x 600 dpi Color: 48-bit input, 24-bit output Scan Modes Grayscale: 16-bit input, 8-bit output B/W: 1-bit 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 2.
- Page 14 Scan to USB Scan to FTP/SFTP/FTPS Scan to Network (SMB 2.0/3.0) Scan to SMTP Scan to SharePoint 2010/2013/2016/2019 Network Functions Scan to SharePoint Microsoft 365 Scan to OneDrive for Business Scan to Outlook Scan to OneNote Online Scan to Microsoft Exchange Scan to Azure File Storage Interface USB 2.0 x 2...
- Page 15 ERVICE AND ARRANTY Please visit our website www.plustek.com for more customer service information. For further assistance, visit our website or call our customer support phone number listed on the website. One of our representatives will be happy to assist you from Monday through Friday in office working hours.
- Page 16 The manufacturer warranty includes all parts and labor, and is not valid without the receipt of original purchase. To obtain warranty service, you may contact the authorized dealer or distributor, or visit our website to check out the available service information, or send a request via E-mail for further help.
- Page 17 FCC I NTERFERENCE TATEMENT Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 18 Directive 2014/53/EU. The adapter shall be installed near the equipment and shall be easily accessible. ANUFACTURER NFORMATION Plustek Inc. 13F-1, No. 3, Yuan Qu Street (Building F) Taipei 115, Taiwan, R.O.C. Accessory Manufacturer: Adapter: ENG Electric co., Ltd.
