E&G Classics 1383-0104-11 Installation Instructions

2011 gmc sierra hd heavy mesh / z denali style grille (overlay upper grille)

Download this manual

IMPORTANT: PLEASE KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE !

TOOLS REQUIRED

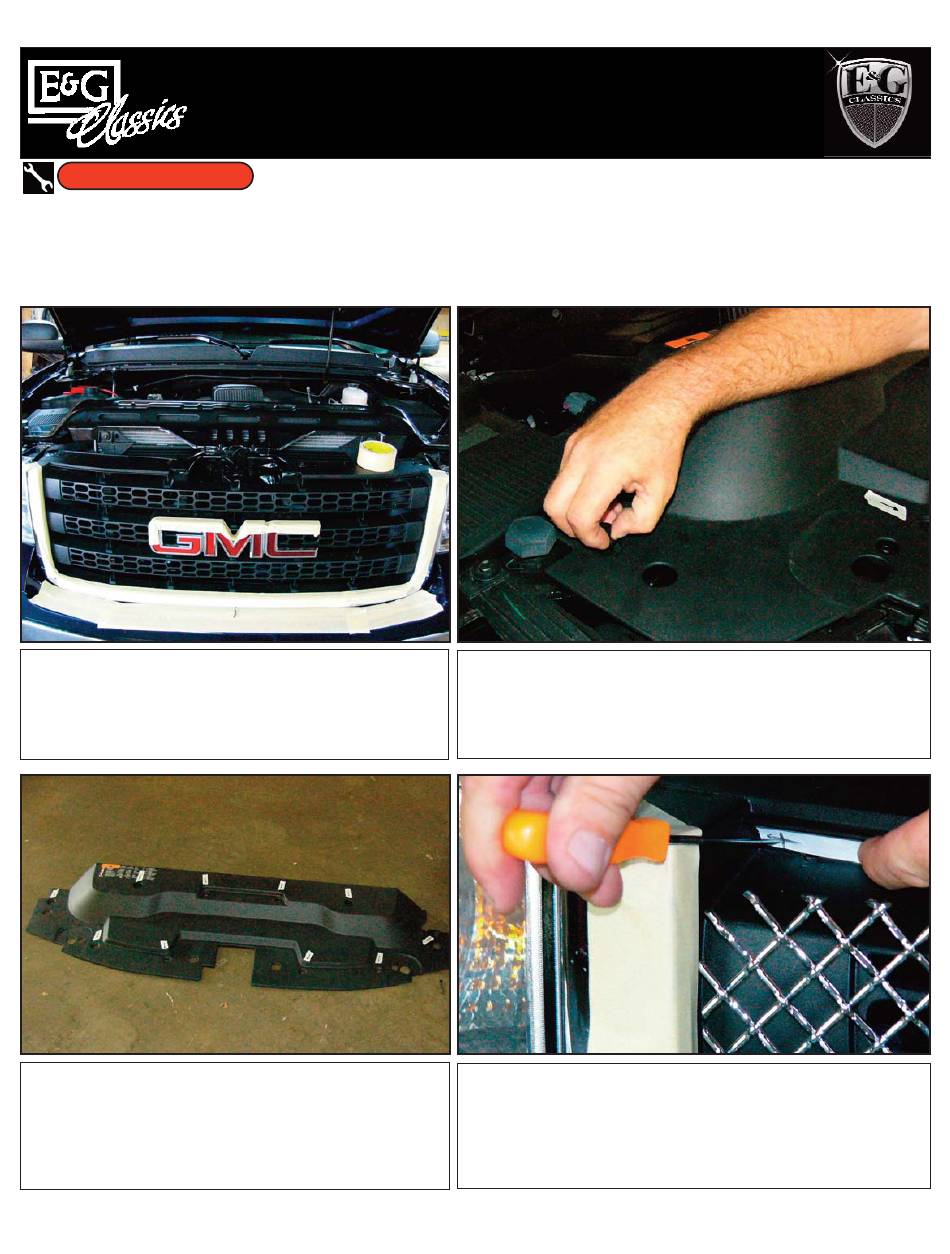

1. Apply automotive masking tape around the factory plastic

chrome surround and above on the GMC emblem. It is also

recommended that you apply a layer of masking tape on the

painted portion of the front bumper as shown. The tape is ap-

plied to the emblem to prevent the heavy mesh from scratch-

ing that surround when placing it on the grille.

3. Upper radiator grille cover removed. Note the locations of the

ten (10) pushpin locations (shown with tape).

2011 GMC SIERRA HD HEAVY MESH / "Z"

Denali Style GRILLE (

Part #: Complete 1383-0104-11 (Mesh) 1383-0185-11 (Denali Style)

Flat blade screw driver or clip removal tool, 11/32" or 9mm shallow socket, quarter socket drive, 1/4" drill bit, power drill, auto-

motive quality masking tape, awl or other pointed tool, side cut tool, scissors, 11/32" or 9mm box/open end wrench

Overlay Upper Grille)

2. Remove the ten (10) pushpins on the upper grille cover inside the

hood. Use a flat-blade screw driver or a clip removal tool. See image

below for all clip locations. Place the pushpins in a cup so you do not

misplace them.

4. Using the supplied drilling template and an awl or other pointed tool,

mark the upper left & right hole locations. Please note that these two

locations require drilling. MARK THESE HOLES BEFORE YOU IN

STALL THE MESH & USE THE WIRE TIES to hold the mesh to the

factory grille on the next page.

Need help?

Do you have a question about the 1383-0104-11 and is the answer not in the manual?

Page 1 2011 GMC SIERRA HD HEAVY MESH / “Z” Denali Style GRILLE ( Overlay Upper Grille) Part #: Complete 1383-0104-11 (Mesh) 1383-0185-11 (Denali Style) Flat blade screw driver or clip removal tool, 11/32” or 9mm shallow socket, quarter socket drive, 1/4” drill bit, power drill, auto- TOOLS REQUIRED motive quality masking tape, awl or other pointed tool, side cut tool, scissors, 11/32”...
Page 2 5. Use a 1/4” drill bit on the holes in the upper left and right por- 6. Take mesh insert and carefully place it over the OEM grille. THE tions of the grille that were marked in Step #4. Again, do this EDGES OF THE MESH ARE EXTREMELY SHARP.
Page 3 Notice the cut plastic caps from Step #8) 13. Metal 3 hole brackets are used along the bottom of the grille sur- 12. Close up image of the upper right/left studs with washer & round. ESNA nut attached. Once these two locations are hand tight.. proceed to the other stud locations.
Page 4 21. Peel off the double faced tape backing and align the “G” filler into the emblem and press firmly to set the tape. Install complete “Heavy Mesh” Part # 1383-0104-11 Also available for the Sierra HD Denali Style “Z”- 1383-0185-11...
Page 5 On our website you’ll find a wide variety of high-quality car & truck custom grilles from E&G Classics.
