TOOLS REQUIRED

E&G is proud to present this package to you and reminds you that for technical information, contact technical assis-
tance at 410-381-4900. Do not attempt the installation of any E&G product without first reading the detailed instruc-
tions. E&G will not warrant damaged parts or the vehicle due to altered installation procedures.
Important: Fits F-150 models with air flow shutters only. If the factory grille on the vehicle you are
working does not have air flow shutters, please call technical support at 410-381-4900 before
proceeding. Will not work with vehicles equipped with 360-Degree camera system.

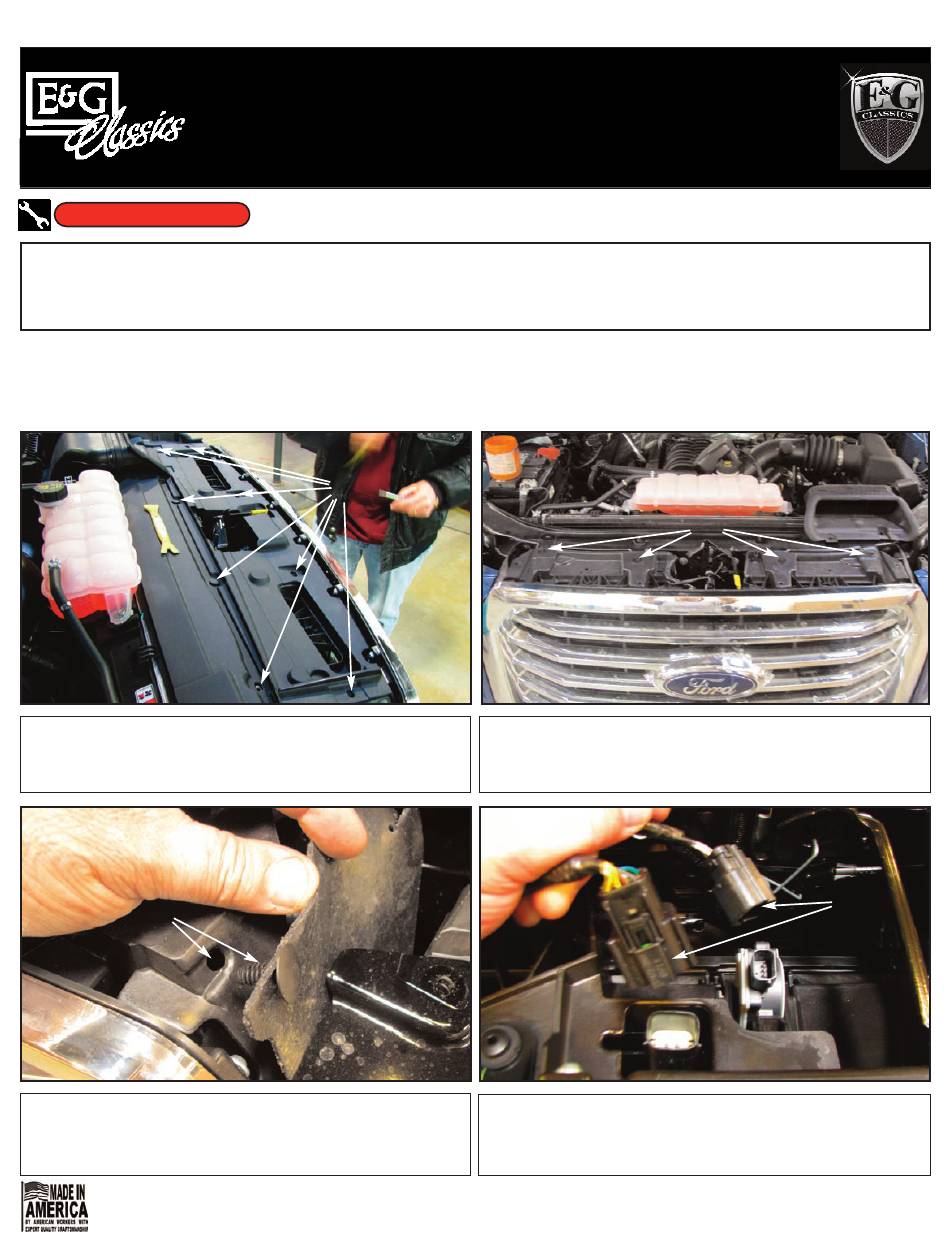

1. Open the hood and remove the plastic push fasteners securing
the radiator support panel cover and remove the cover.
3
3. Pull the top of the flexible rubber air deflector off the top sides of
the factory grille.
Copyright 2015 by E&G Corporation, LLC.
2015-16 Ford F-150 Billet Grilles
Upper Replacement
Upper Black Billet Part #1045-019U-15B
Upper Polished Billet Part #1045-019U-15
Automotive grade masking tape, plastic clip removal tool, 10mm deep, 10mm, 9mm, 8mm & 7mm sockets and
ratchet, large flat blade screwdriver, #2 phillips screwdriver, flat or semi-gloss black paint, glass cleaner and soft,
clean cloths.
Notes to the Technician/Installer:
1
2. Use a 10mm socket and ratchet to remove the upper hex screws
securing the top of the factory grille to the support.
4. Disconnect the electrical connector at the air flow shutter motor.
Disconnect the air temperature sensor electrical connector at the top
of the factory grille.
Visit us online today at www.egclassics.com
04/15/2016
2
4
