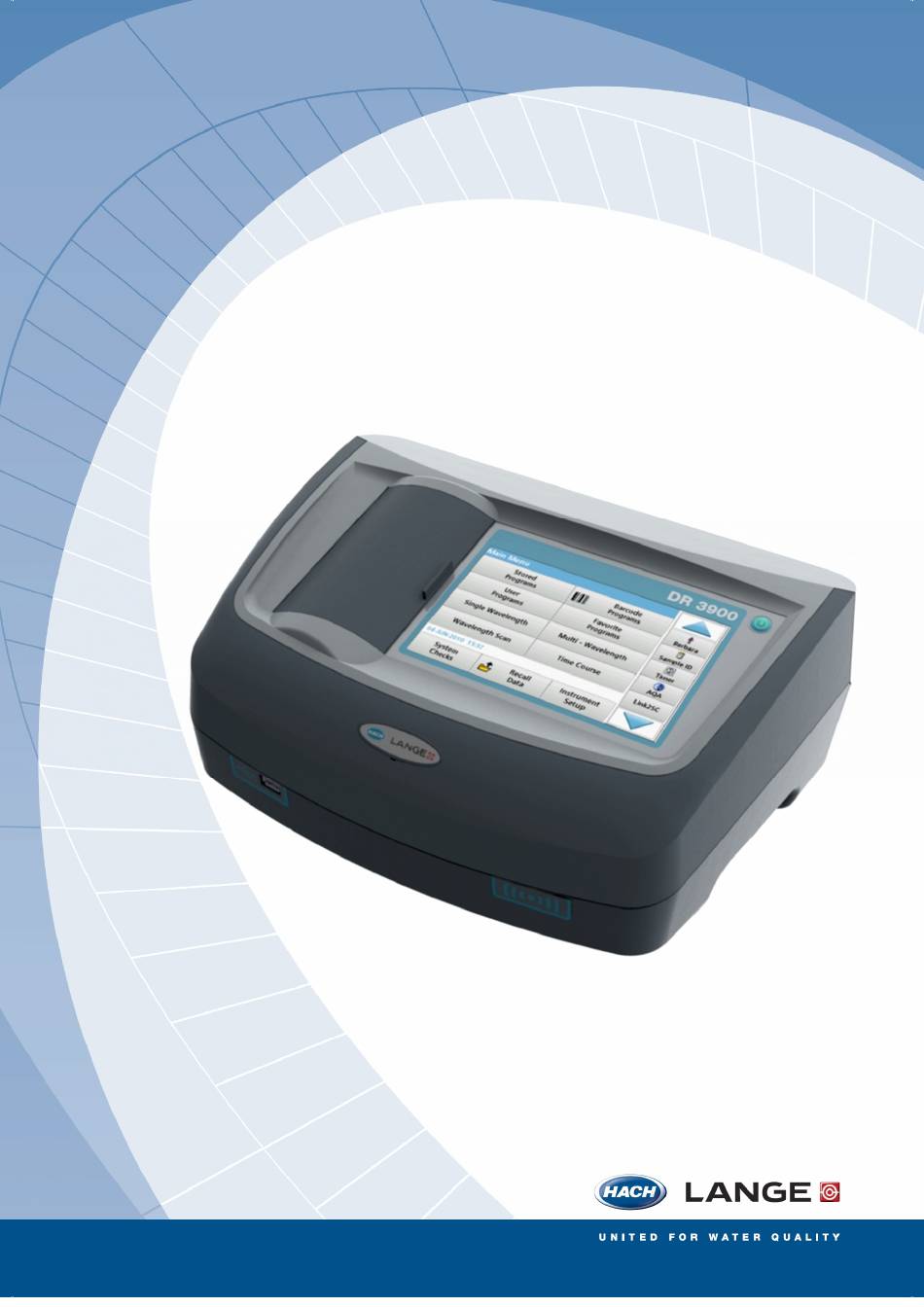

DOC222.52.90356
DR 3900
Service instructions
04/2011 Edition 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANGE DR 3900 and is the answer not in the manual?

Questions and answers

Related Manuals for Hach LANGE DR 3900

Summary of Contents for Hach LANGE DR 3900

  • Page 1 DOC222.52.90356 DR 3900 Service instructions 04/2011 Edition 1.0...

  • Page 3: Table Of Contents

    Content GENERAL ......................6 Instrument variants ..........................6 Specifications ............................. 6 Position of individual components in the instrument................6 Position of individual components in the beam path................8 ERROR MESSAGES/EVENT LOGGER .............. 9 General............................... 9 Error messages in the UI:......................... 9 Event logger entries..........................
  • Page 4 Camera..............................64 Beam path/main board ........................... 66 4.7.1 Battery............................... 66 4.7.2 Removal of the beam path with main board..................67 4.7.3 Separation of the beam path from the main board................68 4.7.4 50 mm cell compartment........................69 4.7.5 Open the beam path........................... 69 4.7.6 Concave grating ..........................
  • Page 5 Images of spare parts ..........................109 TEST EQUIPMENT AND VERIFICATION DEVICES ........117 Overview ..............................117 ACCESSORIES ....................119 Locator ..............................119 9.1.1 Test equipment ..........................119 9.1.2 Function test ............................ 119 9.1.3 Update software ..........................119 - 5 -...

  • Page 6: General

    This menu system can also create reports, statistical evaluations of the calibration curves produced and reports about instrument diagnostics tests. 1.1 Instrument variants The instrument variants of the DR3900 spectral photometer are listed below: LPG440.99.00001 DR 3900 without RFID Hach-Lange LPG440.99.00011 DR 3900 with RFID Hach-Lange LPG440.99.00002 DR 3900...
  • Page 7 6 - Cross rail (LZV858/LZV859) 7 - Sample chamber slide (LZV856) 8 - 50 mm cell compartment (LZV848) 9 - Grating motor board (with grating motor YAB118) 10 -RFID module (YAB120) 11 -Rear panel (LZV855) 12 -Camera (LZV862) 13 -Stepper motor (LZV850) 14 -CR2032 lithium battery (LZV851) 15 -Main board with processor...

  • Page 8: Position Of Individual Components In The Beam Path

    1.4 Position of individual components in the beam path 1 - Halogen lamp (LZV565) 8 - Beam splitter mirror (LZV755) 2 - Entry slit 9 - Reference element (YAB083) 3 - Concave grating (LZV592) 10 -Cell compartment (2) for rectangular 4 - Zero order light guide (LZV865) cuvettes 5 - Exit slit...

  • Page 9: Error Messages/Event Logger

    2 Error messages/Event logger 2.1 General Please also refer to section 3.6.8.1Event logger on page 56 The instrument history and details of any errors that have occurred are saved in the event logger. In the case of errors that are unclear, or error descriptions from the customer, this function can be used for fast troubleshooting by Service.

  • Page 10: Event Logger Entries

    Logger entry produced [xx] Cause/explanation, please also Error message refer to appropriate logger entry section 2.3 Event logger entries on page 10 Error during setup of Check Ethernet port, refer to section 3.6.4.6 Ethernet on page network drive! Error during setup of Check Ethernet port, refer to section 3.6.4.6 Ethernet on page subnet mask.
  • Page 11 Explanation of the index numbers in the event logger: The error numbers "[X]" in the error messages during the start procedure correspond to the index numbers in the logger description. Index number Explanation 2,(x) Photometer was switched on Device started in test programm only Error: Check air reading (remove cuvette first), measured value at 560 nm, stored air x.xxxx, value at 560 nm...
  • Page 12 2d-Code sw module (Barcode module) value 9: found position of the very first marker position during marker scan (found old position) 26, x start SW-Update value 1: Software version: "UI(Kernel|Driver|Language|Sound|Guide|PdfConverter)Hach- LangeDB|HachDB" 27, x completed SW-Update value 1: Software version: "UI(Kernel|Driver|Language|Sound|Guide|PdfConverter)Hach- LangeDB|HachDB"...
  • Page 13 Index number Explanation 31, x, Error during core initialization (e.g. power supply, AD-converter 10-bit/16-bit/24-bit, (x.xxxx etc.) Error during initialization of generic IO-Ports (Linux-driver) Error during cycle of HW-Version of the mainboard Error during initialization of generic IO-Ports (hardware ports) Error during initialization of I2C bus (Linux driver) Error I2C-Busy-Flag (special hardware port) is shorted to ground/VCC Error during initialization of I2C port expander Error during initialization of 10bit AD converter (SH4-Controller)
  • Page 14 Index number Explanation Error during self check / calibriation 33, 1, Calibration: lamp is off, nevertheless level @ zero order sensor is too high x.xxxx, value 1: [V] lamp voltage x.xxxx, value 2: [V] Dark value @ zero order sensor x.xxxx, value 3: [V] defined limit (max.
  • Page 15 Index number Explanation 33, 12, Calibration (grating to position): error while setting up wave lenght xxxxxx ('LambdaEinstellen') xxx, value 1: error code 0x00000400 no useful wavelength 0x00000800 failure: step motor controller status / step counter 0x00001000 step motor controller status failure 0x00002000 step counter failure value 2 [nm]...
  • Page 16 Index number Explanation 35, 4, x Faulty bright measurement at AD converter(16-bit) , xxx value 1: status communication error between CPU and ADC16 (no end of conversion) bus error (I2C bus) value 2: [nm] Lambda 35, 5, Too less light during bright measurement @ sample sensor x.xxxx, value 1: [V] value (bright) @ sample sensor...
  • Page 17 Index number Explanation 35, 14, Adjust round cuvette detection faulty value 1: status: 0=no adjust executed 1=adjust executed x.xxxx, value 2: [V] detection level @ round cuvette sensor (difference bright-dark) x.xxxx, value 3: [V] dark value @ round cuvette sensor x.xxxx, value 4: [V] defined limit (calculated from current temperature)
  • Page 18 3: [nm] Lambda operating hour information (will be stored when copying logger file) <Versi value 1: version information "1.00(4|1|1|1|1|1)10|3" on>, Software version: xx,x,x, "UI(Kernel|Driver|Language|Sound|Guide|PdfConverter)Hach- xx.x,x, LangeDB|HachDB" xx.x value operation hours instrument 2[hh,mm]: value 3: operation counter halogen lamp value 4...

  • Page 19: Software

    3 Software 3.1 Language selection The software of the DR 3900 supports several languages. When the instrument is switched on for the first time, a list for language selection opens up automatically after the boot procedure. The Testprogram then starts automatically. 3.1.1 To change the language settings 1.
  • Page 20 Program version: Name and version of the installed database HACH: xx HACH LANGE: xx MAC address: xx:xx:xx:xx:xx:xx The MAC address (Media Access Control Address) is the hardware address for the network adapter in the DR 3900. Software...

  • Page 21: Service Times

    3.4 Service times To make sure that regular inspections are carried out, an automatic reminder can be input for the service times. After the instrument is switched on, this reminder will be activated and displayed at the relevant time. WARNING: The default setting on delivery is 12 months Select the service times in the "System check"...

  • Page 22: Instrument Backup

    3.5 Instrument backup The "Instrument backup" menu offers the option to save all the programs, measurement data, operator IDs, sample IDs, passwords and all adjustable data on a USB before the instrument is inspected. 3.5.1 Save Select Instrument backup in the "System check" menu.

  • Page 23: Restore

    3.5.2 Restore Select “Instrument Backup” in the "System checks" menu. Connect a USB stick. Press Restore to start a backup. Confirm with OK, if the message "Instrument backup for S/N XXXXXXX. Restore?" is shown. Important note: All the current data will be overwritten when the backup file is restored! It is recommended that an update is carried out after a successful restore (refer to...

  • Page 24: Customer Service Menu

    3.6 Customer service menu 3.6.1 General The instrument is operated using the touchscreen: The buttons available are shown (and labeled) in the display. It is possible to press the button within the display area. The button that has been pressed is then graphically highlighted.

  • Page 25: Main Menu

    3.6.3 Main menu WARNING: Some functions in the testprogram are only intended for development or production. Observe the notes in the relevant passages! The points of the testprogram main menu are listed in the following table with a brief explanation of their function.
  • Page 26 Sound Test of the signal tones Setup of date and time. (Refer to on page Test of USB connections. (Refer to on page Ethernet Test of the Ethernet connection. (Refer to on page Option Power Test of the power supplies. (Refer to on page Return Back to the previous menu...
  • Page 27 Display check The following screens are shown in sequence: The LCD becomes darker. Backlight [%]: reduces by 5% Dark (Minimum: 0%) The LCD becomes brighter. Backlight [%]: increases by 5% Bright (Maximum: 100%) Backlight on/off Switch LCD backlight to 0% or x% (x = previous value) WARNING! Make a note of the button position, as the display is completely dark when it is set to 0%! Return...
  • Page 28 3.6.4.2 Touch Testprograms and touchscreen settings are called up in the "Touch" menu. In the "Testprogram — Hardware" menu, press "Touch" to confirm. The "Testprogram — Hardware — Touch" menu is shown in the display. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option...
  • Page 29 The "Testprogram — Hardware — Sound" menu is shown in the display. Press "Return" to go back to the previous menu. Explanation of the specifications in the display window: Explanation Display Sound theme: Shows the active sound theme: (always Viper Default (0)) Sound power: Displays the status "on"...
  • Page 30 The "Testprogram — Hardware — RTC" menu is displayed. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option Set Time Opens the input screen for the date and time. Set Zone CAUTION, for development and production only! Explanation of the specifications in the display window: Explanation Display...
  • Page 31 3.6.4.7 Option (Power) In the "Testprogram — Hardware" menu, press "Option". In the "Testprogram — Hardware — Option" menu, press "Power". The "Testprogram — Hardware — Power" menu is displayed. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option Power off...

  • Page 32: Photometer

    VCC power [V]: General power supply to the peripherals (5.3 V) 1V8 power [V]: Status of the power supply to the Ethernet port (on or off) Standby key: CAUTION, for development and production only! 3.6.5 Photometer Testprograms and settings for the beam path are accessed in the "Photometer" menu. Testprogram main menu,...
  • Page 33 3.6.5.1 AD Testprograms and settings for the grating and the optical filter are accessed in the "AD" menu. In the "Testprogram — Photometer" menu, press "AD". The "Testprogram — Photometer — Analog" menu is displayed. Press "Return" to go back to the previous menu. Press "Option 1"...
  • Page 34 Lamp Press this button to switch the lamp on or off. This lamp is switched off in the DR3900 during normal operation. CAUTION, when the lamp is operated for long periods, the chassis of the DR3900 becomes very hot! Offset 0 The current measurement value is taken as the offset.
  • Page 35 Lamp [V]: Displays the voltage to the lamp in volts. The voltage is tailored to the wavelength that is set and is only displayed if the lamp is switched on. Wavelength range Lamp voltage 320 nm … 339 nm 6.5 V 340 nm …...
  • Page 36 Explanation of menu options: Explanation Menu option Calibration The photometer is calibrated (grating and filter). If calibration has already been carried out, only the filter position is changed (F:0 to F:4 are possible). The button is then labeled, for example "560 nm F:3" (560 nm — the wavelength set; F:3 — the filter position).
  • Page 37 Option Filter survey test CAUTION, for development and production only! Option FilterFast Test CAUTION, for development and production only! Explanation of the specifications in the display window: Explanation Display Abs: Displays the extinction measured. Sample 24 bit: Displays the measurement channel in volts (is calculated from the ratio).
  • Page 38 3.6.5.3 Grating Self-checks and settings for the grating are accessed in the "Grating" menu. Press "Grating" in the "Self-check — Photometer" menu. The "Self-check — Photometer — Grating" menu is displayed. Press "Return" to go back to the previous menu. Press "Option"...
  • Page 39 Explanation Menu option chassis of the DR3900 becomes very hot! Offset 0 The current measurement value is taken as the offset. The label changes to "Offset x.xx". Press the button again to delete the offset again, and the label changes back to "Offset 0". Offset x.xx <- Moves the grating by one step towards the smaller number of...
  • Page 40 Explanation Menu option Option Minor slit test Scan +- 70 nm at zero order to find any gaps next to the actual exit slit. The result is displayed as a graphic and a message. Option Test 360.9 nm Tests the actual wavelengths. The holmium filter (from VAA591) must be inserted beforehand.
  • Page 41 Explanation of the specifications in the display window: Explanation Display Abs: Displays the extinction measured. Sample 24 bit: Displays the measurement channel in volts (is calculated from the ratio). Ratio: The relationship between the measurement signal and 4.096 V (output from the 24-bit converter). If the measurement signal = ½...
  • Page 42 3.6.5.4 Adjust The "Adjust" menu brings up the setting options for the grating and the optical filters for the beam path alignment. In the "Testprogram — Photometer" menu, press "Adjust". The "Testprogram — Photometer — Adjust" menu is displayed. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option...

  • Page 43: Cell Compartment

    Filter Steps: Step counter for the filter motor Measure State: Always "On" Reference: Displays the values for the reference signal in volts. Sample: Displays the values for the measurement signal in volts. Lamp: Displays the switched-on status of the lamp. Display "On/Off" 3.6.6 Cell Compartment In the Testprogram main menu, press "Cell Compartment"...
  • Page 44 The "Testprogram — Cell Compartment — Cuvette detection" menu is displayed. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option Check Round Cuv. Starts the detection of the round cuvette. Result is shown in the display screen.
  • Page 45 3.6.6.2 Cuvette Motor In the "Testprogram — Cell Compartment" menu, press "Cuvette Motor" . The "Testprogram — Cell Compartment — Cuvette Motor" menu is displayed. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option Step mode: CAUTION, for development and production only Delay:...

  • Page 46: Basic Functions

    "Testprogram — Cell Compartment — Camera Main Menu" is displayed. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option Switches the camera LED on or off Basic Functions Calls up individual camera functions 2D Code 2D Code recognition test Logo Recognition...
  • Page 47 The "Testprogram — Cell Compartment — Camera Basic Functions" menu is displayed. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option Single Shot Takes a photo with the camera and displays it in the display screen.
  • Page 48 Explanation of menu options: Explanation Menu option Single Run Carries out the function as in UI if a cuvette is inserted. The marker is searched for first, followed by the 2D Code Decoded. The result is displayed below the camera image. Shutt|AGain|DGain CAUTION, for development and production only Search Marker...
  • Page 49 NXP ICS20 -> BDH015/BDH017 NXP ICS20 = identifier for equipment producer and TAG type (converted by software from the hex-numbers) BDH. = Hach Lange number for the TAG (converted by software from the hex-numbers) Status: Indicates how long access lasted, how many TAGs were detected, how many bytes were read and how many blocks had to be requested repeatedly.
  • Page 50 3.6.7 Option A range of settings are configured in the "Option" menu. In the Testprogram main menu, press "Option". The "Testprogram — Option" menu is displayed. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option About Displays the names and versions of various programs and the...
  • Page 51 The "Testprogram — Option — About" menu is displayed. Press "Return" to go back to the previous menu. Explanation of the specifications in the display window: Explanation Display Testprogram Version: Displays the version of the testprogram. System Version Displays the version of the system (kernel version |driver version |language version |sound version |help guide version |PDF Viewer version).
  • Page 52 This code number is confidential and can only be requested from the development department itself. "Device Type" is saved on the grating motor board, for example an instrument is still a "HACH LANGE" instrument even after the main processor is replaced.
  • Page 53 Delivery state When "OK" is pressed to confirm, all customer settings in the user program are reset to the default values (factory settings). All measurement data is deleted. The language selection menu is shown automatically the next time the instrument is started.
  • Page 54 Cell Compartment Refer to Explanation of specifications in the display screen after pressing "Cell Compartment": SunLight Level CAUTION, for development and production only! LampCheck Level CAUTION, for development and production only! Default CAUTION, for development and production only! Default overwrites the factory setting for the device parameters.
  • Page 55 Explanation of specifications in the display screen after pressing "Cell Compartment": Display Explanation RoundCuvetteAdj Thresh.: The aligned threshold for cuvette detection RoundCuvetteAdj Tempr.: The corresponding temperature for the aligned threshold for cuvette detection Factor Sample: Factor for the thresholds given below for sunlight identification Factor Reference: Factor for the thresholds given below for sunlight identification SL-Level R0 Meas/Ref:...

  • Page 56: Service

    3.6.8 Service In the Testprogram main menu, press "Service". The "Testprogram — Inspection (Service)" menu is displayed. Press "Return" to go back to the previous menu. Explanation of menu options: Explanation Menu option HW Check (service) A complete test of the instrument as a whole including all alignment processes (refer to 6.3 Hardware check (service)
  • Page 57 For the explanation of the entries, refer to section 2.3 Event logger entries on page 10 After copying of the event log file the message: “Please send event log file to eMail address: InstrumentLogger@hach-lange.de“ appears. Note: Please send the complete archive file ‘Logger_LPG440:xxxxxxx.tar.gz’ to e-mail account: InstrumentLogger@hach-lange.de.
  • Page 58 3.6.8.2 Update Caution: All customer-specific settings (operator ID, sample ID), stored measurement results and user programs created by the customer are retained! Note: use this update after the inspection etc.! In the "Testprogram — Inspection (Service)" menu, press "Update". Now insert the VAA608 USB stick and press OK confirm.

  • Page 59: Repairs

    4 Repairs CAUTION: a Hardware Check Adjust (HW Check (Service)) and the service inspection must always be carried out after individual components are replaced. 4.1 Open the instrument The text below refers to opening the DR3900. The installation to close it is done by deconstructing it in reverse order.
  • Page 60 3. Remove the screw (3) underneath the instrument plate. 4. Lift the front cover forwards until you can remove it from the instrument. 5. Remove the four screws (4) on the top of the housing. 6. Remove the top of the housing by lifting it upwards.

  • Page 61: Rfid Module

    4.2 RFID Module Removal of the RFID module 1. Open the instrument (refer to Open the instrument on page 59). 2. Pull the RFID module (1) forwards. To close the instrument, follow points one and two in reverse order. 4.3 Display assembly Removal of the display assembly: 1.

  • Page 62: Cross Rail

    4. Loosen the electrical contacts (1) to remove the display assembly completely; however, in many cases complete removal is not required. To close the instrument, follow points one to four in reverse order. 4.4 Cross rail Removal of the cross rail: 1.

  • Page 63: Halogen Lamp

    4.5 Halogen lamp The halogen lamp for the DR 3900 can be replaced from underneath the instrument as described in the user manual. The halogen lamp can also be replaced when the instrument is open. Schematic representation 1 - Lamp holder 2 - Halogen projector lamp (LZV565) 3 - Flat spring 4 - Combi screw M3x8-Z1-3-8.8-R2 (part of...

  • Page 64: Camera

    5. Take hold of the plug and pull it and the lamp out of the lamp holder 6. Remove the plug from the lamp To close the instrument, follow points one to six in reverse order. 4.6 Camera Schematic representation: 1 - Combi screws M3x8-Z1-3-8.8-R2R (to attach the light guide holder (2) to the camera (6)) (part of LZV884)
  • Page 65 Removal of the light guide: CAUTION during cleaning and maintenance — please refer to section 6.2 How to handle and clean the optical components on page 89. 1. Open the instrument (refer to Open the instrument on page 59). 2. Remov the screws (1) for the light guide holder.

  • Page 66: Beam Path/Main Board

    4. Loosen the electrical contact (9) to remove the camera completely. During assembly, make sure that the curvature (10) that occurs in the camera connector points away from the beam path. To close the instrument, follow points one to four in reverse order. 4.7 Beam path/main board 4.7.1 Battery The testprogram shows the approximate voltage value for the internal lithium battery (refer to...

  • Page 67: Removal Of The Beam Path With Main Board

    4.7.2 Removal of the beam path with main board 1. Open the instrument (refer to Open the instrument on page 59). 2. Remove the display assembly (refer to Display assembly on page 3. Remove the cross rail with the sample chamber slide (refer to Cross rail on page 62).

  • Page 68: Separation Of The Beam Path From The Main Board

    4.7.3 Separation of the beam path from the main board 1. Open the instrument (refer to Open the instrument on page 59). 2. Remove the display assembly (refer to Display assembly on page 3. Remove the cross rail with the sample chamber slide (refer to Cross rail on page 62).

  • Page 69: Mm Cell Compartment

    4.7.4 50 mm cell compartment The 50 mm cell compartment on the DR 3900 can also be replaced (by the customer) when the instrument is closed, as described in the user manual. 1. Undo the 2 screws (4) in the cell compartment.

  • Page 70: Concave Grating

    7. Remove the beam path cover. To close the instrument, follow points one to seven in reverse order. 4.7.6 Concave grating CAUTION: When you replace the concave grating (LZV592), you must also replace the full grating holder set (LZV863). CAUTION during cleaning and maintenance — please refer to section 6.2 How to handle and clean the optical components on page 89.
  • Page 71 Remove the concave grating 1. Open the instrument (refer to Open the instrument on page 59). 2. Remove the display assembly (refer to Display assembly on page 3. Remove the cross rail with the sample chamber slide (refer to Cross rail on page 62).

  • Page 72: Grating Motor And Motor Board

    4.7.7 Grating motor and motor board WARNING: The device type and the RFID configuration, as well as various calibration values of the beam path are detailed on the grating motor board. After you replace the grating motor board, the device type and the RFID configuration must be set in the testprogram accordingly (refer to section 3.6.7.2 Definitions on page 51).

  • Page 73: Filter Wheel And Stepper Motor Filter Changer

    To close the instrument, follow points one to ten in reverse order. 4.7.8 Filter wheel and stepper motor filter changer CAUTION during cleaning and maintenance — please refer to section 6.2 How to handle and clean the optical components on page 89. Schematic representation: 1 - Filter wheel holder 2 - Stepper motor (LZV614)

  • Page 74: Beam Splitter Mirror

    Remove the filter wheel with stepper motor 1. Open the instrument (refer to Open the instrument on page 59). 2. Remove the display assembly (refer to Display assembly on page 3. Remove the cross rail with the sample chamber slide (refer to Cross rail on page 62).

  • Page 75: Reference Pcb

    Remove the beam splitter mirror: 1. Open the instrument (refer to Open the instrument on page 59). 2. Remove the display assembly (refer to Display assembly on page 3. Remove the cross rail with the sample chamber slide (refer to Cross rail on page 62).

  • Page 76: Rectangular Cuvette Detection

    4.7.11 Rectangular cuvette detection Schematic representation: 1 - Flat spring (included in LZV868) 2 - 4 levers (included in LZV868) 3 - 4 rollers (included in LZV868) 4 - 4 magnets, cylinders (included in LZV868) 5 - 2 combi screws M3x8-Z1-3-8.8-R2R (included in LZV868) 6 - Holder (included in LZV868) Functionality:...

  • Page 77: Round Cell Compartment With Drive And Cuvette Detection Light Guide

    4.7.12 Round cell compartment with drive and cuvette detection light guide Schematic representation: 1 - Motor (LZV850) 2 - Toothed belt (76 teeth) (LZV594) 3 - Screw for plastic 3.0 x 6 (included in LZV884) 4 - Round cuvette holder (LZV861) 5 - Driving collar Dm 16/13 mm (A23757) 6 - Adjusting washer (included in LZV884) 7 - Combi screw M3x8-Z1-3-8.8-R2R...

  • Page 78: Measurement Sensor

    Remove the cell compartment with the drive: 1. Open the instrument (refer to Open the instrument on page 59). 2. Remove the display assembly (refer to Display assembly on page 3. Remove the cross rail with the sample chamber slide (refer to Cross rail on page...
  • Page 79 Remove the measurement sensor 1. Open the instrument (refer to Open the instrument on page 59). 2. Remove the display assembly (refer to Display assembly on page 3. Remove the cross rail with the sample chamber slide (refer to Cross rail on page 62).

  • Page 80: Lenses And Zero Order Light Guides

    4.7.14 Lenses and zero order light guides CAUTION during cleaning and maintenance — please refer to section 6.2 How to handle and clean the optical components on page 89. Schematic representation: 1 - Lens C (included in LZV587) 2 - Lens A (included in LZV587) 3 - Lens B (included in LZV587) 4 - Exit slit 5 - Zero order light guide (LZV865)
  • Page 81 Removal: 1. Open the instrument (refer to Open the instrument on page 59). 2. Remove the display assembly (refer to Display assembly on page 3. Remove the cross rail with the sample chamber slide (refer to Cross rail on page 62).

  • Page 82: Speakers

    4.8 Speakers Schematic representation: 1 - Resonator 2 - Grommet, black 3 - Speaker (LZV869) Remove the speakers: 1. Open the instrument (refer to Open the instrument on page 59). 2. Remove the display assembly (refer to Display assembly on page 3.

  • Page 83: Adjust The Beam Path

    5 Adjust the beam path 5.1 General This instrument contains plastic lenses that cannot be cleaned. If necessary, dust particles can be removed using oil-free compressed air or using the bellows. This instrument also has integrated light guides (LZV865 & LZV866 & LZV867), which must be handled with great care. Do not touch the active optical surfaces! (refer to section CAUTION during cleaning and maintenance —...

  • Page 84: Adjustment

    5.4 Adjustment 1 - Halogen lamp (LZV565) 8 - Beam splitter mirror (LZV755) 2 - Entry slit 9 - Reference element (YAB083) 3 - Concave grating (LZV592) 10 -Cell compartment (2) for rectangular 4 - Zero order light guide (LZV865) cuvettes 5 - Exit slit 11 -Lens A (included in LZV587)
  • Page 85 3. The grating (3) is set (Photometer  Adjust  Grating refer to Adjust on page Spectral light band menu option "Grating"), so that the spectral light band falls with the green light on the exit slit (5). 0. Positioning 4.

  • Page 86: Adjust The Beam Splitter

    5.4.2 Adjust the beam splitter 7. The grating is positioned so that from the spectral light band, the green light falls on Spectral light band the exit slit (Photometer  Adjust  Grating refer to Adjust on page 42, menu option "Grating").
  • Page 87 13. If the beam is precisely aligned using the adjustment shield and the beam splitter is screwed into place, the central illumination of all lenses must be checked (using a piece of paper). 14. Finally, check the reference element to make sure that the beam hits the active surface sufficiently (using a piece of paper).

  • Page 88: Inspection

    9. The archive file Refer to section 3.6.8.1Event logger on page 56 ‘Logger_LPG440:xxxxxxx.tar.gz’ was automatically copied to VAA608 after the field service inspection. Please send the complete archive file ‘Logger_LPG440:xxxxxxx.tar.gz’ to e-mail account: InstrumentLogger@hach-lange.de. - 88 - Inspection...

  • Page 89: How To Handle And Clean The Optical Components

    6.2 How to handle and clean the optical components 6.2.1 General As a general rule, all optical components must be handled with the utmost care. Do not touch the components on the active optical surfaces. Direct contact with other parts must also be avoided. Use aids such as plastic forceps and gloves if necessary.

  • Page 90: Hardware Check (Service)

    6.3 Hardware check (service) 6.3.1 General WARNING, the manufacturer recommends that you perform a complete hardware check (service) following every component replacement. The hardware check (service) is used to test the main functions of the hardware of the instrument. This is a menu-guided testprogram that performs a self-check of the DR 3900. The user is guided step-by-step through the program.
  • Page 91 A selection list of optional tests is shown. The displayed tests can be individually deselected as required. These are indicated with [optional] in the description of the individual tests under 6.3.5 Tests performed on page It is always recommended to perform the full hardware check.

  • Page 92: Tests Performed

    6.3.5 Tests performed The following tests run automatically: Query the RFID configuration of the device (with/without RFID module) [optional] This is where the hardware configuration is set. For the DR3900, there are device variants with and without a connected RFID module. (Also refer to section 3.6.7.2 Definitions on page 51 menu option "Configuration")
  • Page 93 RFID module test @RFID module (YAB120) [optional] Note: Not performed for devices that are configured without RFID. (also refer to section 3.6.6.4 RFID on page 48 menu options) Tests performed: Serial interface to module (Read version; read S/N). Initialize a TAG (read header). Read/write test for TAG (test bytes on VAA896 write and read back).
  • Page 94 2D code camera calibration with VAA880 @camera module [optional] (also refer to section 3.6.6.3 Camera on page Please press the arrow at the bottom right of the screen. Tests performed: Read 2D code marker with adjust values (Determine the angle of the marker in front of the camera) Decode the 2D code with adjust values (code: 0000880201009010001) Display the 2D code (shutter/angle/correction attempts) Initial calibration of the beam path with default values...
  • Page 95 range (@lamp voltage; @reference sensor; @measurement sensor; ) Logger [33,12] Dark values @reference sensor / @ measurement sensor Tests performed: Halogen lamp OFF Set potentiometer @reference sensor to high amplification ( poti value = 5) Check the dark value @reference sensor (voltage @reference sensor < 0.050 V) Set potentiometer @measurement sensor to high amplification ( poti value = 5) Check the dark value @measurement sensor ( voltage @measurement sensor <...
  • Page 96 Test AD converter (24-bit ADC) Tests performed: Adjust halogen lamp ON / set 445 nm wavelength Measure voltage @measurement sensor via 16-bit AD converter (V_16bit) Measure voltage @measurement sensor via 24-bit AD converter (V_24bit) Check values ((V_16bit * 0.9) < V_24bit < (V_16bit * 1.1)) Adjustment of level zero order (white light) @reference sensor (Refer to section 3.6.5.3 Grating on page 38...
  • Page 97 Measurement of air values (320 nm – 900 nm) Tests performed: Halogen lamp OFF Logger [39,11];[39;12];[39;1];[39;2] The darkness value (@reference sensor;@measurement sensor) is determined for all filter ranges. Halogen lamp ON Logger [39,10];[39;3];[39;4] Scan over the wavelength range 320 nm – 900 nm (@reference sensor;@measurement sensor). Each calculated ABS value is saved as the zero value.

  • Page 98: Error Messages During The Hardware Checks

    6.3.6 Error messages during the hardware checks 3. Touch Screen Adjust — error  'Wrong Position!' / 'Touch Adjust Failure' Perform an alignment again with exact positioning of the markers Check if the touch panel has any mechanical damage. Check whether or not the glue frame of the membrane keyboard contact with the active area Check plug contact to touch panel on mainboard (YAB119) 4.
  • Page 99 Replace RTC buffer battery (3.0 V). Check mainboard (YAB119) and replace as necessary 12. USB host test — error  'No detection of USB memory stick' Check USB port (A) on mainboard (YAB119) and replace mainboard as necessary 13. USB device test — error ...
  • Page 100 18. Lid detection (open status / closed status) — error  'Lid closed'/ 'Lid open' Check if the magnet is still stuck in the lid for the cell compartment? Check whether contact of the membrane keyboard on the mainboard YAB119 is O.K., and replace as necessary.
  • Page 101 21. Read 2D Code with VAA880 @camera module (LZV862) — error  'Timeout VAA880 Check': read process lasts longer than 5 seconds. / 'Error VAA 880 Check' Check camera module / objective: Contamination? Focus set correctly? Check cuvette motor: round cuvette is being rotated correctly? Check VAA880: 2D code label is free of scratches and cuvette is positioned with adapter VAA897 Check mainboard (YAB119) and replace as necessary...
  • Page 102  'Set filter motor to filter F2 failure' Logger [33,8] Check mainboard (YAB119) in area of filter motor activation, replace as necessary  ‚Set grating to 50 nm failure – step calibrate grating’ Logger [33,9] Check if grating motor assembly is attached correctly and if grating motor card is connected correctly to the mainboard.
  • Page 103 Check if BG20/2 cuvette was set correctly Check beam path from beam splitter mirror up to measurement element (lenses/ cell compartment …) Check beam path alignment (height of first position at exit slit) Check optical grating / grating motor assembly 26.
  • Page 104 33. Adjust factor/offset (ratio between 16-bit and 24-bit converter) — error  'Factor 16bit ->24bit Nom:2.0 Act: x.xx' / 'Offset 16bit ->24bit Nom:2.0 Act: x.xx' Check mainboard (YAB119) and replace as necessary 34. Test lamp monitoring signal level @zero order sensor — error ...
  • Page 105 Check grating / grating motor assembly: Can grating rotate freely? Grating holder seated firmly on grating motor axle Check filter wheel assembly: (filter is positioned precisely?) Check beam path from beam splitter mirror to measurement element (lenses/cell compartment seat firmly?) Check mainboard (YAB119) in area of analog measurements under the shield cap, replace as necessary ...

  • Page 106: Field Service Insp

    6.4 Field Service Insp. 6.4.1 General The Field Service Insp. is a photometric inspection of the instrument with test filters. This is a testprogram run using menus. The user is guided step by step through the program. The values required in the inspection protocol are shown during the Field Service Inspection and can be adopted accordingly.

  • Page 107: Tests Performed

    6.4.4 Tests performed 6.4.4.1 Components of the hardware check: For details about individual points, refer to 6.3.5 Tests performed as of on page 92 at the corresponding test point. 1. DC/DC transformer (power supply)[optional] 2. I2C Bus Test [optional] 3. Temperature measurement @sensor main board (near the lamp housing) [optional] 4.

  • Page 108: Spare Parts

    Badge Logo Set LZV856 Probenraumschieber Sample chamber slide LZV857 Lampendeckel vollständig Lamp cover LZV858 Traverse Hach Lange Hach Lange cross rail LZV859 Traverse Hach Hach cross rail LZV755 Teilerspiegel montiert Beam splitter mirror, mounted LZV860 Filterrad mit Filtern Filter wheel with optical filters...

  • Page 109: Images Of Spare Parts

    Order-No. Spare part name, german Spare part name, english XLH057 Netzkabel UK UK power cord XLH069 Netzkabel CN CN power cord LZV881 Abdeckkappe für USB-Anschluß Cover lid for USB connection 7.2 Images of spare parts Drive ring round cuvette 16/13 mm Stepping drive for barcode A23757 LZV850...
  • Page 110 Housing top Housing bottom LZV852 LZV853 Front cover. Rear cover LZV854 LZV855 Badge Logo Set Sample chamber slide LZV872 LZV856 - 110 - Spare parts...
  • Page 111 Lamp cover Hach Lange cross rail LZV857 LZV858 Hach cross rail Beam splitter mirror, mounted LZV859 LZV755 Filter wheel with optical filters Concave grating LZV591 LZV592 Spare parts - 111 -...
  • Page 112 Tooth belt for filter changer Tooth belt for barcode unit LZV593 LZV594 Cell compartment, round Cell compartment, rectangular, 50 mm LZV861 LZV848 Measurement sensor Stepping drive for filter changer LZV612 LZV614 - 112 - Spare parts...
  • Page 113 Camera, preadjusted Grating motor with PCB LZV862 YAB118 Lamp connector (Redesign) Light shield LZV754 LZV849 Cell adapter A (10 mm and 1 inch round) Cell adapter B (30 mm) LZV846 LZV847 Spare parts - 113 -...
  • Page 114 Grating holder with screws Main board PCB with processor DR 3900 LZV863 YAB119 Reference PCB Display with touch YAB083 LZV864 Zero order light guide Cuvette detection light guide LZV865 LZV866 - 114 - Spare parts...
  • Page 115 Camera illumination light guide Rectangular cuvette detection LZV867 LZV868 Speaker RFID Module LZV869 YAB120 Label set Cable set camera, display, grating motor LZV871 LZV870 Spare parts - 115 -...
  • Page 116 Screw set(DR 3900) Power supply, desktop type 100-240 V – 15 V DC LZV884 LZV844 EU power cord CH power cord YAA080 XLH051 US power cord UK power cord XLH055 XLH057 CN power cord Cover lid for USB connection XLH069 LZV881 - 116 - Spare parts...

  • Page 117: Test Equipment And Verification Devices

    8 Test equipment and verification devices 8.1 Overview Bestell-No. Part name, German Part name, English Order No. Part name, German Part name, English VAA591 Prüffiltersatz Verification Kit VAA608 USB-Stick mit Prüfprogramm USB memory stick with check program VAA896 Operator Tag Operator tag VAA643 Abstandslehre Gitter...
  • Page 118 50 mm adjustment shield Ethernet cable 2 m crossover VAA840 LZX998 Test cuvette camera 13/16 adapter for VAA880 VAA880 VAA897 Lumberg AZ30 USB computer interface cable LZV882 XLH926 - 118 - Test equipment and verification devices...

  • Page 119: Accessories

    9.1 Locator 9.1.1 Test equipment PC with USB interface USB cable B mini 5 LZQ065 Operator tag VAA896 Hach Lange instrument software YYX710 Hach instrument software YYX711 9.1.2 Function test Switch on / Switch off: Switch on locator with the center button. The Start screen is shown after 2 seconds.
