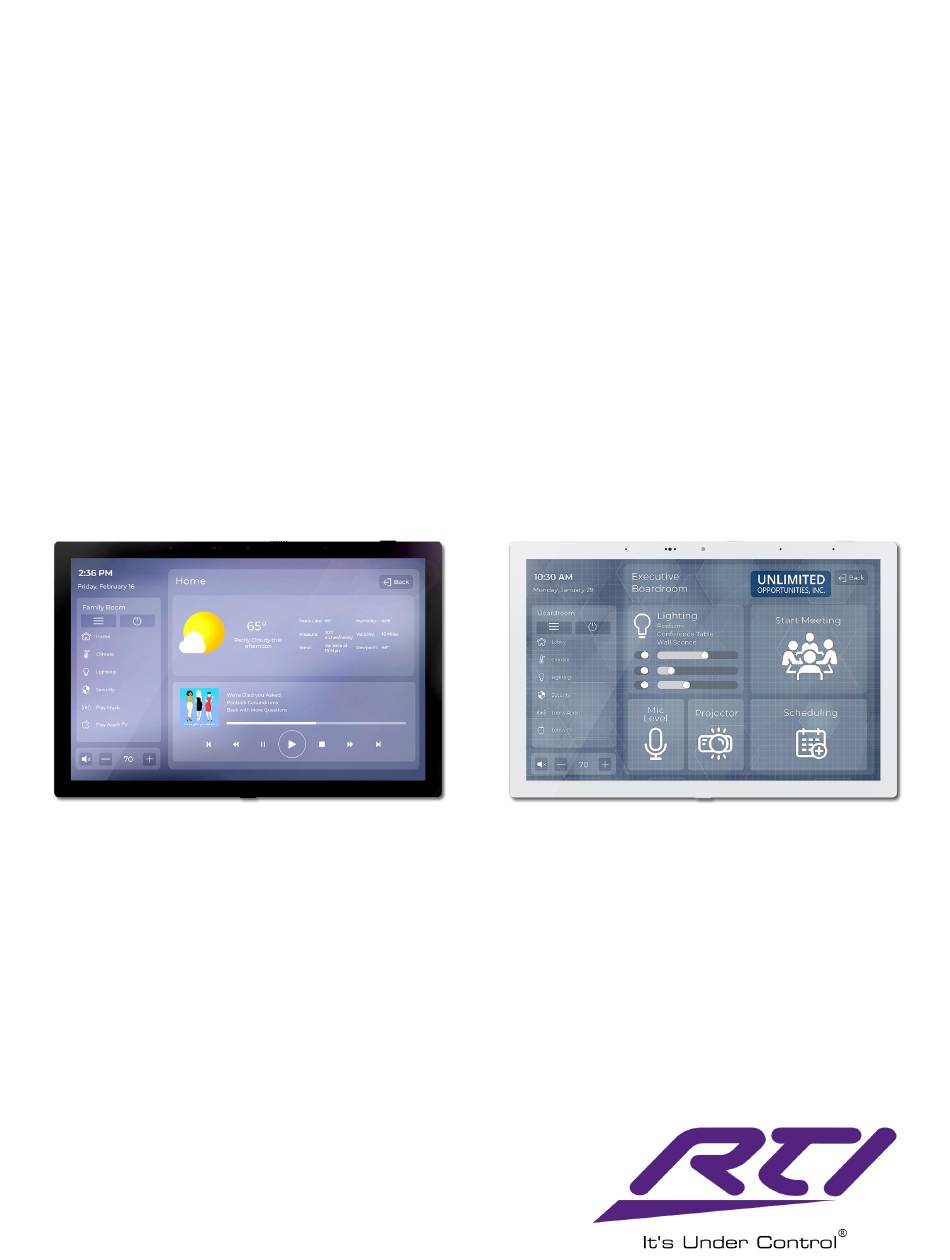

- Page 1 Installation & Operation Guide RTI Intelligent Surfaces IST-10-B 10” Intelligent Surface Touchpanel - Black IST-10-W 10” Intelligent Surface Touchpanel - White Version 1.3...
-
Page 2: Table Of Contents
About Settings ..............................17 Safety Suggestions .............................19 Cleaning ................................20 Federal Communications Commission Notice ....................20 Industry Canada Compliance Statement ......................21 Declaration of Conformity (DoC) ........................21 Contacting RTI ..............................21 Service & Support ..............................22 Limited Warranty ...............................22 Disclaimer ................................23 Technical Support: support@rticontrol.com - Customer Service: custserv@rticontrol.com... -
Page 3: Introduction
INTELLIGENT SURFACES, IST-10 Introduction The IST-10 touchpanel elevates system control in all commercial and residential settings. It starts with a hi-resolution 10” capacitive-touch screen with a 1920x1200 resolution with true-black display filter for exceptional clarity. With an ultra-thin bezel and a near-flush mount (just 0.47”/12mm off the wall), the IST- 10 makes an elegant statement in landscape or portrait mount, while the optional stand enables tabletop and countertop convenience. -
Page 4: Overview
INTELLIGENT SURFACES, IST-10 Overview Camera Lock Mute Button Proximity Sensor Light Sensor Metal Mounting Bracket Camera Microphone Mute Indicator Microphone Ethernet w/ PoE DC In USB-C (not used) Speakers Power Button Captive Screw Screw Slot Mounting Bracket Installation The IST-10 is designed to be wall mounted in either Portrait or Landscape orientation, or on tabletop using the stand (available separately). -
Page 5: Power The Ist-10
INTELLIGENT SURFACES, IST-10 Landscape/Portrait Mounting • Landscape orientation: Install the single gang low-voltage bracket on a wall in its normal position. • Portrait orientation: Install the single gang low-voltage bracket on wall after rotating it 90 degrees in a counterclockwise direction. Install the IST-10 Mounting Bracket •... -
Page 6: Install The Ist-10
PoE Injector INTELLIGENT SURFACES, IST-10 Network Switch PoE Network Switch Power Up The IST-10 • The IST-10 will automatically power on when power is applied. To IST-10 Line in wall PoE Injector 12VDC PoE Network Switch 2.1mm Network Switch PoE Network Switch Coaxial Plug PoE Network Switch Cabling PoE Injector Cabling... -
Page 7: Remove The Ist-10
Software. Normally, it is organized into a series of pages containing objects (buttons, text, graphics, etc.) that are related to each other. Updating the Software RTI’s Integration Designer data files can be downloaded to the IST-10 via Ethernet network. www.rticontrol.com... -
Page 8: Hard Buttons
INTELLIGENT SURFACES, IST-10 Hard Buttons • Power Button: Short press turns off/on display • Mute Button: Short press disables/enables microphone • Full Reboot: Short press of power button + mute button simultaneously • Network IP/Wi-Fi reset: Hold power + mute button for 4 seconds, then release •... -
Page 9: Screen Settings
INTELLIGENT SURFACES, IST-10 A convenient feature throughout all the setting screens is the upper header remains which will give information regarding the current firmware version, the last time anything was updated on the IST-10, the name of the device, and the current IP address and MAC address of the device whether operating on wired Ethernet or Wi-Fi. - Page 10 INTELLIGENT SURFACES, IST-10 conditions of the IST-10 when it is actively being used, or when it has had a period of inactivity. These conditions are controlled by the Screen Timeout covered later in this document. To turn the ambient light sensor on or off, simply swipe or tap the toggle switch. Right will indicate it is enabled and left will indicate it is disabled.
-
Page 11: Sounds Settings
INTELLIGENT SURFACES, IST-10 Sounds Settings These settings relate to the configuration of how the IST-10 responds with sound input and output. Sound Volume This slider controls the volume of all sounds on the IST-10, including VoIP and SIP intercom calls. Mic Mute This toggle switch will disable the microphone operation for privacy concerns. -
Page 12: Camera Settings
INTELLIGENT SURFACES, IST-10 Camera Settings This setting gives a visual indication of the operation of the built-in camera. The initial screen will show with the camera disabled. Click the toggle on the right side across from the word “Camera” to enable the camera which will then show an image of what the camera view on the screen. - Page 13 INTELLIGENT SURFACES, IST-10 Option 1 – Scan for Available Wi-Fi Connections Enabling the toggle switch for the Wi-Fi will start a search of the access points in your area with a good signal strength and list them with their SSIDs and their security level shown by the lock symbol. Choose any of these access points by clicking on the name which, depending on security requirements, will then open up a dialog box to enter the password.
- Page 14 INTELLIGENT SURFACES, IST-10 “Password”) will open an alphanumeric keyboard to enter your password. Click on the “show Password” to view what you are typing. Once complete, click “Join” to confirm, or “Cancel” to return to the list. Option 2 – Enter Wi-Fi Information Directly This option bypasses the scan feature and enables you to enter all the access point information manually.
-
Page 15: Passcode Setting
INTELLIGENT SURFACES, IST-10 Passcode Setting Enabling a passcode can restrict access to the settings page for a user when the IST-10 is running an ID program. This is particularly useful to allow select users to adjust the settings of the IST-10. When first selecting “Passcode”... - Page 16 INTELLIGENT SURFACES, IST-10 Use the number keypad on the IST-10 to select the code which will appear on the grey squares. Once the fourth digit is entered you will be asked to enter the passcode a second time to verify. Once completed, the screen will return to the main menu.
-
Page 17: About Settings
MAC address FW Version: The current version of firmware loaded onto the IST-10. OS Version: This is a long filename that is used for RTI reference to help determine what version of OS is installed on the device. Last Update: This indicates the last time anything was downloaded or changed on the IST-10 device. - Page 18 INTELLIGENT SURFACES, IST-10 Additionally at the bottom are some buttons to quickly perform some useful functions. Reboot This reboots the IST-10 restarting back either at the settings screen if there is no ID program loaded or restarts the ID file if one already exists. Network Reset This resets only the network settings, returning them to the default state of DHCP enabled.
-
Page 19: Safety Suggestions
INTELLIGENT SURFACES, IST-10 Safety Suggestions Read and Follow Instructions Read all safety and operating instructions before operating the unit. Retain Instructions Keep the safety and operating instructions for future reference. Heed Warnings Adhere to all warnings on the unit and in the operating instructions. Accessories Only use attachments/accessories specified by the manufacturer. -
Page 20: Cleaning
INTELLIGENT SURFACES, IST-10 Damage Requiring Service The unit should be serviced by qualified service personnel when: • The power supply cord or the plug has been damaged. • Objects have fallen or liquid has been spilled into the unit. • The unit has been exposed to rain. -
Page 21: Industry Canada Compliance Statement
2. Cet appareil doit accepter toute interférence reçue y compris des interférences qui peuvent provoquer un fonctionnement indésirable. Declaration of Conformity (DoC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticontrol.com/declaration-of-conformity Contacting RTI For news about the latest updates, new product information, and new accessories, please visit our web site at: www.rticontrol.com... -
Page 22: Service & Support
Warranty claims may be initiated by an authorized RTI dealer using the original dated sales receipt or other proof of warranty coverage. In the absence of the receipt of purchase from the original dealer, RTI will provide warranty coverage extension of six (6) months from the date code of the product. Note: RTI warranty is limited to the provisions set forth in this policy and does not preclude any other warranties offered by third parties who are solely responsible for those other warranties. -
Page 23: Disclaimer
Loss of, or damage to, data, computer systems or computer programs. RTI’s liability for any defective product is limited to repair or replacement of the product, at the sole discretion of RTI. In cases where the warranty policy conflicts with local laws, the local laws will be adopted. - Page 24 Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 www.rticontrol.com © 2024 Remote Technologies Inc. All rights reserved.
