RTI IST-10 Reference Manual

10” intelligent surfaces touchpanel
Hide thumbs

Advertisement

Quick Links

Download this manual
10" Intelligent Surfaces Touchpanel

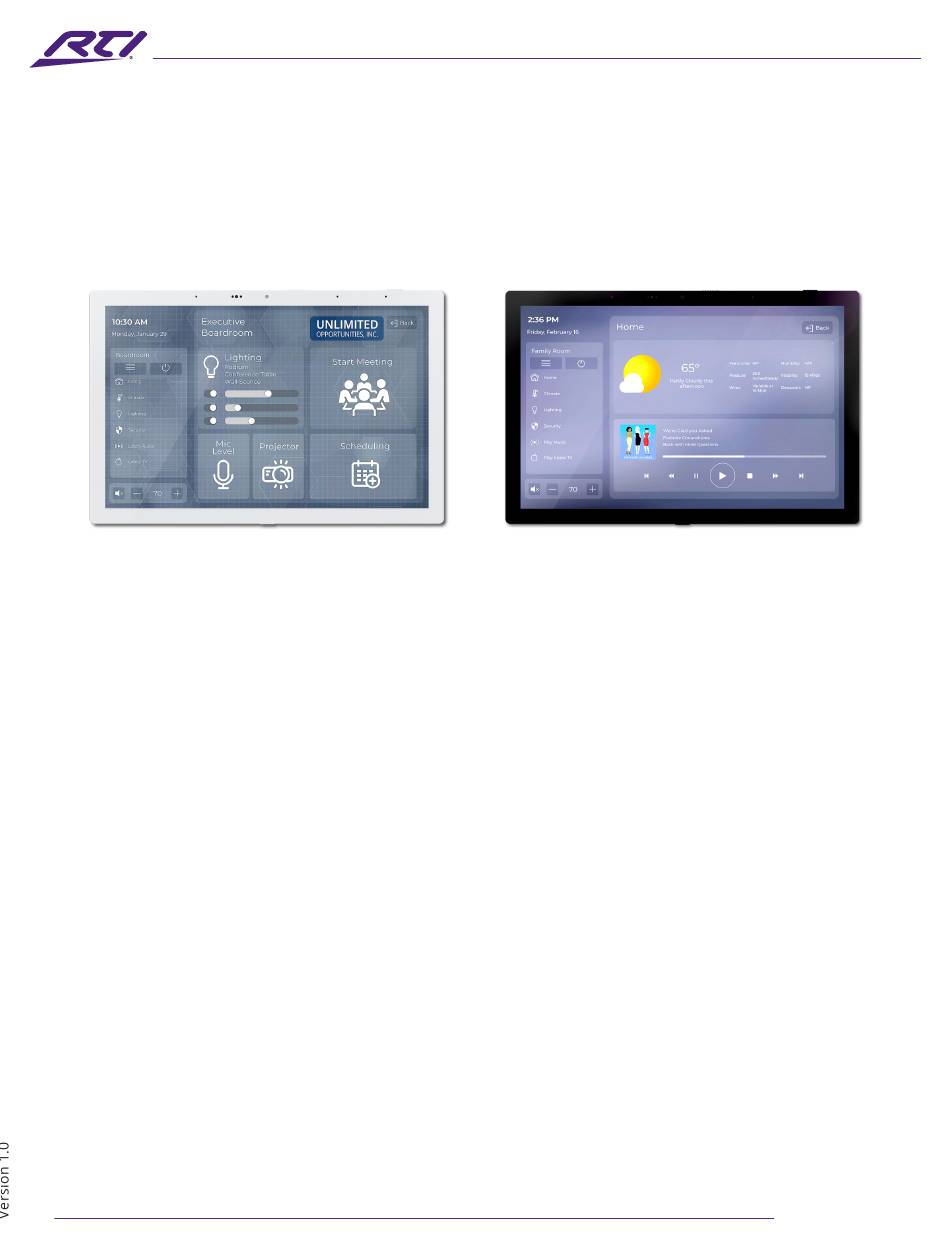

The IST-10 touchpanel elevates system control in all commercial and residential settings. It starts with
a hi-resolution 10" capacitive-touch screen with a 1920x1200 resolution with true-black display filter for
exceptional clarity. With an ultra-thin bezel and a near-flush mount (just 0.4"/11mm off the wall), the IST-
10 makes an elegant statement in landscape or portrait mount, while the optional stand enables tabletop
and countertop convenience. Built-in 10/100/1000 Base-T Ethernet with PoE enables seamless two-way
system control, video, and remote programming.
Key Features
• Hi-resolution 10" capacitive-touch screen (1920x1200) with
ultra-thin bezel.
• Near-flush mount (less than 0.4"/11mm off wall).
• Ethernet and Wi-Fi options for control and communication.
• PoE or 12V DC power options.
• Exceptional video streaming and two-way intercom at H.264 or
H.265 format.
• Hi-res privacy ensured 2MP camera.
• Dual speakers and far-field microphone array (with mute button).
• Proximity and ambient light sensors.
• Tabletop stand option.
• Portrait or landscape with auto-rotate.
1
IST-10
Reference Guide
CONTROL INTERFACES, IST-10
Product Contents
• IST-10
• Metal Wall Mounting Bracket (1)
• Mounting Bracket Screws (4)
• Dual Gang Low Voltage
Mounting Bracket (1)
www.rticontrol.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the IST-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTI IST-10

Summary of Contents for RTI IST-10

  • Page 1 10” Intelligent Surfaces Touchpanel Reference Guide The IST-10 touchpanel elevates system control in all commercial and residential settings. It starts with a hi-resolution 10” capacitive-touch screen with a 1920x1200 resolution with true-black display filter for exceptional clarity. With an ultra-thin bezel and a near-flush mount (just 0.4”/11mm off the wall), the IST- 10 makes an elegant statement in landscape or portrait mount, while the optional stand enables tabletop and countertop convenience.

  • Page 2: Mounting Bracket Installation

    Mounting Bracket The IST-10 is designed to be mounted to a US standard dual gang wall box or a dual gang low voltage bracket (included in the box). The IST-10 mounting bracket, included in the box, should be attached to the 2 gang low voltage bracket with the supplied screws, then the IST-10 unit is mounted on the metal rear mounting bracket with one captive screws located at the bottom of the IST-10.
  • Page 3 • If powering remotely, ensure the wire is of adequate gauge for the length of the run and the routing is in compliance with local codes. • Verify the polarity of the barrel connector on your power supply before connecting it to the IST-10. The center pin of the IST-10 Power Connector is positive and the outer ring is negative.
  • Page 4 Coaxial Plug removed from the unit. Line in wall • Align the mounting frame hooks with the IST-10 mounting slots and gently pull the IST-10 unit down the 12VDC 2.1mm mounting bracket. Make sure the mounting hooks are properly engaged.

  • Page 5: Ethernet Communication

    CONTROL INTERFACES, IST-10 Remove the IST-10 • Using a Philips head screw driver, loosen the captive screw on the IST-10, then gently pull straight up from the mounting frame to disengage the unit. Loosen Loosen captive Gently pull IST-10 screw...

  • Page 6: Hard Buttons

    CONTROL INTERFACES, IST-10 Hard Buttons • Power Button: Single press turns off/on display • Mute Button: Single press disables/enables microphone • Full Reboot: Single press of power button + mute button simultaneously • Network IP/ Wifi reset. Hold power + mute button for 4 seconds, then release •...

  • Page 7: Federal Communications Commission Notice

    CONTROL INTERFACES, IST-10 Object and Liquid Entry Do not allow objects to fall or liquids to be spilled into the enclosure through openings. Servicing Do not attempt any service beyond that described in the operating instructions. Refer all other service needs to qualified service personnel.

  • Page 8: Industry Canada Compliance Statement

    2. Cet appareil doit accepter toute interférence reçue y compris des interférences qui peuvent provoquer un fonctionnement indésirable. Declaration oF Conformity (DoC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticontrol.com/declaration-of-conformity Contacting RTI For news about the latest updates, new product information, and new accessories, please visit our web site at: www.rticontrol.com...

  • Page 9: Service And Support

    Warranty claims may be initiated by an authorized RTI dealer using the original dated sales receipt or other proof of warranty coverage. In the absence of the receipt of purchase from the original dealer, RTI will provide warranty coverage extension of six (6) months from the date code of the product. Note: RTI warranty is limited to the provisions set forth in this policy and does not preclude any other warranties offered by third parties who are solely responsible for those other warranties.
  • Page 10 Loss of, or damage to, data, computer systems or computer programs. RTI’s liability for any defective product is limited to repair or replacement of the product, at the sole discretion of RTI. In cases where the warranty policy conflicts with local laws, the local laws will be adopted.
  • Page 11 Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 www.rticontrol.com © 2024 Remote Technologies Inc. All rights reserved.
