RTI KX10 Quick Reference Manual

With a commanding presence and sophisticated style, the KX10 delivers the world of control and automation in residential and
commercial settings. Simplifying and enhancing the control experience, the large 10" widescreen display is programmable to
the finest detail and provides ample screen real estate for the ultimate custom user interface. The KX10's advanced engineering
makes it much more than a control device – it's also a high-resolution display that offers a convenient place for viewing HD video,
checking security cameras, and answering the door via the built-in video intercom. Capable of direct control over devices, the
KX10 can also be incorporated into the powerful RTI ecosystem to take advantage of cutting-edge automation. With the KX10,
anything is possible with a simple touch.
Features:
• A large 10.1" widescreen LCD with 1280x800 (WXGA) resolution and integrated capacitive touchscreen.
• The completely customizable touchpanel provides simple, intuitive control with programming that can be tailored to
each installation.
• Display HD video via the integrated HDBaseT video input.
• Display analog video sources such as security cameras via the composite video input.
• Ability to function as a part of an RTI control system for powerful two-way control or control devices directly through
built-in infrared and RS-232 ports.
• The proximity sensor automatically wakes the unit as a user approaches.
• The ambient light sensor adjusts the backlighting.
• Integrated 10/100 Base-T (with PoE+) and 802.11b/g/n wireless Ethernet for viewing video from IP security cameras,
enhanced two-way feedback and remote programming updates.
• Video intercom capability with built-in camera, microphone, and speakers.
• Powered by a separate power supply, an RTI CB8 connecting block or PoE+ (Power over Ethernet Plus).
• Stylish low-profile faceplate available in white, black or brushed aluminum (ships with white).

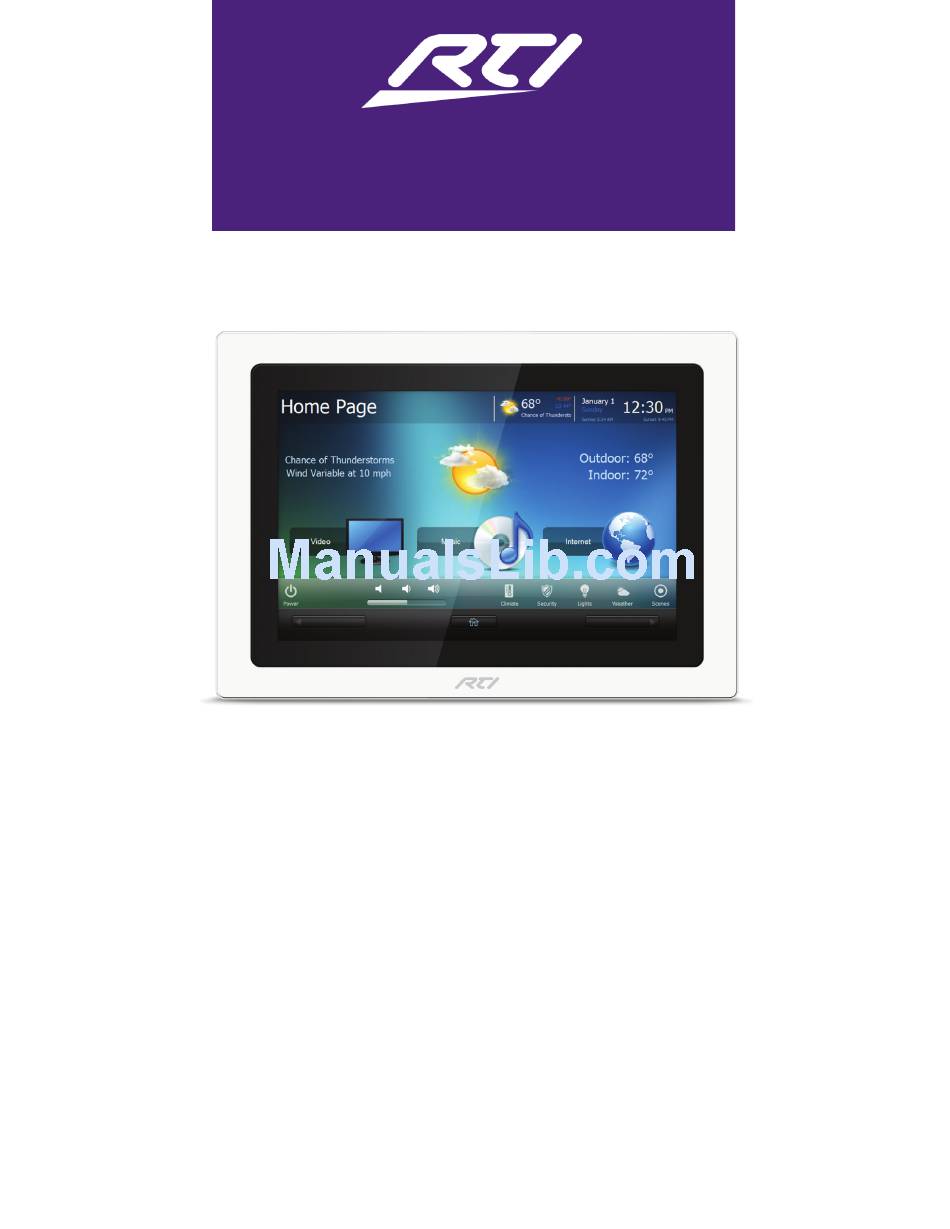

KX10
10" In-Wall Controller
Quick Reference Guide
