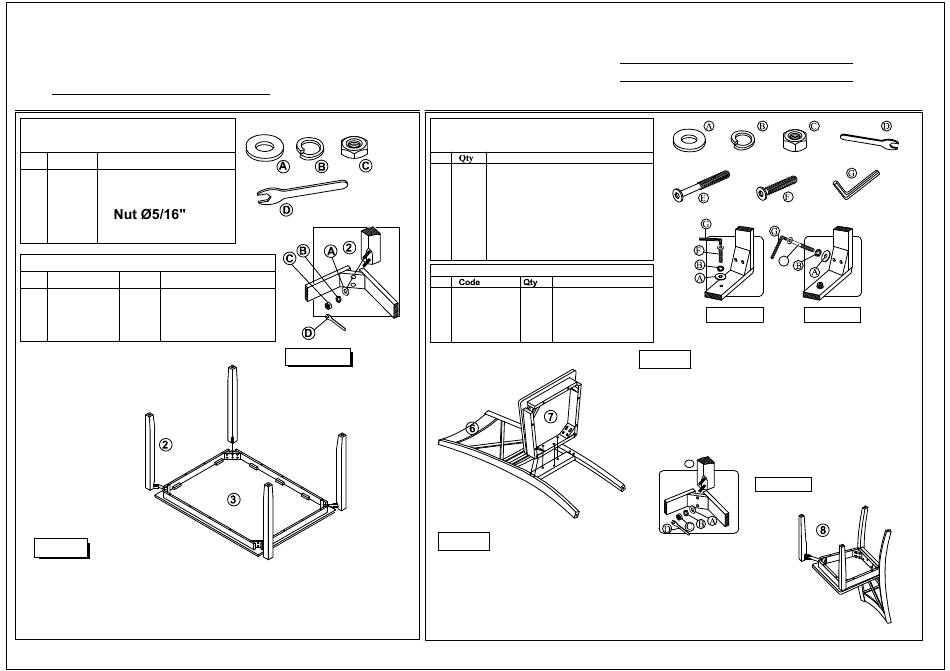

Jofran 1845 Assembly Instructions & Parts Identifier

j
OFRAN
Table Hardware Kit (1845PO1)
Ltr Qty Description
8 pcs
A Flat Washer
8 pcs
B Lock Washer
8 pcs
C
1 pc
D Key Wrench
Table Parts Key
No Code Qty Description
1845P01FT
1 4 pcs. Table Floor Glide
2 1845P02 4 pcs. Leg
3 1845P24 1 pc. Table top
STEP 1
-Carefully lay table top upside down on
a smooth flat surface to prevent scratches.
-Affix a leg to each corner of the table top as shown
in Detail A using a flat washer , lock washer and nut .
-Once all legs are in place, fully tighten the nuts
MADE IN VIET NAM
INC.
Detail A
4 PACK TABLE & CHAIRS & BENCH
Chair Hardware Kit (1845P46)
Ltr Description
A
22 pcs. Flat Washer 5/16"
B
22 pcs.
Lock Washer 5/16"
C
8 pcs. Nut 5/16"
D 1 pc. Key Wrench
8 pcs.
E Long KD. Bolt 1/4"x 3".
6 pcs.
F Short KD. Bolt 1/4"x 1.5".
1 pc.
Allen Wrench
G
Chair Parts Key
No Description
5 1845P01F 8 pcs. Chair/Bench Floor Glide
2 pcs.
6 1845-373KDP40 Chair Back
7 1845-373KDP41 2 pcs. Complete Seat
8
1845-373KDP42 4 pcs. Front Chair Leg
* Quantities noted are for a total of two chairs.
STEP 2
- Carefully turn chair upside down and affix each Leg to the
front corner of the complete seat, as shown in Detall C,
using a flat washer, lock washer, and nut.
- Turn chair upright and make sure it is level before fully
tightening all bolts and nuts.
- Be sure to tighten all screws prior to using chair.
ASSEMBLY INSTRUCTIONS &
PARTS IDENTIFICATION
MODEL #1845
E
Detail A Detail B
STEP 1
- Carefully lay chair back flat on a smooth flat surface to
prevent scratches.
- Affix the complete seat to chair back, as shown in Detall
A, using a flat washer, lock washer and short KD bolt.
- Secure complete seat to chair back corners, as shown in
Detail B, using a flat washer, lock washer and long KD
bolt. - - Tighten screws with provided Allen Wrench.
8
Detail C
PAGE 1/2
