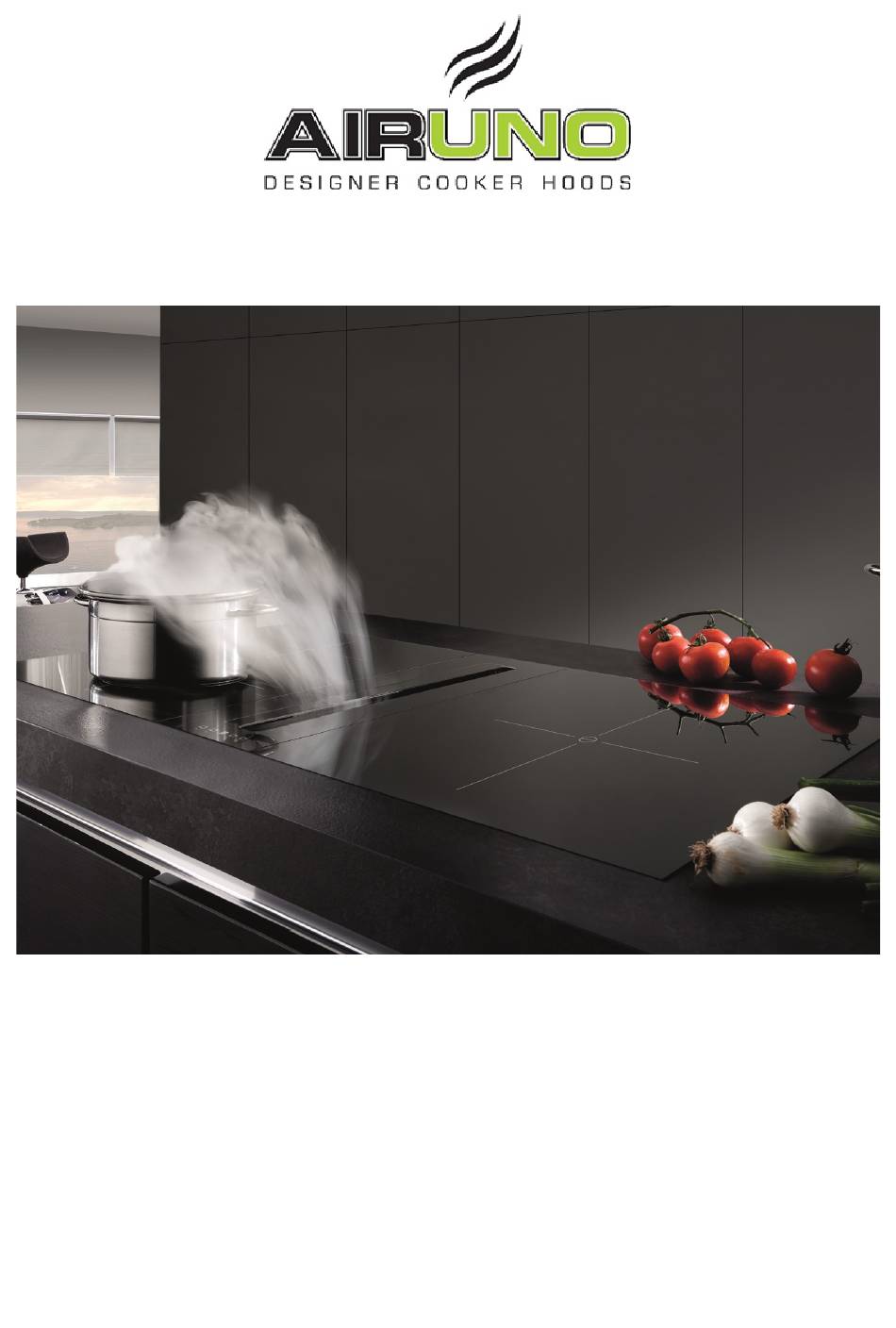

- Page 1 Bach-EVO Countertop Extractor Installation & User Instructions Please read these instructions carefully before installing and operating this appliance...
-
Page 2: Table Of Contents
Contents 1. Introduction 2. Health and Safety 3. Warranty Information 3.1 After Sales Service Information 3.2 How to Report a Fault 3.3 Technical Assistance 4. Installation 5-15 4.1 Assembly Instructions 4.2 Ducting 7-15 4.2.1 Ducting Options 4.2.2 Plinth Charcoal Filter Kit 9-10 4.2.3 Information on Exhaust Air Ducting 4.2.4 Cross Section of the Exhaust Air Ducting... -
Page 3: Introduction
• 1. Introduction Install the cooker hood in accordance with the regulations in force in your local area, region Dear Customer, and country. • For the correct use of the appliance and to We wish to thank you for choosing this Air Uno prevent accidents, the instructions given in this cooker hood. -
Page 4: Warranty Information
This guarantee is in addition to your statutory and legal rights. 3. Warranty Information 3.1 After Sales Service We offer a 4 year warranty on all Airuno cooker hoods, which will start from the date of delivery. Information The warranty covers parts and labour for the 4 year... -
Page 5: How To Report A Fault
Step 2 The hood can be used for both filtering and suction. Please note that upon attendance by an Airuno When the filtering function is operating, i.e. with air engineer, a charge will be made where: - The recycle, carbon filters must be used. - Page 6 Cut-out Dimensions on Top of Worktop 2. Remove top off motor to place inside cupboard with the motor placed in the plinth (Fig 6). Fig 2 Cut-out Dimensions Flush with Worktop 514-524 Fig 3 Fig 6 The Bach-Evo comes with a round to rectangular 3.
-
Page 7: Ducting
Fig 10 Fig 8 4.2 Ducting 5. Install ducting between Bach-EVO and plinth motor and fix down plinth motor lid (Fig 9). 4.2.1 Ducting Options There are several ways the Bach-EVO can be ducted and a silencer can be used to reduce noise Figs (11- 18). - Page 8 F-VRO F-VRO OPTIONAL OPTIONAL F-EST OPTIONAL Fig 12 Fig 14 Bach-EVO 520 with F-VRO & F-EST (Minimum Bach-EVO 520 with F-EST & KSIL (Minimum 825mm 825mm depth cupboard): depth cupboard): Max 500mm Max 580mm Max 580mm Max 500mm Max 500mm Max 500mm Fig 13 Fig 15...
-
Page 9: Plinth Charcoal Filter Kit
F-VRO F-VRO OPTIONAL OPTIONAL F-EST OPTIONAL KSIL KSIL OPTIONAL OPTIONAL Fig 16 Fig 18 Bach-EVO 520 with KSIL (Minimum 825mm depth 4.2.2 Plinth Charcoal Filter Kit cupboard): The plinth charcoal filter kit is installed into the plinth area and is attached to the AMF motor (Figs 15-16). -
Page 10: Information On Exhaust Air Ducting
The more powerful the ventilation performance, the greater the ducting cross section must be. As a rule, the larger the cross section, the less counter pressure is created in the ducting. The following exhaust air ducting specifications serve as a guide: Ø125mm for a ventilation performance of >400m Ø150mm for a ventilation performance of <400m Any reduction in the cross section of the ducting... -
Page 11: Exhaust Material, Ducting & Shape
4.2.5 Exhaust Material, Ducting & Shape Smooth-walled plastic rigid ducts are the most favourable form of ducting from a technical airflow perspective and are particularly suitable for straight duct routes/runs. These should be used if the structural requirements are met. Flexible aluminium ducting (alu-flux) also achieves reasonably good flow values when elongated. -
Page 12: Length Of The Exhaust Ducting, Curves & Bends
4.2.6 Length of the Exhaust Unfavourable flow: Ducting, Curves & Bends Air swirls are created behind the As the length of the exhaust ducting increases, the sharp interior corners. counter pressure (duct resistance) increases and the airflow rate decreases. Bends and curves are problematic as they present deflection surfaces that dam the air steam and generate turbulence. - Page 13 The following comparison between different duct types and flat channels indicates the extent to which the material used can influence airflow loss. COMPARISON BETWEEN CHANNEL SYSTEMS WITH A SQUARE CROSS SECTION COMPARISON BETWEEN CHANNEL SYSTEMS WITH A ROUND CROSS SECTION...
-
Page 14: Electrical Wiring
4.3 Electrical Wiring The electrical wiring must be performed by a under the conditions of overvoltage category III, in specialised electrician fully respecting current accordance with the rules of installation. The plug or standards and legislation in force. Check that the Omni polar switch must be accessible when the unit power supply... -
Page 15: Controls
4.3.2 Controls The Bach-EVO can be controlled by the soft touch buttons on the extractor.. This allows the user to control the hoods on/off functions and motor speeds. Fig 19 Before beginning any sort of cleaning or maintenance work, turn the power off to the hood by turning the main switch to 0 (OFF). -
Page 16: Cleaning The Hood
5.2 Cleaning the Hood The surfaces of the hood should be cleaned frequently, to avoid the risk of having to remove built up and encrusted deposits and stains. For the painted or copper plated hoods just a soft cloth with warm water and a neutral detergent, Do not pour the detergent directly onto the hood or use powdery or abrasive products. -
Page 17: Troubleshooting
7. Troubleshooting Please make sure the below has been checked before logging a service call. NOISY − Check that the hood has correct size ducting (semi or rigid ideally). − Make sure there are no restrictions within the ducting outlet. −... -
Page 18: Energy Labels
8. Energy Labels Suppliers Name AIRONE Model identifier BACH EVO 510 & 520 + AMF10 Annual Energy Consumption AEC (kWh/a) 49.9 Energy Efficiency Class Fluid Dynamic Efficiency FDE (%) 21.4 Fluid Dynamic Efficiency class Light Efficiency LE (lux/W) Lighting Efficiency Class Grease Filter Efficiency GFE (%) 79.1 Grease Filter Efficiency Class... - Page 19 8. Energy Labels Suppliers Name AIRONE Model identifier BACH EVO 510 & 520 + AMF13 Annual Energy Consumption AEC (kWh/a) 73.2 Energy Efficiency Class Fluid Dynamic Efficiency FDE (%) 21.3 Fluid Dynamic Efficiency class Light Efficiency LE (lux/W) Lighting Efficiency Class Grease Filter Efficiency GFE (%) 62.0 Grease Filter Efficiency Class...
-
Page 20: Dimensions
9. Dimensions 220x90 230x80 Cut-out Min 540—Max 740 510-520 220x90... - Page 24 CD (UK) Ltd T/A Air Uno Unit L, Wakefield House Thistle Way Gildersome Spur Morley West Yorkshire LS27 7JZ CD (UK) Ltd T/A Air Uno is a company registered in England and Wales Registration No. 2905619 of this vested part not be reproduced of this are accurate at the date of...
