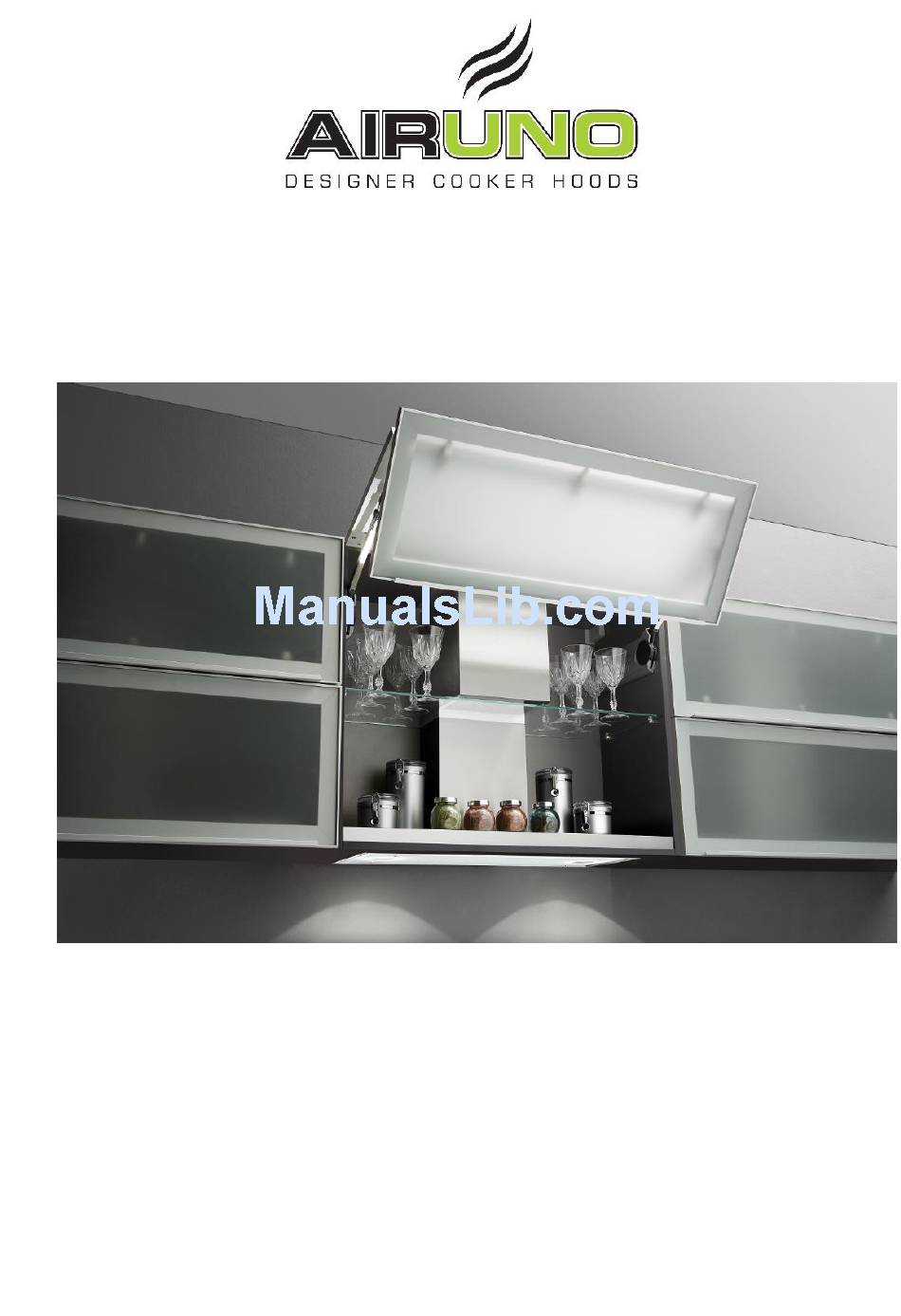

- Page 1 Aida 60 & 90 Built-In Cupboard Hood Installation & User Instructions Please read these instructions carefully before installing and operating this appliance...
-
Page 2: Table Of Contents
Contents 1. Introduction 2. Health and Safety 3. Installation 3.1 Assembly Instructions 3.2 Electrical Wiring 3.2.1 Electrical Wiring Diagram 3.2.2 Controls 4. Use & Maintenance 4.1 Changing the Light Bulbs 4.2 Cleaning the Metal Filters 4.3 Carbon Filters 4.3.1 Polyester Carbon Filters 4.3.2 Long Life Carbon Filters 4.4 Cleaning the Hood 5. -
Page 3: Introduction
carried out by qualified and authorised Introduction personnel. Install the cooker hood in accordance with the Dear Customer, regulations in force in your local area, region and country. We wish to thank you for choosing this Air Uno cooker ... -
Page 4: Installation
Before cleaning or performing any periodic or urgent maintenance to the hood, isolate the mains supply and turn the main switch off. Do not connect the hood to any piping used for combustion appliances, such as burners, boilers or fire places. Check that the main power supply corresponds to the voltage required by the hood, which is given on the silver label stuck inside the hood. - Page 5 Attach the ducting to the hood section (Fig 7). Aida 90 Fig 3 Motor Cut-out Fig 7 Push hood and ducting up into cupboard and connect to motor (Fig 8). Fig 4 Fix motor to top of the cupboard using 4 screws (Fig 5).
-
Page 6: Electrical Wiring
Attach hood cover inside cupboard (Fig 10). Fig 10 3.2 Electrical Wiring The electrical wiring must be performed by a specialised electrician fully respecting current standards and legislation in force. Check that the power supply corresponds to the voltage requested by the hood, which is given on the silver label stuck inside the hood. -
Page 7: Electrical Wiring Diagram
3.2.1 Electrical Wiring Diagram To motor plug To light transformer Supply To control buttons on hood... -
Page 8: Controls
3.2.2 Controls The Aida can be controlled by either the soft touch buttons on the unit (Fig 10) or by remote control (Fig 11). This allows the user to control the hoods on/off functions and motor speeds. Fig 12 Fig 10 Fig 13 Fig 11 Dichroic lamp G4 attachment: Use a screwdriver to... -
Page 9: Carbon Filters
100°C 10 min Fig 24 Fig 15 4.3 Carbon Filters 4.4 Cleaning the Hood The hood can be used with active carbon filters which traps the cooking smells. There are either polyester or The surfaces of the hood should be cleaned long life carbon filters and these are situated behind frequently, to avoid the risk of having to remove built the grease filters. -
Page 10: Dimensions
6. Dimensions... - Page 12 CD (UK) Ltd T/A Air Uno Unit L, Wakefield House Thistle Way Gildersome Spur Morley West Yorkshire LS27 7JZ CD (UK) Ltd T/A Air Uno is a company registered in England and Wales Registration No. 2905619 Copyright of all contents of this leaflet is vested in CD (UK) Ltd t/a Air Uno. Any part may not be reproduced without permission. The contents of this leaflet are accurate at the date of printing but, because CD (UK) Ltd t/a Air Uno has a policy of continual development, it may be superseded and should be disregarded if specifications or appearances are changed.
