SPLIT-TYPE

Owner's Manual

Models with humidity sensors:

CH-RH06MCT1W

CH-RH09MCT1W

CH-RH12MCT1W

CH-RH18MCT1W

IMPORTANT NOTE:

Read this manual carefully before installing

or operating your new air conditioning unit.

Make sure to save this manual for future

reference.

ROOM AIR CONDITIONER

Models with refrigerant & humidity sensor:

CH-RSH06-12MCT1W (dip-switch)

CH-RSH18MCT1W

ONE-WAY

CASSETTE

Need help?

Do you have a question about the CH-RH06MCT1W and is the answer not in the manual?

Questions and answers

Summary of Contents for Cooper & Hunter CH-RH06MCT1W

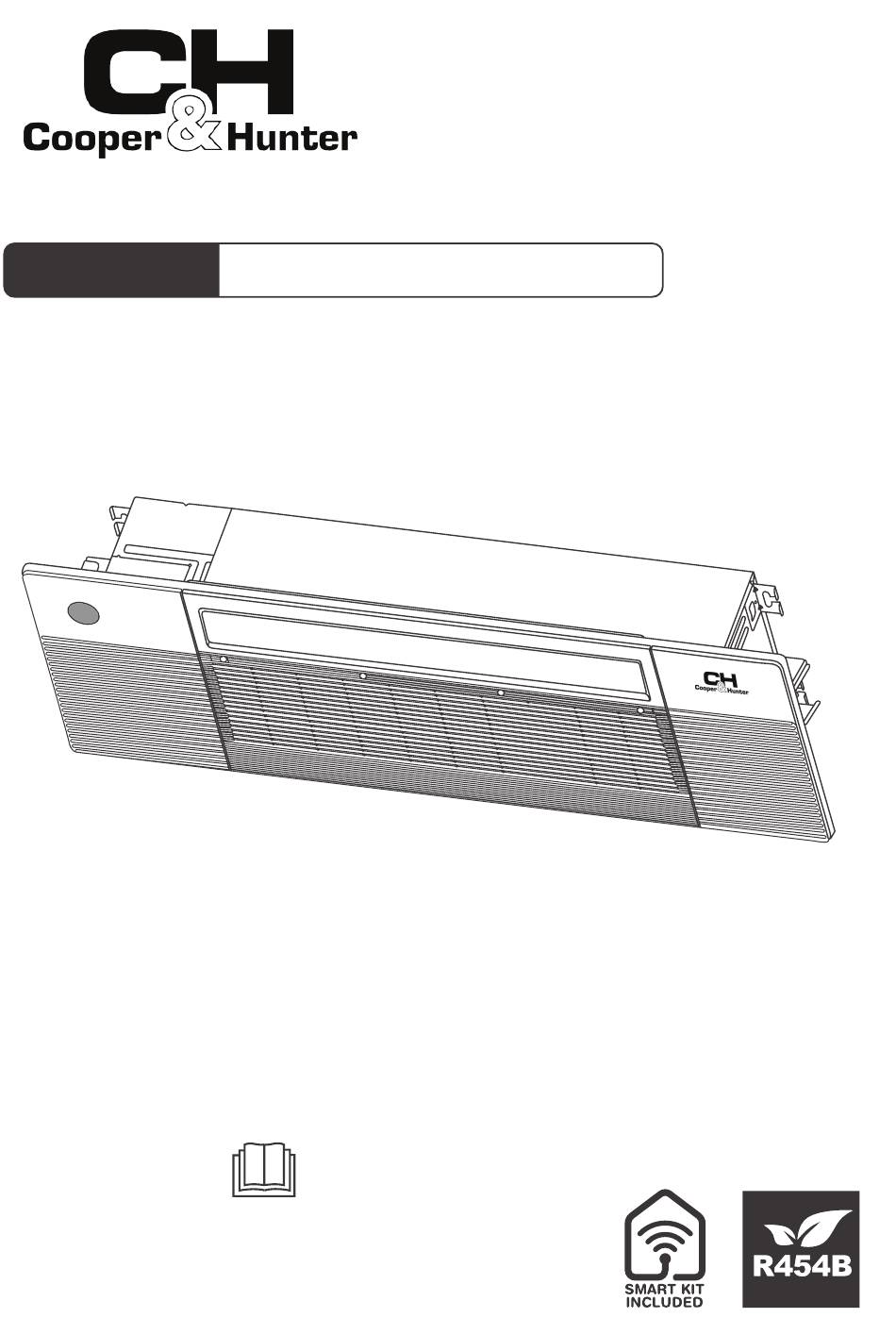

Page 1 ONE-WAY CASSETTE SPLIT-TYPE ROOM AIR CONDITIONER Owner’s Manual Models with humidity sensors: Models with refrigerant & humidity sensor: CH-RH06MCT1W CH-RSH06-12MCT1W (dip-switch) CH-RH09MCT1W CH-RSH18MCT1W CH-RH12MCT1W CH-RH18MCT1W IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit.
Page 3 About the Company With more than 25 years of experience in air conditioning and ventilation, Cooper&Hunter is considered one of the HVAC leaders in the US market. Distributed in more than 55 countries worldwide, brand dedicated technological innovation consumer-driven product development, while generating HVAC equipment that adheres to the highest quality standards in the US.
Page 4 Learn more about your unit Learn more technical information about your unit at www.cooperandhunter.us, where you can ﬁnd submittals, leaﬂets, videos and all technical speciﬁcations of your unit. Step 1 On the website cooperandhunter.us, type in your unit model number into the search ﬁeld and click enter.
Page 5 How to apply for the rebate program Almost all Cooper&Hunter equipment is eligible for the rebate program.Visit our website to see if the rebates apply to your location. Step 1 Go to cooperandhunter.us/rebates to add your zip code and select your outdoor unit to see if your unit qualiﬁes for the rebate.
Page 6 CONTENTS SAFETY PRECAUTIONS INTELLIGENT SENSOR FOR OPTIMAL HUMIDITY CONTROL UNIT SPECIFICATIONS AND FEATURES OPERATION INSTRUCTIONS CARE AND MAINTENANCE TROUBLESHOOTING DIP SWITCH INSTRUCTION...
Page 7 SAFETY PRECAUTIONS It is really important you read Safety Precautions Before Operation and Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classiﬁed as either a WARNING or CAUTION. Explanation of Symbols WARNING This symbol indicates the possibility of personal injury or loss of...
Page 8 ELECTRICAL WARNINGS Only use the speciﬁed wire. If the wire is damaged, it must be replaced by the ● manufacturer, its service agent or similarly qualiﬁed persons in order to avoid a hazard. The product must be properly grounded at the time of installation, or electric ●...
Page 9 LEAK DETECTION SYSTEM installed. Unit must be powered except for service. ● For the unit with refrigerant sensor, when the refrigerant sensor detects refrigerant leakage, the indoor unit will display a error code and emit a buzzing sound, the compressor of outdoor unit will immediately stop, and the indoor fan will start running.
Page 10 ﬂoor, the height of the room cannot be less then 7.3ft/2.2m, and the minimum room area of operating or storage should be as speciﬁed in the following table: This following table show the units with humidity sensors: Model Indoor unit Outdoor unit CH-RH06MCT1W CH-RHP06F9-230VO CH-RES09-230VO CH-RH09MCT1W CH-RHP09-230VO CH-RES12-230VO...
Page 11 [ft/m] inst 6.0~7.3/ c or 7.6/2.3 8.3/2.5 8.9/2.7 9.9/3.0 [oz/kg] 1.8~2.2 12/1.10 ≤62.6/1.776 63.4/1.8 60/5.53 57/5.29 53/4.87 49/4.51 44/4.06 70.5/2.0 67/6.15 64/5.88 59/5.41 54/5.01 49/4.51 77.5/2.2 73/6.76 70/6.47 65/5.95 60/5.51 54/4.96 84.6/2.4 80/7.38 76/7.06 70/6.49 65/6.01 59/5.41 91.7/2.6 86/7.99 83/7.64 76/7.03 71/6.51 64/5.86...
Page 12 1. Installation (where refrigerant pipes are allowed) - Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certiﬁcate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment speciﬁcation.
Page 13 c. During the evacuation test, after achieving a vacuum level speciﬁed in the manual or less, the refrigeration system shall be isolated from the vacuum pump and the pressure shall not rise above 1500 microns within 10 min. The vacuum pressure level shall be speciﬁed in the manual, and shall be the lessor of 500 microns or the value required for compliance with national and local codes and standards, which may vary between residential, commercial,and industrial...
Page 14 6. No ignition sources No person carrying out work in relation to a REFRIGERATING SYSTEM which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of ﬁre or explosion. All possible ignition sources, including cigarette smoking, should be kept su ciently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the surrounding space.
Page 15 12. Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental e ects. The check shall also take into account the e ects of aging or continual vibration from sources such as compressors or fans.
Page 16 15. Charging procedures In addition to conventional charging procedures, the following requirements shall be followed: Works shall be undertaken with appropriate tools only (In case of uncertainty,  please consult the manufacturer of the tools for use with ﬂammable refrigerants) Ensure that contamination of di erent refrigerants does not occur when using ...
Page 17 for the recovered refrigerant and labelled for that refrigerant (i. e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and associated shut-o valves in good working order. Empty recovery cylinders are evacuated and, if possible,cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of the ﬂammable refrigerant.
Page 18 UNIT SPECIFICATIONS AND FEATURES NOTE Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly di erent. The actual shape shall prevail. Unit Parts Air Intake Grille Air Filter Display Panel Air Vane Air Outlet Air Inlet Electronic...
Page 19 OPERATION INSTRUCTIONS NOTE To further optimize the performance of your unit, do the following: • Keep doors and windows closed. • Limit energy usage by using TIMER ON and TIMER OFF functions. • Do not block air inlets or outlets. •...
Page 20 Refrigerant Leakage Detection Sleep Operation • When the system detects a malfunction of the The SLEEP function is used to decrease energy refrigerant, the indoor unit will automatically use while you sleep (and don’t need the same display the following error codes: temperature settings to stay comfortable).
Page 21 CARE AND MAINTENANCE BEFORE CLEANING OR MAINTENANCE REMEMBER TO DISCONNECT THE POWER BEFORE CLEANING OR MAINTENANCE, EXCEPT FOR CLEANING AIR FILTER. TURN THE CURCUIT BREAKER OF THE INDOOR UNIT TO OFF IS NOT A KIND OF POWER DISCONNECTION. • Contact an authorized service technician for repair or maintenance. Improper repair and maintenance may cause water leakage, electrical shock, or ﬁre, and may void your warranty.
Page 22 Model B 1. Press the circular positon to open the two CAUTION screw covers, then remove the two screws. • Do not dry out the air ﬁlter under direct sunshine or with ﬁre. • The air ﬁlter should be installed before the unit body installation.
Page 23 Maintenance your AC. Maintenance – Maintenance – Long Periods of Non-Use Pre-Season Inspection If you plan not to use your air conditioner for After long periods of non-use, or before periods of an extended period of time, do the following: frequent use, do the following: Clean all ﬁlters Turn on FAN function until...
Page 24 TROUBLESHOOTING CAUTION If any of the following conditions occurs, turn o your unit immediately! • The power cord is damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •...
Page 25 Issue Possible Causes The outdoor unit The unit will make di erent sounds based on its current operating mode. makes noises Dust is emitted from The unit may accumulate dust during extended periods of non-use, which either the indoor or will be emitted when the unit is turned on.
Page 26 Problem Possible Causes Solution Wait for the power to be restored Power failure The power is turned o Turn on the power The unit is not The fuse is burned out Replace the fuse working Replace batteries Remote control batteries are dead The Unit’s 3-minutes protection Wait three minutes after restarting has been activated...
Page 27 DIP SWITCH INSTRUCTION for Capacity Change ENC1 dip switch is used for capacity change. When matching with single zone condensers, the indoor unit will automatically adjust to 6,000 BTU/H, 9,000 BTU/H or 12,000 BTU/H according to condensers capacity. When matching with multi-zone condensers, it needs to set the ENC1. Change the capacity of indoor unit to 6,000 BTU/H by adjusting the dip switch ENC1 from “0”...
Page 28 Technical Support Single & Multi-Zone Mini Splits • PTACs • Portables • TTWs • Light Commercial A/C Systems Limited Warranty provided by Cooper&Hunter (hereby referred to as C&H) covers speciﬁed products and parts, subject to the following details: Our warranty: C&H Limited Warranty applies only to products installed by a licensed HVAC technician.
Page 29 10. For resetting of power or the circuit breakers and replacement of other types of fuses, both internal and external. 11. For any damage caused by the use of dirty, recycled, or wrong type of refrigerants and lubricants. 12. For damage due to moisture, air, dust, sand, dirt, etc., that have been allowed into the system. 13.
Page 30 negotiations, representations, or promises, whether oral or written, of either party shall be deemed to have been merged herein. If any part of this warranty agreement shall be invalidated for any reason, such part shall be deleted, and the remainder shall be una ected and shall continue in full force and e ect. This Warranty provides you certain legal rights and you may also have other rights, which vary from State to State.
