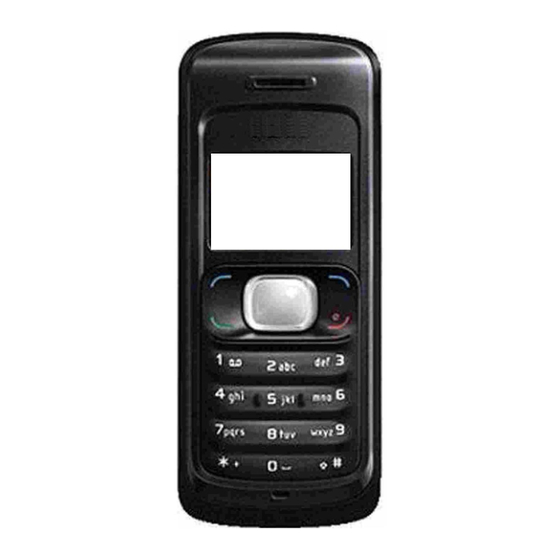

- Page 1 Nokia Customer Care 1325 (RH-104) Mobile Terminal Disassembly/Assembly Issue 1 04/2007 Company Confidential © 2007 Nokia Corporation...
-
Page 2: Table Of Contents
7. Assemble LCD Module Shielding ..............13 8. Bolt all the screws ..................13 9. Assemble Receiver (Earpiece) ..............14 10. Keymat and A-cover Assembly..............14 11. Assemble A-Cover and Engine ..............14 12. Assemble Battery cover................15 Page 2 © 2007 Nokia Corporation Company Confidential Issue 1 04/2007... -
Page 3: Safety Information
(5) All ESD-sensitive parts must be packed in metallized protective bags during shipping and handling outside any ESD Protected Area (EPA). Be especially careful to avoid contaminating the mobile terminal with any dust during assembly. Issue 1 04/2007 © 2007 Nokia Corporation Company Confidential Page 3... -
Page 4: Disassembly Instructions
1. Remove Battery Cover (B-cover) A. Turn the mobile terminal off. B. Force to unsnap of the snaps of battery cover, and slide Battery cover away from the mobile terminal. C. Remove battery. Page 4 © 2007 Nokia Corporation Company Confidential Issue 1 04/2007... -
Page 5: Disassemble A-Cover Module And Engine
Unsnap A-cover snaps and separate A-cover from D-cover. (Be aware that there are two-sets of snaps retaining both pieces as one unit.) Top view Bottom view Side view Side view Issue 1 04/2007 © 2007 Nokia Corporation Company Confidential Page 5... - Page 6 1325 (RH-104) Disassembly/Assembly A. Unsnap the bottom snaps of the terminal. B. Unsnap the side snaps of the terminal. C. Unsnap the top snaps of the terminal. Page 6 © 2007 Nokia Corporation Company Confidential Issue 1 04/2007...
-
Page 7: Remove Keymat From A-Cover
Use a non-conductive Torx #6 screwdriver to remove the six screws. Note the order of removal in the order shown. The torque driver setting recommendation is 15+/-2 Ncm @ 450 +/- 50 rpm. Issue 1 04/2007 © 2007 Nokia Corporation Company Confidential Page 7... -
Page 8: Remove Pwb Assembly
Gently lift UI assembly from PWB. Be careful not to damage the LCD Module Connector. 8. Remove LCD Display A. Use a tweezers to unsnap and remove LCD Module from LCD Module Shielding Assy. Page 8 © 2007 Nokia Corporation Company Confidential Issue 1 04/2007... -
Page 9: Remove Sam Module
SAM Module to ensure optimum RF performance and must not be replaced individually. 10. Remove Vibrator Use the tweezers to grab the vibrator and pull upwards gently to remove it from D-cover. Issue 1 04/2007 © 2007 Nokia Corporation Company Confidential Page 9... -
Page 10: Remove Dc Jack
Without touching the connectors, use tweezers to grasp DC Jack and pull up to remove it from D-cover. 12. Remove Earphone Without touching the connectors, use tweezers to grab Earphone Jack Assy and remove it from D-cover. Page 10 © 2007 Nokia Corporation Company Confidential Issue 1 04/2007... -
Page 11: Assembly Instructions
Without touching the connectors, use the tweezers to clip Earphone Jack Assy and place it to D-cover. 2. Place DC Jack Without touching the connectors, use tweezers to clip DC Jack and place it to D-cover. Issue 1 04/2007 © 2007 Nokia Corporation Company Confidential Page 11... -
Page 12: Place The Vibrator
4. Place the SAM Module Using the tweezers, gently place and snap SAM Module into D-cover. 5. Place the PWB Align the tooling pins and tooling holes, then gently place PWB into D-cover. Page 12 © 2007 Nokia Corporation Company Confidential Issue 1 04/2007... -
Page 13: Connect The Ui With Pwb
8. Bolt all the screws Use a non-conductive Torx #6 screwdriver to remove the six screws, the torque driver set to 15+/-2 Ncm @ 450 +/-50 rpm is recommended. Issue 1 04/2007 © 2007 Nokia Corporation Company Confidential Page 13... -
Page 14: Assemble Receiver (Earpiece)
Place the rubber tail into the microphone cavity .Be careful not to damage the spring contacts. 11. Assemble A-Cover and Engine Align and force to snap A-cover and Engine. A. Top side snap force. Page 14 © 2007 Nokia Corporation Company Confidential Issue 1 04/2007... -
Page 15: Assemble Battery Cover
1325 (RH-104) Nokia Customer Care Disassembly/Assembly B. Side snaps. C. Bottom side snap. 12. Assemble Battery cover Align and force to Battery cover till the snaps locked. Issue 1 04/2007 © 2007 Nokia Corporation Company Confidential Page 15... - Page 16 1325 (RH-104) Disassembly/Assembly This page intentionally left blank. Page 16 © 2007 Nokia Corporation Company Confidential Issue 1 04/2007...
