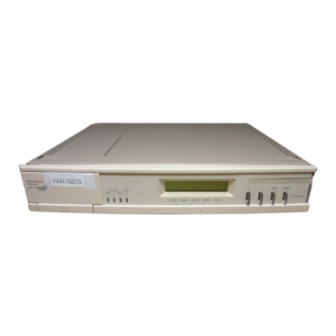

Nokia DNT2Mi sp/mp Operating Instructions Manual

Sp/mp data network terminal single-port and multiport.
Hide thumbs
DN01145897
Issue 2-0 en
DNT2Mi sp/mp
Data Network Terminal
Single-port and Multiport
User Manual
C33975.85--B0
© Nokia Corporation
Nokia Proprietary and Confidential
1 (128)

   Related Manuals for Nokia DNT2Mi sp/mp

   Summary of Contents for Nokia DNT2Mi sp/mp

  • Page 1: Operating Instructions

    DNT2Mi sp/mp Data Network Terminal Single-port and Multiport Operating Instructions User Manual C33975.85--B0 DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential 1 (128)

  • Page 2

    This documentation is intended for the use of Nokia's customers only for the purposes of the agreement under which the documentation is submitted, and no part of it may be reproduced or transmitted in any form or means without the prior written permission of Nokia.

  • Page 3: Table Of Contents

    Automatic power-up test 39 Management 40 Timing source 41 Line settings 41 Port settings 41 Time slot settings (Q1: 6,5) 42 Protection settings 42 Measurements 43 Default values 44 DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential 3 (128)

  • Page 4: Table Of Contents

    10.5 Ambient conditions 118 10.5.1 Environmental and mechanical requirements 118 10.5.2 Electromagnetic compatibility 119 10.5.3 Safety and protection 120 4 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DN01145897 Issue 2-0 en...

  • Page 5

    Appendix A. Commissioning chart 121 Glossary 125 DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential 5 (128)

  • Page 6

    Data Network Terminal Single-port and Multiport Operating Instructions 6 (128) © Nokia Corporation DN01145897 Nokia Proprietary and Confidential Issue 2-0 en...

  • Page 7: Summary Of Changes

    Summary of changes Document DN01145897 Issue 1–0 en DN01145897 Issue 2–0 en DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Date Comment 19 April 2002 27 March 2003 Information on two new D2048 interface units (E62628.10 and E62628.11) added.

  • Page 8

    Data Network Terminal Single-port and Multiport Operating Instructions 8 (128) © Nokia Corporation DN01145897 Nokia Proprietary and Confidential Issue 2-0 en...

  • Page 9: About This Document

    These operating instructions introduce the DNT2Mi Data Network Terminal and provide information needed for its installation and use. The terminal interface units that are used in DNT products are presented separately in document DTE Interface Units for Nokia Data Network Terminals Operating Instructions. DN01145897 ©...

  • Page 10

    Data Network Terminal Single-port and Multiport Operating Instructions 10 (128) © Nokia Corporation DN01145897 Nokia Proprietary and Confidential Issue 2-0 en...

  • Page 11: Introduction To Dnt2mi

    Introduction to DNT2Mi Figure 1. Nokia DNT2Mi is a single- or multiport (sp/mp) data access network terminal intended for customer premises. It provides a two-wire or four-wire SHDSL line interface (ITU-T G.991.2) and up to three interchangeable DTE interface units.

  • Page 12

    DNT2Mi can be fed either with AC 90 to 264 V, DC -20 to -75 V, or remotely via ACL2i through the line. Management DNT2Mi can be managed locally with the front panel keys, Nokia’s hand-held Service Terminal, or with a Microsoft Windows-based Macro Service Terminal Emulator (MSTE) program running on a PC. For more information about supported Windows operating systems, refer to the Macro Service Terminal Emulator User's Manual.

  • Page 13: Applications

    The DNT2Mi Data Network Terminal can be used for Local Area Network (LAN) and Private Automatic Branch Exchange (PABX) connections (see Figure 2). The device can be controlled, configured, and tested either by using the front panel keys and the LCD display or via Nokia’s common network management system. PABX Figure 2.

  • Page 14

    The line rate is n x 64 kbit/s (n = 3 to 32 in two-wire connection; n = 6 to 32 in four-wire connection but only even numbers can be used), and the Trellis Coded Pulse Amplitude Modulation (TC-PAM) coding is used for transmission. 14 (128) © Nokia Corporation DN01145897 Nokia Proprietary and Confidential Issue 2-0 en...

  • Page 15: Construction And Interfaces, Front Panel

    This chapter introduces the mechanical construction and interfaces of DNT2Mi. Front panel The front panel of DNT2Mi includes a display, LED indicators, push-button keys, and a local management connector. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Construction and interfaces 15 (128)

  • Page 16: Indicators And Keys, Local Management Interface

    The local management interface is located behind the front panel door (see Figure 5). The interface is used to manage DNT2Mi with Macro Service Terminal Emulator (MSTE) running on a PC or with other Nokia management software. If signal 108 (DTR) is on, connecting the Service Terminal Emulator will disconnect DNT2Mi from the remote network management.

  • Page 17

    Figure 5. Table 1. Code TX21750 TX25741.06 E64320.01 DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential STATUS TEST DTR DSR DCD RTS CTS Local management connector (RJ-45) Local management connector Management interface cables Name Management cable (ST -> ACL2i) Management cable (PC ->...

  • Page 18

    Several DNT2Mi units can be connected to the same Q1 bus of V.11-type via a local management interface. Figure 6. 18 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Management interface cables (Continued) Name Management cable (ST ->...

  • Page 19: Rear Panel

    Remote-powered DNT2Mi Line AC VERSION 1 a) Mains connection b) Mains switch Figure 7. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential G.704 RPWR RPWR RPWR 1. c DC VERSION 1 a) DC connection b) DC switch 2.

  • Page 20: Terminal Interfaces

    Figure 8. 4.2.1 Terminal interfaces This section briefly introduces the DTE interface unit options. For more detailed information, refer to document DTE Interface Units for Nokia Data Network Terminals Operating Instructions. 20 (128) © Nokia Corporation Nokia Proprietary and Confidential...

  • Page 21

    G.704/2M SYM120 V.35 V.28 EIA-530-A D2048 D2048 (RJ45 + BNC) Figure 9. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential G.704/2M ASYM75 IN/OUT IN G.704/2M G.704/2M DTE interface options Construction and interfaces V.11 X.21 G.703/64k G.703/2M G.703/2M SYMM:120 ASYMM.

  • Page 22

    19.2 kbit/s. With proper cabling, however, operation up to 64 kbit/s is possible. 22 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions LMI 10Base-T DTE interface options (continued)

  • Page 23: Installing Dnt2mi, Electromagnetic Compatibility, Grounding Of Dnt2mi

    The DC-powered version of DNT2Mi has a separate pin reserved for the ground connection, refer to Section 5.8. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Installing DNT2Mi 23 (128)

  • Page 24: Clearances Around Dnt2mi

    Do not cover DNT2Mi. The air inlets and outlets must be unobstructed to maintain proper circulation of air. Approx. 100 mm Figure 11. 24 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Do not cover! Approx. 440 mm Clearances around DNT2Mi Approx. 100 mm...

  • Page 25: Work Order, Inserting Dte Interface Units

    If the DTE interface units are not pre-inserted or a unit needs to be changed, follow the instructions below. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Installing DNT2Mi 25 (128)

  • Page 26

    Insert a DTE interface unit carefully into the slot. Tighten the two screws. Screws Figure 12. 26 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Inserting DTE interface units into DNT2Mi (single-port) DN01145897 Issue 2-0 en...

  • Page 27: Free-standing Installation, Installing Dnt2mi On A Wall Or Into A Rack

    Installing DNT2Mi on a wall Note When selecting an installation location, make sure that all cables can be easily connected. See Figure 11 for adequate clearances. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Installing DNT2Mi 27 (128)

  • Page 28

    Position the mounting bar onto DNT2Mi. • • 28 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Fasten to DNT2Mi with the screw included Drill holes ( ø 6 mm drill bit) into...

  • Page 29

    Figure 15. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Position the bracket on the wall in horizontal position, its hooks facing upwards. Use a spirit level to check that the bracket is in a straight position.

  • Page 30: Uninstalling A Wall-mounted Dnt2mi, Installing A Modem Shelf Into A 19-inch Rack

    30 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Position the bracket on the wall and fasten it by screwing the included wall screws into the drilling holes.

  • Page 31: Installing Dnt2mi In A Modem Shelf

    DNT2Mi in the modem shelf. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Align the fixing holes of the modem shelf with the fixing holes in the rack. Installing a modem shelf into a 19-inch rack...

  • Page 32

    Figure 18. 32 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Push until the unit locks into the stopper at the end of the slot rail. Position the locking bar its openings facing upwards and flat side against the upper edge of the shelf.

  • Page 33: Uninstalling Dnt2mi From A Modem Shelf

    Draw DNT2Mi out of the modem shelf. 4 Remove locking bar Figure 19. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential 3 Loosen thumb screws 5 Draw DNT2Mi out Uninstalling DNT2Mi from a modem shelf Installing DNT2Mi 1 Switch power off...

  • Page 34: Connecting Power Supply

    DNT2Mi can be connected either to a positive-grounded or to a negative- grounded DC power system. Principles of the DC power systems are presented in Figures 20 and 21. 34 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions (AC-powered unit) (DC-powered unit) DN01145897...

  • Page 35

    Figure 20. Earthing bar +48V system Figure 21. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Fuse 2 A max. 10 A 1.0 mm + bar Principle of a negative-grounded DC power system Fuse 2 A max. 10 A 1.0 mm...

  • Page 36

    To remote DC power Power available and data transfer possible Figure 23. 36 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Line Grounding principle of the remote-powered system Lines cross-connected DNT2Mi-rp/mp Line 1...

  • Page 37: Troubleshooting, Strain Relief

    (see Figure 24). In a DC-powered unit, the DC-power cable is connected and guided through the strain relief at the factory. Figure 24. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Strain relief Installing DNT2Mi 37 (128)

  • Page 38: Completing The Installation, Verifying The Installation, Adjusting The Lcd Display, Recommended Actions After The Installation

    Label DNT2Mi unit(s) and cables according to your installation plan to help future maintenance operations. • Clean the site after installation. Recycle any applicable material. 38 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions STATUS PWR TEST DTRDSR Adjusting LCD contrast...

  • Page 39: Commissioning Dnt2mi, Automatic Power-up Test

    • Macro Service Terminal Emulator running on a PC (using Q1). Other Nokia management products, such as Nokia NMS, can be used for the same purpose. Menu structure for the front panel menus is shown in Chapter 8. Menu structure for Q1 management is shown in Chapter 9.

  • Page 40: Management

    PC interface unit). • The address 0 is reserved for PC-TMC/STE use (default address for the PC interface unit). 40 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DN01145897 Issue 2-0 en...

  • Page 41: Timing Source, Line Settings, Port Settings

    The BER alarm limit and alarm severity have to be checked. Port settings Adapter unit types are automatically recognised by DNT2Mi and can be seen from the Identifications menu, for instance. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Commissioning DNT2Mi 41 (128)

  • Page 42: Time Slot Settings (q1: 6,5), Protection Settings

    There are some adapter settings that are done by changing the jumper settings on the actual adapter. For more information, refer to document DTE Interface Units for Nokia Data Network Terminals Operating Instructions. Port alarms (Q1: 6,4, port#,5) Check that the Q1 alarm visibility is set correctly, that is, enabled or disabled. If Q1 alarms are disabled, port alarms are not visible in the NMS system.

  • Page 43: Measurements

    Attenuation Line 1 or 2: xx dB DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Monitoring a line xx = +7.5 to +14.5 dBm xx = +14.5 to -26 dBm xx = 0 to +15 dB xx = 0 to 41 dB...

  • Page 44: Default Values

    Equipment ID Use of front panel 44 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Monitoring a line (Continued) Alternatives: 55 to 155 V + no remote power Signal quality monitored during 1 period of 15 minutes to max.

  • Page 45

    Externally caused alarms Rx timing (CT103) CTS use Circuit 140 Circuit 141 DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Global parameters (Continued) In use 4800 bit/s Line parameters STU-R rate adaptive, 2-wire Multiplexer parameters No time slots connected Port parameters, V-series (V.11, V.28, V.35 or EIA-530-A)

  • Page 46

    Port rate Remote loop detection Externally caused alarms Framing format 46 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Port parameters, X.21 n x 64k (n=1) Not in use 9600 kbit/s, Synchronous Allowed Disabled (not to be seen through Q1).

  • Page 47: Factory Values

    Recalling of factory settings can take up to 60 seconds. Table 12. Q1 address Q1 rate DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Port parameters, G.704/2M (Continued) Equal to line Filled with FF 1E-3 B-level Factory values...

  • Page 48

    Data Network Terminal Single-port and Multiport Operating Instructions 48 (128) © Nokia Corporation DN01145897 Nokia Proprietary and Confidential Issue 2-0 en...

  • Page 49: Maintaining Dnt2mi, Getting General Information

    In this menu, only the name of the supervised unit is changeable. To change the name, select Modify (Q1 menu option 4,7,2,1). Note that the maximum length of the name is 15 characters. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Identifications Equipment name: DNT2Mi Equipment type: DNT2Mi mp (T65680) Main E65671.01 A...

  • Page 50: Monitoring Alarms

    Table 13 shows alarm information from port and line interfaces and alarms from the equipment itself. 50 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions *DNT2Mi (AS) Line: -no incoming signal...

  • Page 51: Testing

    Testing DNT2Mi tests can be controlled via the front panel or using Q1 menus. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Alarms Front panel Description message Bit error rate worse than the set limit in port 1, 2, or 3...

  • Page 52

    ITU-T X.150 loop 2 Data coming from the line is looped back to the line. 52 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Tests available for DNT2Mi Automatic management control...

  • Page 53

    -1 test pattern Transmitter and receiver at the local port. Figure 28. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Tests available for DNT2Mi (Continued) Automatic management control Tx-Rx test (TR) (5,2,#,4) V.xx Circuit 140 or X.21 loop 2...

  • Page 54

    Figure 29. Figure 30. Figure 31. 54 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions LOCAL DNT PORT 2 PORT 3 Local test loop in a port LOCAL DNT PORT 2 PORT 3...

  • Page 55: Checking Measurements And Statistics

    • Noise margin • Rx level • Tx level DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential LOCAL DNT PORT 1 PORT 2 PORT 3 Remotely controlled network test loop LOCAL DNT Tx Rx PORT 2 PORT 3...

  • Page 56

    • Number of CPU resets and the time passed since the last reset. 56 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Statistics values via Q1 Description Time passed since the last reset.

  • Page 57: Using Front Panel Menus

    Using front panel menus This chapter describes the front panel menus and how to navigate between them using the front panel keys. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Using front panel menus 57 (128)

  • Page 58

    P1, P2, P3 INTERFACE SIGNALS Display Figure 34. The following information is useful to know when working with the menus: 58 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions STATUS TEST STATUS PORT TEST...

  • Page 59

    This can occur in the STU-R, 4-wire mode only and does not affect data flow. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential The OK key takes you one level down in the menu. It also selects or activates a desired test, monitoring, or configuration alternative.

  • Page 60: Main Menu Levels, Configuring Dnt2mi

    Note that the menu has an individual configuration parameter set for each port type. 60 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DNT2Mi Status: OK Main Menu Level...

  • Page 61

    If the port adapter is not in place, the menu shows the port parameters that were used previously or, alternatively, the V-type port parameters. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Using front panel menus 61 (128)

  • Page 62: Configuring A Port

    Disabled Remote loop Remote loop Allowed Allowed Figure 37. 62 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Accept CT103 timing CT103 timing CT113 CT114 inv CT105, CT106 use CT105, CT106 use...

  • Page 63

    Disabled Remote loop Remote loop Allowed Allowed Figure 38. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential V.110 V.110 1200 bits/s 2400 bits/s Port mode Port mode Async. 8 bits Async. 11 bits Only if V.28 adapter and V.110 in use...

  • Page 64

    LL from DTE LL from DTE Not allowed * Not allowed * Dismiss Figure 39. 64 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Configure Port 3 Accept V.110 V.110 1200 bits/s...

  • Page 65

    Save? OK/Exit Figure 40. Save? OK/Exit DTE alarms Disabled Figure 41. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Configure Configure Port 1 Port 2 Accept Interface mode Interface mode Codir. Codir. Dismiss AIS mode AIS mode...

  • Page 66

    1E-3 BER alarm sever. BER alarm sever. B-level B-level Figure 42. 66 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Configure Port 3 Only with D2048 adapter Accept Framing format Framing format...

  • Page 67

    Disabled Remote loop Remote loop Allowed Allowed Figure 43. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Configure Port 3 Ports 2 and 3 in multiport version only Input level -7.0 dBm (2-w) DTE if alarms Enabled...

  • Page 68: Configuring A Line

    B-level Figure 44. 68 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions psdS = PSD mask, Symmetric 32 = Line rate, the value of n x 64k For more information, refer to Section 9.3.4 "Line settings"...

  • Page 69: Configuring Common Settings

    Test time limit Test time limit 00010 min 00010 min Figure 45. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Timing source Internal Give last TS: Give last TS: Give last TS: Give last TS: n=31 Mng speed...

  • Page 70: Default Settings

    8.2.4 Default settings Save? OK/Exit Figure 46. 70 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Configure Default settings Common defaults Line Common defaults Port 1 Common defaults Port 2 Common defaults...

  • Page 71: Testing Dnt2mi, Testing A Port, Testing A Line

    Figure 47. 8.3.2 Testing a line Line DL test Figure 48. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Test Test Port 1 Port 2 Port # LL test Port #: TR test Error count:0000 Port #...

  • Page 72: Testing The Equipment

    Testing the equipment Test Equipment Equipment Self test Figure 49. 72 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Equipment Self test Front panel menus for testing the equipment Equipment Equipment Self test...

  • Page 73: Monitoring Dnt2mi, Monitoring A Port

    Or D2048 adapter and CRC multiframe Or D2048 adapter and CRC monitoring Figure 50. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Monitor Port 3 Rx UAT: 0000 Rx ES: 0000 Tx UAT: 0000 Tx ES: 0000...

  • Page 74: Monitoring A Line

    15 min periods Signal qual. L1 24 h periods Signal qual. L2 24h periods Figure 51. 74 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions [dBm] Rx level [dBm] Attenuation L2: xx L1: xx...

  • Page 75

    8.4.3 Monitoring alarms Figure 52. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Monitor Alarms Port # Line No incoming sig. No line signal Line Port # No frame sync Framing lost Line Port # BER > 1E-6...

  • Page 76: Monitoring Equipment Information, Self Testing

    Self test result Basic unit error Self test result Mux unit error Figure 54. 76 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Basic HW: Mux HW: E65671.01 A0 E65633.01 A0 Port 2: D2048 Port 3: Empty E62628.01 A0...

  • Page 77: Using Q1 Menus, General

    Controls (temporary) Settings (permanent) Measurements Statistics Testing User privileges Miscellaneous The options of the DNT2Mi menus are described in more detail in the following subsections. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Using Q1 menus 77 (128)

  • Page 78

    Figure 55. 78 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions 1 Fault display 2 Local alarm cancel *) 3 Reset local cancel *) 4 Identifications 5 Controls 6 Settings 7 Measurements...

  • Page 79

    Mux E65633.01 A SW version: S65672.01 A0 Modify: 2 Eq name 4 Installation info Figure 56. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential 4,7,2 Eq name: 0 Display 1 Modify 4,7,4 Identifications menu Using Q1 menus 4,7,2,0 DNT2Mi...

  • Page 80

    Figure 57. 80 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions 4,7,4 Intallation info: 0 Display 1 Modify 4,7,4,0 Installation info: Date: First:2003-03-22 Last:2003-03-29 Installed by:K.Reijonen 4,7,4,1 1 Date 2 Installed by...

  • Page 81

    Figure 58. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential DNT controls: 0 Display 1 All test loops off 2 Port test loops 3 Line test loops 4 Self test Port test loops: Give port number 1,2 or 3...

  • Page 82

    2 Q1 Address 3 Q1 Management path 4 Test time out limit Figure 59. 82 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions 6,1,1 Q1 speed: 0 Display Set speed 600 ...9600...

  • Page 83

    Figure 60. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential 6,1,3 Q1 Management path: 0 Display 1 Q1 via Line 2 LM interface 6,1,3,1 Q1 via Line: 0 Display 1 On 2 Off 6,1,3,2 LM Interface: 0 Display...

  • Page 84

    6,3,9 Figure 61. 84 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions psdS = Power special density mask, Symmetric = Line rate, the value of n x 64k For more information, refer to Section 9.3.4 "Line settings"...

  • Page 85

    Figure 62. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential 6,3,6 Power backoff: 0 Display 1 ON 2 OFF 6,3,8 BER alarm limit: 0 Display 1 E-3 2 E-6 6,3,9 BER alarm severity: 0 Display 1 No alarm...

  • Page 86

    Figure 63. 86 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Port settings: Give port number: 6,4,port# 1,2 or 3. Timeslot use: 0 Display 1 Modify 6,5,1 Give TS(s): (e.g 0-8.16-20) Default settings:...

  • Page 87

    Figure 64. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential 6,4, port # Port settings: 0 Display 2 RL control 3 DTE if parameters 4 V.110 rates 5 DTE if alarms 6 Connection name 6,4, port#,2 RL control:...

  • Page 88

    7 BER alarm limit 8 BER alarm severity 6,4,Port#,3 Figure 65. 88 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions *) Only with D2048 adapter 6,4,port #,3,1 Framing format: 0 Display 1 No frame...

  • Page 89

    2) Only in port 1 6,4,port#,3 Figure 66. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Only in ports 2 and 3 and if V.28 adapter and V.110 in use 6,4,port #,3,1 Sync/Async: 0 Display 1 Synchronous...

  • Page 90

    Figure 67. 90 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions X.21 interface settings: 6,4,port#,3 X.21 type DTE: 0 Display 1 Circuit C 2 Circuit I 3 RL request 4 LL request...

  • Page 91

    Figure 68. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential G.703/64k Interface settings: 6,4, port #, 3 G.703/64k DTE: 0 Display 1 AIS mode 2 Interface mode 6,4,port #,3,1 AIS mode: 0 Display 1 Octet timing enabled...

  • Page 92

    Figure 69. 92 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DNT measurements: 0 Display all 1 Noise margins 2 Rx levels 3 Tx levels 4 Attenuations 5 Line voltage Pair Line voltage xxV...

  • Page 93

    3 Relative values 4 Absolute values 5 Reset statistics Figure 70. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential * This menu is not displayed in the single-port version 8,1,port#,2 Timing slip: 0 Display 1 Reset counters...

  • Page 94

    2 Time since reset Figure 71. 94 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions 1) You can choose up to 100 15 min periods or up to 30 24h periods 8,2,3...

  • Page 95

    Figure 72. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential DNT privileges: 1 Password 4 Setting parameters 5 Front panel rights 10,1 Give password 1...7 characters 10,4 Setting parameters: 1 Password timeout 2 Protections 3 Password 10,4,1...

  • Page 96: Dnt Controls (5), Dnt Settings (6), Display (6,0)

    The first display of the DNT Settings menu (see Figure 59) shows part of the current settings. The display can look, for example like this: 96 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Display controls: type...

  • Page 97: Service Options (6,1)

    Q1 speed (6,1,1) The speed must be selected according to the speed used in the management network. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential DNT settings: Q1 speed: 4800 Q1 address: Q1 via line: LM interface:...

  • Page 98: Timing Source (6,2)

    The timing of circuit 103 can be set either by the clock from DTE (113) or by the clock of the equipment (114). See Figures 78 and 79 in Section 9.3.5. 98 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DN01145897 Issue 2-0 en...

  • Page 99

    Internal timing Port timing Line timing Transparent timing Figure 73. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential DNT2Mi Timing DNT2Mi Timing DNT2Mi Timing Timing DNT2Mi Timing Timing source alternatives Using Q1 menus Line SHDSL Timing Line SHDSL...

  • Page 100: Line Settings (6,3)

    Figure 74. SHDSL mode (6,3,3) This menu allows you to select the SHDSL mode. 100 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Line interface SHDSL mode STU-C Fixed 4-wire 2-wire Line Rate n=6...32...

  • Page 101

    Symmetric PSD mask defines the spectral shape of the signal transmitted to the line. The symmetric PSD is in use for both 2- and 4-wire modes (G.991.2 Annex B). DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Using Q1 menus 101 (128)

  • Page 102

    Figure 75. Figure 76. 102 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Measured SHDSL symmetric PSD and mask; 2-w, 2M Measured SHDSL symmetric PSD and mask; 4-w, 2M or 2-w, 1M...

  • Page 103

    VMOHBU 0.4 mm cable. In a real case, you should reserve 3-6 dB noise margin due to changing circumstances in the line. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Function of the line power loss Power backoff (dB) Using Q1 menus 103 (128)

  • Page 104

    Noise in a cable is mainly caused by cross talk between wire pairs. The main sources of noise are units using the same frequency band. 104 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DNT2Mi reach 0.4mm cable, no noise, BER < 1E-7...

  • Page 105: Port Settings (6,4, Port #)

    Remote loop (RL) control (6,4, port #,2) The RL control is available when a V.11, V.28, V.35, X.21, G.704/2M, G.703, or EIA-530-A adapter is installed in the port. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Port 1: Status: Active Type: V.11...

  • Page 106

    DNT port. The synchronisation of the equipment is described in Section 9.3.3. 106 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DN01145897 Issue 2-0 en...

  • Page 107

    CT103 timing by CT113, Line timing CT103 timing by CT114, Line timing Figure 78. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential DNT2Mi V.xx Timing DNT2Mi V.xx Timing CT103 timing alternatives, line timing Using Q1 menus Line SHDSL...

  • Page 108

    The contents of the DTE circuits menu depend on the type of the interface unit installed in the port. If no interface has been connected, the default is of V-type. 108 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DNT2Mi V.xx Timing DNT2Mi V.xx...

  • Page 109

    (see Figure 65). The selections are: DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential CTS use (6,4, port #,3,3,1) The suboptions of the menu allow you to: • display the current use of the circuits •...

  • Page 110

    Figure 80. 110 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions BF monitoring (only with the D2048-type adapters) CRC monitoring (only with the D2048-type adapters). 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31...

  • Page 111

    Q1 management. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential (E-6). Alarms can only appear if the frame format is either one of to display the use of circuit C not to use circuit C (Not in use) to select circuit C to control circuit I at the remote end by using ITU- T V.13 signalling (Simulated carrier).

  • Page 112: Time Slot Use (6,5), Default Settings (6,6), Factory Settings (6,7)

    It takes about 60 seconds to save the information. If you answer 1 (Cancel), the factory settings will not be taken into use. 112 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DN01145897 Issue 2-0 en...

  • Page 113: Statistics (8)

    UATR (Tx): SESR (Tx): • You can view the values of the statistic parameters monitored since the last reset. See the example below. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential (Rx): (Tx): Using Q1 menus 113 (128)

  • Page 114: User Privileges (10)

    (activation) is allowed or not • allow or disallow users to configure or test DNT2Mi. 114 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions 0 d 0 h 26 min 1 s DN01145897 Issue 2-0 en...

  • Page 115: Technical Specifications, Dimensions

    Depth Weight Table 18. Width Height Depth Weight DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential DNT2Mi multiport dimensions 293.5 mm 91.4 mm 236.8 mm 2.6 kg DNT2Mi single-port dimensions 293.5 mm 55 mm 236.8 mm 2.0 kg...

  • Page 116: Power Supply

    Voltage Remote power supply Voltage Start-up voltage 116 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DNT2Mi power supply 5 – 15.5 W • 5 W, when one G.703/2M adapter, remote power supply and 2-wire line used •...

  • Page 117: Line Interfaces, Unit Identification

    The lower code (“T65670.01...0” in the example) indicates the unit’s product code. DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Line interface 192 kbit/s to 2048 kbit/s (in accordance with ITU-T G.991.2 Recommendation) Technical specifications 16-TCPAM 192 to 2048 kbit/s...

  • Page 118: Ambient Conditions, Environmental And Mechanical Requirements

    Figure 82 describes in more detail the recommended conditions for the use of the device. 118 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Example of DNT2Mi identification sticker Environmental and mechanical requirements ETSI ETS 300 019-2-2 class 2.3...

  • Page 119: Electromagnetic Compatibility

    Electromagnetic compatibility The electromagnetic compatibility (EMC) of DNT2Mi comply with the following specifications: DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential ˚ 0 10 20 30 40 50 60 DNT2Mi climatogram Mean time between failure (MTBF) 73 years...

  • Page 120: Safety And Protection

    AC power supply DC power supply Line interface 120 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions EMC requirements DNT2Mi safety and protection Electrical safety EN 60950 Surge protection 4 kV common mode, 2 kV differential...

  • Page 121

    Timing source Protections Password Test timeout Power feed Table 26. Setting Time slots Type Rate Timing Sync/Async DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential General settings Setting Port settings Port 1 Port 2 Port 3 121 (128)

  • Page 122

    Table 28. Noise margin Rx level Line attenuation Line voltage 122 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions Port settings (Continued) Port 1 Port 2 BER test results Line measurements Port 3...

  • Page 123

    SES rx ES rx BBE rx UAT tx ES tx SES tx *) only with G.704 adapter DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential Statistics Line Port 1 *) Port 2 *) Port 3 *) 123 (128)

  • Page 124

    Data Network Terminal Single-port and Multiport Operating Instructions 124 (128) © Nokia Corporation DN01145897 Nokia Proprietary and Confidential Issue 2-0 en...

  • Page 125

    Digital Loop Data Network Terminal Digital Subscriber Line Data Set Ready Data Terminal Equipment Data Terminal Ready EEPROM Electrically Erasable Programmable Read-Only Memory Electromagnetic Compatibility Euronorm, European standard DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential 125 (128)

  • Page 126

    Open Network Provision PABX Private Automatic Branch Exchange PRBS Pseudo Random Bit Sequence Phase-Locked Loop Plesiochronous Digital Hierarchy Power Spectral Density 126 (128) © Nokia Corporation Nokia Proprietary and Confidential Data Network Terminal Single-port and Multiport Operating Instructions DN01145897 Issue 2-0 en...

  • Page 127

    Transmit/receive test with 2 Time Slot Total Time Transmitter Transmit Clock Transmitted Data Unavailable Time UATR Unavailable Time Ratio Voice Frequency DN01145897 © Nokia Corporation Issue 2-0 en Nokia Proprietary and Confidential −1 test −1 pseudo random bit sequence 127 (128)

  • Page 128

    DYNANET Nokia’s family of primary rate equipment and their tributaries used in access networks. The family includes a wide range of products: primary multiplex equipment, branching and cross-connect equipment, line equipment for copper cables and optical fibres, HDSL line terminals, and integrated multiplex and line equipment.

This manual also for:

Dnt2mi sp, Dnt2mi mp

Comments to this Manuals

Symbols: 0
Latest comments:
