When connecting the external video component and the display

• It is necessary to set to AV INPUT or REAR DISP in SET UP when connecting the
external video component.

When using a display connected to rear video output

This product's rear video output is for connection of a display to enable passengers in the
rear seats to watch the DVD, etc.
• NEVER install the rear display in a location that enables the Driver to watch the DVD while
Driving.
• NEVER connect rear audio output (REAR OUT) to separately sold power amp.

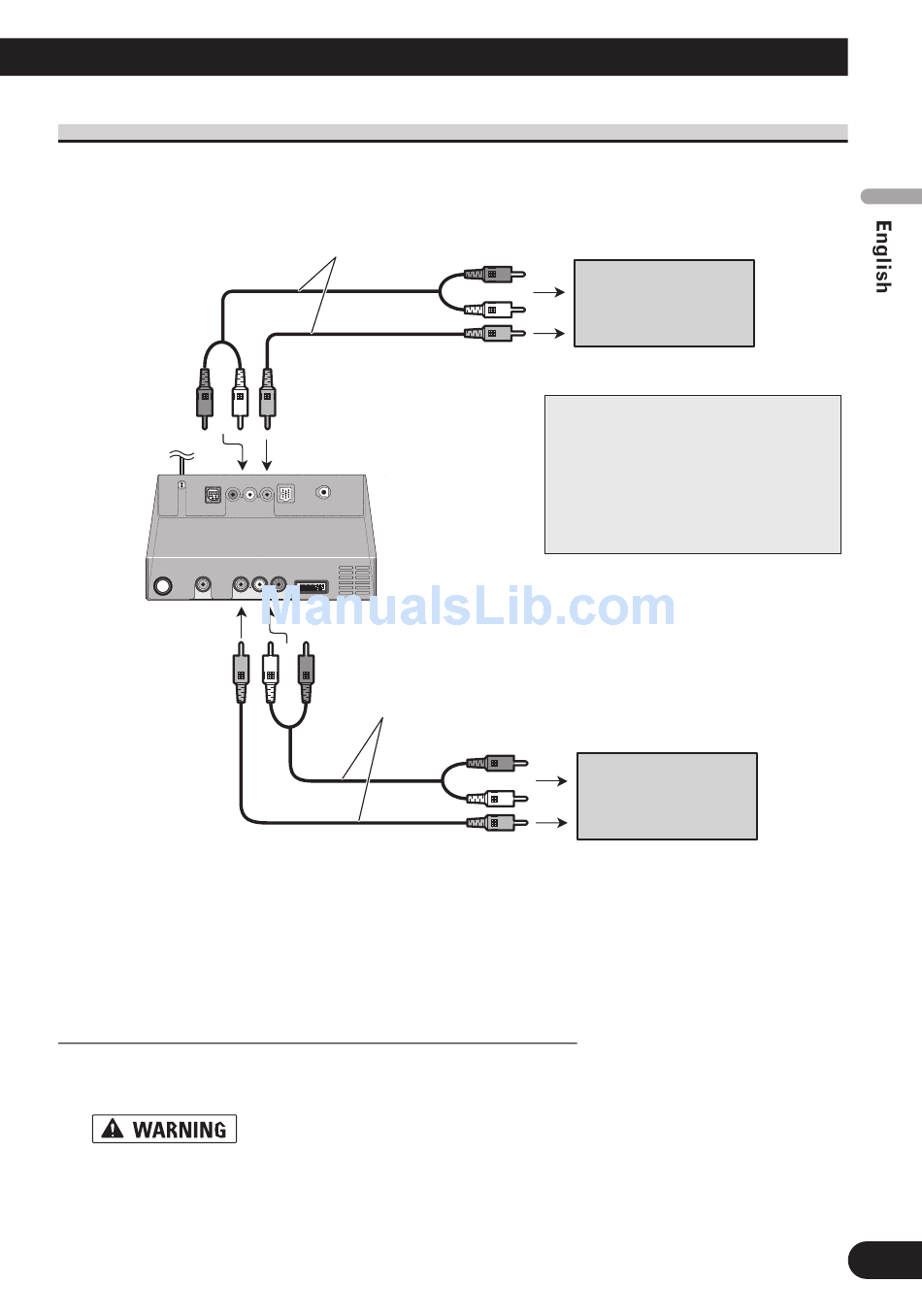

RCA cables
(sold separately)
To audio inputs
To video input
Hide-away unit
RCA cables
(sold separately)
To audio outputs
To video output
Display with
RCA input jacks
Note:
The map screen navigation images
output to the rear display differ from
standard NTSC format images.
Therefore, their quality will be infe-
rior to the images that appear on the
front display.
External video
component
(sold separately)
