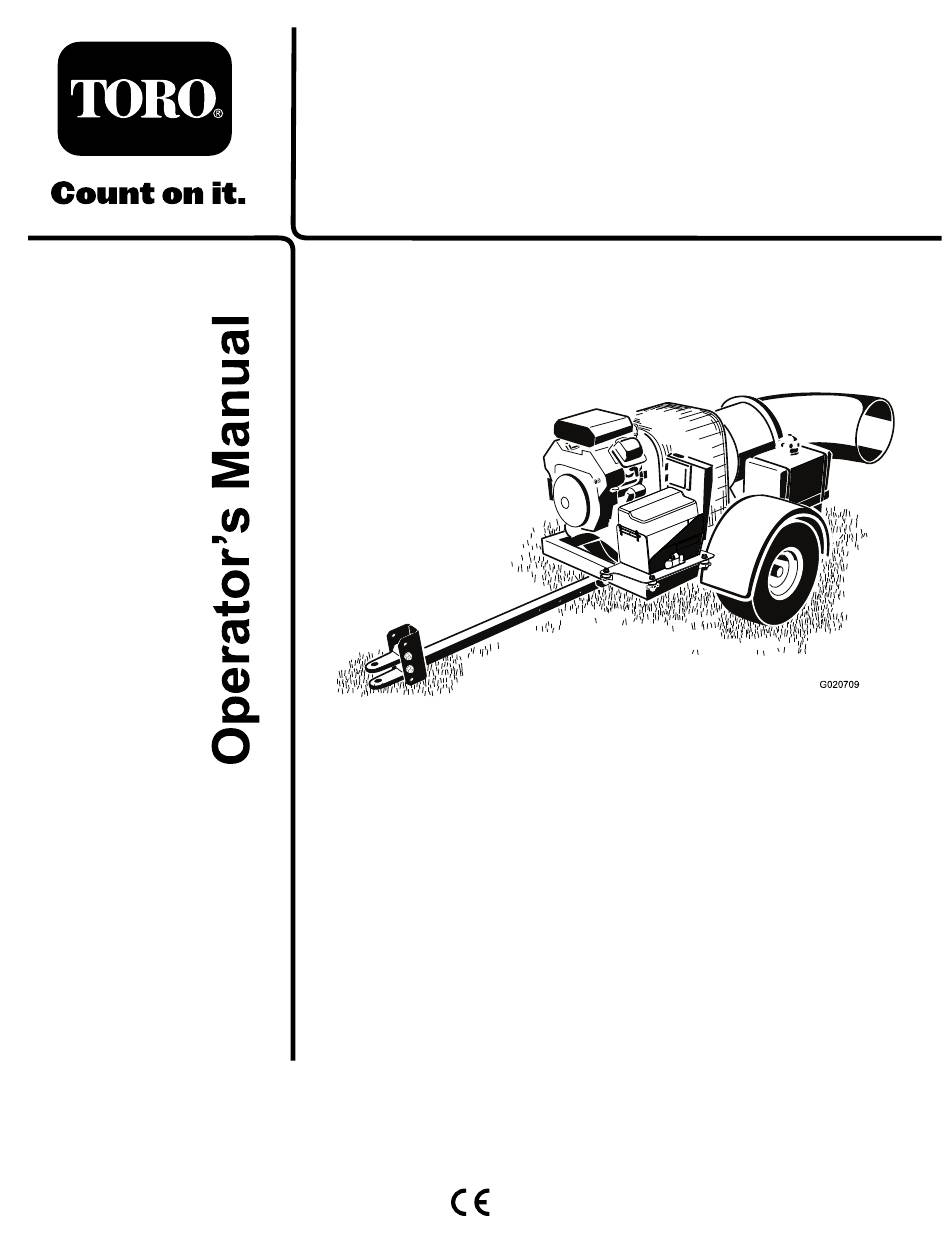

Form No. 3384-730 Rev B Pro Force Debris Blower Model No. 44551—Serial No. 314000001 and Up G020709 *3384-730* B Register at www.Toro.com. Original Instructions (EN)
2 Mounting the Hitch to the Debris Blower ....9 3 Connecting the Debris Blower to the Tow You may contact Toro directly at www.Toro.com for product Vehicle ............... 9 and accessory information, help finding a dealer, or to register Product Overview ............11...
Safe Handling of Fuels Safety • To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely Hazard control and accident prevention are dependent flammable and the vapors are explosive. upon the awareness, concern, and proper training of the personnel involved in the operation, transport, •...
Page 5
Perform only those maintenance instructions described in hot enough to cause a burn. this manual. If major repairs are ever needed or assistance is desired, contact an Authorized Toro Distributor. Tethered Remote Operation • To reduce a potential fire hazard, keep the engine free of •...
Page 6
• Keep all parts in good working condition and all hardware tightened. Replace all worn or damaged decals. • Use only Toro approved attachments. Warranty may be voided if used with unapproved attachments. Hauling • Use care when loading or unloading the machine into a trailer or truck.
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 115-5105 1. Warning—read the Operator's Manual. 2. Warning—do not operate this machine unless you are trained. 3.
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Petroleum jelly (not supplied) Connect the battery Debris blower assembly Hitch Bolt (3/8 x 3 inches) Flange nut (3/8 inch) Mount the hitch to the debris blower Hitch clevis Bolt (5/8 x 4–1/2 inch) Lock nut (5/8 inch)
2. Insert the hitch tube into the frame brackets (Figure DANGER 4). Secure the tube to the frame with 2 bolts (3/8 x 3 Battery electrolyte contains sulfuric acid inches) and flange nuts (3/8 inch). which is a deadly poison and causes severe burns.
Page 10
• Remove the bolts and nuts securing the hitch tube to frame brackets (Figure 4). • Secure the tube to the frame with the bolts and flange nuts. 4. Connect the blower clevis hitch to the tow vehicle hitch with the hitch pin and clevis (Figure 5). Figure 5 1.
Product Overview starter motor. Release the key when the engine starts. The key will move automatically to the ON position. To shut engine off, rotate key counterclockwise to the OFF position. Controls Choke Control Nozzle Direction Button To start a cold engine, move the choke control lever (Figure 7) to the ON position.
Operation DANGER In certain conditions, gasoline is extremely Note: Determine the left and right sides of the machine flammable and highly explosive. A fire or explosion from the normal operating position. from gasoline can burn you and others and can damage property.
This space in the tank allows gasoline to expand. Do WARNING not fill the fuel tanks completely full. Gasoline is harmful or fatal if swallowed. Long-term 4. Install fuel tank cap securely. exposure to vapors can cause serious injury and illness.
Starting and Stopping the Engine Starting the Engine WARNING ROTATING PARTS CAN CAUSE SERIOUS PERSONAL INJURY • Keep hands and feet away from the machine when it is running. • Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. •...
Adjusting the Nozzle Direction DANGER TIP OVER CAN CAUSE SERIOUS INJURY OR Press the nozzle direction button to rotate the nozzle to the DEATH. desired direction (Figure 12). • NEVER operate on steep slopes. • Operate on slopes up and down, never across the face.
Page 16
• Do not exceed 20 mph when transporting blower. • Do not touch the engine or muffler while the engine is running or soon after it is stopped. These areas could be hot enough to cause a burn. Important: Raise the nozzle before transporting the blower.
Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Check the condition and the tension of the belt After the first 8 hours • Check the torque of the wheel lug nuts After the first 10 hours • Check the engine oil level. •...
Daily Maintenance Checklist Duplicate this page for routine use. Maintenance Check Item For the week of: Mon. Tues. Wed. Thurs. Fri. Sat. Sun. Check the instrument operation Check the fuel level. Check the engine oil level. Clean the engine air cooling fins.
Servicing the Air Cleaner 2. Dry the pre filter by squeezing it in a clean cloth (do not wring). Service Interval: Every 25 hours—Clean the foam air filter 3. Put one or two ounces (29.6 or 59.1 ml) of oil on the element and check the paper element for pre filter (Figure 14).
Servicing the Carbon Canister Replacing the Carbon Canister Air Filter Service Interval: Every 200 hours 1. Stop the engine, remove the key, and wait for all moving parts to stop before leaving the operating position. 2. Remove and discard the carbon canister air filter (Figure 16).
Page 21
Checking the Engine Oil Level Note: A hose may be inserted onto the drain valve to direct the oil flow. The hose is not included with the Service Interval: Before each use or daily machine. Note: The best time to check the engine oil is when the 5.
Removing the Spark Plugs 3. Apply a thin coat of new oil to the rubber gasket on the replacement filter (Figure 21). 1. Stop the engine, remove the key, and wait for all moving 4. Install the replacement oil filter to the filter adapter, parts to stop before leaving the operating position.
Cleaning the Engine Screen and the Oil Cooler Service Interval: Before each use or daily Before each use, check and clean the engine screen and oil cooler. Remove any build up of grass, dirt or other debris from the oil cooler and engine screen (Figure 25). Figure 24 1.
G017855 Figure 27 1. Nozzle guides Adjusting the Belt Service Interval: After the first 8 hours G015845 Every 50 hours Figure 28 If the belt slips when changing the direction of the nozzle, an 1. Mounting bolts 4. Torque wrench in pulley mounting bracket [22.6 adjustment to the belt is required.
Page 25
g020717 Figure 29 1. Fuse 2. Receiver Receiver A 15 amp in-line fuse is incorporated into the receiver wire harness. It is located behind the receiver on the back side of control tower (Figure 29).
Storage out of reach of children or other unauthorized users. Cover the machine to protect it and keep it clean. 1. Turn the key to off. Remove spark plug wire. Remove the key. Waste Disposal 2. Remove grass clippings, dirt, and grime from the external parts of the entire machine, especially the Engine oil, engine and remote control batteries are pollutants engine.
Page 28
Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer.
