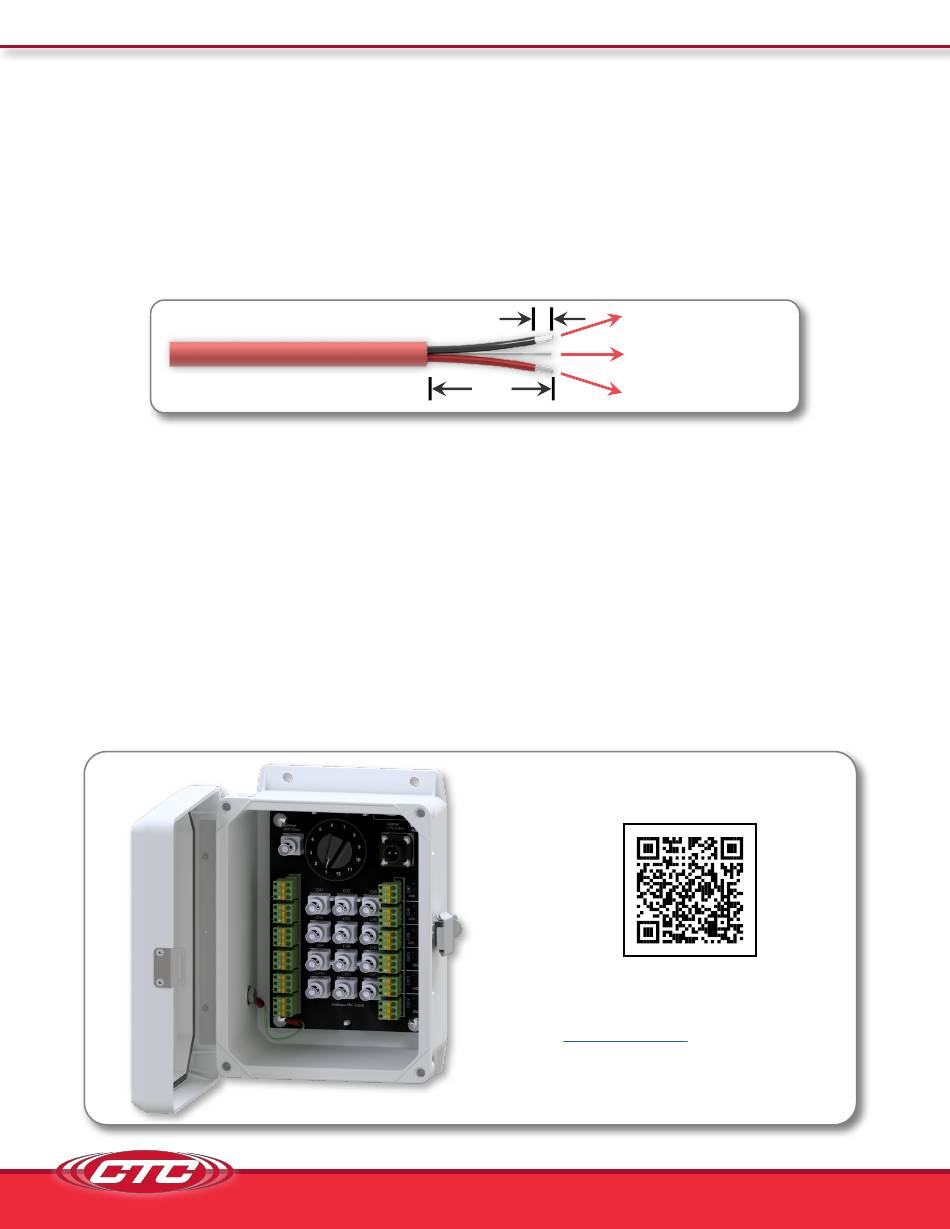

CTC Union SB152 Series Wiring Instructions

1. Strip outer jacket of cable back 1¼ in. and remove all of the shielding.
2. Separate the internal wires from the shield and twist the shield drain wire.
3. Strip red and black insulation back ¼ in.
4. Locate the appropriate plug, identified by channel number, remove the plug
and install the wires using a small flathead screwdriver. Push plug back into
location.
Orientation is as follows:
a. Red insulated conductor wire is connected to (+).
b. Black insulated conductor wire is connected to (-).
c. Shield drain wire is connected to ground (GND).
d. Depress selected position button on input terminal block to open terminal
for respective wire
(May need mini flat head screwdriver).
W i
iring nstructions
SB152 S SB152 S S S
erieS erieS
¼"
1¼"
B B
witch witch ox ox
(-)
Shield / Drain wire
(+)
Visit our website
full manual for SB152 enclosures.
to download the
