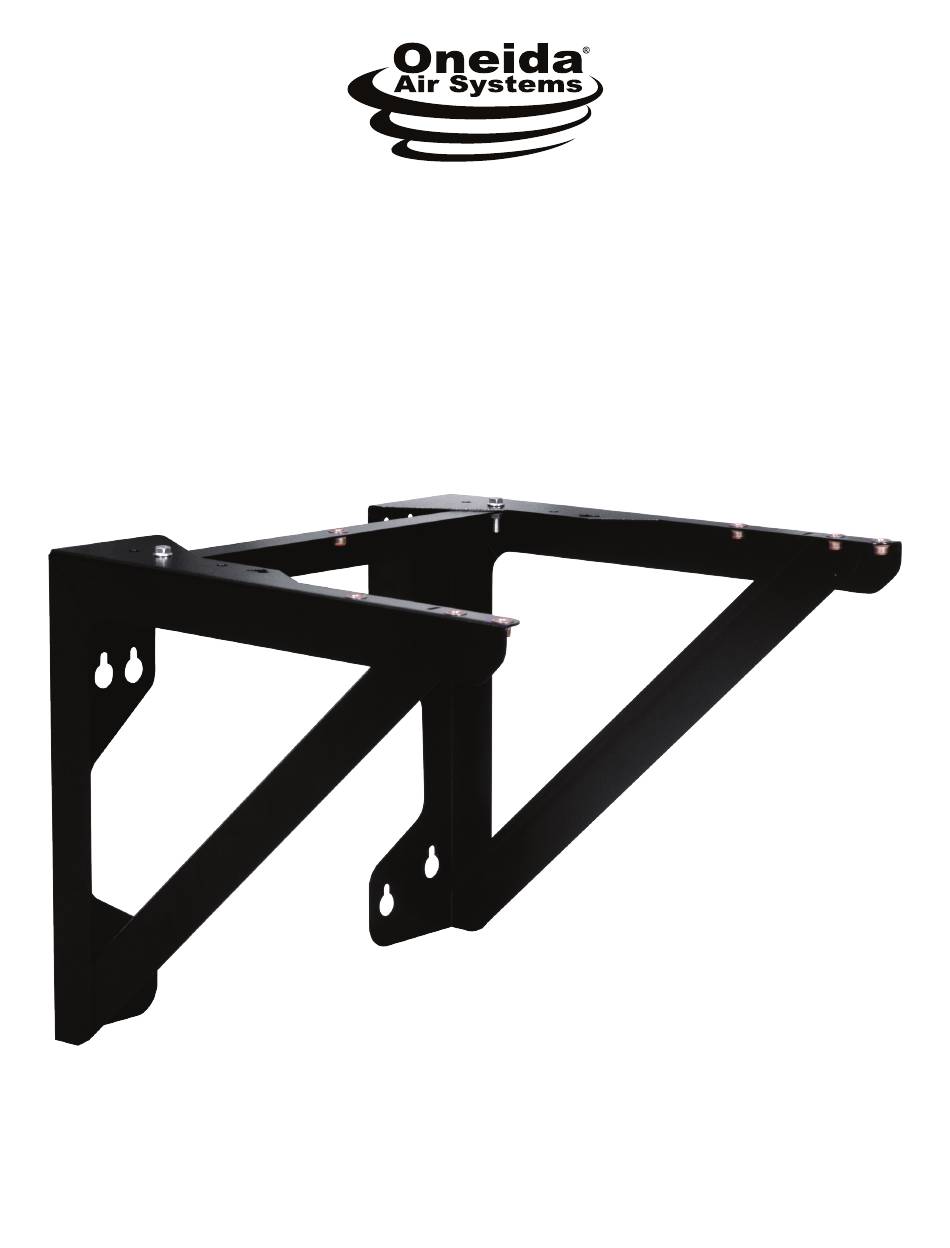

- Page 1 Rev: 03/19/2020 Doc. #ZBI000030 INSTRUCTION SHEET Wall Bracket 23" Systems 28" Systems #SMS300000A 1-800-732-4065 oneida-air.com...
-
Page 2: System Dimensions
Bracket Top dimension: 23" Wall Bracket Spacing at 16" and 24" Stud Spacing Bottom dimension: 28" Wall Bracket Spacing at 16" and 24" Stud Spacing 16" 406 mm 21-1/2” 546 mm 24" 610 mm 29-1/2" 749 mm Oneida Air Systems... -
Page 3: System Contents
System Contents Part number Part description Part number Part description RBW230003 Back Support Brace AFS516500 5/16" x 1/2" Hex Head Bolt RBW230002 AFW180000 Left Wall Bracket 5/16" Flat Washer RBW230001 AFT155175 Right Wall Bracket 5/16"-18 Whiz-Lock Nut AHX182100 Wall Bracket Hardware Kit ZBT040001 23-28 inch Wall Bracket Template Please unpack the parts carefully and confirm you have received each item listed here. - Page 4 106 inches FIG. 2 Air Lock 92 inches 106 inches 106 inches Place a mark through the Template's (E) paper Mark at each indicated crosshair, then remove the Here Template (E) from the wall [FIG. 3]. FIG. 3 Oneida Air Systems...
- Page 5 Assembly Instructions (Continued) Using appropriate fasteners for the wall type you are installing your system onto, drill into and install fasteners into the wall at all marked locations [FIG. 6]. a. Maximum Washer Size: 7/8" outside diameter b. Maximum Fastener Size: 3/8" c.
- Page 6 Closest to wall position Closest to wall position Fasten Here FIG. 7c FIG. 7d Top View: 23" System Top View: 23" System Far from wall position Far from wall position Fasten Here FIG. 7e Top View: 28" System Fasten Here Oneida Air Systems...
- Page 7 Assembly Instructions Secure Back Support Brace (A) under both Side Brackets (B)(C) with two Bolts (D1), two Flat Washers (D2), and two Whiz-Lock Nuts (D3) – finger tighten only [FIG. 8]. Firmly tighten the wall fasteners and the Back Support Brace bolts. FIG.
- Page 8 Regardless of where you purchased your system, if you have any questions or issues with missing / damaged parts, please call Oneida Air Systems first to let us help resolve your problem. We fully stand behind the quality of our product and place the utmost value on our customer’s satisfaction.
