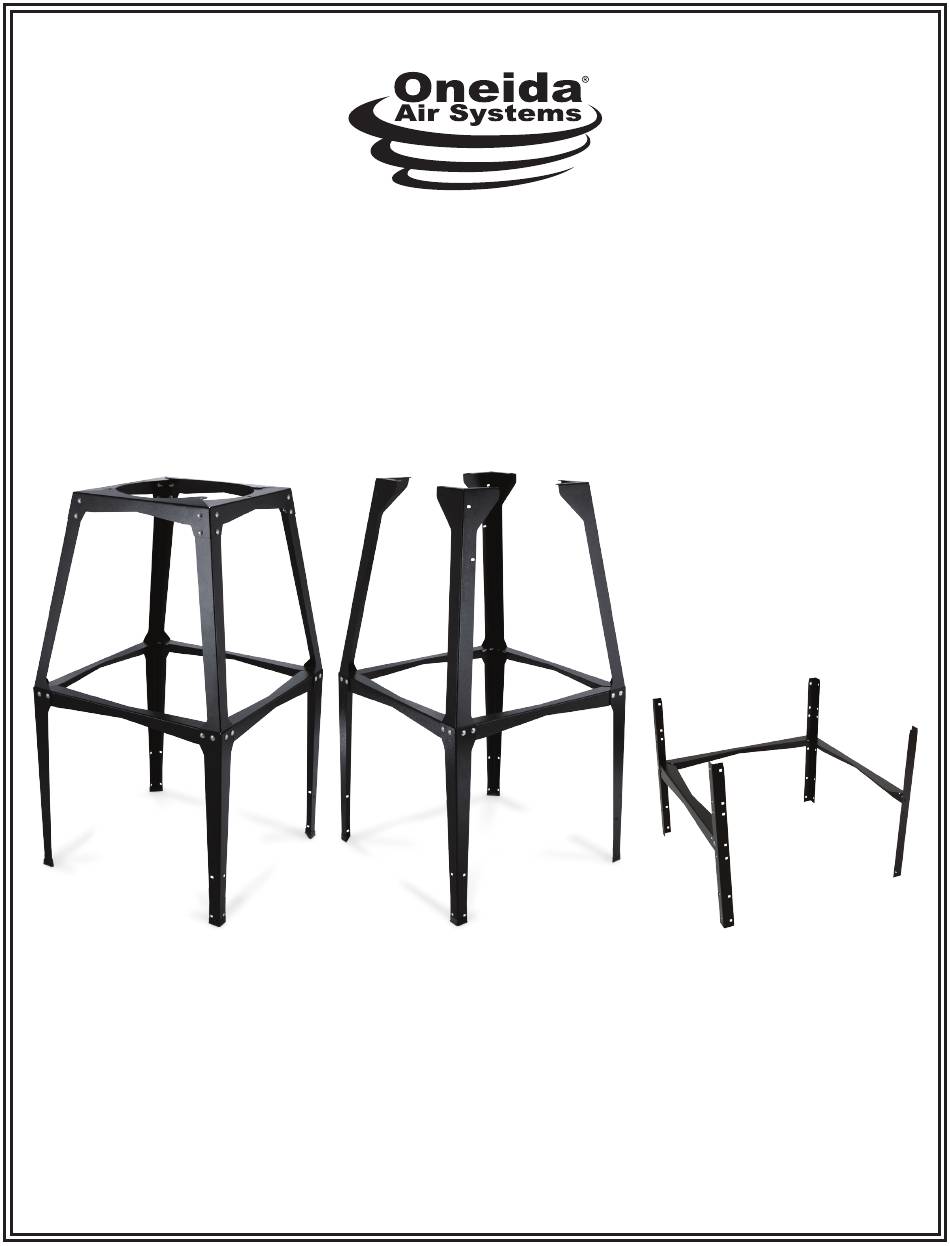

- Page 1 INSTRUCTION SHEET Leg Kit 18" Stand/ 21"-23" Stand/ Extension #STZ180001 #STZ212300 #STZ212301 Actual appearance may vary to that shown above. Rev: A 20221103LL Doc. #ZBI000013...
- Page 2 Position 1 1,681 mm 58-3/16" 1,478 mm 54-3/16" 1,376 mm For 55 gallon drum, Universal Drum Dolly, For 55 gallon drum and/or Stacking and/or Stacking Sound Filter Sound Filter For 35 gallon drum and/or Universal Drum Dolly Oneida Air Systems...
- Page 3 21-23" Stand Dimensions The Angle Bracket Leg Extension Kit (#STZ212301) is included with 55 gallon drum systems. The Leg Extensions Ÿ are required for the 35 gallon drum if you purchased the Universal Drum Dolly (#SDD990000) or the 13" Stacking Sound Filter (#BSS131400). Nominal dimensions shown.
- Page 4 Position 2 Position 1 Position 1 Position 2 Position 3 For 35 gallon drum For 55 gallon drum For 55 gallon drum, and/or Universal and/or Stacking Universal Drum Dolly, Drum Dolly Sound Filter and/or Stacking Sound Filter Oneida Air Systems...
-
Page 5: System Contents
System Contents PART # DESCRIPTION QT Y PART # DESCRIPTION QT Y 21-23" STAND ONLY STX212301 Lower Leg STX212303 Mid Brace AFS156075 5/16-18 x 3/4" Carriage Bolt STX001001 Stand Foot AFW180000 5/16" Flat Washer 18" STAND ONLY AFT900516 5/16 - 18 Nylock Nut STX180002 Top Brace RCP150001... - Page 6 Drum Dolly, and/or Stacking Sound Filter. Install onto a flat, level surface. Leave FIG. 1 bolts loose initially and tighten once fully assembled. Note: We recommend that the stand be assembled laying down and then raised into position later on. Oneida Air Systems...
- Page 7 Assembly Instructions (Continued) Arrange the Mid Braces (B) in a square so that each end overlaps over one and under the other neighboring Mid Brace [FIG. 2a]. Repeat with all Mid Braces until you have a Square assembled [FIG. 2b]. Secure the Mid Braces together using four Carriage Bolts (F1), four Washers (F2), and four Nylock-Nuts (F3) [FIG.
- Page 8 Nylock-Nuts (F3) each. Then attach the remaining two Top Braces as shown in [FIG. 5]. Secure each using four Carriage Bolts (F1), four Washers (F2), and four Nylock-Nuts (F3). Note: Finger tighten only at this time. FIG. 5 Oneida Air Systems...
- Page 9 Assembly Instructions (Continued) If you did not purchase the Leg Extensions, proceed to Step 9. Position 3 The Leg Extensions must be positioned at Position 2 the correct clearance height for your waste containment and filter setup [FIG. 6]. . Position 1: For 35 gallon drum with Position 1 Universal Drum Dolly.
- Page 10 FIG. 8 Raise the Stand up and ensure that all components are squared and level before tightening the hardware [FIG. 9]. We recommend torquing all of the bolts down to 250 in.-lbs. (~20 ft.-lbs.). FIG. 9 Oneida Air Systems...
- Page 11 Assembly Instructions (Continued) There are two options for mounting the feet to your stand. Choose either or both options that best meet your needs: a. To prevent slipping and scuffing, slip a Plastic Stand Foot (F4) to the bottom of each Leg Assembly [FIG.
- Page 12 Regardless of where you purchased your system, if you have any questions or issues with missing / damaged parts, please call Oneida Air Systems first to let us help resolve your problem. We fully stand behind the quality of our product and place the utmost value on our customer’s satisfaction.
