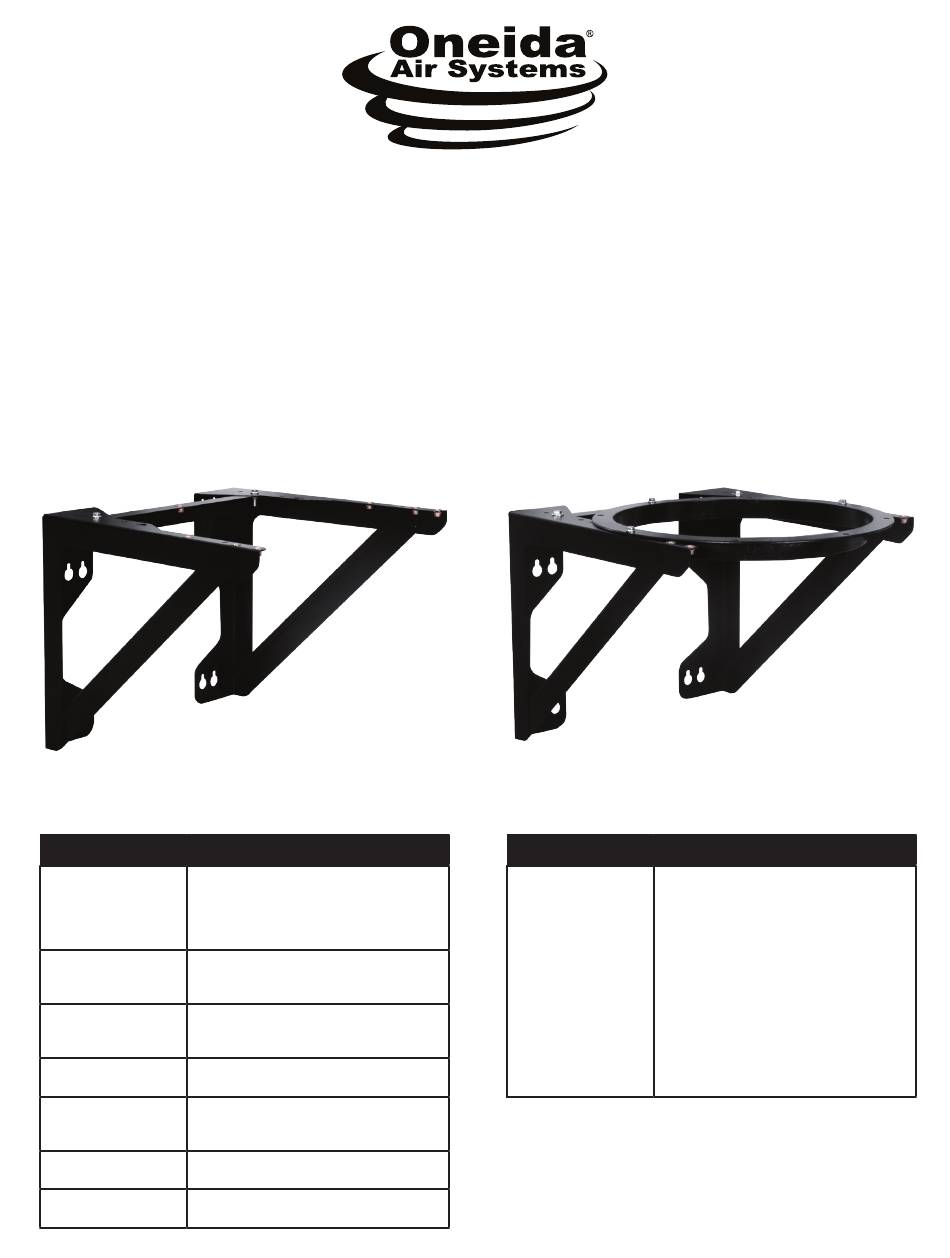

Rev: C 20250314LL
INSTRUCTION SHEET
Compatibility Chart
18 & 21" Steel Cyclone Wall Mounting Bracket
Description
3-5HP Dust Gorilla
Pro SMART Boost
1.5-3HP V-System
SMART Boost
C-950
Cyclone Separator
3HP Dust Gorilla Pro
2-3HP Super Dust
Gorilla
3HP Pro-1500
5HP SMART Pro
1-800-732-4065
(SMS300021A)
Item #
#XGK030035, #XGK030055,
#XGK050035, #XGK050055,
#XGK030105H-S, #XGK050105H-S
#XXVS300035, #XXVS300055
#SSK090000
#XGK030105H, #XGK030305H
#XGK020105H, #XGK030105H
#XXK150001H, #XXK150003H
#XXS200001
18" & 21" Steel Cyclones
Compatibility Chart
18" Molded Cyclone Wall Mounting Bracket
(SMS180000B)
Description
#XXVM001500, #XXVM003000,
#XXVM003000W, #XXVM003055,
V-Systems
#XXVM003055W, #XXVM010139H,
(Molded)
#XXVM020139H, #XXVM030139H,
Doc. #ZBI300021A
Wall Bracket
18" Molded Cyclones
#SMS300021A
#SMS180000B
Item #
#XXVM050139H
oneida-air.com
Advertisement
Related Manuals for Oneida Air Systems SMS300021A
Summary of Contents for Oneida Air Systems SMS300021A
- Page 1 Rev: C 20250314LL Doc. #ZBI300021A INSTRUCTION SHEET Wall Bracket 18" & 21" Steel Cyclones 18" Molded Cyclones #SMS300021A #SMS180000B Compatibility Chart Compatibility Chart 18 & 21" Steel Cyclone Wall Mounting Bracket 18" Molded Cyclone Wall Mounting Bracket (SMS300021A) (SMS180000B) Description...
-
Page 2: System Dimensions
Note: The Wall Bracket is universal to 18" and 21" systems. The blackened holes on the Back Support Brace and Left and Right Wall Brackets in the images above are utilized in the 18 inch system installation. Oneida Air Systems... -
Page 3: System Contents
System Contents Part number Part description Part number Part description RBW182103 Back Support Brace AFW180000 5/16" Flat Washer RBW182102 AFT155175 5/16"-18 Whiz-Lock Nut Left Wall Bracket RBW182101 Right Wall Bracket INCLUDED ONLY WITH #SMS180000B SYSTEMS AHX182100 Wall Bracket Hardware Kit DFZ180001 Angle Ring Flange AFS516500... - Page 4 Use appropriate fasteners for the wall type you are installing your system onto. a. Maximum Fastener Size: 5/16" diameter b. Maximum Washer Size: 3/4" outside diameter Drill into the wall at all 6 of the marked locations. Oneida Air Systems...
- Page 5 Assembly Instructions (Continued) Place washers onto each fastener and thread the fasteners into all 6 holes, leaving at least 1/2" outside of the hole [FIG. 2]. Wall 1/2" 13 mm FIG. 2 Lift the Right Wall Bracket (C) up and over the three fasteners on the right so that the washers are on the outside of the Right Wall bracket as shown in [FIG.
- Page 6 Top View: Closest to wall position Top View: Closest to wall position FIG. 5c FIG. 5d Top View: Parallel to wall position Top View: Parallel to wall position FIG. 5f FIG. 5e Bolt placement Bolt placement shown in black shown in black Oneida Air Systems...
- Page 7 Assembly Instructions Secure Back Support Brace (A) under both Side Brackets (B)(C) with two Bolts (D1), two Flat Washers (D2), and two Whiz-Lock Nuts (D3) – finger tighten only [FIG 6]. FIG. 6 Firmly tighten all hardware. If you have the 18" Molded Cyclone, place the Angle Ring (E) pointing downward onto the assembled Wall Brackets (B, C) and Back Support Brace (A) and align it with the corresponding holes [FIG 7a] [FIG 7b] [FIG 7c].
- Page 8 Regardless of where you purchased your system, if you have any questions or issues with missing / damaged parts, please call Oneida Air Systems first to let us help resolve your problem. We fully stand behind the quality of our product and place the utmost value on our customer’s satisfaction.
