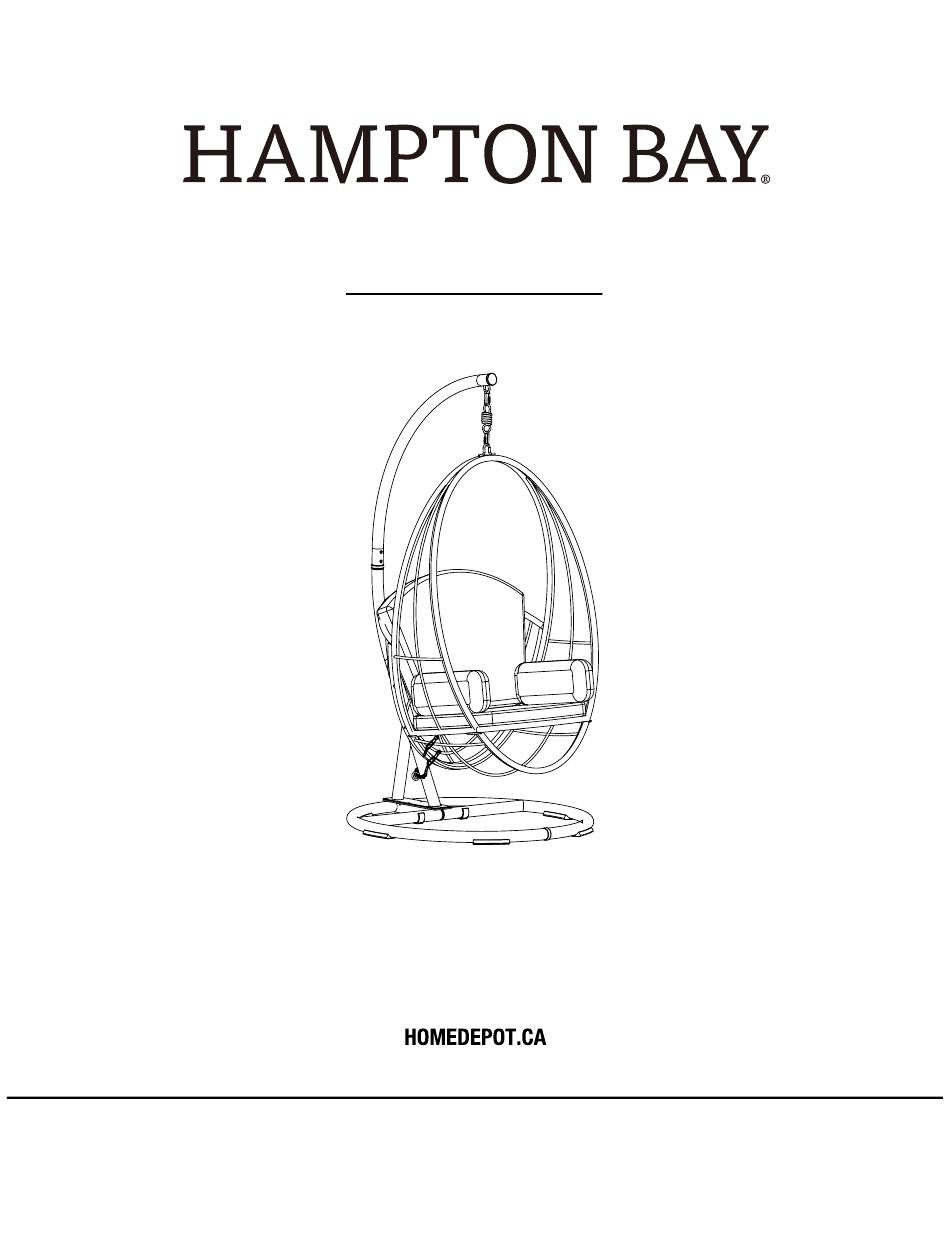

Item # 1001 582 001
Model # GCS09136A
USE AND CARE GUIDE

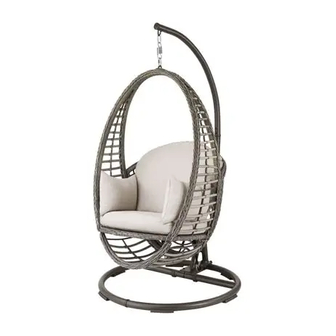

HARPER HILL STEEL WOVEN EGG SWING
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., E ST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
THAN K YO U
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this swing. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY HARPER HILL GCS09136A
Summary of Contents for HAMPTON BAY HARPER HILL GCS09136A
- Page 1 THAN K YO U We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this swing. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............3 Save These Instructions ............2 Package Contents ..............4 Read All Instructions Before Use ..........2 Assembly ............... -
Page 3: Warranty
Warranty 2 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a three year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Left Base Right Base Lower Hanging Bar Upper Hanging Bar Base Connecting Tube Front Upper Basket Back Basket Front Lower Basket Seat Cushion Back Cushion Pillow... -
Page 5: Assembly
Assembly Attaching the Left Base to the Right Base Insert the base connecting tube (E) to the left base (A) and the right base (B) using M6X15 combination bolts (FF). Attach the left base (A) to the right base (B) using M8X25 combination bolt, washer, spring washer and nuts (CC). Do not fully tighten the bolts at this step. - Page 6 Assembly (continued) Attaching the Lower Hanging Bar to the Assembled Base, Attaching the Upper Hanging Bar to the Lower Hanging Bar, and Put on the Attached the lower hanging bar (C) to the assembled base by using M8X30 combination bolt, washer , spring washer and nut (BB) and M8X15 bolt, spring washer and washers (DD).
- Page 7 Assembly (continued) Attaching the Back Basket and Front Lower Basket to the Front Upper Basket. Attach the back basket (G) to the front upper basket (F) using M6X40 combination bolts (EE). Attach the front lower basket (H) to the front upper basket (F) using M6X15 combination bolts (FF). Once all of the bolts are in place, fully tighten the bolts using the hex wrench (JJ).
- Page 8 Assembly (continued) Loosen the hook (GG) by turning clockwise and hang the assembled basket to the upper hanging bar (D) by using the hook (GG), then close the hook (GG) in the counterclockwise direction. Please contact 1-855-HD-HAMPTON for further assistance.
- Page 9 Assembly (continued) Connecting the Back Basket to the Lower Hanging Bar Open the locked carabiner on the back basket (G) in the clockwise direction and take the safety strap out from the locked caraniner. Connect the back basket (G) to the lower hanging bar (C) by placing the safety strap around the and through the ring on the lower hanging bar (C).
-
Page 10: Care And Cleaning
Assembly (continued) Placing the Cushions and the Pillows Put the seat cushion (I), back cushion (J) and pillow (K) on the swing. Ensure all connections are secure before use. Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON Retain this manual for future use. Factory swing ID # GCS09136A...
