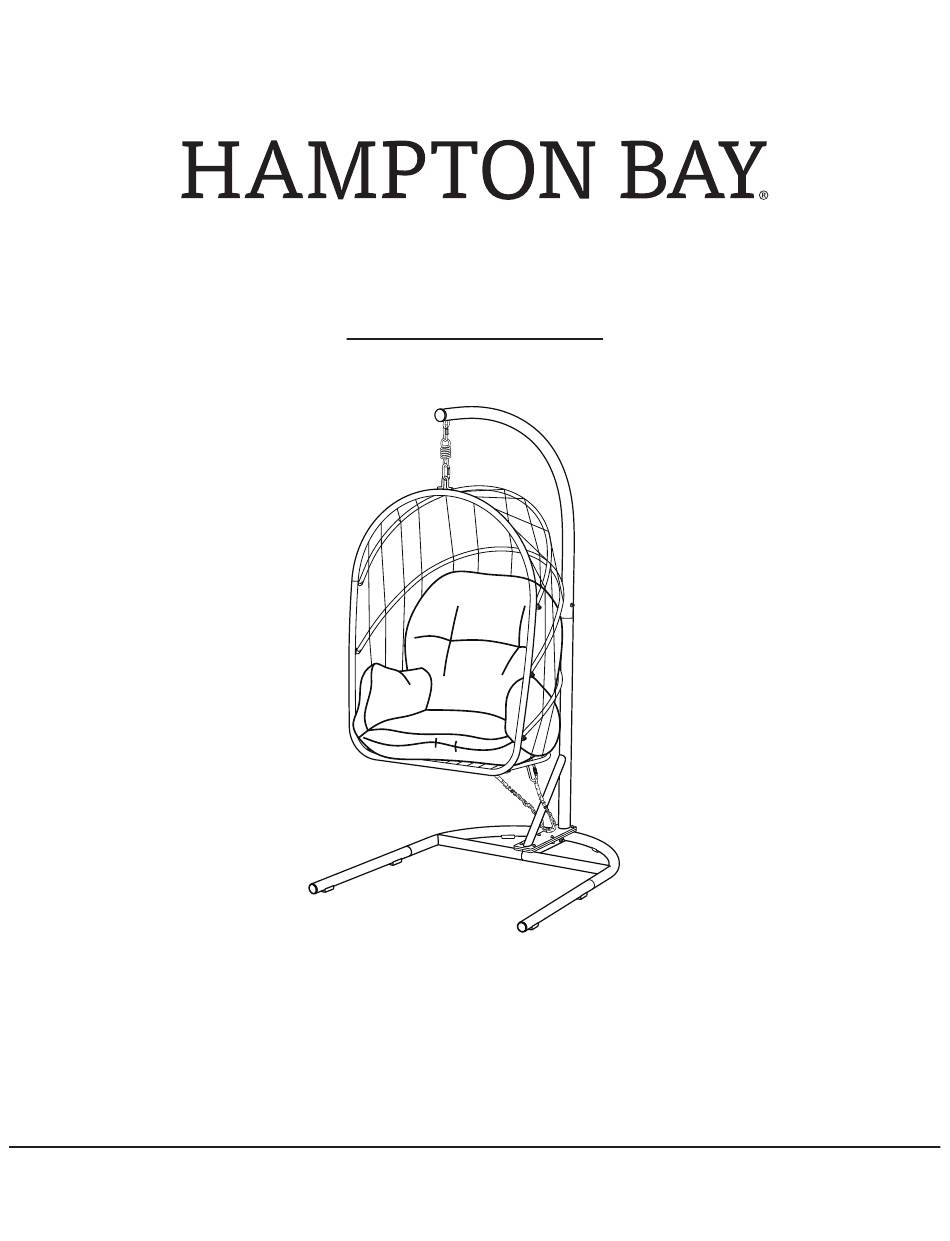

Collapsible grey hanging egg chair with base

Advertisement

Item # 0000 000 000
Model # GCS09120C
USE AND CARE GUIDE
COLLAPSIBLE GREY HANGING EGG CHAIR WITH BASE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCS09120C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAMPTON BAY GCS09120C

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Pre-Assembly.
  • Page 3: Warranty

    Warranty 1 YEAR FRAME AND 1 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for one year, and a one year limited warranty for the fabric. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center.
  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Right Base Left Base Straight Base Tube Lower Hanging Bar Upper Hanging Bar Basket Back Cushion Seat Cushion Safety Rope...
  • Page 5: Assembly

    Assembly Connecting The Right Base To The Left Base Place the right base (A) and the left base (B) upside down on a soft surface. Attach the right base (A) to the left base (B) using M8x20 combination bolts (CC). Do not tighten all the bolts until step 2 is completed.
  • Page 6 Assembly (continued) Attaching The Lower Hanging Bar To The Assembled Base Turn the assembled base right side up. Attach the lower hanging bar (D) to the assembled base using M8x20 bolts, spring washers and washers (DD) and M8x30 combination bolts (BB). Fully tighten all the bolts at this step.
  • Page 7 Assembly (continued) Put On The Plastic Muffler And Attach The Hook To The Basket Place the basket (F) right side up on a soft surface and unfold. Put the plastic muffler (GG) on the basket (F) and fit by rotating, as shown below. Loosen the one side of the hook (FF) by turning clockwise, attach to the basket (F) and tighten it counterclockwise.
  • Page 8: Care And Cleaning

    Assembly (continued) Checking The Egg Chair Put the back cushion (G) and the seat cushion (H) into the basket (F). Ensure that all connections are secure before use. Care Care and Cleaning For best results, clean the frame and cushions with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 9 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
