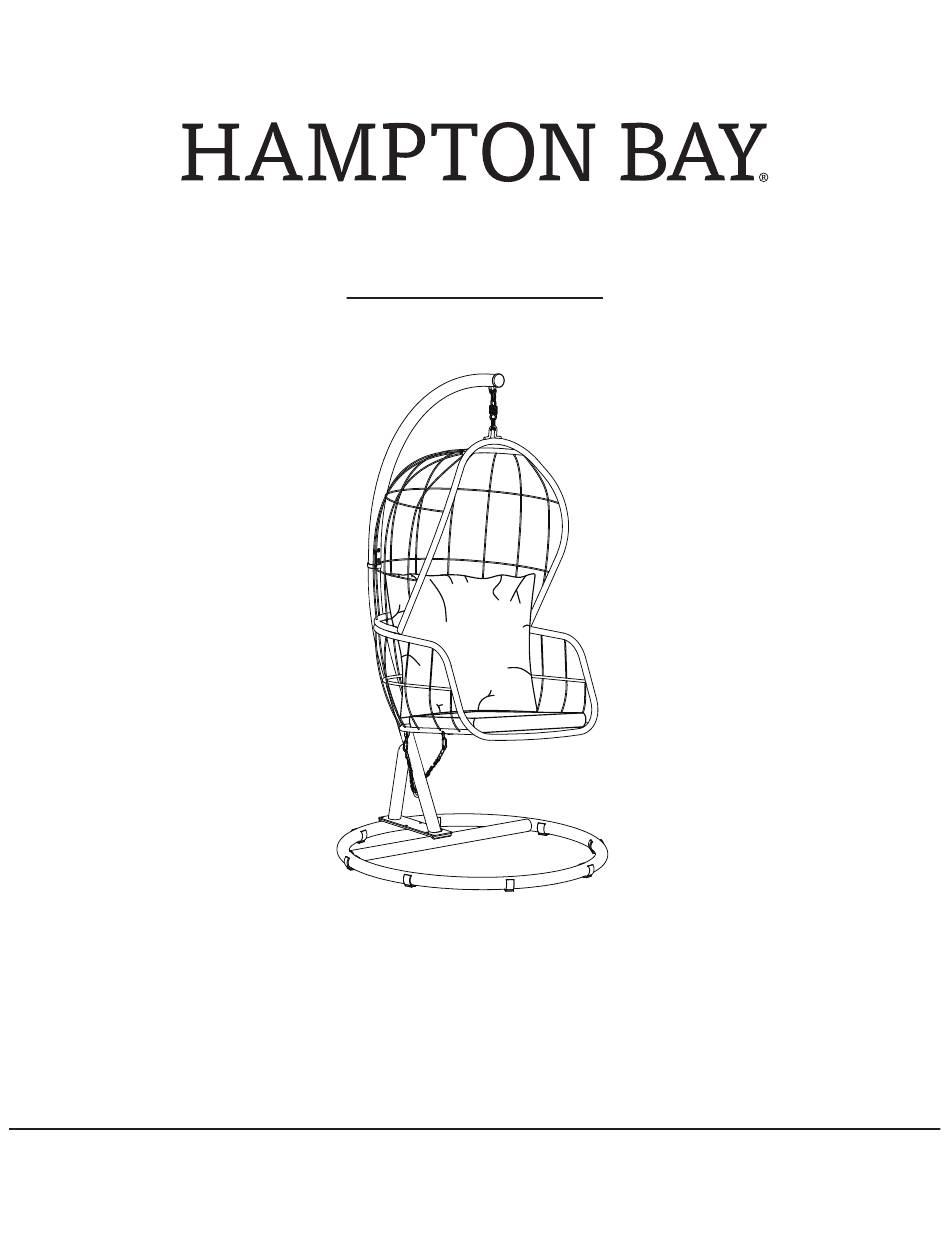

USE AND CARE GUIDE
KIKO STEEL EGG SWING CLOSED WEAVE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this egg swing. We strive continually to create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY KIKO GCS09189B
Summary of Contents for HAMPTON BAY KIKO GCS09189B
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this egg swing. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 3-YEAR FRAME AND 3-YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three (3) years, and a three (3) year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Hardware Included
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M8x55 Bolt, Washer and Nut M8x30 Combination Bolt, Washer, Spring Washer and Nut M8x25 Combination Bolt, Washer, Spring Washer and Nut M8x15 Bolt, Spring Washer and Washer M6x75 Combination Bolt, Plastic Washer, Washer and Nut Hook Post Plastic Part... -
Page 5: Package Contents
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Left Base Right Base Lower Hanging Bar Upper Hanging Bar Connection part Back Frame Seat Frame Seat Cushion Back Cushion HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. -
Page 6: Assembly
Assembly Connecting the Right Base and the Left Base Place the left base (A) and the right base (B) on a soft surface. Connect the left base (A) and the right base (B) by using post plastic part (GG) and connection part (E). Secure with M8x15 bolts, spring washers and nuts (DD). - Page 7 Assembly Attaching the Back Frame to the Seat Frame Attach the back frame (F) to the seat frame (G) using M6x75 combination bolts, plastic washers, washers and nuts (EE). Tighten all bolts using the hex wrench (II) and wrench (JJ). Hanging the Hook on the Upper Hanging Bar Attach the plastic muffler (HH) to the hook of back frame (F).
- Page 8 Assembly Attaching the Safety Rope Open the hook of the safety rope on the seat frame (G) and pass through the bottom of the lower hanging bar (C). Then tighten the hook of safety rope. Checking the Egg Chair Place the seat cushion (H) and the back cushion (I) on the hanging swing seat as shown. Ensure that all connections are secure before use.
-
Page 9: Care And Cleaning
Care Care and Cleaning For best results, clean the frame with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach or solvents. Store the egg swing in a dry sheltered place when not in use. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
