Item# 1005 118 9 4 5
1005 118 9 7 0
Model# GC- 4 1016 - SRP
Item #xxxxxxxxxxxx
xxxxxxxxxxxx
Model #GB-5085-AAT
USE AND CARE GUIDE
,
-
FIDDLER S CREEK

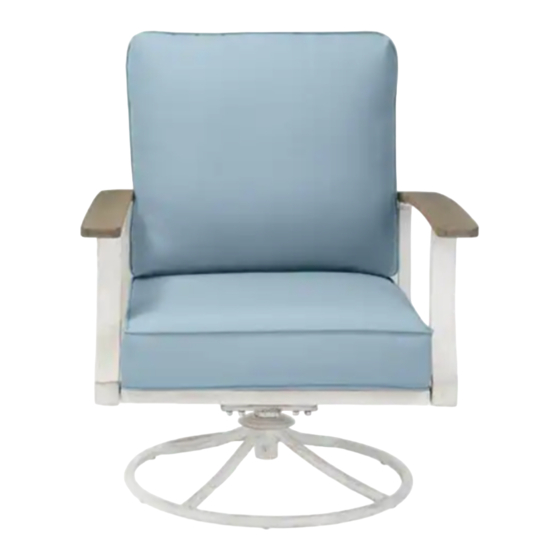

PC MOTION LP FIRE CHAT SET CHAIR
5
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
continually
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this chair. We strive to
improvement
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
needs. Thank you for choosing Hampton Bay!
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY GC-41016-SRP
Summary of Contents for HAMPTON BAY GC-41016-SRP
- Page 1 THANK YOU continually We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this chair. We strive to improvement create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Pre-Assembly . - Page 3 Pre-Assembly PLANNING ASSEMBLY Please read this entire instruction manual prior to assembly. Verify all parts packed in the carton against the parts list. Remove all protective materials and place the parts on a non-ab rasive surface to avoid scratching. NOTE: More than one person may be required to complete the assembly of this product.
- Page 4 Assembly Attaching the seat panel Attaching the arms to the back panel □ □ Attach the seat panel (C) to the arms (A and B) with Attach the left arm (B) and right arm (A) to the back panel (D) M6 x 3 5 bolts (CC) and M6 washers (DD).
- Page 5 Assembly (continued) Connecting the chair base to the chair Adding the cushions bucket □ Place the seat cushion (G) and back cushion (H) on the lounge chair. The chair now is ready for use. □ Turn the chair upside down. Insert the chair bucket into the chair base (E).
- Page 6 Care and Cleaning □ Do not allow water to build up in the frames. This will cause corrosion and possible freezing damage in cold climates. □ Use a mild soap and water for normal cleaning. Do not use janitorial or alcohol based cleaners. Some cleaners may be marked as natural, but some ingredients may cause discoloration or have an adverse reaction to your finish.
- Page 7 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
- Page 8 Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment. THANK YOU quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 9: Table Of Contents
Table of Contents Table of Contents.............2 Operation ..............1 4 Important Safety Instructions........3 Leak Check ..........Specification............4 Lighting............Safety Warning............5 Shutting Down the Gas Appliance ....P re - Assembly............7 How to Disconnect the Cylinder ....A ssembly ..............9 Gas Cylinder Required..........15 S tructure of the Gas F irepit ........11 Troubleshooting............ -
Page 10: Important Safety Instructions
Important Safety Instructions SAVE THESE INSTRUCTIONS WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. - Page 11 Specifications Product Name Fiddler' s C reek 5pc motion LP f ire chat set-table Model No. GT-11184-SSR Rated Heat Input 55,000 BTU Fuel Propane Gas Supply 20-lb LP gas cylinder Manifold Pressure 11 in. water column Orifice Size (diameter) 0.09 in. (2.3mm) Gas Supply Pressure 250 PSI (max) 36.02 in x36.02 in x 27.56 in...
- Page 12 Safety Warnings When the appliance is connected to a f ixed-gas system, the installation must conf orm with local codes, or in the absence of local codes with the National Fuel Gas C ode, A NSZ 223.1/NFPA 54; International Fuel Gas C ode, Natural Gas and Propane Installation C ode, C SA B149.1;...
- Page 13 Safety Warnings (continued ) C hildren and adults should be alerted to the haz ards of high surf ace temperature and should stay away to av oid burns or prev ent clothing f rom igniting. Y oung children should be caref ully superv ised when they are in the area of the appliance. C lothing or other f lammable materials should not be hung f rom the appliance or placed on or near CAUTION the appliance.
-
Page 14: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY It will take two people about 30 minutes to complete the assembly process. TOOLS NEEDED AAA Battery (1 pc) Philips screwdriver HARDWARE INCLUDED : Hardware not shown to actual size. NOTE Quantity Part Description Bolt (M6 x 20) Bolt (M6 x 40) Washer (M6) Hex wrench (M6-M8) -
Page 15: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Quantity Part Description Table top incl. gas furnace Table leg Right side panel incl. door Left side panel Rear panel Tank rack Tank barrel 8.8 lbs( 4 kg) Rocks... -
Page 16: Assembly
Assembly Attaching the tank barrel Attaching the side panels to the rear panel Attach the tank barrels (I I ) to tank rack (FF) with M6 x 2 0 Attach the left side panel (D) and right side panel include door (C) to and M6 washers using M6 - M8 hex wrench (DD). -
Page 17: A Ssembly
Assembly (continued) Attaching the table legs Attaching the tank rack Attach the table legs (B) to the table top and tank rack with M6 x 2 0 Turn the table upright. Put the rocks (I ) to the bowl. Put the lid (G) on. and M6 washers using wrench (DD). -
Page 18: Structure Of The Gas Firepit
5d - Control Knob 5e - Regulator 55 - Heat Insulation Board If any part is damaged during the one year limited warranty period, please contact the Hampton Bay customer NOTE: service center for replenishment or replacement with the part number provided. -
Page 19: Installation
Installation Location 36 in. / 914 mm, Setting up 36 in 914mm 36 in 914mm NOTE: Do not place this appliance on grass or dirt areas. This may prevent proper safety venting. Fig. 1 Loading the propane tank O pen the door. (Fig. 2 ) Fig. -
Page 20: Loading The Battery
Installation (continued) Loading the battery U nscrew the battery box and insert the negative electrode side of the battery into the bottom of the battery box . Cover the battery with the plastic cover. (Fig.4 ) NOTE: Please follow the above instructions to replace the battery when needed. -
Page 21: Operation
Operation LEAK CHECK WARNING: Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak check must be performed whenever the gas cylinder is replaced. NOTE Make sure the gas control knob (#2 ) is on the “OFF” position. Open access doors. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, with a tight fit. -
Page 22: Shutting Down The Gas Appliance
Operation (continued) SHUTTING DOWN THE GAS APPLIANCE Turn the gas cylinder valve (#7) off when the gas appliance is not in use. WARNING: Do not try to cool glass beads with cold water right after shutting down the gas appliance or they will crack. HOW TO DISCONNECT THE CYLINDER You can use soapy water to check if there is gas leakage at the outlet. -
Page 23: Troubleshooting
Troubleshooting Problem Observed Possible Cause Corrective Measures Perform the steps in "Leak Check" on page 14. If odor continues shut off gas supply and contact your customer service department. The gas pressure is low, or there is no gas supply. The orifice is blocked. -
Page 24: Storage And Maintenance
Storage and M aintenance Before disconnecting and removing the gas cylinder after use, allow 45 minutes for the appliance to cool down. Limited Warranty Dated proof of purchase is required at the time that the warranty claim is submitted. This warranty covers all parts found defective in workmanship and/or materials during the warranty period. The manufacturer may repair the product or send replacement parts to its discretion at no cost to the original purchaser.
