The Level TROLL 100 and 200 are rugged, accurate instruments for
measuring pressure, level, and temperature in natural groundwater and
surface water, as well as industrial, waste, and other installations.
Both instruments have completely sealed bodies that contain an absolute
(non-vented) pressure sensor, temperature sensor, real-time clock,
microprocessor, sealed lithium battery, and internal memory.
The Level TROLL 100 is designed to hang by a backshell hanger from a
suspension wire. The Level TROLL 200 can utilize the backshell hanger
or can connect to a cable for easy top-of-well RS485 communications via
RuggedReader
handheld PC or laptop PC. Additionally, Level TROLL
®
200 cables with stripped and tinned cable ends can communicate with
data loggers or PLC devices via RS485 or SDI-12.
CommuniCation Components
•
USB or RS232 Docking Station for the Level TROLL 100 or 200
•
USB or RS232 TROLL
Com for the Level TROLL 200 only
®
•
Win-Situ
5 control software for programming and downloading
®
•
Optional software: Win-Situ
compensation, Win-Situ
Mobile for the RuggedReader, Win-Situ
®
Sync to transfer downloaded data logs from a RuggedReader to a PC
other aCCessories
•
Level TROLL 100: suspension cable, RuggedReader handheld PC,
BaroTROLL
100 for logging barometric pressure data
®
•
Level TROLL 200: suspension cable, RuggedReader
PC, BaroTROLL
100 for logging barometric pressure data, SDI-12
®
compatible cable with bare wire uphole termination, RS485 compatible
cable with bare wire uphole termination, or RS485 compatible cable
with watertight cable connectors.
•
Level TROLL 200 Cable Suspension Kit: creates a weight-bearing loop
capable of suspending up to 100 lbs of cable and instrument.
GettinG started
You will need—
•
Level TROLL 100 or 200 instrument
•
USB or RS232 Docking Station or TROLL Com (for Level TROLL
200 only). You will need RS232 models for connection to a
RuggedReader.
•
In-Situ Software/Resource CD, or Internet connection
•
Desktop / laptop PC, or RuggedReader
Level TROLL
Baro Merge™ for barometric
®
handheld
®
Level TROLL
®
A.
Install software from the In-Situ Software CD or www.in-situ.com.
1.
Win-Situ 5
•
Click the Win-Situ 5 link and follow the instructions.
•
For a USB Docking Station, be sure to select the "Install USB Drivers"
option.
2.
Win-Situ Mobile (for the RuggedReader)
•
Click the Win-Situ Mobile link and follow the instructions to install Win-
Situ Software Manager (desktop component of Win-Situ Mobile).
•
If running Windows
4.5 or higher (not required for Windows Vista™).
•
To install Win-Situ Mobile on the RuggedReader: Connect the
RuggedReader to the PC via USB cable, establish a connection via
ActiveSync, launch the Win-Situ Software Manager, click Win-Situ
Mobile, click Install. Have your In-Situ Software License Certificate handy.
3.
Win-Situ Baro Merge (version 1.3.1.6 or higher)
•
Install Baro Merge if you plan to post-correct level data to compensate
for barometric pressure.
®
4.
Win-Situ Sync
•
Install Win-Situ Sync if you want to
automatically transfer downloaded
log files from a RuggedReader to a
PC.
B.
Connect to the Docking Station
(Level TROLL 100 and 200)
•

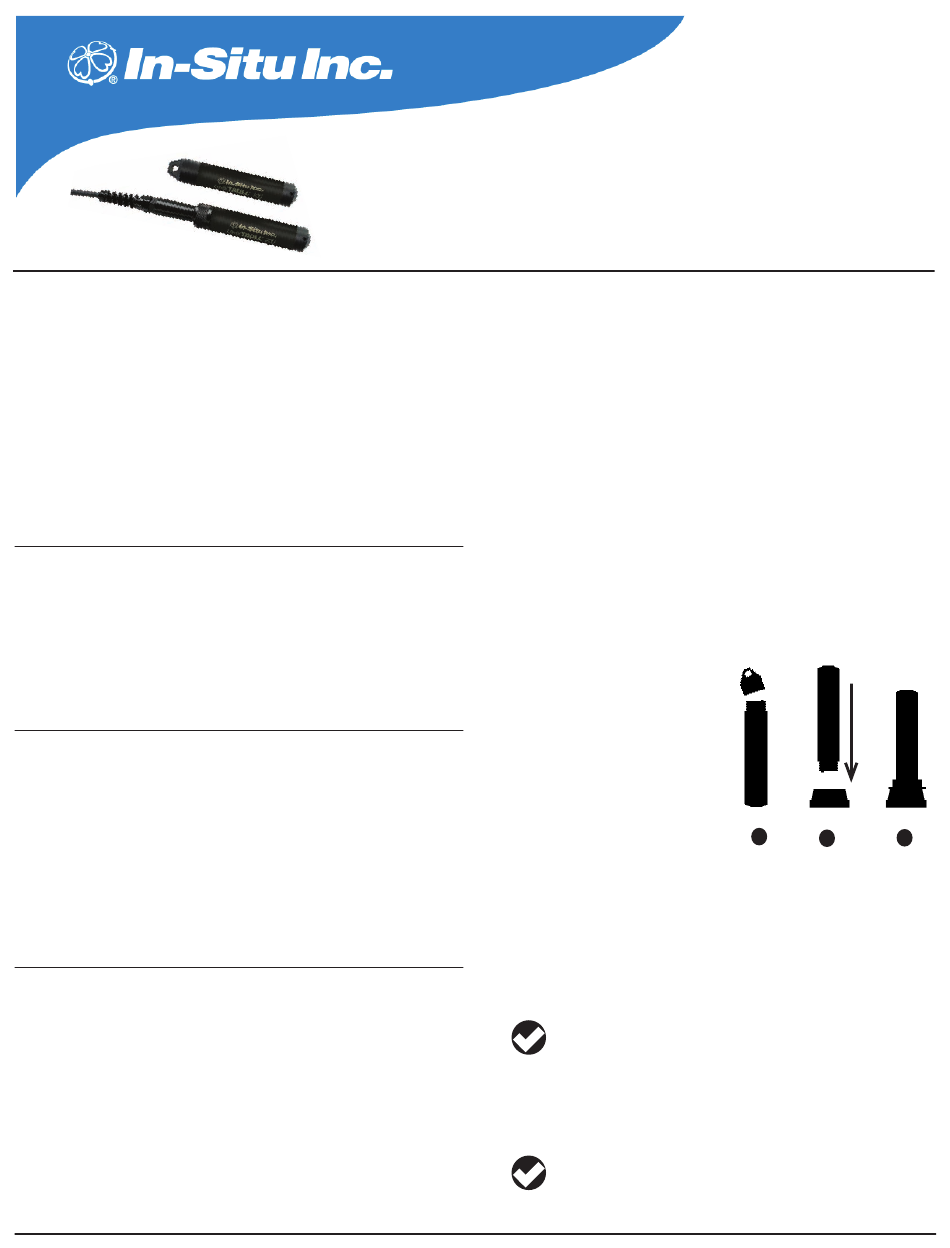

Unscrew and remove the hanger
from the Level TROLL 100.
•
Invert the instrument. Align the notch on the Level TROLL 100 body
with the tab on the rim of the Docking Station to ensure the pins are
mated for communication.
•
Place the Level TROLL 100 into the Docking Station.
•
Connect the docking station cable to the computer.
The hanger is the only removable part of the Level TROLL 100. Do
not attempt to take the instrument apart. There are no user-
serviceable parts in the instrument body.
C.
Connect to the TROLL Com (Level TROLL 200 only)
•
Connect to the TROLL Com as described in the TROLL Com
instruction sheet.
The TROLL Com 200 requires a minimum of 8 VDC. If you lose
connection to your instrument, particularly over long distances,
replace the TROLL Com 200 battery.
Level TROLL
®
200 Operator's Guide
XP or earlier: Also install Microsoft
®
1
®
Family
100 and
ActiveSync
®
®
2
3
