Philips 7000 Power Flosser Manual

Introduction

To fully benefit from the support that Philips offers, register your product at philips.com/welcome.

Intended Use

The Philips Sonicare Power Flosser or Power Flosser & Toothbrush System is an oral irrigator intended to remove plaque and food debris between teeth and the tooth surface in order to reduce tooth decay and improve and maintain gum health. This product is intended for consumer home use, normally used at least once a day. Use by children (ages 6+) should be with adult supervision.

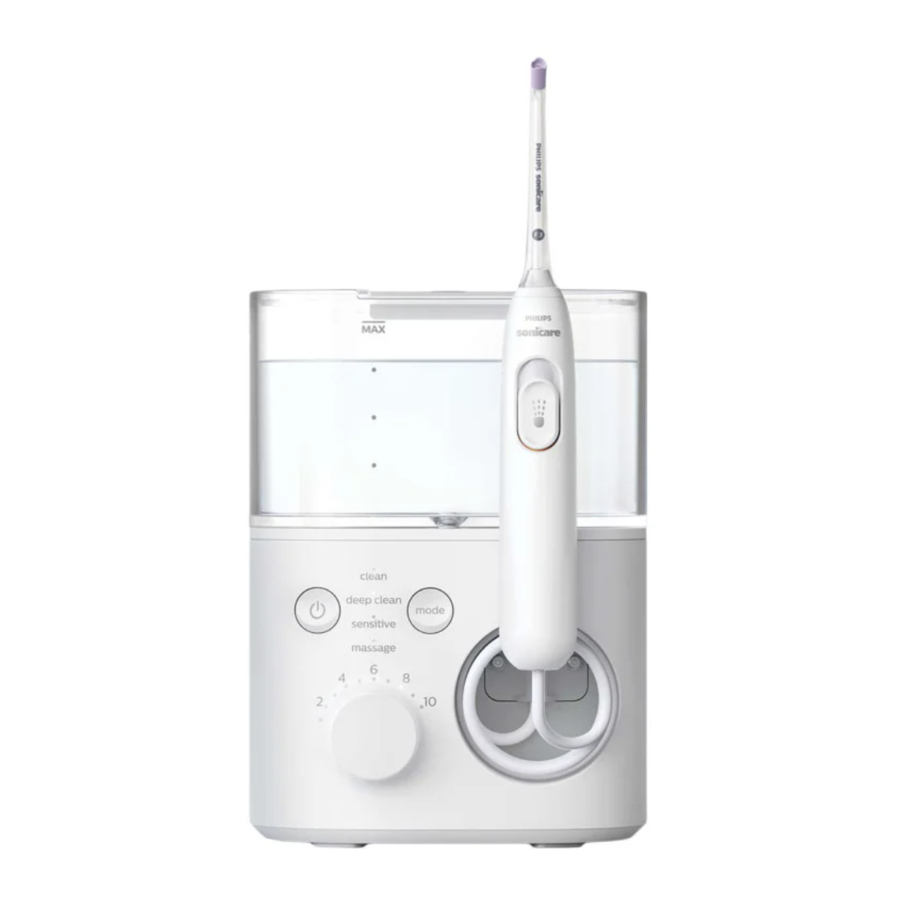

Your Philips Sonicare Power Flosser

(Fig. 1)

1. Reservoir lid
2. Reservoir
3. Mode button
4. Mode indicator
5. On/off button
6. Intensity dial
7. Hose
8. Hose storage compartment
9. Sonicare power toothbrush charger*
10. Base
11. Magnetic handle dock
12. Handle
13. Pause switch
14. Nozzle eject button
15. Quad Stream nozzle*
16. Comfort nozzle*
17. Standard nozzle*
18. Power adapter
19. Nozzle storage case

* Note: The contents of the box may not include all items shown depending on the product configuration purchased.

Nozzles

To see what type of nozzles you have, check the code at the base of the nozzle. Each nozzle type provides different benefits.

Nozzle label	F1	F2	F3
Nozzle Name	Standard nozzle	Comfort nozzle	Quad Stream nozzle
Benefit	Standard nozzle with a single stream of water for removing debris and plaque.	Soft rubber nozzle for comfort and ease of positioning for those with sensitive gums.	Soft rubber nozzle that directs water into a crossshaped stream that gently removes plaque for an effortlessly thorough clean.

Modes

Your Power Flosser is equipped with 4 different modes:

Clean
This mode, with pacer, provides standard water pressure for a great clean.

Deep clean
This mode, with Pulse Wave technology, provides strong and gentle pulses of water for a thorough clean.

Sensitive
This mode, with Pulse Wave technology, provides gentle pulses of water for beginners or those with sensitive gums.

Gum care
This mode, with pacer, offers soothing pulses of water to massage your gums.

Note: For details on "Pulse Wave technology" and "pacer" (see 'Features').

Selecting modes

1. Turn on the device by pressing the on/off button.
2. Press the mode button to select desired mode.


Intensity Settings

Your power flosser comes with 10 different intensity settings. To manually change the intensity, turn on the base and turn the intensity dial to the setting you prefer.

Note: For first time use, start the device from the lowest setting. It is recommended to increase the intensity you use over the course of a few weeks. This can give better cleaning benefits as you are able to tolerate higher settings.

Features

Pacer

The clean and gum care modes have a pacer. This feature indicates when you are supposed to move to the next section of your mouth via a short pause in the waterflow.

Note: This feature is on clean mode and gum care modes only.

Activating or deactivating pacer

You can activate or deactivate the pacer feature by holding the on/off button and the mode button simultaneously for 5 seconds.

• When deactivated, all the lights will flash once.
• When activated, all the lights will flash twice.

Pulse Wave technology

The deep clean and sensitive modes have a "Pulse Wave technology" feature. The flow of the water increases and decreases in intensity, providing a brief pause during which you can move the nozzle to the next space between your teeth.

Magnetic Docking

If the pause switch on the handle was not turned to the off position, when the handle is docked back to the base after use, the magnetic dock will automatically set the pause switch back to off.

Sonicare power toothbrush charger (Specific models only)

The Sonicare Power Flosser & Toothbrush System has an integrated charger for your Philips Sonicare Power toothbrush.

Charging your toothbrush on your Power Flosser & Toothbrush System

1. Place the handle on the charger.
2. The lights on your toothbrush handle will turn off when its battery is fully charged.

Note: See Sonicare power toothbrush charging instructions and charging times in the separate toothbrush manual.

Getting started

1. Connect the small plug into the bottom of the base and connect the power plug in any 100-240V power outlet.
2. Remove the reservoir from the base.

   Note: Make sure the product is powered off before you remove the reservoir.
3. Open the lid, fill the reservoir with lukewarm water to the MAX fill line.

4. Close the lid. Place the reservoir back on the base.

   Note: Press down firmly to ensure there is no gap between the reservoir and the base.
5. Insert your preferred nozzle into the handle.
   Press the nozzle down until you hear a "click".

6. Press the on/off button on the base station to turn on the product. Select your desired mode (see 'Modes') and intensity (see 'Intensity Settings').

7. Remove the handle from the base and point the tip of the nozzle into the sink. Slide the pause switch on the handle to the 'on' (up) position and wait until the water stream comes out of the tip of the nozzle. Stop the flow of water by sliding the pause switch to the 'off' (down) position.

   Note: This step is for fist time use after purchase only.
8. Press the on/off button on the base again to turn off the product.

Using your Power Flosser

1. Make sure that the pause switch on the handle is in the 'off' position.
2. Press the on/off button on the base to turn on the product.
3. Place the nozzle tip in your mouth. Lean over the sink and partially close your lips over the nozzle to avoid splashing. Leave enough space to allow water to flow from your mouth into the sink.


Standard and Comfort Nozzle

With the base station turned on:

1. Position the nozzle tip just above the gum line at a 90° angle.

2. Slide the pause switch on the handle to the 'on' position to start the water flow.
3. Starting from your back teeth in your upper or lower jaw, slide the nozzle tip along the gum line and pause briefly between each tooth. Continue to clean both inside and outside of your teeth in one arch of your mouth for 30 seconds.

   Note: Remember to clean the inside of your teeth.
4. Repeat in the other arch of your mouth for another 30 seconds until all spaces around and between your teeth have been cleaned for a total of at least one minute.


Note: You can stop the water flow during use by sliding the pause switch on the handle to the 'off' position (motor will pause).

Quad Stream Nozzle

With the base station turned on:

1. Position the nozzle tip just above the gum line at a 90° angle. Press gently so that the nozzle tip is in contact with the gum line and the teeth.

2. Slide the pause switch on the handle to the 'on' position to start the water flow.
3. Starting from your back teeth in your upper or lower jaw, slide the nozzle tip along the gum line and pause briefly between each tooth. Continue to clean both inside and outside of your teeth in one arch of your mouth for 30 seconds.

   Note: Remember to clean the inside of your teeth.
4. Repeat in the other arch of your mouth for another 30 seconds until all spaces around and between your teeth have been cleaned for a total of at least one minute.


Note: You can stop the water flow during use by sliding the pause switch on the handle to the 'off' position (motor will pause).

Cleaning orthodontic brackets with the Quad Stream nozzle

1. To clean around orthodontic brackets, place the nozzle tip over each bracket.
2. Gently rotate the nozzle tip around the bracket in a small circle before moving to the bracket on the next tooth.


After each use

1. When you are finished, turn off the product.
2. Pick up and empty the reservoir.
3. Remove the nozzle from the handle by pushing the eject button on the back of the handle.

4. Rinse the nozzle under the tap.
5. Insert the nozzle back into the handle.

6. Dry any excess water off the tether and handle.

Cleaning

The product needs to be cleaned once a week.
Clean the device and the accessories as follows:

Reservoir and lid

Gently remove the reservoir from the unit. The reservoir can be hand washed with warm water and mild soap or cleaned in the dishwasher.

Base and handle

When necessary, you can clean the outside of the base and the handle with a soft cloth and mild soap.

Nozzles

Regular Cleaning:
Remove the nozzle from the handle. Rinse the tip under warm water.

Every few months, or if your nozzle becomes clogged:
Soak the nozzle in a container of 2 parts water and 1 part white vinegar for 5 minutes. Rinse the nozzle with warm water.

Nozzle storage case

The storage case can be hand washed in warm water with mild soap or cleaned in the dishwasher.

Internal components, hose and handle

Fill the reservoir with warm water and add 1-2 tablespoons of white vinegar. Remove the handle, point the nozzle at the sink and turn on the product to run the solution through the unit until the reservoir is empty. Rinse by repeating with a full reservoir of clean warm water.

Storage

If you are not going to use the product for an extended period of time, unplug it from the electrical outlet, clean it and store it in a cool and dry place away from direct sunlight.

Replacement

Replace nozzles every 6 months or immediately when damaged. To buy accessories or spare parts, visit philips.com or go to your local Philips Sonicare dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

The following spare parts are available:

• Standard nozzle
• Comfort nozzle
• Quad Stream nozzle

Note: The availability of spare parts may differ by country.

Frequently asked questions

Locating the model number

Look on the bottom of the base for the model number (HXxxxx).

Warranty and support

Philips warrants its products for two years after the date of purchase.

For product information, support and online user instructions, please visit: www.philips.com/support or read the international warranty leaflet.

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

• Keep the power adapter away from water.
• Do not place or store product where it can fall or be pulled into a tub or sink.
• Do not reach for a product that has fallen into water. Unplug immediately.
• Do not immerse the power adapter or base in water or any other liquid.
• After cleaning, make sure the power adapter is completely dry before you connect it to the mains.

To reduce the risk of burns, electrocution, fire or injury to persons:

• Only use the power adapter (WAC1001) provided with the Power Flosser.
• If the product is damaged in any way (power adapter, base, handle, hose or nozzle), stop using it.
• Always replace the power adapter with one of the original type in order to avoid a hazard.
• Keep cord away from heated surfaces
• This appliance contains no user serviceable parts. If the appliance is damaged, contact the Consumer Care Center in your country (see 'Warranty and support').
• Do not use the product outdoors
• The maximum altitude of use is 4420 meters.
• This product is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
• Children (ages 6+) should be supervised to ensure that they do not play with the product.
• Do not fill the reservoir with hot water. Hot water may cause burns.
• Philips Sonicare Power Flosser or Power Flosser & Toothbrush System is a personal care device and is not intended for use by multiple users.
• If you are not going to use the product for an extended period of time, unplug it from the electrical outlet, clean it and store it in a cool and dry place away from direct sunlight.

• To avoid damage to the product, do not place the product or parts in the dishwasher for cleaning unless otherwise instructed.
• If you have had oral or gum surgery in the previous 2 months, consult your dentist before you use the Philips Sonicare Power Flosser.
• Consult your dentist if excessive bleeding occurs after using this toothbrush or if bleeding continues to occur after 1 week of use.
• The Philips Sonicare Power Flosser complies with the safety standards for electromagnetic devices. If you have a pacemaker or other implanted device, contact your physician or the manufacturer of the implanted device prior to use.
• If you have medical concerns, consult your doctor before you use the Philips Sonicare Power Flosser.
• This product has only been designed for cleaning teeth and gums. Do not use it for any other purpose. (for e.g. eyes, nose and ears). Stop using the appliance and contact your doctor if you experience any discomfort or pain.
• Do not use other nozzles than the ones recommended by Philips Sonicare.
