Hoover U5150 Owner's Manual

Hoover U5150 Owner's Manual

Windtunnel bagless
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

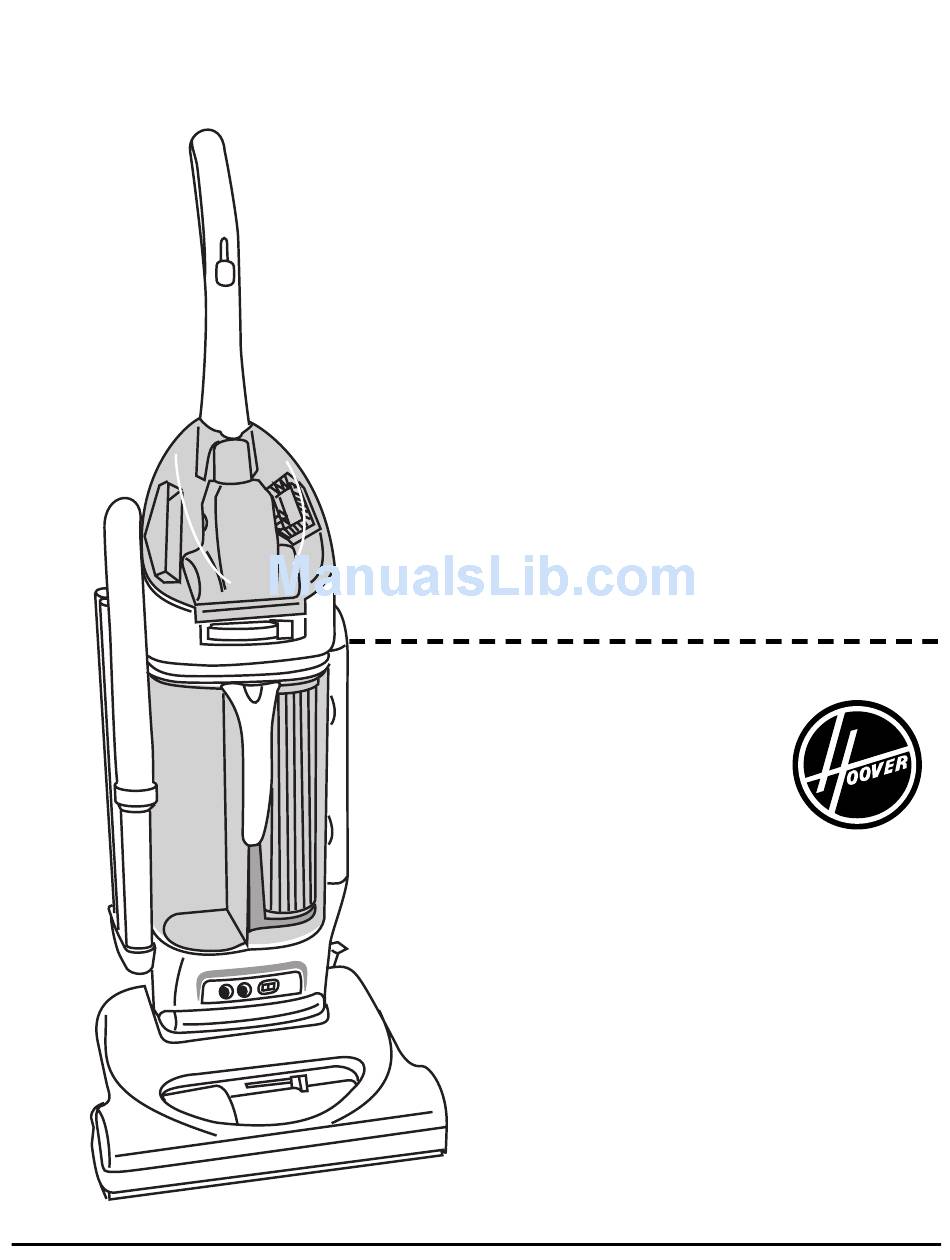

www.hoover.com
WindTunnel
Bagless by HOOVER
Congratulations
on your purchase!
™
This product was designed for
easy assembly (see page 3)
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U5150 and is the answer not in the manual?

Questions and answers

Related Manuals for Hoover U5150

Summary of Contents for Hoover U5150

  • Page 1 WindTunnel ™ Bagless by HOOVER Congratulations on your purchase! ® This product was designed for easy assembly (see page 3) www.hoover.com...

  • Page 2: Table Of Contents

    • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a Hoover Factory Service Center or Authorized Hoover Warranty Service Dealer (Depot).

  • Page 3: Assembling Cleaner

    This cleaner was inspected and packaged carefully before being shipped from the factory. If you should happen to need assistance during assembly or operation, call: Visit us on-line at www.hoover.com to find the service outlet nearest you (click on the “Service” button) OR 1-800-944-9200 for an automated referral of service outlet locations (U.S.
  • Page 4 STEP 1 Attach handle Remove cardboard (A) and screws Open tool cover on cleaner body Make sure that the switch is in the from handle section. Discard card- (B). OFF position. board. Remove powered hand tool (some models). Remove switch lock (C) above ON/ Slide handle section onto back of handle.

  • Page 5: Cleaner Description

    2. How to use The assembled cleaner will look like the drawing. Model with Powered Hand Tool is shown. Cleaner description 1. Handle 19. Embedded DirtFINDER™ sensi- 2. ON/OFF switch tivity switch 3. Tool cover 20. Edge groomers 4. Dusting brush 21.

  • Page 6: Embedded Dirtfinder™ Feature

    The green light will remain on through- out cleaning, except when the detector senses that a larger amount of dirt is being picked up; then the red light will come on. When the red light is on, you should take additional cleaning strokes in the area until it changes to green.

  • Page 7: Edge Cleaning

    2-10 2-11 2-12 Edge cleaning Stair cleaning How to attach tool cover Use the hose and powered hand tool* or Special edge groomers are provided on furniture nozzle for stair cleaning. Clean both sides of the nozzle to remove dirt in The tool cover is designed with a “break- from bottom to top.

  • Page 8: Cleaning Filters

    When to empty 3. Maintenance It is recommended that the dirt cup be Familiarize yourself with these home emptied before the dirt reaches the dirt maintenance tasks as proper use and inlet opening on back of dirt cup (Fig. 3-1) care of your cleaner will ensure contin- or after every use if preferred.

  • Page 9: Cleaning Secondary Filter

    Reposition dry filter, grill and screw. Replace dirt cup. Should you want to replace this filter, ask for HOOVER part No. 38762008. Let filter air dry and reposition it on the 3-12 3-13 side of cleaner. Make sure the white side of the filter faces outward.

  • Page 10: Replacing Headlight

    What to buy we strongly recommend you check for This cleaner uses a 12 volt, wedge base debris accumulation under the agitator type 912 bulb, HOOVER part No. shield each time you clean the filters. 27313101. Removing debris under the shield will help maintain your cleaner’s excellent...

  • Page 11: Replacing Agitator Brush Roll

    What to buy When purchasing edge groomers, ask for HOOVER part No. 39511004. Installing groomers How to replace Lift off both old edge groomers and slide Disconnect cleaner from electrical new edge groomers into position as outlet.

  • Page 12: Agitator Brush Roll

    Agitator brush roll replacement When agitator brush roll brushes are worn, the brush roll should be replaced. Ask for HOOVER part No. 48414088. 3-25 3. Remove agitator including end plates 2. Unscrew the two Phillips screws and (C) and discard.

  • Page 13: If You Have A Problem

    • Incorrect carpet height setting models) brush roll won’t turn www.hoover.com • Move nozzle control knob to lower Do not send your cleaner to The Hoover setting Possible cause Company in North Canton for service, • Blockage in air flow passage Possible solution this will only result in delay.

  • Page 14: Clearing Blockages

    The Hoover Company on-line at www.hoover.com This warranty does not cover pick up, delivery, or house calls; however, if you mail your appliance to a Hoover Factory Check dirt duct Service Center for warranty service, transportation will be paid one way.
