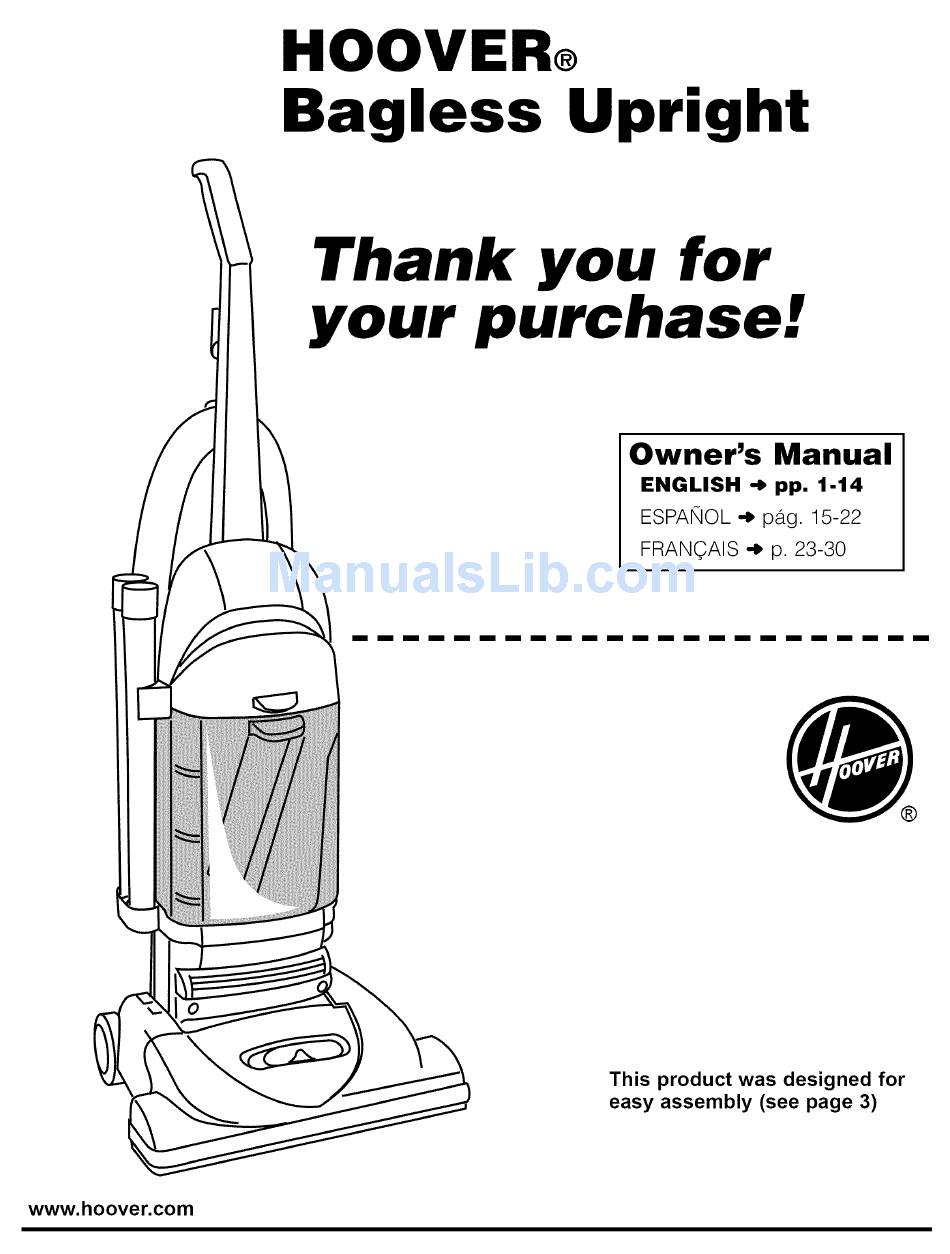

- Page 1 HOOVER_ Bagless Upright Thank you for your purchase! Owner's Manual ENGLISH ,,_ pp. 1-14 ESPANOL ,,_ pag 15-22 FRANGAIS ,,_ p 23-30 This product was designed easy assembly (see page 3) www.hoover.com...
- Page 2 . Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a Hoover Factory Service Center or Authorized Hoover Warranty Service Dealer (Depot).
- Page 3 If you need any assistance: Visit our website at www.hoover.com. Click on the "Service" button to find the service outlet nearest you OR Call 1-800-944-9200 for an automated referral of service outlet locations (U.S. only) OR Call 1-330-499-9499 to speak with a representative...
- Page 4 Place nuts in recessed areas on Position cord on back of cleaner as Place bottom of cup into cleaner. front of handle. Hold each nut in Pivot cup and snap in place. shown and press cord into clip. place while tightening each bolt securely with a Phillips screw driver.
- Page 5 Cleaner description 1. Handle k:5_ 13. Dusting brush 14. Crevice tool* 2. Cord hooks: wrap cord 15. Furniture nozzle around hooks for storage. The top hook rotates right 16. Long crevice wand*: stores inside wand or left for easy cord release.
- Page 6 P_5.1 "l'|'ansporting cleaner Carrying handle Handle positions Put handle in upright position. Tilt The handle of your cleaner has three Use the carrying handle to lift the cleaner back on rear wheels. Push cleaner. positions; upright for storage and when forward.
- Page 7 Stair cleaning Cleaning lightweight Edge cleaning flexible rugs A stair cleaning handle has been Edge cleaning is provided on both sides designed for ease in using your cleaner of the nozzle to remove dirt in carpet Stand on one end of rug and move on stairs.
- Page 8 Extra reach hose (available at additional cost) The extra reach hose provides you with a 20 foot reach to allow easier cleaning of stairs and hard to reach places. Follow the steps below for attaching and detaching hose. Slide hose into slots (I) and twist hose to Attach wand and tools...
- Page 9 Filter assembly to clean filter assembly l_5.1 Pull up on pre-filter assembly. Slide it out Remove main filter from pre-filter of cup. assembly. The screen (C) can be cleaned with a soft brush or rinsed with water. Do not rinse or wash the main filter. Remove dirt cup and dirt cup lid as described in "Hew to empty dirt cup".
- Page 10 This cleaner uses a 12 volt, wedge base debris accumulation under the agitator type 912 bulb, HOOVER part No. shield each time you clean the filters. 27313101. Removing debris under the shield will help maintain your cleaner's excellent pick up and suction.
- Page 11 Belt replacement The belt on your Hoover cleaner causes the agitator to rotate and is important for the effective operation of the cleaner. The belt is located under the bottom plate of the cleaner and should be checked from time to time to be sure it is in good condition.
- Page 12 (U.S. only). and cleaning may continue. If the thermal protector continues to Do not send your cleaner to The Hoover activate after following the above steps, Company in North Canton for service, your cleaner may need servicing this will only result in delay.
- Page 13 3) Look into (D) and remove block- • Position dirt cup properly and snap in age. place (Fig. 3-4) 5. Check connection at hose tube (C); • Blockage in hose remove any blockage. • Clear blockage If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the check list below.
- Page 14 For an automated referral of authorized service outlets in the U.S.A., phone 1-800-944=9200 OR visit The Hoover Company on=line at www.hoover.com This warranty does not cover pick up, delivery, or house calls; however, if you mail your appliance to a Hoover Factory...
- Page 15 HOOVER e t_sont desmarques depos6es HOOVER y (_son marcas registradas HOOVER a nd areregistered trademarks R1 9-02 U5344-/47-/48-900, U5347-960 Printed in Mexico 56511-B49...
