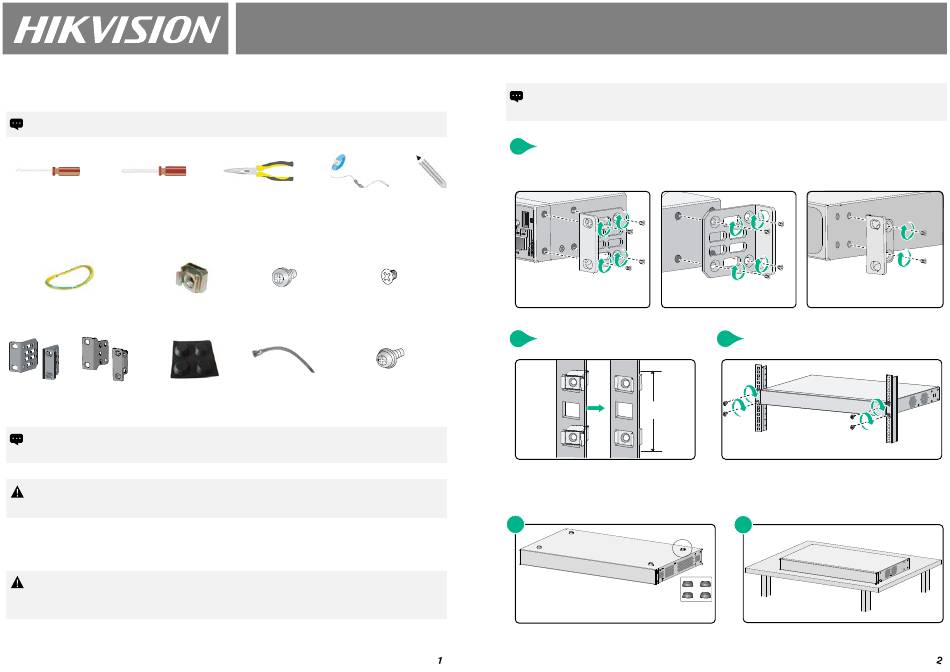

HIKVISION DS-3E3700-H Series Installation, Quick Start

Tool list
The installation tools are not provided with the switch. Prepare them yourself as required.
Flathead screwdriver Phillips screwdriver
Installation accessories
Grounding cable Cage nut
(Type A) (Type B)
Mounting brackets Rubber feet
The applicable installation accessories vary by switch model. Some accessories are not provided
with the switch. The packing list describes the accessories provided with the switch.
Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and is reliably
!
grounded.
Mounting the switch in a rack
!
The applicable mounting brackets vary by switch model. Some switch models provide two installation
positions on the two sides for mounting brackets: one at the port side and one at the power module
side. Select an installation position for the mounting brackets as required.
HIKVISION DS-3E2500-H & DS-3E3700-H Switch Series Installation Quick Start-APW100
Needle-nose pliers ESD wrist strap
M6 screw M4 countersunk-head screw
Cable tie Grounding screw
Four screws are required to attach a Type A mounting bracket. Two screws are required to attach a
Type B mounting bracket.
1 Attaching mounting brackets to the switch
Type A mounting bracket
Marker
Installation at the port side
2 2 Attach cage nuts to the rack posts
Mounting the switch on a workbench
1
Attach the rubber feet to the switch bottom
Type A mounting bracket Type B mounting bracket
Installation at the power module
Installation at the port side
side
3 Mount the switch in the rack
1U
Example: Installation at the port side
2
BOM: 3101A13S
