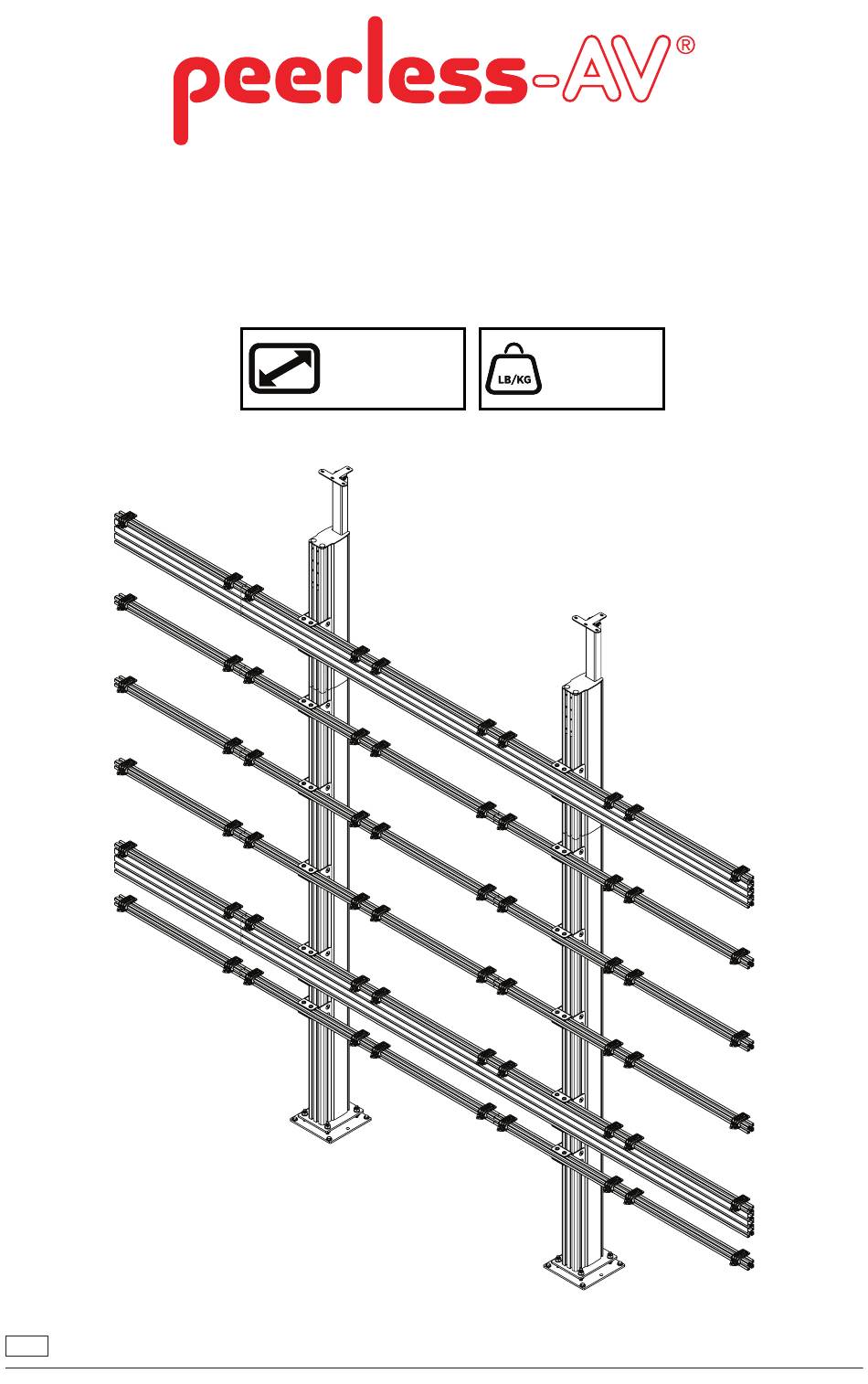

  • Page 1 DS-LEDKFC Kitted+ Floor-to-Ceiling configuration configuration drawing drawing 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 2 WARNING ENG - This product is designed to be installed on solid concrete. Hardware is included for solid concrete installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.

  • Page 3: Parts List

    Parts (Before beginning, make sure you have all parts shown below). *Refer to parts list included with your model. Parts List Description Qty* column 1800mm base mounting plate floor plate M8 x 50mm flat socket screw column 600mm M10 hex nut M10 washer rawl bolt column 1800mm...
  • Page 4 rawl bolt column cover horizontal extrusion 30x120 (long) attachment attachment ceiling M6 slot nut M8 slot nut cover clip bracket 30x120 bracket 30x30 bracket M8 x 12mm M6 x 12mm 1/4" washer 4mm allen wrench 3mm allen wrench 5mm allen wrench #14 x 2-1/2"...
  • Page 5 Parts List Description Qty. spacer extension spacer 3mm allen wrench JJ spacer KK 3mm allen wrench LL wall plate shim (not used) MM 4mm allen wrench 4mm allen wrench NN spacer extension OO M5 flat head screw PP 1/4" flat washer wall plate M5 flat head screw shim...

  • Page 6: Top View

    Join vertical columns using nut bars provided. Ensure threaded holes are at bottom of long column and top of shorter extension column. Threaded end. TOP VIEW FRONT VIEW MIN 25 in. • lb (2.82 N.M.) Threaded end. 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 7 Slide brackets onto vertical columns in the order shown on configuration drawing provided. Space brackets as shown on configuration drawing, then tighten hardware. TOP VIEW Do not fully tighten. 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 8 Join horizontal extrusions using nut bars provided. N (2) N (6) MIN 25 in. • lb MIN 25 in. • lb (2.82 N.M.) (2.82 N.M.) Front View Front View 2024-09-19 #:009-9076-2 (2024-12-12)

  • Page 9: Bottom View

    0.138" 0.138" (3.5mm) (3.5mm) BOTTOM VIEW Insert ceiling brackets into channels of vertical columns as shown. Tighten hardware. MIN 25 in. • lb (2.82 N.M.) 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 10 WARNING ENG - When installing Peerless mounts on a concrete floor, the floor must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other finishing material. Space base mounting plates to dimension on configuration drawing provided.
  • Page 11 Align base mounting plates. Install using concrete anchors provided. Install M10 nuts and M10 washers onto threaded posts. 1/2" (13mm) 17mm ENG Maximum 35 ft • lb (47 N.M.). Attach floor plate to the bottom of each vertical column with square hole to the rear.
  • Page 12 17mm ENG Maximum 42 ft • lb (57 N.M.). A plumb laser is recommended. Adjust to level. 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 13 WARNING ENG - When installing Peerless ceiling mounts on a concrete ceiling, the ceiling must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other finishing material. Ensure the assembly is plumb.
  • Page 14 2b-4 Install using concrete anchors and wood screws provided. 3/8" (10mm) ENG Maximum 35 ft • lb (47 N.M.). Insert slot nuts into channels of horizontal extrusions as shown. 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 15 Insert horizontal extrusions into attachment brackets on the vertical columns. Align slot nuts with attachment brackets and engage using hardware as shown. Do not fully tighten hardware. Ensure vertical columns and horizontal extrusions are square/parallel, then tighten hardware. Note orientation. 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 16 Install column covers using cover clips provided. 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 17 Determine the height of the display being mounted and locate the same dimension on the front of the spacer. If the display height is above 540mm, add the spacer extension. If display height is not listed on the spacer, measure the display to set custom spacing. X >...
  • Page 18 Move spacer bracket and clamp to the desired display height. This may require adjusting the pins of spacer bracket. Loosen. Adjust. Align jaw pins to desired Tighten. display height. 9a-1 Optional: Remove and replace pins to align with correct display height. If the display height is not listed on the spacer, measure the display to set the spacing.
  • Page 19 Adjust height of horizontal extrusions to measurements on configuration drawing provided using spacers. Vertically align ends of extrusions with a laser. Level the bottom horizontal extrusion. Using the spacers and working from the bottom up, space extrusions based on display height. ENG Loosen, adjust, tighten.
  • Page 20 ENG If mounting hardware is preinstalled, remove and replace with hardware provided. M5 x 16mm M6 x 16mm M8 x 16mm M8 x 16mm Not included. 2024-09-19 #:009-9076-2 (2024-12-12)

  • Page 21: Height Adjustment

    13-1 Hook display cabinets onto horizontal extrusion, adjust height to level and join cabinets together using connecting system. Close latch, then run cables one at a time starting from left to right. HEIGHT ADJUSTMENT CLOSE LATCH TO SECURE OPEN LATCH TO ENGAGE EXTRUSION 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 22 13-2 Hook display cabinets onto horizontal extrusion, adjust height to level and join cabinets together using connecting system. Close latch, then run cables one at a time starting from left to right. Optional: Height adjustment screw can be removed from top row displays.
  • Page 23 This page intentionally left blank. 2024-09-19 #:009-9076-2 (2024-12-12)
  • Page 24 +44 (0) 1923 200 100 +31 (0) 70 770 8037 +52 (81) 8384-8300 © 2024 Peerless Industries, Inc. Peerless-AV is a registered trademark of Peerless Industries, Inc. All rights reserved. ® Other parties’ marks are the property of their respective owners.
