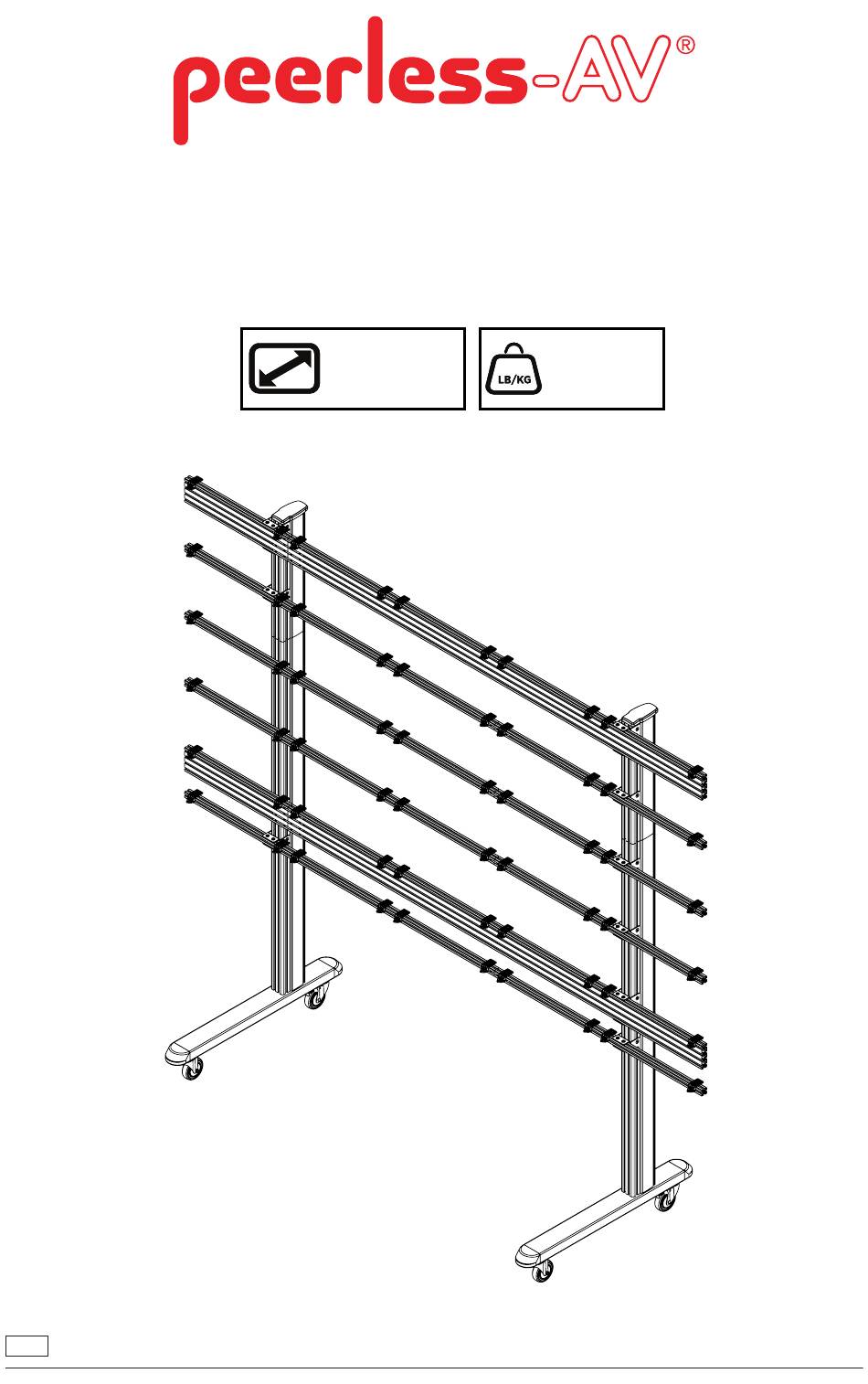

Page 2
WARNING ENG - Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product must be installed onto flat, hard, level surface to prevent tipping. Use with heavier displays may result in instability causing tip over resulting in death or serious injury.
Page 3
This page intentionally left blank. 2024-09-19 #:009-9122-2 (2024-12-11)
Parts (Before beginning, make sure you have all parts shown below). *Refer to parts list included with your model. Parts List Description Qty* base leg column 1800mm caster non-locking caster locking attachment bracket 30x120 column 600mm attachment bracket 30x30 1/4" washer column 1800mm column 600mm latch assembly...
Page 5
attachment attachment M8 x 12mm M6 x 12mm M6 slot nut M8 slot nut bracket 30x120 bracket 30x30 M5: for spacer extension #91294A541 for spacer M5 cup M6/M8 cup M5 flat M6 flat M8 flat M10 socket #520-1179 washer washer head screw head screw head screw...
Join vertical columns using nut bars provided. Ensure threaded holes are at bottom of long column and top of extension column. Threaded end. TOP VIEW FRONT VIEW MIN 25 in. • lb (2.82 N.M.) Threaded end. 2024-09-19 #:009-9122-2 (2024-12-11)
Page 7
Slide brackets onto vertical columns in the order shown on configuration drawing provided. Space brackets as shown on configuration drawing, then tighten hardware. TOP VIEW Do not fully tighten. 2024-09-19 #:009-9122-2 (2024-12-11)
Page 8
Join horizontal extrusions using nut bars provided. N (2) N (6) MIN 25 in. • lb MIN 25 in. • lb (2.82 N.M.) (2.82 N.M.) Front View Front View Insert slot nuts into channels of horizontal extrusions as shown. 2024-09-19 #:009-9122-2 (2024-12-11)
Page 9
Space the vertical columns according to measurement provided on configuration drawing. Insert horizontal extrusions into attachment brackets on the vertical columns. Align slot nuts with attachment brackets and engage using hardware as shown. Do not fully tighten hardware. Ensure vertical columns and horizontal extrusions are square/parallel, then tighten hardware.
Page 10
Hand tighten. Lock wheels. Trabe las ruedas. Verrouiller les roues. Räder verriegeln. Vergrendel de wielen. Frenare le ruote. Uzamkněte kola. ČEŠ Uzamknite kolieska. Bloqueie as rodas. Kilitli tekerlekler. TÜR MIN 25 in. • lb (2.82 N.M.) 2024-09-19 #:009-9122-2 (2024-12-11)
Page 12
Determine the height of the display being mounted and locate the same dimension on the front of the spacer. If the display height is above 540mm, add the spacer extension. If display height is not listed on the spacer, measure the display to set custom spacing. X >...
Page 13
Move spacer bracket and clamp to the desired display height. This may require adjusting the pins of spacer bracket. Loosen. Adjust. Align jaw pins to desired Tighten. display height. 7a-1 Optional: Remove and replace pins to align with correct display height. If the display height is not listed on the spacer, measure the display to set the spacing.
Page 14
Adjust height of horizontal extrusions to measurements on configuration drawing provided using spacers. Vertically align ends of extrusions with a laser. Level the bottom horizontal extrusion. Using the spacers and working from the bottom up, space extrusions based on display height. ENG Loosen, adjust, tighten.
Page 15
ENG If mounting hardware is preinstalled, remove and replace with hardware provided. M5 x 16mm M6 x 16mm M8 x 16mm M8 x 16mm Not included. 2024-09-19 #:009-9122-2 (2024-12-11)
11-1 Hook display cabinets onto horizontal extrusion, adjust height to level and join cabinets together using connecting system. Close latch, then run cables one at a time starting from left to right. HEIGHT ADJUSTMENT CLOSE LATCH TO SECURE OPEN LATCH TO ENGAGE EXTRUSION 2024-09-19 #:009-9122-2...
Page 17
11-2 Hook display cabinets onto horizontal extrusion, adjust height to level and join cabinets together using connecting system. Close latch, then run cables one at a time starting from left to right. Optional: Height adjustment screw can be removed from top row displays.
Page 18
This page intentionally left blank. 2024-09-19 #:009-9122-2 (2024-12-11)
Page 19
This page intentionally left blank. 2024-09-19 #:009-9122-2 (2024-12-11)
