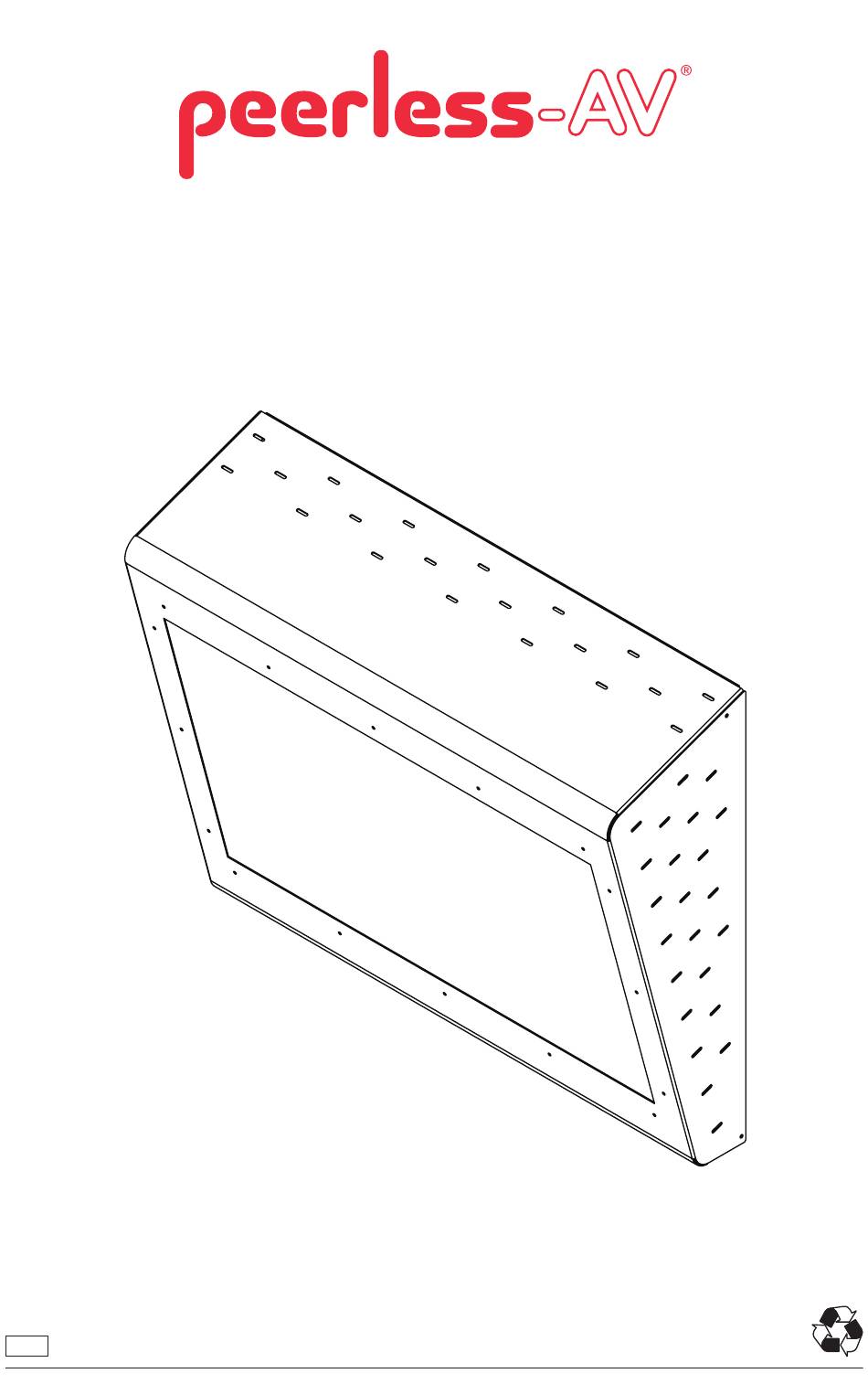

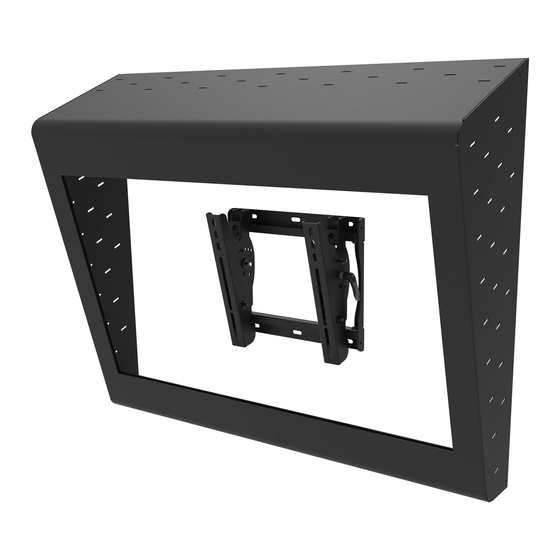

- Page 1 KLR62232, KLR64255 2019-06-14 #:150-9227-1...
- Page 2 WARNING ENG - This product is designed to be installed on wood stud, solid concrete or cinder block walls. Hardware is included for wood stud, solid concrete and cinder block installation. Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide.
- Page 3 Tools Needed for Assembly. ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. +1/2 5/32" 5/16" (4mm) (8mm) 3/8" (10mm) 2019-06-14 #:150-9227-1...
-
Page 4: Parts List
Parts (Before beginning, make sure you have all parts shown below). Parts List KLR62232 KLR64255 Description Part # Part # enclosure 152-1544 152-1545 wall mount ST635 ST640 #14 x 2-1/2" wood screw 5S1-015-C03 5S1-015-C03 8mm concete anchor 590-0320 590-0320 power strip... - Page 5 C ( 4 ) D ( 4 ) #14 x 2-1/2" wood screw 8mm concrete anchor H ( 3 ) M5 x 20mm Follow and complete instructions for included wall mount. 2019-06-14 #:150-9227-1...
- Page 6 Hold enclosure over display in desired location, and make sure that it is level. Mark the top location of the enclosure. Remove display. Loosen. 2019-06-14 #:150-9227-1...
- Page 7 Wood stud wall. Concrete/Cinder block. WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with gypsum board (drywall), verify that the wood studs are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8". 4a-1 Use stud finder to locate and mark stud center lines.
- Page 8 4a-2 cover line Mark mounting holes on stud center lines. Mounting holes should be positioned 1/8" under the horizontal cover line. ⅛" cover line 2019-06-14 #:150-9227-1...
- Page 9 4a-3 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). Mounting hole must center on stud. 4a-4 Level wallplate. Install using wood screws provided. C (2) 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). 2019-06-14 #:150-9227-1...
- Page 10 WARNING ENG - When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum compressive strength of 2000 psi. When installing Peerless wall mounts on a cinder block wall, the cinder blocks must meet ASTM C-90 specifications and have a minimum nominal width of 8".
- Page 11 1b-3 4b-3 Insert anchor flush to concrete. D (2) 4b-4 Level wallplate. Install using wood screws provided. C (2) 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). 2019-06-14 #:150-9227-1...
- Page 12 Hang enclosure onto hook on bracket. Enclosure must fully seat onto bracket. Mark the bottom location of the enclosure. 2019-06-14 #:150-9227-1...
- Page 13 Wood stud wall. Concrete/Cinder block. WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with gypsum board (drywall), verify that the wood studs are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8". 7a-1 2 3 .
- Page 14 7a-2 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). Mounting hole must center on stud. 7a-3 Level wallplate. Install using wood screws provided. 3/8" (10mm) C (2) Maximum 80 in. • lb (9 N.M.). 2019-06-14 #:150-9227-1...
- Page 15 This page intentionally left blank. 2019-06-14 #:150-9227-1...
- Page 16 WARNING ENG - When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum compressive strength of 2000 psi. When installing Peerless wall mounts on a cinder block wall, the cinder blocks must meet ASTM C-90 specifications and have a minimum nominal width of 8".
- Page 17 1b-3 7b-3 Insert anchor flush to concrete. D (2) 7b-4 Level wallplate. Install using wood screws provided. 3/8" (10mm) C (2) Maximum 80 in. • lb (9 N.M.). 2019-06-14 #:150-9227-1...
- Page 18 Tighten. Apretar. Serrer. Anziehen. Aandraaien. Stringere. Utáhněte. ČEŠ Utiahnite. Apertar. Sıkmak. TÜR 2019-06-14 #:150-9227-1...
- Page 19 Do not overtighten screws. H (3) 2019-06-14 #:150-9227-1...
-
Page 20: Limited Five-Year Warranty
(from date of the original installation of the product). At its option, Peerless-AV will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
