What's in the Box
![]()

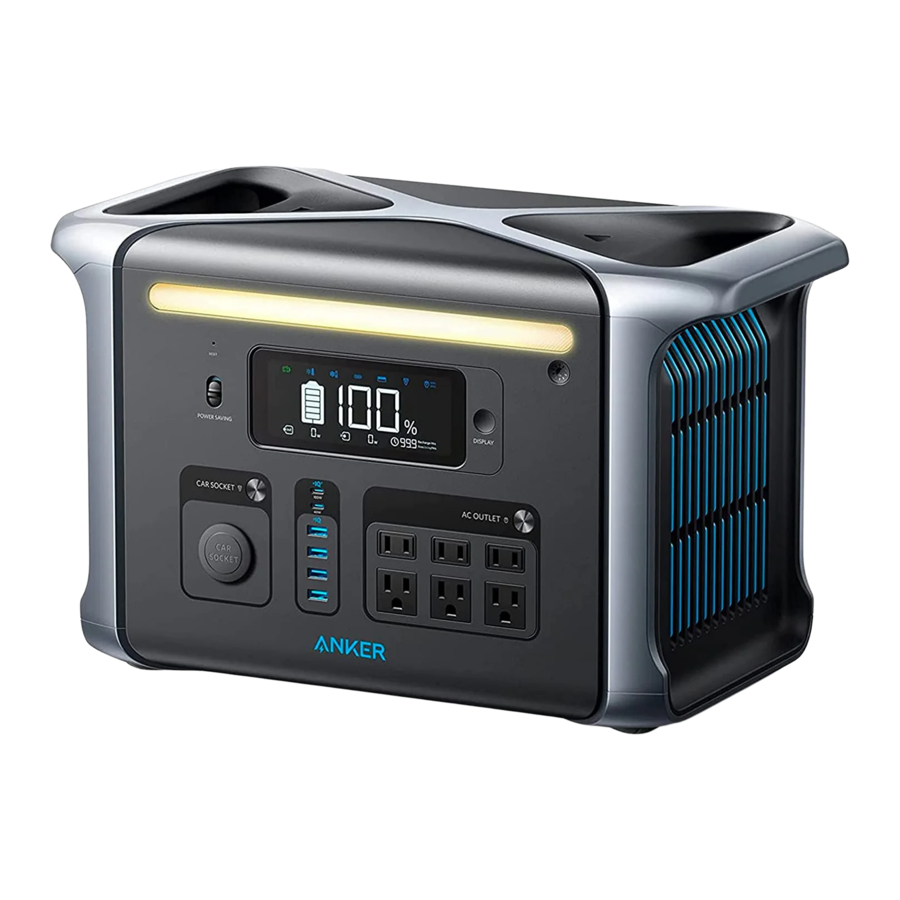

Overview
![Anker - 7 Series - Overview Overview]()
Output Ports:
- Car Socket
- USB Ports
- AC Output Ports
Input Ports:
- XT-60 DC Input Port
- AC Input Port
Recharging Your Power Station
AC recharging (1000W Max)
Recharge your Power Station by connecting to a wall outlet with the AC charging cable.
![Anker - 7 Series - Recharging Your Power Station - Example 1 Recharging Your Power Station - Example 1]()
Solar panel recharging (300W Max)
Recharge your Power Station by connecting up to 3 100W solar panels in parallel with a solar charging cable.
![Anker - 7 Series - Recharging Your Power Station - Example 2 Recharging Your Power Station - Example 2]()
Car recharging (120W Max)
Recharge your Power Station by connecting to a car's output port with the car charging cable.
![Anker - 7 Series - Recharging Your Power Station - Example 3 Recharging Your Power Station - Example 3]()
When your portable power station only has 1% battery remaining, the Remaining Battery indicators will flicker to remind you to recharge the product.
Powering Your Devices
AC charging
Press the AC button and connect your devices to the AC output ports.
![Anker - 7 Series - Powering Your Devices - Example 1 - AC charging Powering Your Devices - Example 1 - AC charging]()
USB charging
Connect your devices to the USB ports.
![Anker - 7 Series - Powering Your Devices - Example 2 - USB charging Powering Your Devices - Example 2 - USB charging]()
Car socket charging
Turn on the car socket and connect your devices to start charging.
![Anker - 7 Series - Powering Your Devices - Example 3 Powering Your Devices - Example 3]()
Uninterruptible Power Supply (UPS)
To use the UPS function, connect your Power Station to a wall outlet with the AC charging cable, then press the button and connect your devices via the AC output ports.
![Anker - 7 Series - Uninterruptible Power Supply Uninterruptible Power Supply]()
Power Saving Mode
Switching on the power saving mode prevents wasting power by automatically turning off the Power Station once all your devices are fully charged.
Switching off the power saving mode will enable stable charging over an extended period, such as for timelapse photography or for sleeping with a CPAP machine.
![Anker - 7 Series - Power Saving Mode Power Saving Mode]()
Light
Ambient light
Press the button once to turn on the ambient light, and press again up to 2 times to switch between brightness levels.
![Anker - 7 Series - Light - Part 1 - Ambient light Light - Part 1 - Ambient light]()
SOS mode
Press and hold the button for 2 seconds to turn on SOS mode.
![Anker - 7 Series - Light - Part 2 - SOS mode Light - Part 2 - SOS mode]()
LCD Screen Guide
![Anker - 7 Series - LCD Screen Overview LCD Screen Overview]()
LCD Screen Button
Press the button to turn on the LCD screen.
Power Saving Mode
High-Temperature Alert - When this icon shows, stop using the product and leave it to cool down until the icon disappears.
Low-Temperature Alert - When this icon shows, stop using the product until the icon disappears.
USB-C Output Port ![]()
USB-A Output
Car Charging
AC Charging and Voltage Frequency
Press the AC output port on/o button for 2 seconds to switch the frequency.
Remaining Battery
Time to Recharge/Remaining Battery in Hours ![]()
Current Input Power
Current Output Power
Trouble Shooting
AC recharging failure
When AC recharging is unavailable, check to see if the overload protection switch is switched on. If so, press it down to reset, and then recharging can resume.
![Anker - 7 Series - Trouble Shooting - Part 1 - AC recharging failure Trouble Shooting - Part 1 - AC recharging failure]()
AC charging failure
If AC charging is unavailable, it's possible that the connected devices exceed 1500W. Try unplugging one or more of the connected devices to see if this resolves the issue.
Resetting your Power Station
If your Power Station isn't working correctly, press the reset button (located on the front of the product) for 1 second for a factory reset. If the Power Station still doesn't work, please visit support@anker.com
![Anker - 7 Series - Trouble Shooting - Part 2 - Resetting Trouble Shooting - Part 2 - Resetting]()
FAQ
- Why does the Power Station's battery drain even when no devices are connected?
When the AC and Car Socket control button is turned on, even if no devices are being charged, there will still be a certain amount of no-load power consumption. To avoid this, make sure the AC and Car Socket charging button is off or turn on the power saving mode when you're not using the Power Station. - What's the max power output of the AC output ports?
The AC output ports can deliver a maximum of 1500W to connected devices. - Can I recharge the product while charging connected devices?
Yes. - Can this product power a CPAP machine?
Yes, but make sure to turn off the power saving mode first. - What kind of solar charger can charge this product?
Any 11-30V solar charger with an XT-60 female connector.
Specifications
Cell Capacity | 1229 Wh |
AC Input Voltage | 100-120V~ 12A Max, 50Hz/60Hz |
AC Input Power (Charging) | 1000W Max |
AC Input Power (Bypass Mode) | 1440W Max |
Solar Panel Input | 11-30V 10A (300W Max) |
Car Charger Output | 12V 10A Max |
AC Output | 110V~ 13.64A, 50Hz/60Hz, 1500W Max |
USB-A Output | 5V 2.4A (2.4A Max Per Port) |
USB-C Output (100W) | 5V 3A/9V 3A/15V 3A/20V 3A/20V 5A (100W Max) |
USB-C Output (60W) | 5V 3A/9V 3A/15V 3A/20V 3A (60W Max) |
UPS | <20ms |
Discharging Temperature | -4°F-104°F/-20°C-40°C |
Charging Temperature | 32°F-104°F/0°C-40°C |
Size | 46.3*28.8*23.7 cm/18.2*11.3*9.3 inches |
Net Weight | 19.9 kg/ 43.9 lb |
Gross Weight | 22.1 kg/48.7 lb |
Attention
Not permitted on aircraft.
![]()
IMPORTANT SAFETY INSTRUCTIONS
![]()
When using this product, basic precautions should always be followed, including the following:
Read all the instructions before using the product.
- To reduce the risk of injury, close supervision is necessary when the product is used near children.
- Do not put fingers or hands into the product.
- Do not expose the product to rain or snow.
- Use of a power supply or charger not recommended or sold by the product manufacturer may result in a risk of fi re or injury to persons. To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the product.
- Do not use the product in excess of its output rating. Overload outputs above rating may result in a risk of fi re or injury to persons.
- Do not use the product that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fi re, explosion or risk of injury. Do not operate the product with a damaged cord or plug, or a damaged output cable.
- Do not disassemble the product. Take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fi re or electric shock.
- Do not expose to fi re or high temperatures. Exposure to fi re or temperatures above 130°C may cause explosion. To reduce the risk of electric shock, unplug the power pack form the outlet before attempting any instructed servicing.
- Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
- When charging a device, the product may feel warm, this is a normal operating condition and should not be cause for concern. When charging the internal battery, work in a well ventilated area and do not restrict ventilation in any way.
- Do not clean the product with harmful chemicals or detergents.
- Misuse, dropping or excessive force may cause product damage.
- When disposing of secondary cells or batteries, keep cells or batteries of different electrochemical systems separate from each other.
![]()
Risk of explosion if the battery is replaced by an incorrect one. - Disposal of a battery into fi re or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion;
- Leaving a battery in an extremely high temperature environment can result in an explosion or leakage of flammable liquid or gas;
- A battery subjected to extremely low air pressure may cause an explosion or leakage of flammable liquid or gas;
- Unplug the AC power cable to disconnect from line voltage.
![]()
GROUNDING INSTRUCTION
This product must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This product is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.
![]()
Improper connection of the equipment grounding conductor may result in an electric shock. Check with a qualified electrician if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product – if it does not fi t the outlet, have a proper outlet installed by a qualified electrician.
Storage and Maintenance instructions
- Store the product between 32°F-104°F (0°C-40°C). Avoid exposing the product to rain or using the product in a humid environment.
- To preserve the battery lifespan, charge to 100% after using. If you plan to store your power station, recharge to 100% every 3 months.
- Keep the product on a fl at surface when using, charging, and storing.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
