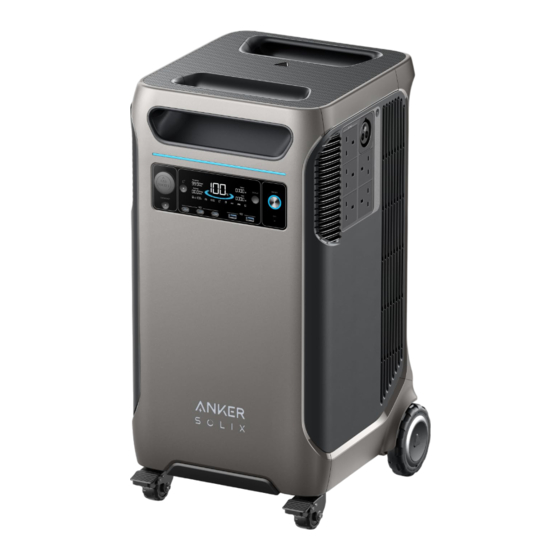

Anker SOLIX F3800 Portable Power Station USER GUIDE (A1790)
What's in the Box
Overview
Product Overview
LCD Screen Guide
Recharging Your Power Station
AC Recharging (1800W Max)
Solar Panel Recharging (2400W Max)
Car Recharging (120W)
Powering On / Off
Powering Your Devices
AC Charging
USB Charging
Car Socket Charging
Uninterruptible Power Supply (UPS)
Connect With an Expansion Battery
Connect with Anker SOLIX Home Power Panel
Anker App for Smart Control
Light
Carry Your Power Station
FAQ
Specifications
What's in the Box
Anker SOLIX F3800 Portable
AC Charging Cable
MC4 Solar Charging
Important
Power Station
Connector
Information
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anker SOLIX F3800
Summary of Contents for Anker SOLIX F3800
- Page 1 Anker SOLIX F3800 Portable Power Station USER GUIDE (A1790) What's in the Box Overview Product Overview LCD Screen Guide Recharging Your Power Station AC Recharging (1800W Max) Solar Panel Recharging (2400W Max) Car Recharging (120W) Powering On / Off Powering Your Devices...
-
Page 2: Product Overview
Overview Product Overview On/Off Button Display Button USB Ports IoT Button Car Socket Car Socket Button NEMA 14-50 AC Output Port NEMA L14-30R AC Output Port NEMA 5-20R AC Output Ports (Left three ports have UPS Overcharge Protection (AC Output) function) Home Panel Power Port AC Input Port... - Page 3 Recharge your power station with a maximum solar input of 2400W. *If the solar panel is far from the power station, you can purchase the Anker SOLIX Solar Panel MC4 Charging Cable as an extension cable from Anker's official website, and connect it to the part indicated by the dotted line in the diagram.
-
Page 4: Powering On/Off
• The auto-off time can be set in the Anker app. • The power station will power off automatically if the output buttons are turned off and no power loads are detected for 12 hours. The standby duration can be set in the Anker app. Powering Your Devices AC Charging Press the AC outlet button and connect your device to the AC output ports. -
Page 5: Usb Charging
USB Charging Connect your devices to the USB ports. Car Socket Charging Turn on the car socket and connect your devices to start charging. On / O Uninterruptible Power Supply (UPS) To use the UPS feature, connect your power station to a wall outlet with the AC charging cable, then press the AC outlet button and connect your devices via the UPS AC output ports. - Page 6 Anker SOLIX BP3800 Expansion Battery for detailed instructions. Connect with Anker SOLIX Home Power Panel Your power station can be connected with Anker SOLIX Home Power Panel to power your entire house. Please refer to the user manual of Anker SOLIX Home Power Panel for detailed instructions.
- Page 7 3. Firmware update: You will be informed once a new firmware version is detected when you connect the power station to the app. During the update, ensure the power station is being charged and connected to Wi-Fi. Light Turn ON/OFF the light on Anker App. Carry Your Power Station 1. Lay the power station flat.
- Page 8 3. Grab the bottom and top handles to lift the power station. Q1: What is the maximum power output of the AC output ports? The AC output ports can deliver a maximum of 6000W to connected devices. Each group of NEMA 5-20R AC Output Ports can deliver 2400W (120V/20A) of power.
-
Page 9: Specifications
If your power station is not working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If the power station still doesn't work, please contact support@anker.com. Q7: Why is the power station not working after it hasn't been used for a long time? If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge.
Need help?
Do you have a question about the SOLIX F3800 and is the answer not in the manual?
Questions and answers
How to connect additional battery on f3800
The Anker SOLIX F3800 is designed to connect only with the Anker SOLIX BP3800 Expansion Battery. Up to six BP3800 batteries can be connected to a single F3800 using the provided Battery-to-Host cable.
If attempting to connect a third-party battery, a charge controller is needed to regulate charging from solar panels. One possible workaround is to use a trickle charger powered by the F3800’s 120V outlet to charge the external battery. Then, an XT-60 connector can be used to route power from the external battery’s terminals to the solar input of a second F3800 unit, allowing excess power to flow back.
However, this setup requires custom wiring and may not be officially supported by Anker.
This answer is automatically generated
At what temp. do I store my F-3800
Can I charge this unit with a regular generator eu2000 honda or will I have to spend more that 2000 dollars for a bigger generator
