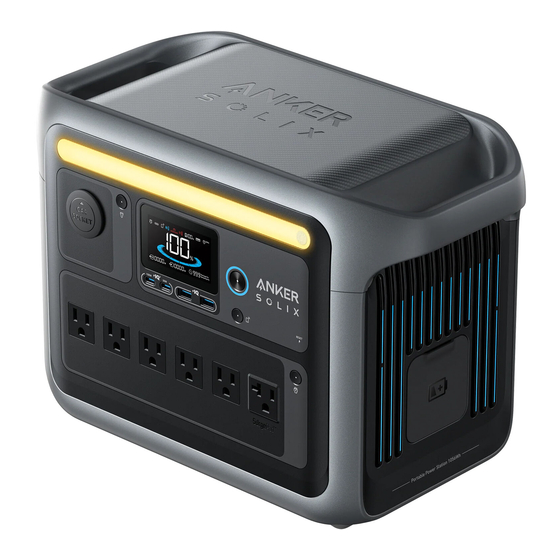

Anker SOLIX C1000/C1000X Portable Power Station USER GUIDE
(A1761)
What's in the Box
Overview
Product Overview
LCD Screen Guide
Recharging Your Power Station
AC recharging (1000W Max)
UltraFast Recharging (1300W Max)
Solar Panel Recharging (600W Max)
Car Recharging
Powering On / Off
Powering Your Devices
AC Charging
USB Charging
Car Socket Charging
Uninterruptible Power Supply (UPS)
SurgePad™
Connecting with an Expansion Battery
Anker App for Smart Control
Light
Ambient light
SOS Mode
FAQ
Specifications
What's in the Box
Anker SOLIX C1000/C1000X
AC Charging Cable
Solar Charging Cable
Portable Power Station
Important Information
Car Charging Cable
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Anker SOLIX C1000
Summary of Contents for Anker SOLIX C1000
- Page 1 Anker SOLIX C1000/C1000X Portable Power Station USER GUIDE (A1761) What's in the Box Overview Product Overview LCD Screen Guide Recharging Your Power Station AC recharging (1000W Max) UltraFast Recharging (1300W Max) Solar Panel Recharging (600W Max) Car Recharging Powering On / Off...
- Page 2 Overview Product Overview 13 14 Ambient Light Button Ambient Light Main Power Button Reset Button IoT Button AC Outlet Button AC Output Ports Car Socket Button Car Socket LCD Screen USB Ports AC Input Port Overload Protection Switch Solar / Car Input Port Expansion Battery Port LCD Screen Guide Car Charging...
-
Page 3: Powering On/Off
The UltraFast feature gives your power station a maximum 1300W recharge via the AC charging cable. You can enable or disable this feature in the Anker app. Recharging at a normal speed can best protect the battery. We recommend using UltraFast recharging when necessary. -
Page 4: Uninterruptible Power Supply (Ups)
• When powered on, press the main power button to turn the screen on or off. • The screen will automatically turn off after 30 seconds of lighting up. The auto-off time can be set in the Anker app. • With the output buttons turned off and no other loads for 12 hours, the power station will power off automatically. - Page 5 To see if SurgePad™ works with your high-wattage device, try powering it with the last AC outlet. Connecting with an Expansion Battery Your power station can be connected with an expansion battery to double the capacity to 2112Wh. Please refer to the user manual of Anker SOLIX BP1000 Expansion Battery (1056Wh) for detailed instructions.
- Page 6 The solar input supports an 11-60V solar charger with an XT-60 connector. If you use an 11-32V solar charger, the current supports 10A max. When you use a 32-60V solar charger, the current supports 12.5A max. We recommend using Anker solar panels (200W or 400W) for the best compatibility.
-
Page 7: Specifications
Specifications Specifications are subject to change without notice. Cell Capacity 1056Wh AC Input Voltage 120V~ 12A Max, 60Hz AC Input Power (Charging) 1000W Max AC Input Power (Bypass Mode) 1440W Max AC Input Power (UltraFast Recharging) 1300W Max Solar Panel Input 11-32V 10A;...
Need help?
Do you have a question about the SOLIX C1000 and is the answer not in the manual?
Questions and answers
what power air fryer ie.1000 0r 1300 watt can i uses with the solix 100
The Anker SOLIX C1000 has an 1800-watt inverter, meaning it can handle devices up to 1800 watts. Since both 1000-watt and 1300-watt air fryers are below this limit, they are compatible with the Anker SOLIX C1000.
This answer is automatically generated
@Mr. Anderson
@peter myers
how to turn on the first time out of the box do I need to charge first?
To turn on the Anker SOLIX C1000 for the first time, you need to charge it first. The back of the device has a label indicating that you must recharge the power station to activate it before first use. Plug in the power cord, and once connected, the display will activate, and charging will begin.
This answer is automatically generated
For a c1000 car charger to function properly, what MINIMUM / MAXIMUM POWER CAPACITY SPECS does the CAR cigarette outlet need to have? (Watts / amps/ volts, etc.) After just a couple weeks of powering my new C1000 with my car’s cigarette outlet, it’s blown a fuse, then that outlet stopped working (fuse is fine), & now, the car charger that came with the C1000 doesn’t work at all. Right now, AC & solar charging are not options for me. I’ll probably need to add a 2nd battery + an automatic relay with start isolation, but the small Prius AGM batteries only have 45 Ah / 540W, & I don’t know if that will be enough power for the C1000 car charger. So before I modify anything, I need to know what power the C1000 car charger needs, & then replace the new car charging cable that no longer works. And if there’s a setting in the app that can resolve this, I need to know where to find it & how to operate it. Thanks
The Anker SOLIX C1000 car charger requires a power input of at least 120 watts to function properly. To initiate charging, the car charging device must first be inserted, and then the car charger button switch must be turned on. Failure to do so may trigger overload protection. The exact voltage and current specifications for car charging are not provided.
This answer is automatically generated
Anker solex 1000 does not light up unless plugged in
The Anker SOLIX C1000 may not light up unless it is plugged in due to a possible malfunction or a depleted battery. One user reported that their unit appeared completely dead out of the box and would not turn on or charge via AC power. Another user mentioned issues with a firmware update, where plugging it in resulted in an audible click and screen flash but did not maintain Bluetooth or WiFi connections. These issues suggest potential battery, firmware, or internal power circuit problems.
This answer is automatically generated
Hello we have 4, 12 vault appliances in our campervan, lights, a ****, a fridge and a water pump. We would like to run these from an anker solix C1000. Which is the best way to contect these up. We can not find any advice anywhere. Please.
The Anker SOLIX C1000 has 11 versatile ports, allowing you to connect multiple appliances. To connect four 12-volt appliances, including lights, a fridge, and a water pump, follow these steps:
1. Check Available Ports: The power station likely has a 12V DC output (such as a car socket or DC barrel ports).
2. Use a DC Splitter: If there is only one 12V DC output, use a multi-port DC splitter to connect multiple devices.
3. Verify Power Requirements: Ensure the total wattage of all connected appliances does not exceed the 12V DC output limit.
4. Connect Appliances: Plug each device into the appropriate DC port or use adapters if necessary.
5. Monitor Power Usage: Use the Anker app to track power consumption and adjust as needed for optimal performance.
This setup allows safe and efficient use of the Anker SOLIX C1000 for your 12-volt appliances.
This answer is automatically generated
Why does display on c1000 show a 1
