BMS 3000 OBLC
Automatic Turret Digital Display Brinell Hardness Tester
BMS Bulut Makina Sanayi ve Ticaret Ltd. Şti.
Kocaeli KOBİ Organize Sanayi Bölgesi
Köseler Mahallesi, 6.Cadde No: 20/2 Dilovası / KOCAELİ / TURKEY
Phone: +90 262 502 97 73-76 / +90 262 503 06 51
Web:
www.bulutmak.com
e-mail:
bms@bulutmak.com
Advertisement
Related Manuals for Bms Bulut Makina BMS 3000 OBLC
Summary of Contents for Bms Bulut Makina BMS 3000 OBLC

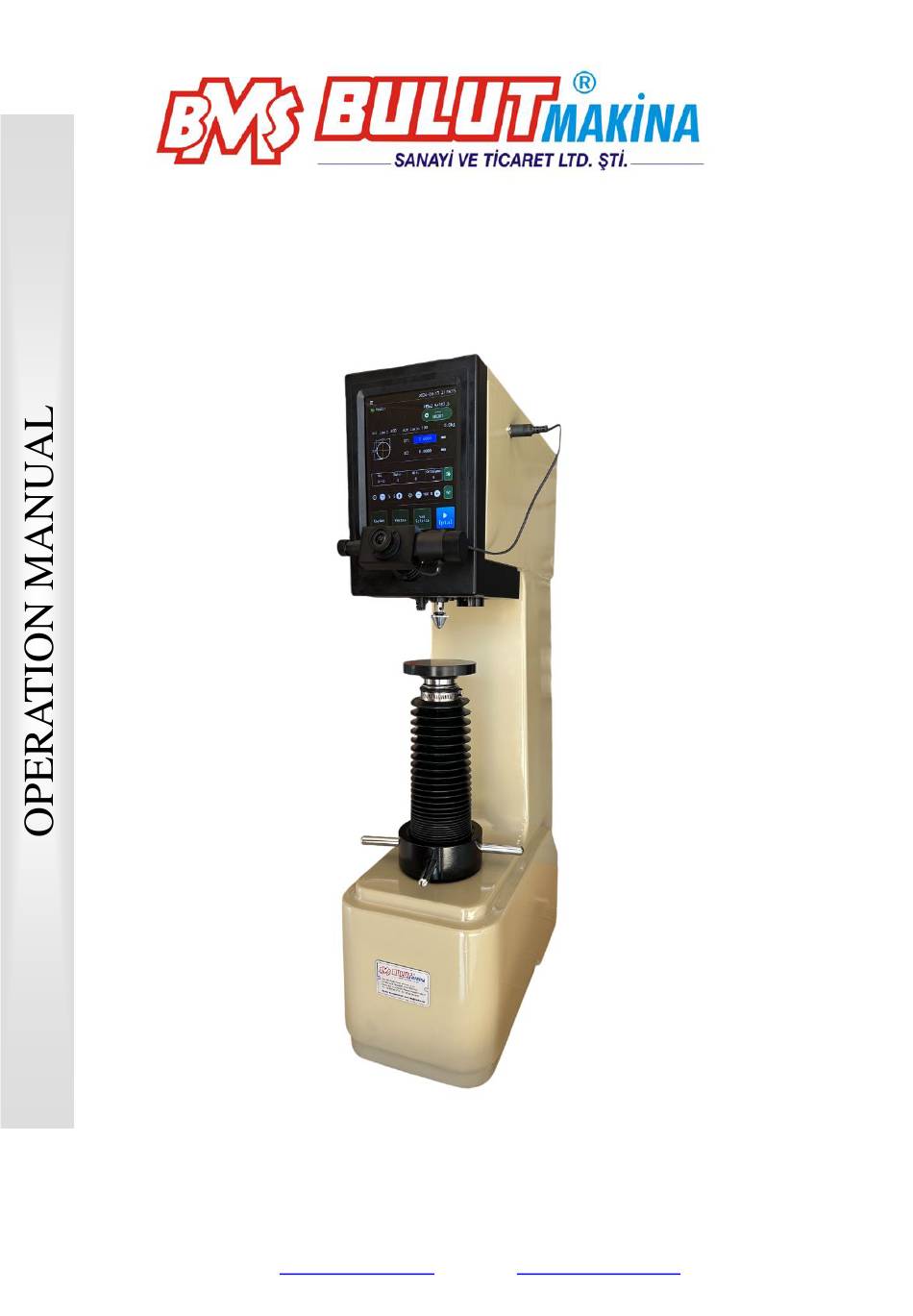

- Page 1 BMS 3000 OBLC Automatic Turret Digital Display Brinell Hardness Tester BMS Bulut Makina Sanayi ve Ticaret Ltd. Şti. Kocaeli KOBİ Organize Sanayi Bölgesi Köseler Mahallesi, 6.Cadde No: 20/2 Dilovası / KOCAELİ / TURKEY Phone: +90 262 502 97 73-76 / +90 262 503 06 51 Web: www.bulutmak.com...
- Page 2 Technical specifications ..............................3 Basic configuration and structure ............................3 Standard configuration .............................. 3 The structure of the machine ............................ 3 Panel diagram ................................4 Functional area introduction ............................. 4 Testing ....................................5...
- Page 3 1 Technical specifications Test loads: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000 Kg Carbide ball indenters: φ2.5mm, φ5mm, φ10mm. Test load retention time: 5-99 S. Maximum working height: 280mm. Test loads selection: Automatic Test Loads application: Automatic, Closed loop Distance from indenter center to machine wall: 150mm Power supply: AC220V 2A 50Hz Dimension of hardness tester (L×W×H): 520×220×920mm...
-
Page 4: Panel Diagram
2.3 Panel diagram The panel display mainly includes: hardness value display and test status, test force and indenter diameter setting (test force setting), measurement diameter display, holding time setting, data save, historical data, hardness value conversion, start testing, brightness control, Brinell Indenter control, Brinell measurement control, print, delete. 2.4 Functional area introduction [Hardness value display and test status]: Display the loading, dwelling, unloading and hardness value. - Page 5 3 Testing Put the tested piece on the workbench, observe the micrometer and rotate the hand wheel at the same time until a clear object surface is seen in the micrometer, press the start button on the screen, the objective lens and the indenter will automatically switch, and the device will start loading.
