BMS 200-RBOV
ROCKWELL, BRINELL&VICKERS
HARDNESS TESTER
BMS Bulut Makina Sanayi Ve Ticaret Ltd. Şti.
İkitelli Organize Sanayi Bölgesi Dolapdere Sanayi Sitesi
Ada 4 No : 7-9 Başakşehir / İSTANBUL-TURKEY
Phone : +90 212 671 02 24 / 671 02 25 Fax : +90 212 671 02 26
web :
www.bulutmak.com
e-mail :
bms@bulutmak.com
Advertisement
Table of Contents
Related Manuals for Bms Bulut Makina BMS 200-RBOV
Summary of Contents for Bms Bulut Makina BMS 200-RBOV

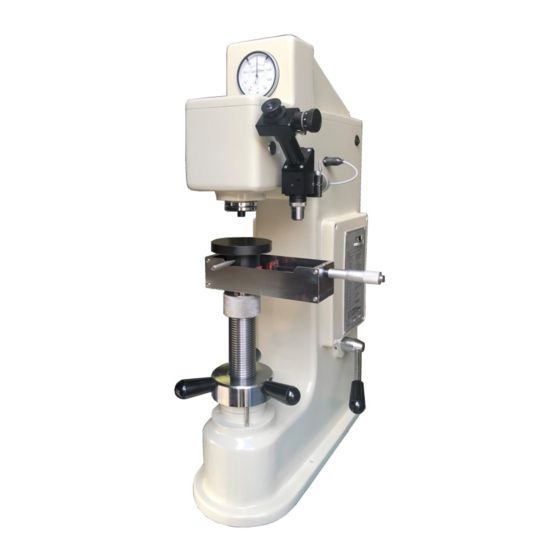

- Page 1 BMS 200-RBOV ROCKWELL, BRINELL&VICKERS HARDNESS TESTER BMS Bulut Makina Sanayi Ve Ticaret Ltd. Şti. İkitelli Organize Sanayi Bölgesi Dolapdere Sanayi Sitesi Ada 4 No : 7-9 Başakşehir / İSTANBUL-TURKEY Phone : +90 212 671 02 24 / 671 02 25 Fax : +90 212 671 02 26 web : www.bulutmak.com...
-
Page 2: Table Of Contents
Vickers Hardness Testing (EN-6507-1, ASTM E-92) ................7 Setting into Operation for Vickers Hardness Testing ................8 Samples of Readings ..........................9 Test Method ............................10 Brinell HB Ø 2, 5 ..........................11 Vickers HV 30 ............................12 Operation BMS 200-RBOV 2 / 13 Rev:00 Manual... - Page 3 ON/OFF BUTTON FOR ILLUMINATION BULB (24 VOLT 5 WATT) OPTICAL SYSTEM INDENTER TESTING TABLE LOAD SELECTOR LEVER OF SILIDING TABLE MICROMETER OF SLIDING TABLE SILIDING TABLE ELEVATING SCREW LOAD APPLICATION LEVER QUICK LIFT LEVER Operation BMS 200-RBOV 3 / 13 Rev:00 Manual...
-
Page 4: Technical Features
Allen Spanner : 1 Instruction Manual : 1 Calibration Certificate : 1 2.1 Optional Accessories 1/8”, 1/4”, 1/2" ball indenters 250,200,130, 100 mm test tables Spot testing anvil Spring loaded clamping device Operation BMS 200-RBOV 4 / 13 Rev:00 Manual... -
Page 5: Unpacking Of Equipment
(A1) 7 Rockwell Hardness Testing (EN 6508-1,ASTM E18) Rockwell Hardness testing method is evaluated from penetration depth of 120° diamond cone or ball indenter with different dias (please refer to table enclosed). Operation BMS 200-RBOV 5 / 13 Rev:00 Manual... - Page 6 Depth of penetration under additional load, mm Increase in depth of penetration from F to F , mm Equality as of 0,002 mm increase of depth of penetration e= tb / 0,002 HRB/HRF Rockwell hardness= 130-e Operation BMS 200-RBOV 6 / 13 Rev:00 Manual...
-
Page 7: Brinell Hardness Testing (En 6506-1, Astm E10)
8 Brinell Hardness Testing (EN 6506-1, ASTM E10) Brinell hardness testing method is made by different balls depending (for BMS 200-RBOV only 2, 5 mm ball) on material type, thickness and loads applied. Diameters of ball indentations can be evaluated by optical system built-in hardness tester. -
Page 8: Setting Into Operation For Vickers Hardness Testing
One line of eyepiece micrometer is 0,001 mm. 100X3 = 300, Plus 45 unit shown on micrometer. Total = 300 + 45 =345.Total value = 345 X 0,001 = 0,345 From the related table 467 HV30 obtained. Operation BMS 200-RBOV 8 / 13 Rev:00 Manual... -
Page 9: Samples Of Readings
12 Samples of Readings Operation BMS 200-RBOV 9 / 13 Rev:00 Manual... -
Page 10: Test Method
For metals with very low hardness and for very thin HR30X 1/4" ball cases,for example thin linings of antifriction metals,HRX and HRY especially for sintered metals HR45X HR15Y HR30Y 1/2" ball HR45Y Operation BMS 200-RBOV 10 / 13 Rev:00 Manual... -
Page 11: Brinell Hb Ø 2, 5
14 Brinell HB Ø 2, 5 Operation BMS 200-RBOV 11 / 13 Rev:00 Manual... -
Page 12: Vickers Hv 30
15 Vickers HV 30 18.1 Vickers HV 30 Operation BMS 200-RBOV 12 / 13 Rev:00 Manual... - Page 13 Operation BMS 200-RBOV 13 / 13 Rev:00 Manual...
